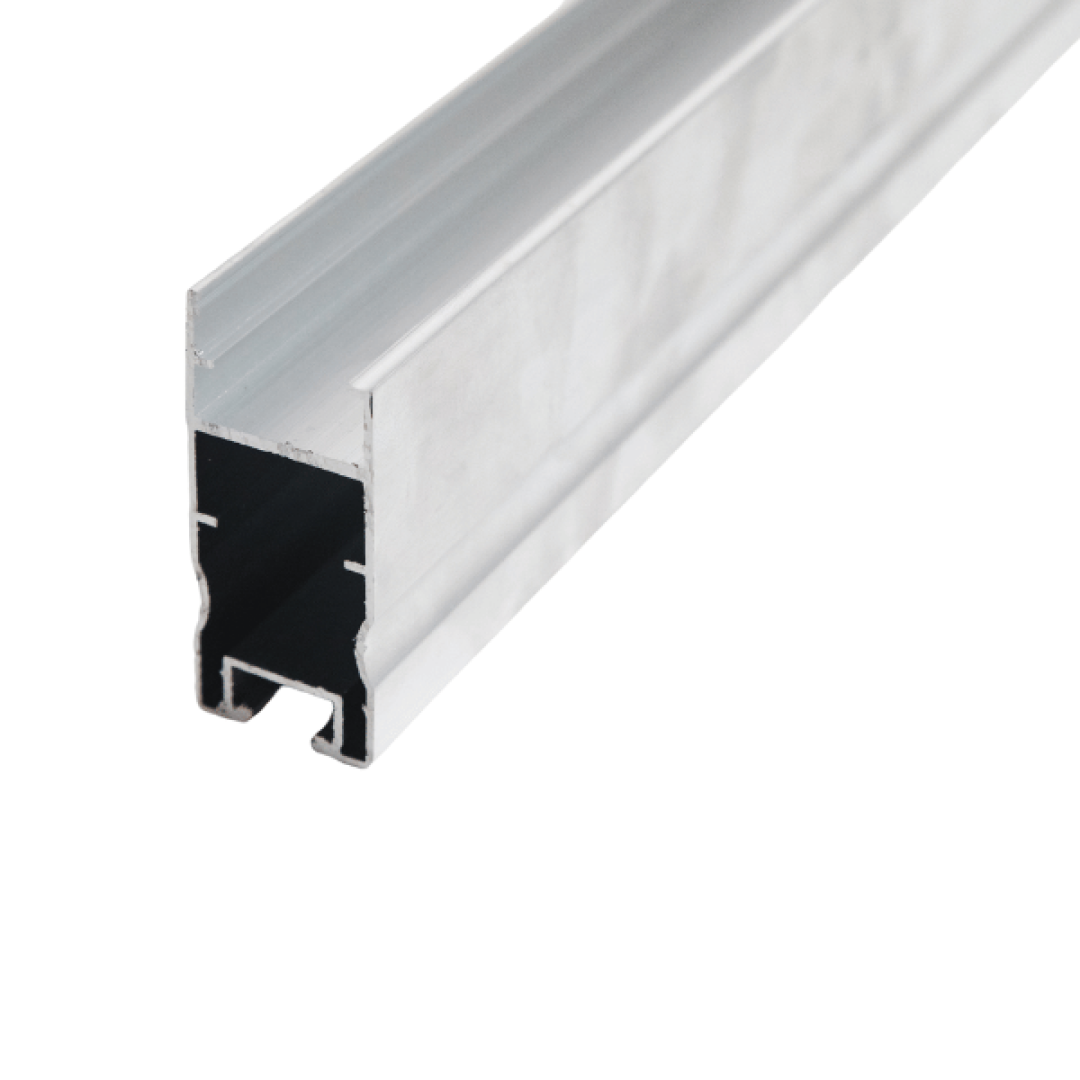

Schletter Rail FixZ Pro 4400mm
SCHLETTER
Schletter - FixZ Pro rail 4400mm
About Schletter Fix Z Pro
- Suitable for pitched roofs, flat roofs, and barrel roofs
- Ideal for metal roofs: trapezoidal, corrugated, Kliplok
- Slight increase at the upper module support in 90 mm increments
THE AFFORDABLE ADDITIONAL GIRDER
For metal roofs with a slope of less than 10°, installing modules parallel to the roof may not be ideal for maximum yield and optimal self-cleaning. Conventional support by struts is also often impossible or uneconomical because of the higher loads.
In such cases, flat elevation angles – such as can be achieved with FixZ Pro – offer a universal, extremely flexible and cost-effective solution with ideal load transfer into the roof covering.
TECHNICAL DETAILS
- Field of application - Sheet metal roofs (trapezoidal, corrugated, Kliplok)
- Material - Profile: Aluminum
- Planning aid - Configuration and static dimensioning via the Schletter Configurator
- Statics - Spanning tables available to suit AUST/NZ standard
- Connection
- Top: FixGrid Pro single-click connection
- Bottom: M10 screw channel
- Warranty - 25 years in accordance with Schletter warranty terms
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Schletter:
The Schletter Group is one of the world’s leading manufacturers of solar mounting systems. They develop and manufacture mounting solutions made of Aluminum and steel for solar farms, flat roofs and pitched roofs. The Schletter Group supports solar and everything it stands for – with robust PV system mounts, proven performance, an experienced team, and a belief in the enduring value solar offers humanity.
