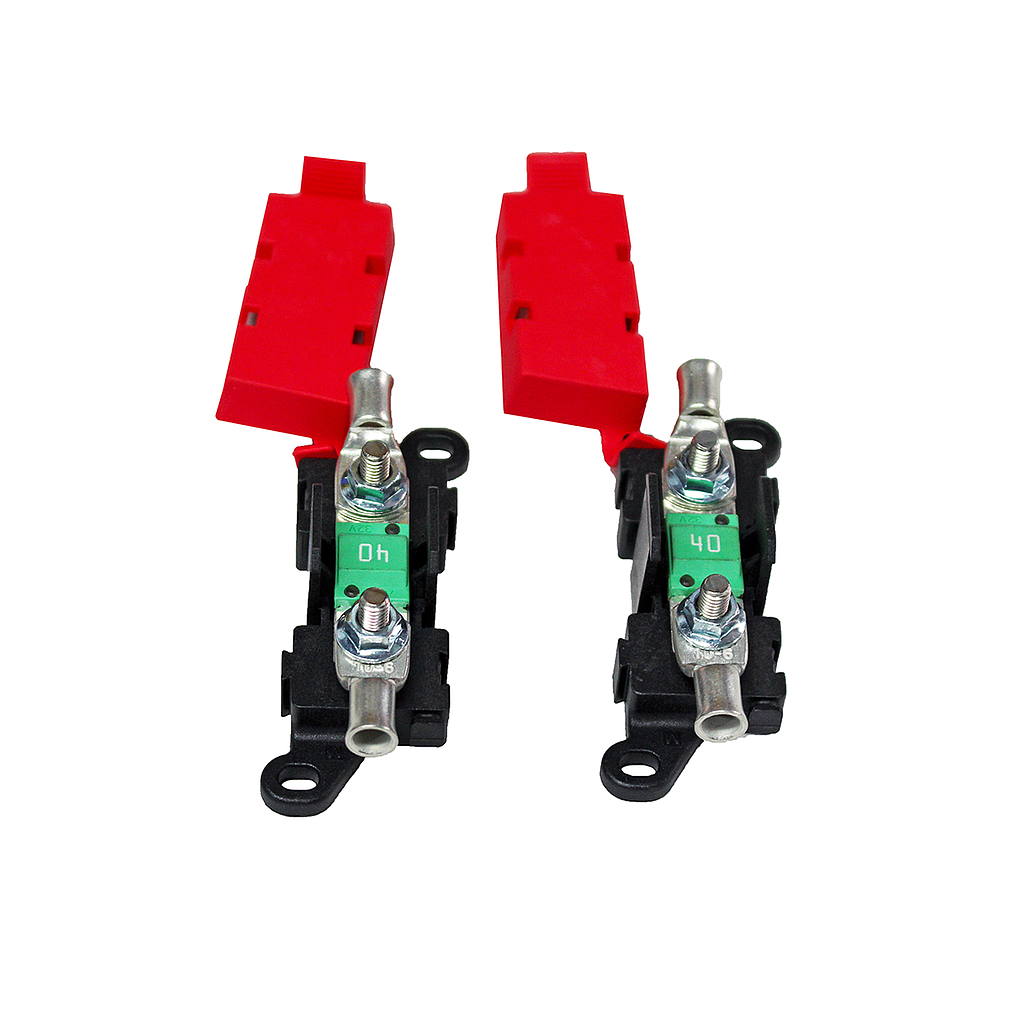

Alvolta AMI/Midi 40A Fuse Kit

Alvolta AMI40 Fuse kit:

One of the most common failures with dual battery installations is a failure of the fuse/holder. Poor quality fuse holders often don’t make adequate contact with the fuse which can allow dirt and dust to get in between the contact points. This causes excess heat to be generated due to the high resistance. This excess heat can be enough to melt the fuse and the holder. Even if the fuse holder doesn’t melt, you could be losing valuable charge to heat dissipation. As a result this could cause no charge to your auxiliary battery. This situation is usually diagnosed as a blown fuse however it is more likely attributed to a poor quality fuse holder.

Our fuse kits use the best quality Alvolta fuses and fuse holders designed to fit the cable required for the specified current. We also have circuit breaker kits available in auto & manual reset circuit breakers.

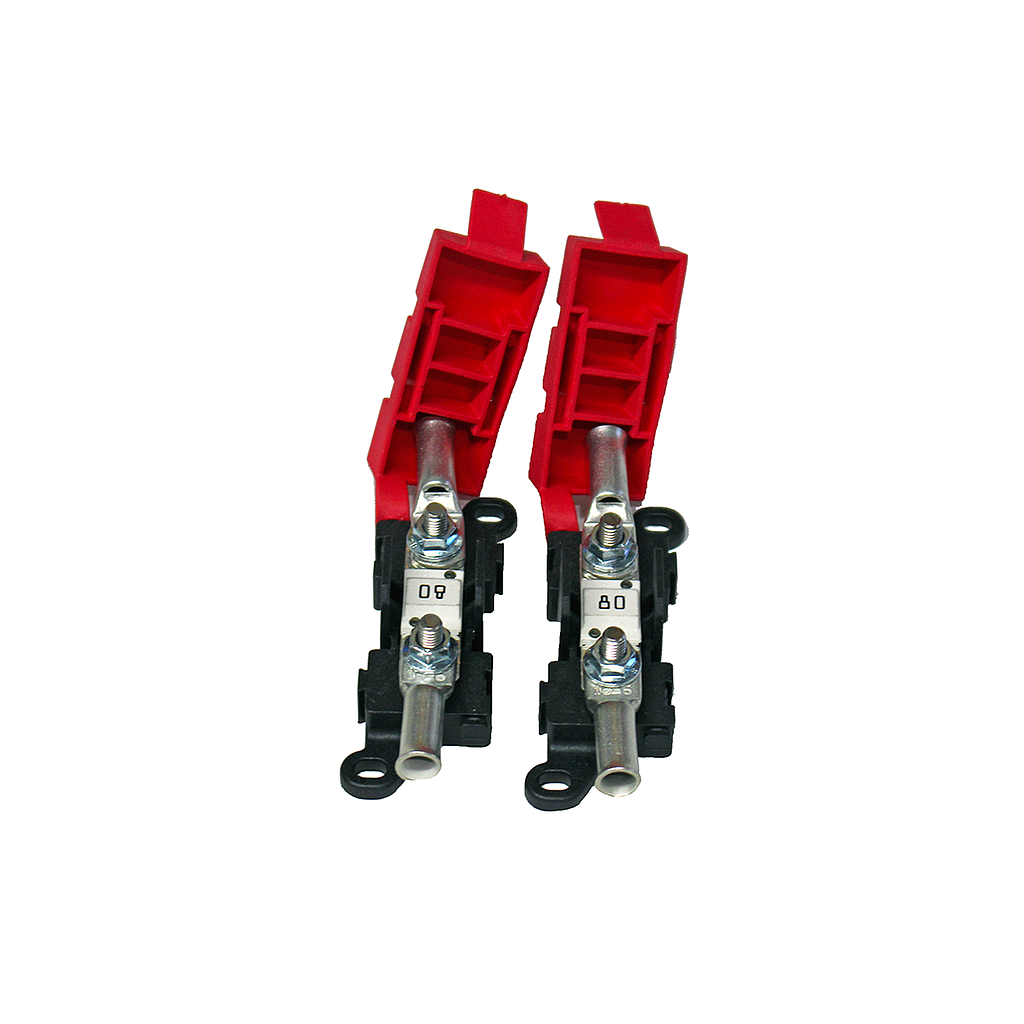

Kit Includes:

- 2x Alvolta LMI fuse holders

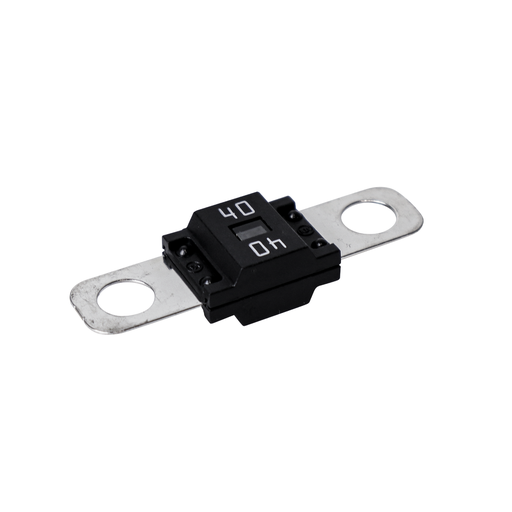

- 4x Alvolta 40A AMI fuses (2x spare fuses)

- 4x 10-6 copper crimp lugs (suits up to 10mm2 cable / 6mm stud)

The AMI40 fuse kit is suitable for:

- Redarc BCDC1220

- Redarc BCDC1225

- Redarc BCDC1225D

- Small inverters

- Small DC loads
