Alvolta 4 Way AMG/Mega Fuse Holder

(0 review)

4-way quad fuse holder for AMG/Mega fuses with M8 terminal posts and a protective cover.

$ 29.94 - Inc GST 29.94 AUD $ 49.90 40.00 % OFF

This combination does not exist.

ADD TO CART Buy now

LawntonIn stock

CapalabaIn stock

ALVOLTA

Shipping information

30-day returns & refunds

Ships from Brisbane

Category: Circuit Protection, Fuse & Fuse Holder, Fuse, Fuse Holder, Distribution

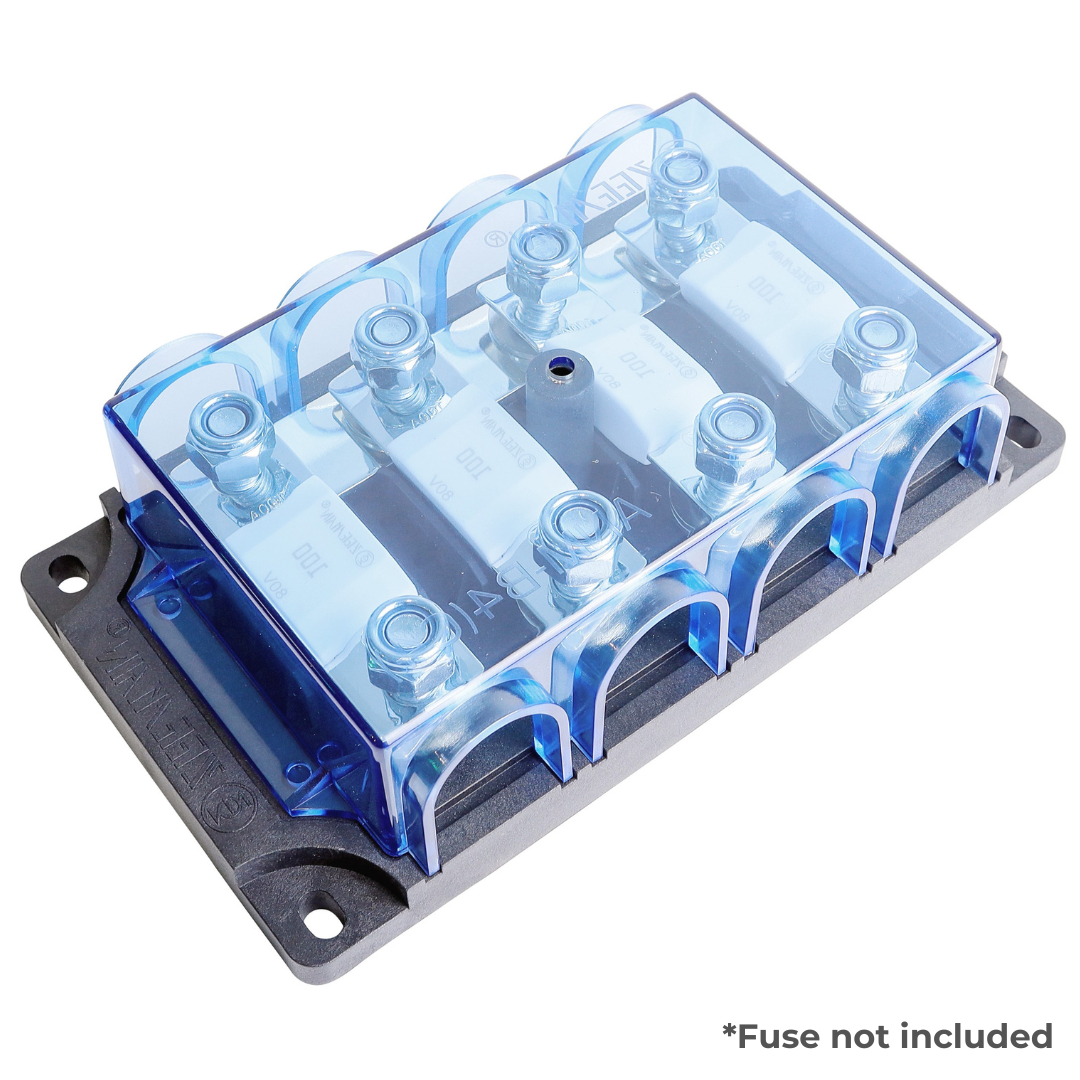

Alvolta 4-Way AMG/Mega Fuse Holder with Cover

Features

Fuse holder suitable for AMG/Mega fuses
4-way quad fuse holder
M8 stainless steel terminal posts
Protective cover
Plastic compound composed of PA66 + 30FR for superior stiffness and impact resistance
Thermal and flame retardant
Maximum voltage 32V DC
Maximum current 500 A
Two M8 mounting holes

*Fuse is not included.

Where to use it

Alvolta fuse holders are designed to securely hold your fuses in high-current applications, which makes them ideal for battery and alternator connectors and other heavy-gauge cables requiring ultra-high protection.

Pair with

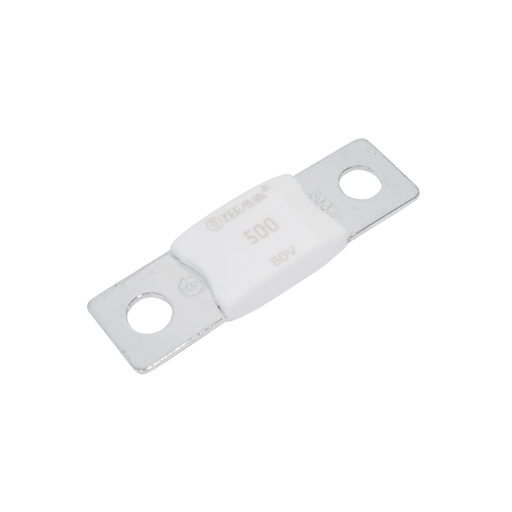

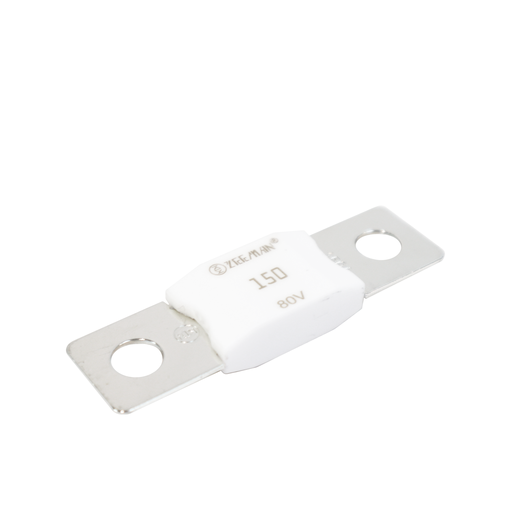

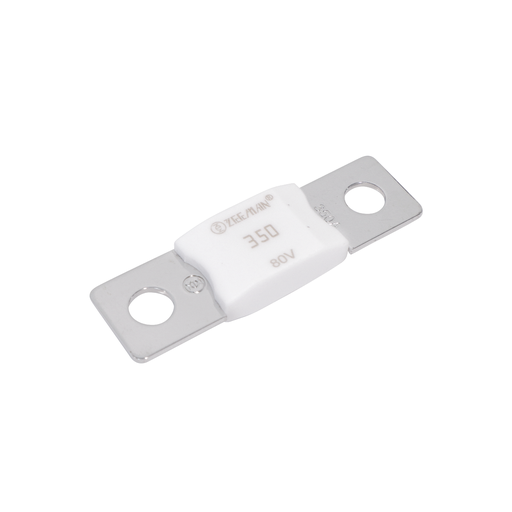

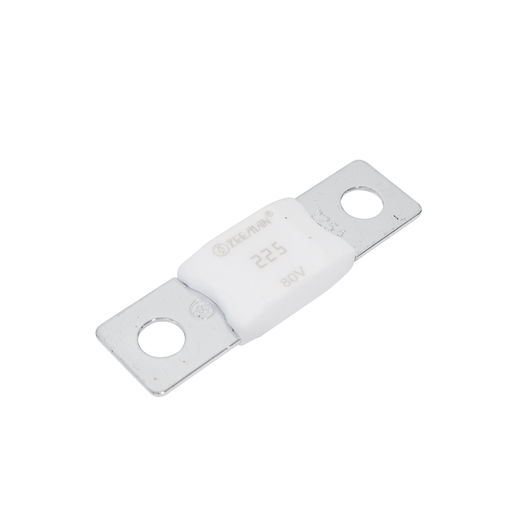

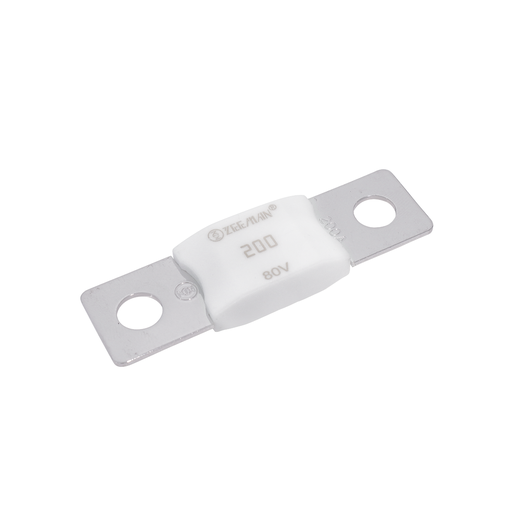

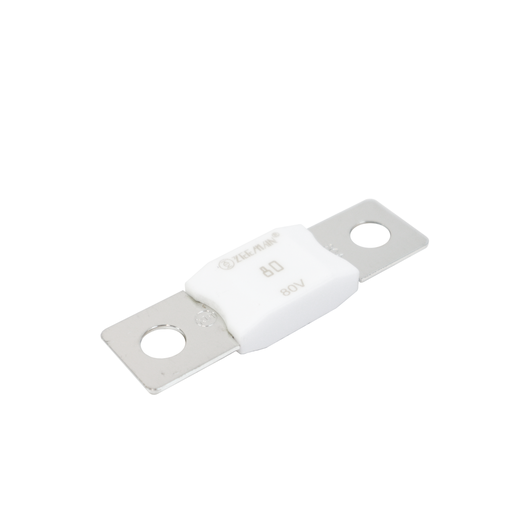

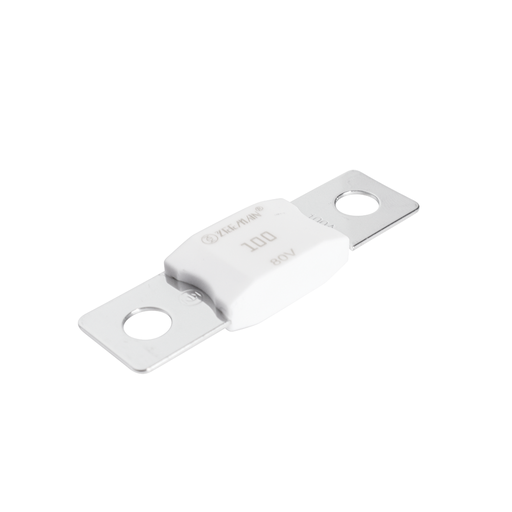

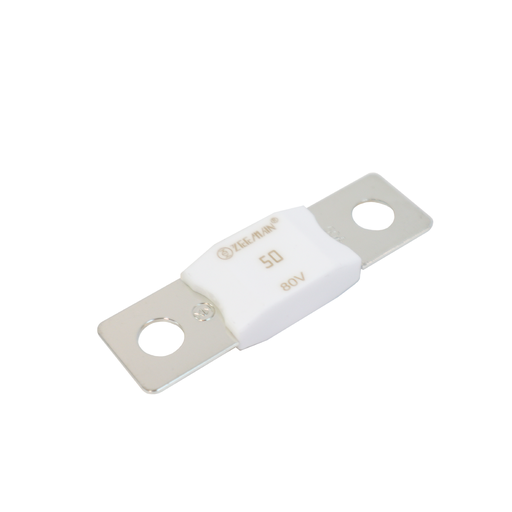

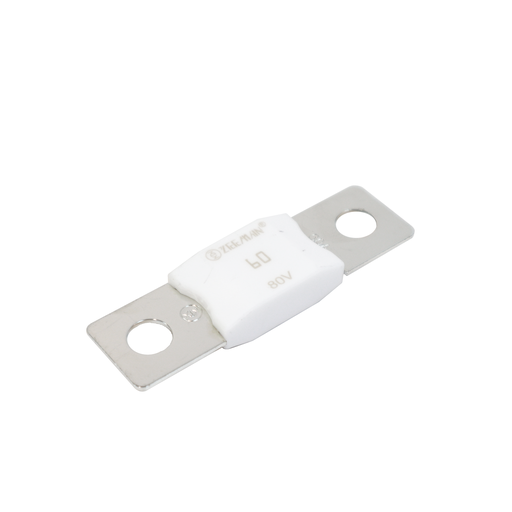

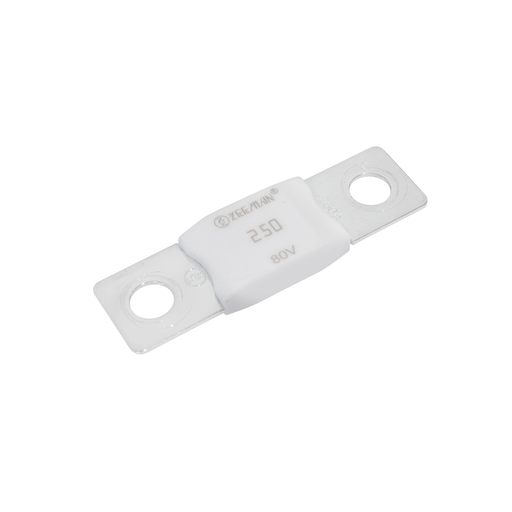

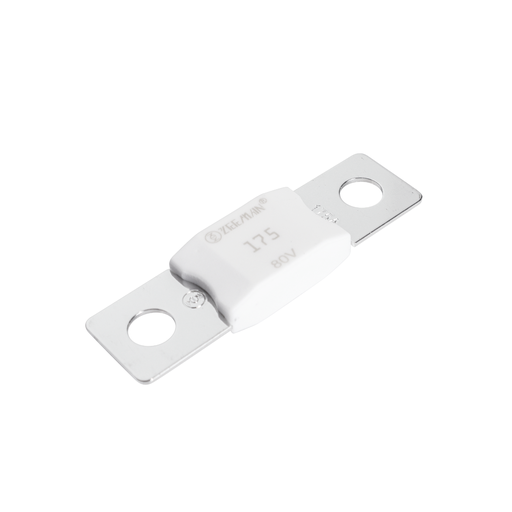

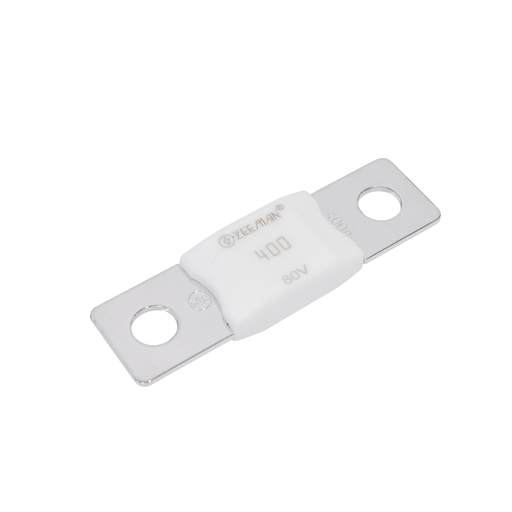

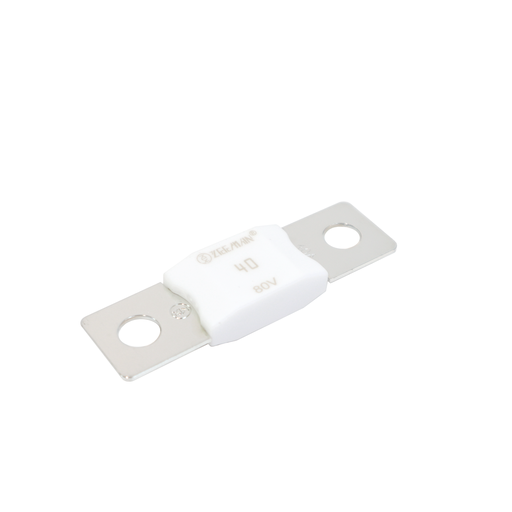

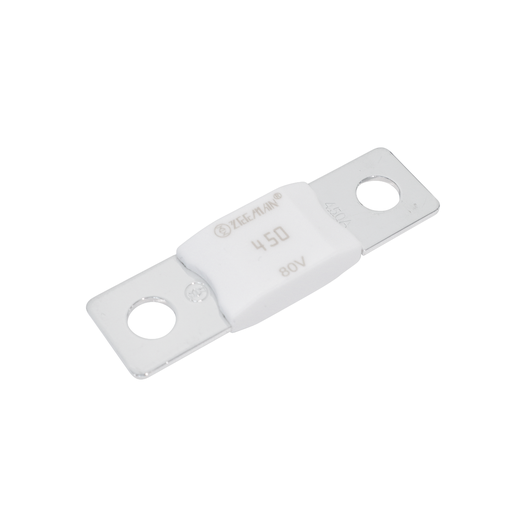

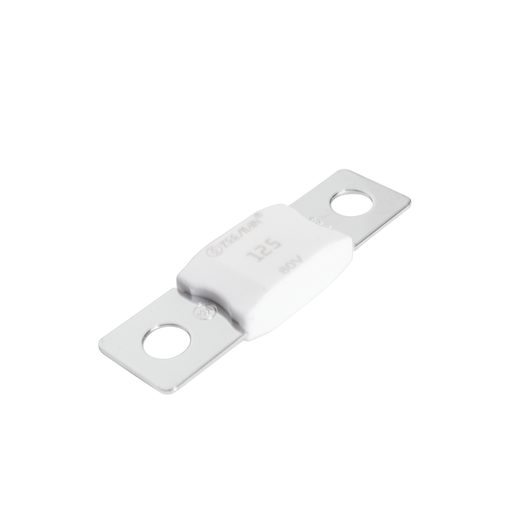

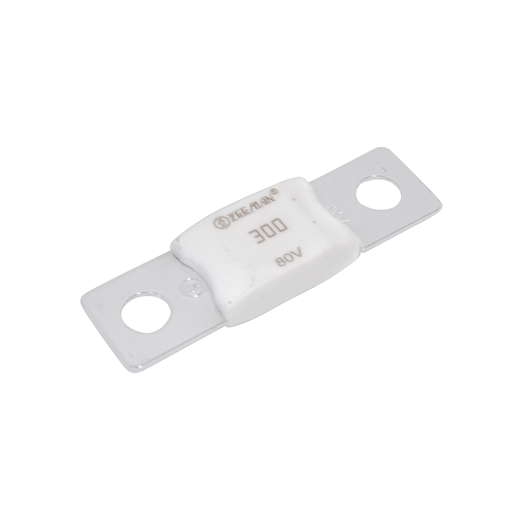

The Alvolta AMG/Mega fuse range.

Fuse guides

fuse guide chart based on cable size and fuse type

fuse holder guide

Dimensions

Length	170 mm
Width	95 mm
Depth	50 mm
Weight	0.46 kg

Warranty

3-year warranty

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_AMG-AH4_V2_compressed.pdf

Download

AMG (also known as Mega) fuses are high-current fuses designed to protect heavy-duty electrical systems from overloads and short circuits. They’re commonly used in 12V and 24V DC applications such as dual battery systems, inverters, DC-DC chargers, and other high-amperage accessories found in 4WDs, caravans, camper trailers, and boats.

Select a fuse rated slightly higher than your circuit’s maximum continuous current draw, but below the current rating of your wiring and connected components. For example, if your inverter draws 120A, you’d typically use a 150A fuse. Always ensure your cable size and fuse rating match to prevent overheating or nuisance tripping.

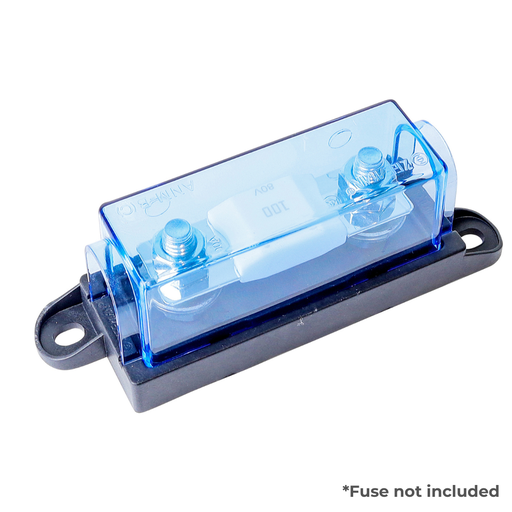

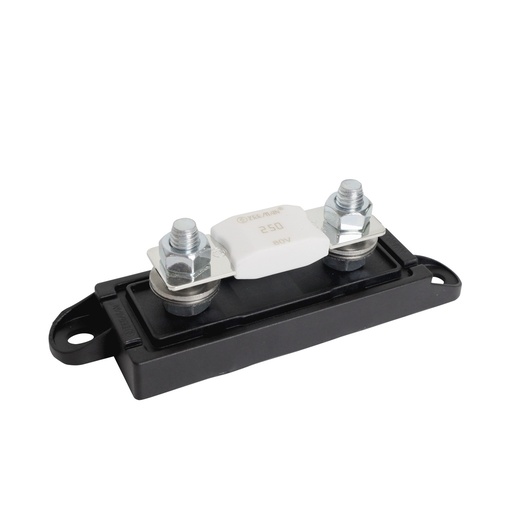

AMG (also known as Mega) fuse holders are designed to secure and protect high-current fuses used in heavy-duty DC electrical systems. They're ideal for safely housing fuses that protect batteries, inverters, and other high-load components in solar, marine, and automotive applications.

These holders are specifically designed for AMG/Mega-style bolt-down fuses, typically rated from 100 A to 500 A. Always check the current rating and size of your fuse to ensure proper fit and protection for your circuit.

Yes. Quality AMG/Mega fuse holders are made from heat-resistant, flame-retardant, and other durable materials with secure mounting bases and protective covers, making them suitable for outdoor, vehicle, and marine environments where vibration and exposure are common.

Product Specifications

Fuse Type	AMG/Mega Fuses
Maximum Voltage	32V DC
Maximum Current	500 A
Operating Temperature	-40 °C to +120 °C
Mounting Torque	13 N.m
Terminal Type	M8 Studs
Insulating Body	Plastic PA66 + 30FR
Cover	Translucent Plastic
Bolt	M8 Steel
Nut	M8 Steel
Flat Washer	H62 Copper
Spring Washer	304 Stainless Steel
Fuse Holder Mounting Block	M5 x L
Colour	Black and Translucent Blue
Dimensions	170 x 95 x 50mm
