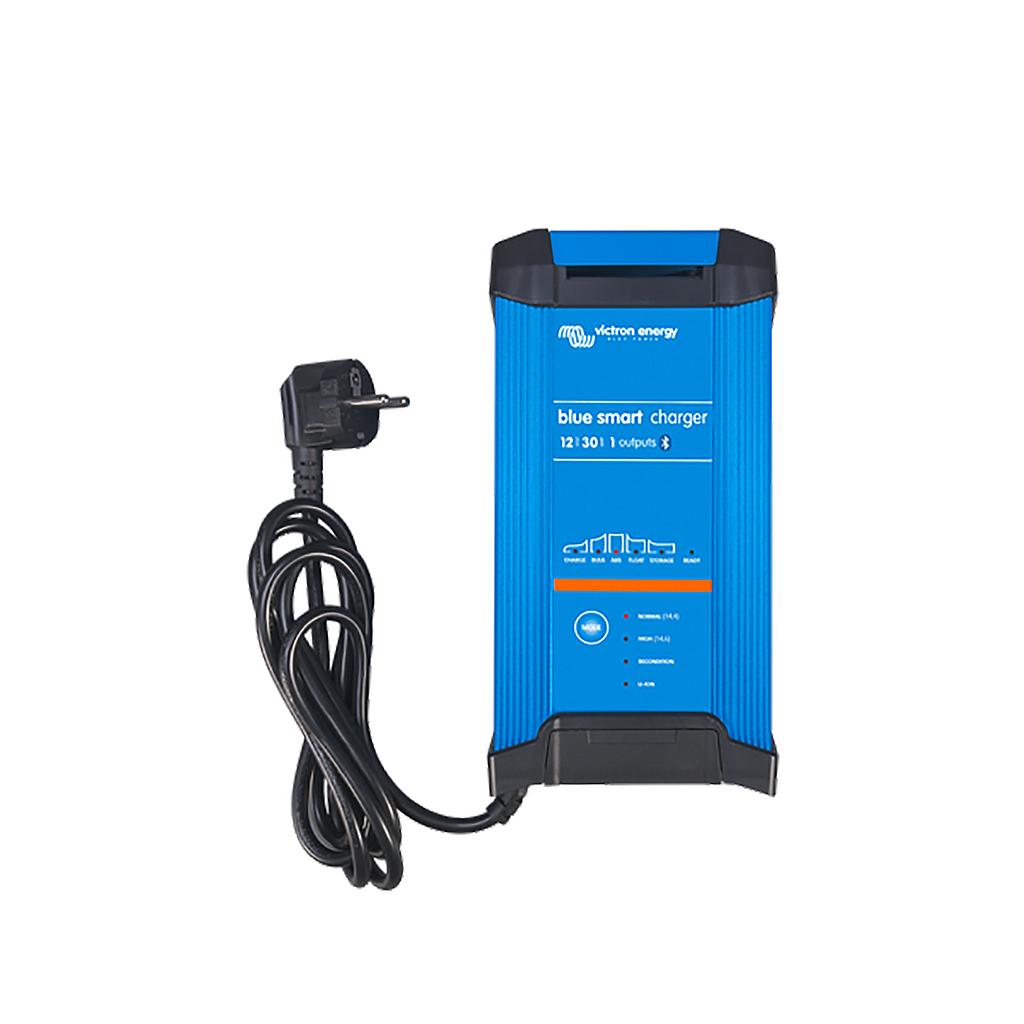

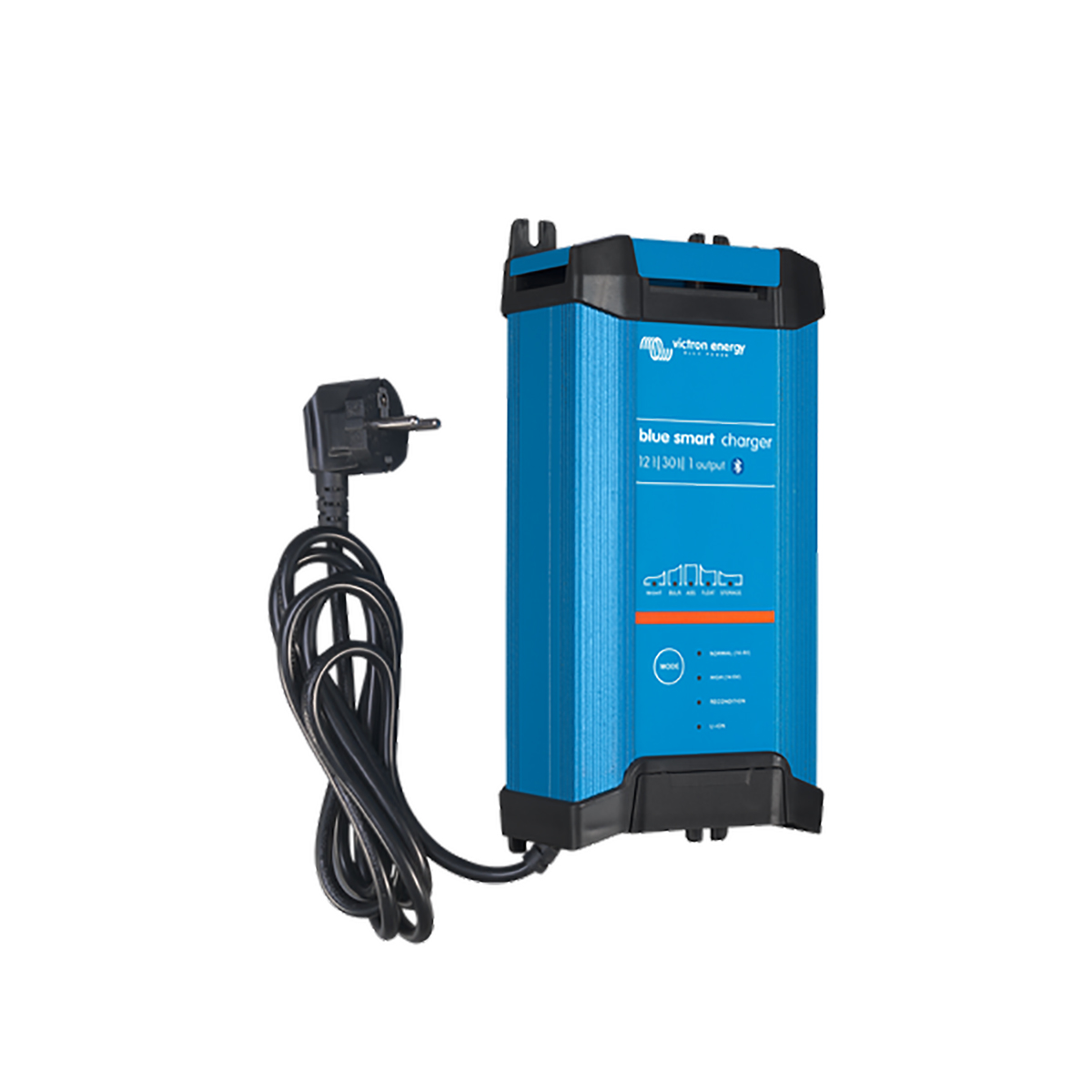

Victron Blue Smart IP22 Charger 12/30 (1)

BLUE SMART IP22 CHARGER 12/30(1) 230V AU

Victron Blue Smart IP22 Charger 12/30 (1)

(0 reviews)

12 V 30 A Bluetooth battery charger with a single output, for lead-acid and lithium batteries

$ 263.24 - Inc GST 263.24 in stock AUD $ 263.24 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Battery Chargers, AC Chargers, AC Chargers

SKU: BPC123047012

Victron Blue Smart IP22 Charger 12/30 (1)

Features:

12 V, 30 A battery charger with a single output
Built-in Bluetooth: monitor, set up and update with the VictronConnect app
93% efficient, with 0.5 W no-load power use
Adaptive 6-stage charge algorithm: test, bulk, absorption, recondition, float, storage
Charges lead-acid (AGM, gel, flooded) and lithium (LiFePO4) batteries
NIGHT and LOW modes cut output to 15 A for silent charging
Recovers fully discharged batteries, including lithium batteries with an internal disconnect
VE.Smart Network: pairs with a Smart Battery Sense, SmartShunt or Smart Battery Monitor for voltage, temperature and current sensing
Synchronises with up to 10 chargers for parallel charging
Can be used as a 12 V power supply
Supplied with an AU/NZ 240 V plug lead

Where to use it

Use the Blue Smart IP22 12/30 as a mains battery charger for 12 V batteries in caravans, motorhomes, boats, workshops and off-grid backup systems. It suits indoor or sheltered locations (IP22).

With 30 A of output it is a good fit for larger house batteries and lithium banks, and storage mode keeps batteries healthy between trips by dropping to a lower float voltage and running a weekly refresh charge.

What's in the box

Blue Smart IP22 Charger 12/30 (1)
1.5 m 240 V AC lead with AU/NZ plug
DC battery cable is not included (13 mm² / AWG6 terminals)

Dimensions

Height	235 mm
Width	108 mm
Depth	65 mm
Weight	1.3 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications:

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet_Blue-Smart-IP22-Charger-230-VAC-EN.pdf

Download

Manual_Blue_Smart_IP22_Charger-en (3).pdf

Download

You’ll need a lithium-compatible charger or solar controller with a LiFePO₄ charge profile. These chargers use the correct voltage settings (typically around 14.2–14.6V per 12V module) and ensure safe, efficient charging. Using the wrong charger can reduce performance or damage the cells.

Yes. Once the battery is full the charger moves to storage mode, which lowers the voltage to 13.2 V (12 V models) to reduce gassing and corrosion, then runs a short refresh charge once a week. It uses about 0.5 W when idle.

Both modes cut the output current to half of the rated current and make the charger completely silent. NIGHT mode switches off by itself after 8 hours; LOW mode stays on until you change it.

No. It comes with a 1.5 m 240 V lead with an Australian plug, but the DC battery cable is not included. The battery terminals take cable up to 13 mm² (AWG6); choose the cable size to suit the charge current and cable length.

Product Specifications

Input voltage range	180 – 265 VAC
Charge current, normal mode	30 A
Charge current, NIGHT or LOW	15 A
Efficiency	93%
No load power consumption	0.5 W
Frequency	45 – 65 Hz
Number of outputs	1
Charge voltage 'absorption'	Normal: 14.4V, High: 14.7V, Li-ion: 14.2V
Charge voltage 'float'	Normal: 13.8V, High: 13.8V, Li-ion: 13.5V
Charge voltage 'storage'	Normal: 13.2V, High: 13.2V, Li-ion: 13.5V
Charge algorithm	6-stage adaptive
Can be used as power supply	Yes
Protection	Battery reverse polarity (fuse) Output short circuit Over temperature
Operating temp. range	-40 to +60 °C (full rated output up to 40 °C)
Humidity (non-condensing)	Max 98%
Material & Colour	Aluminium (blue RAL 5012)

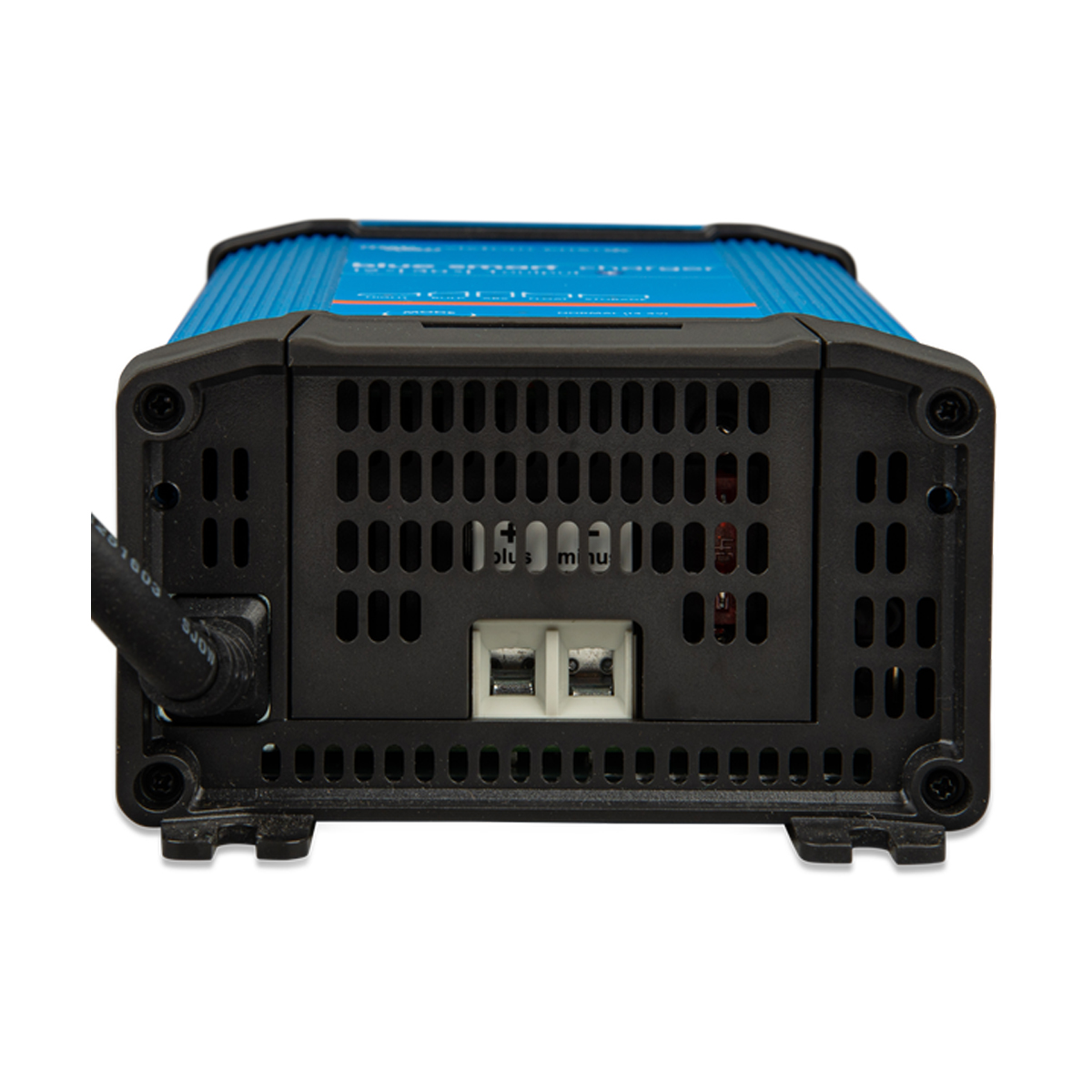

Battery connection	Screw terminals 13 mm² / AWG6
230 V AC connection	Cable of 1.5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
Protection category	IP22
Weight	1.3 kg
Dimensions	235 x 108 x 65 mm
Safety	EN 60335-1, EN 60335-2-29
Emission	EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity	EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Automotive	E4-10R
