Victron EasySolar 12/1600/70-16 MPPT 100/50
Features
- All-in-one solar power solution
- MPPT Solar Charge Controller
- AC Distribution
- An inverter/charger
- Easy to install with minimum wiring
All-in-one solar power solution
The EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software
Several software programs (Assistants) are available to configure the system for various grid-interactive or stand-alone applications. Please see http://www.victronenergy.nl/support-and-downloads/software/
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Accessory Products
![[ASS030140000] Victron Interface MK3-USB (VE.Bus to USB)](/web/image/product.product/1582/image_512/%5BASS030140000%5D%20Victron%20Interface%20MK3-USB%20%28VE.Bus%20to%20USB%29?unique=c6071b5)

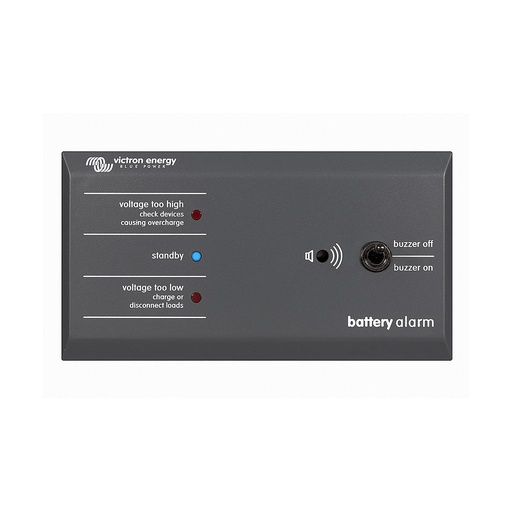

![[BPA000100010R] Victron Battery Alarm GX](/web/image/product.product/3474/image_512/%5BBPA000100010R%5D%20Victron%20Battery%20Alarm%20GX?unique=ff46b48)

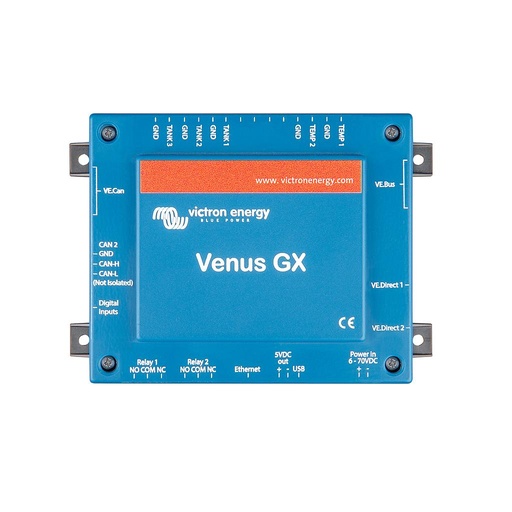

![[BPP900400100] Victron Venus GX](/web/image/product.product/1688/image_512/%5BBPP900400100%5D%20Victron%20Venus%20GX?unique=1c0c148)
Alternative Products
![[CEP121620000] Victron EasyPlus Compact 12/1600/70-16](/web/image/product.template/3157/image_512/%5BCEP121620000%5D%20Victron%20EasyPlus%20Compact%2012-1600-70-16?unique=2d82698)
![[CEP121620000] Victron EasyPlus Compact 12/1600/70-16](/web/image/product.template/3157/hover_image/%5BCEP121620000%5D%20Victron%20EasyPlus%20Compact%2012-1600-70-16?unique=2d82698)
![[CMP122160000] Victron MultiPlus Compact 12/1600/70-16](/web/image/product.template/1561/image_512/%5BCMP122160000%5D%20Victron%20MultiPlus%20Compact%2012-1600-70-16?unique=6b968e1)
![[CMP122160000] Victron MultiPlus Compact 12/1600/70-16](/web/image/product.template/1561/hover_image/%5BCMP122160000%5D%20Victron%20MultiPlus%20Compact%2012-1600-70-16?unique=6b968e1)
![[CMP122200000] Victron MultiPlus Compact 12/2000/80-30](/web/image/product.template/1567/image_512/%5BCMP122200000%5D%20Victron%20MultiPlus%20Compact%2012-2000-80-30?unique=6b968e1)
![[CMP122200000] Victron MultiPlus Compact 12/2000/80-30](/web/image/product.template/1567/hover_image/%5BCMP122200000%5D%20Victron%20MultiPlus%20Compact%2012-2000-80-30?unique=6b968e1)

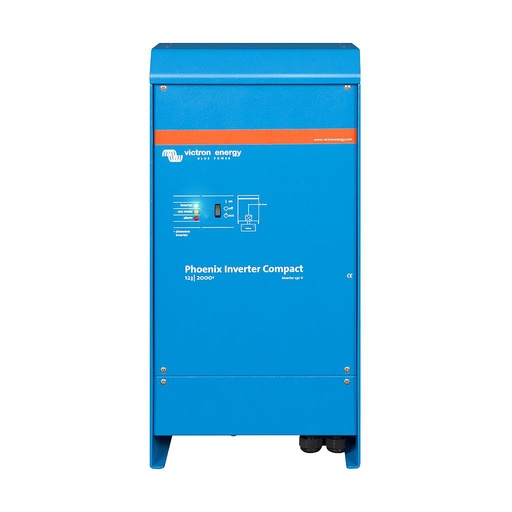

![[CIN122200000] Victron Phoenix Inverter Compact 12/2000](/web/image/product.template/3072/image_512/%5BCIN122200000%5D%20Victron%20Phoenix%20Inverter%20Compact%2012-2000?unique=6b968e1)
