Enerdrive DC2DC40+ & Victron SmartShunt 500A

Enerdrive DC2DC40+ & Victron SmartShunt 500A

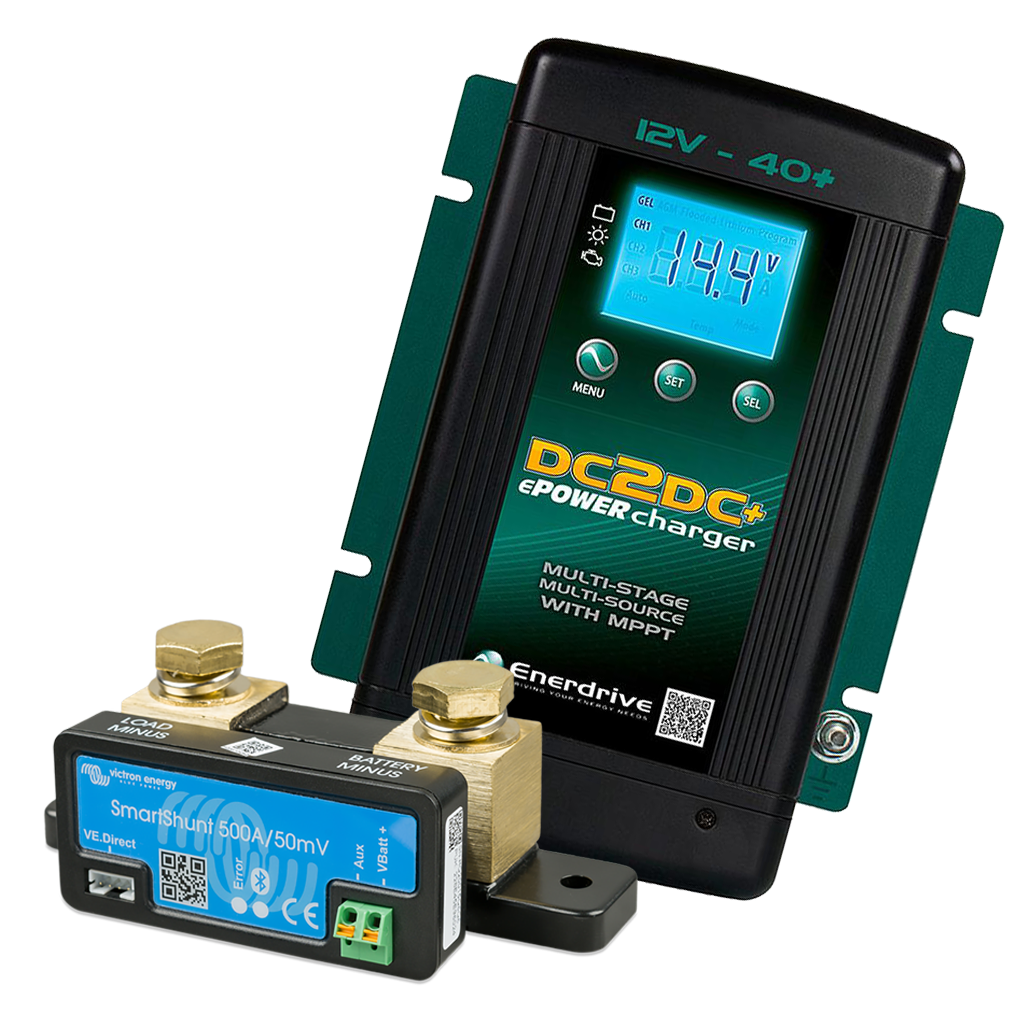

Bundle includes

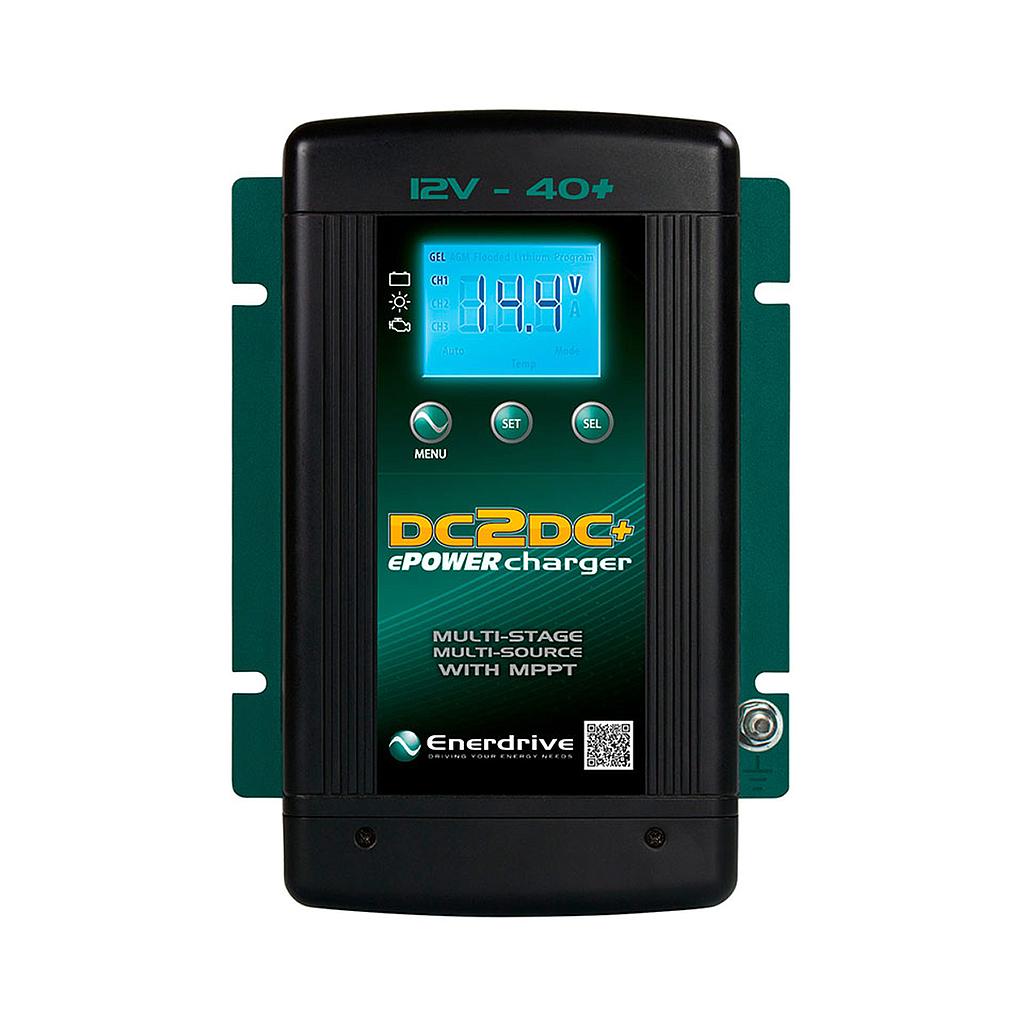

• Enerdrive ePOWER DC2DC+ 40A DC-DC charger with MPPT (EN3DC40+)

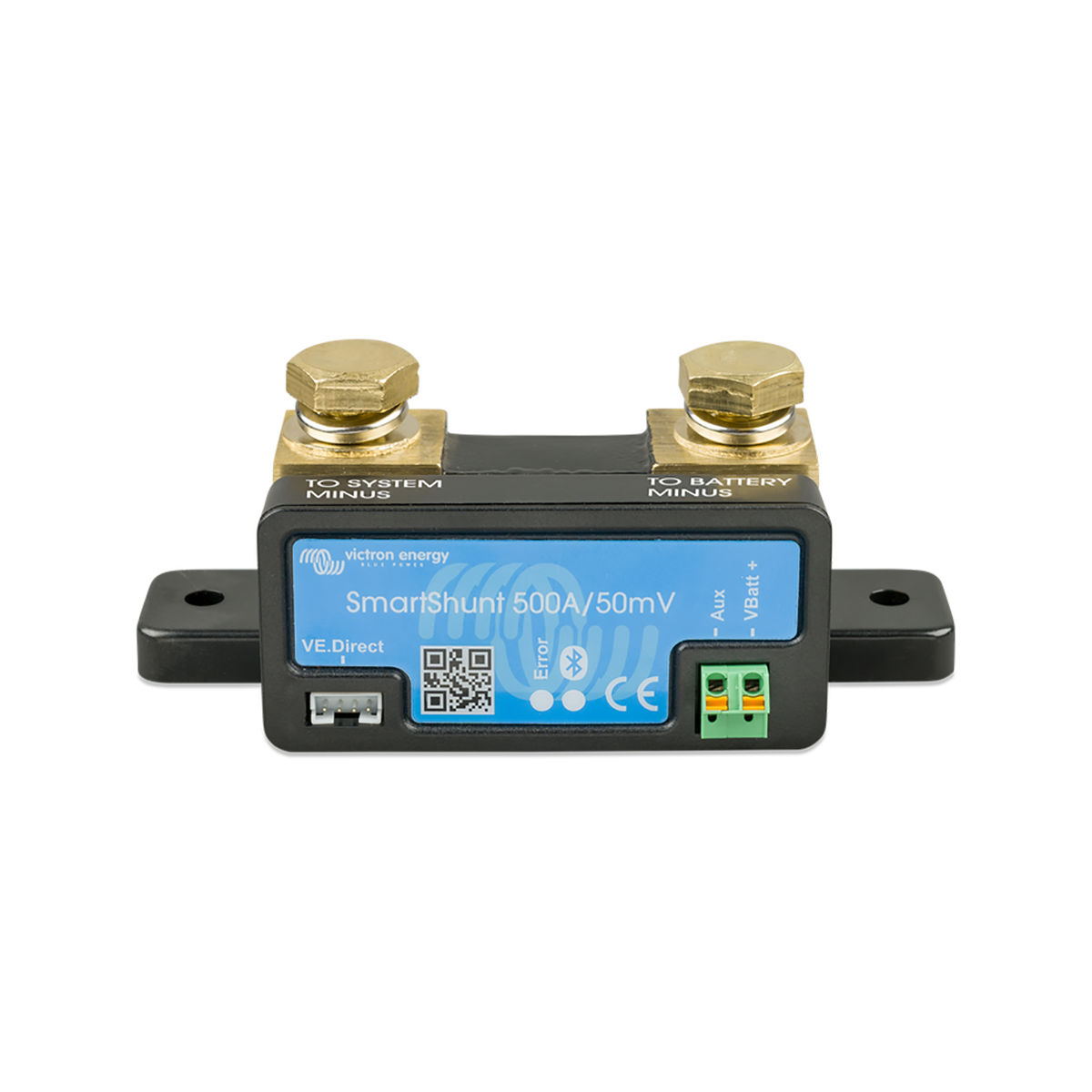

• Victron SmartShunt 500A battery monitor

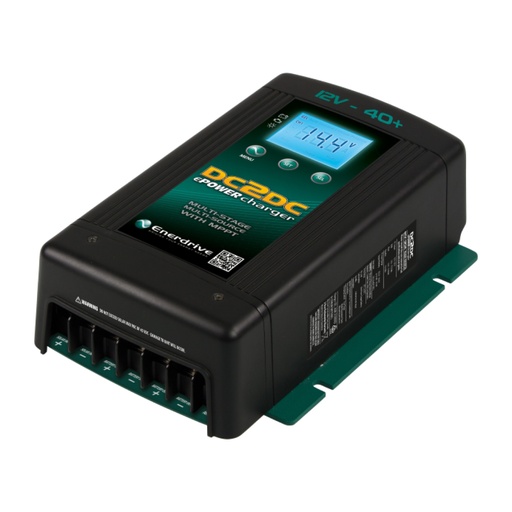

Charger features

• 12V 40A DC-DC charger with built-in MPPT solar controller (adjustable 5-50A)
• Charges from the alternator while driving and from solar when parked: switches automatically
• Works from a 12V or 24V vehicle (10.5-16V / 21-32V input) and with smart alternators via the ignition/VSO input
• Solar input up to 45V open circuit and 500-800W
• Gel, AGM, Flooded, Lithium and fully custom charge profiles

Unit features

• Load-sensing smart charging: doesn't mistake running loads for a flat battery
• LCD display shows which source is charging, plus status, voltage and current
• Battery temperature sensor included
• Full 40A output up to 40°C with temperature-controlled fan
• M6 screw terminals for large cables; 95% efficient

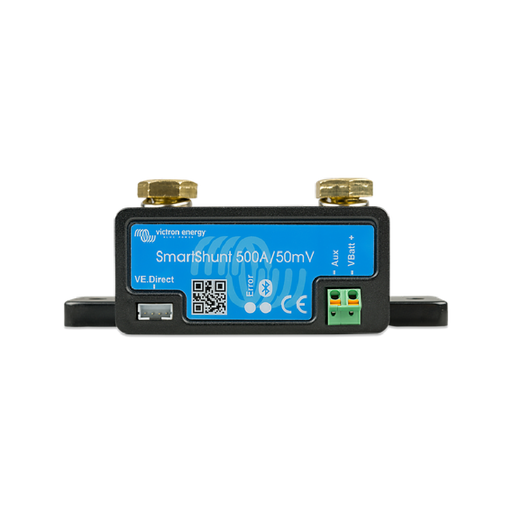

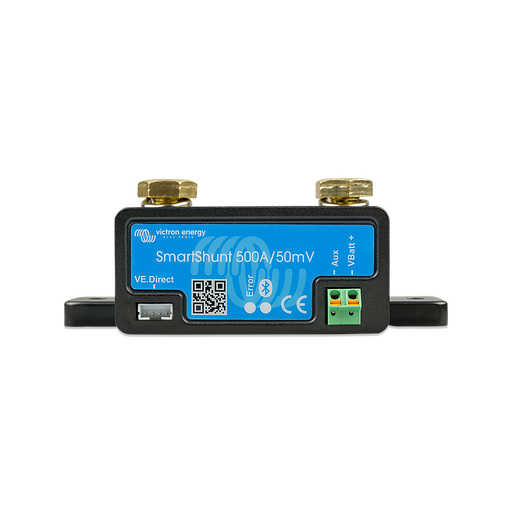

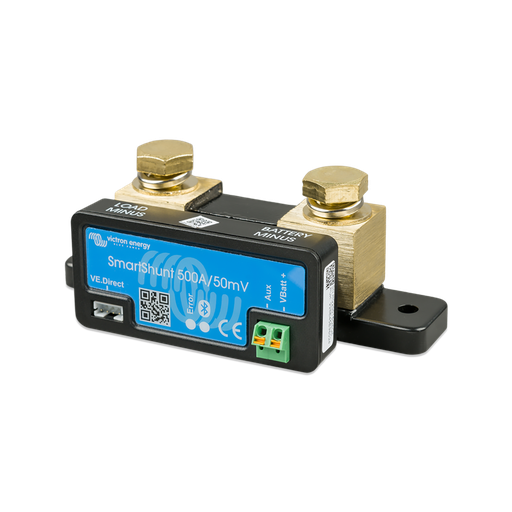

SmartShunt features

• Battery monitor without a display: your phone is the display

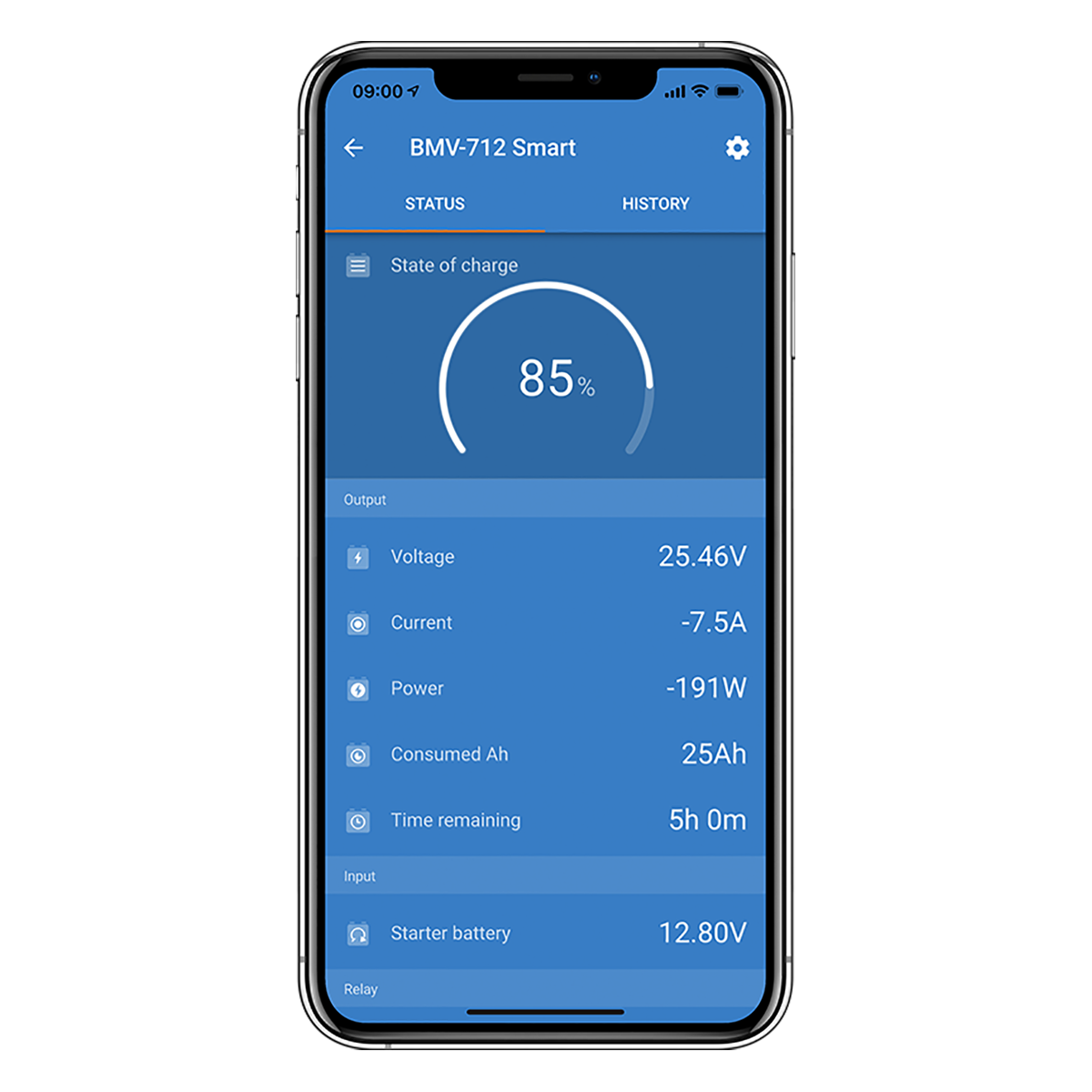

• Bluetooth to the VictronConnect app: state of charge, time to go and history
• VE.Direct port to connect to a Victron GX device
• Second input for a starter battery, midpoint or temperature sensor

Where to use it

The DC2DC+ is the all-in-one charger for a caravan, camper trailer, 4WD, motorhome or boat with a lithium or deep cycle house battery. While you drive it charges the house battery from the alternator at up to 40A, at the right voltage for the battery type; when you stop, its built-in MPPT controller takes over from your solar panels, with no relays or extra controllers needed.

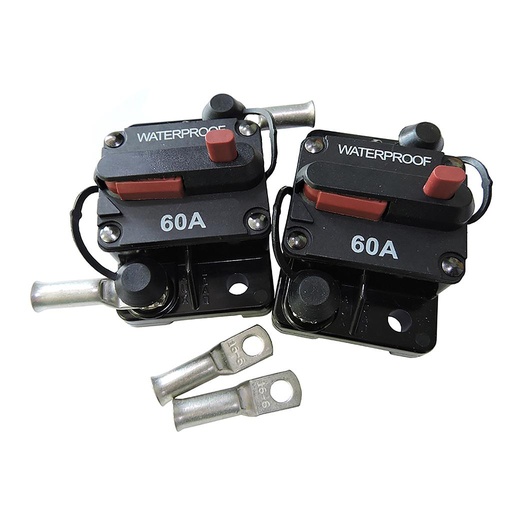

The SmartShunt adds accurate battery monitoring without a display to mount: fit it on the battery negative and read state of charge, current and time remaining on your phone. Mount the DC2DC+ close to the battery and fuse both the vehicle input and the battery output.

Dimensions

Safety features

• Reverse polarity, over temperature and output short circuit protection
• Low input voltage cut-out to protect the start battery

Warranty

• 5-year Enerdrive warranty on the DC2DC+
• 5-year Victron warranty on the SmartShunt
• Access to Springers Solar's warranty support team
