Victron Lynx Smart BMS 1000 (M10)

Features:
- Battery Management System
- Connects to Victron Smart Lithium Batteries
- Built-in Bluetooth
- 1000A Contactor
- 5-Year Warranty

$ 1,590.44 - Inc GST 1590.44 in stock AUD $ 1,590.44

$ 1,590.44

Brand

This combination does not exist.

ADD TO CART

Brand: Victron

VICTRON

SKU: ANL050

Category: BATTERIES & ACCESSORIES Cable & Accessories MONITORING

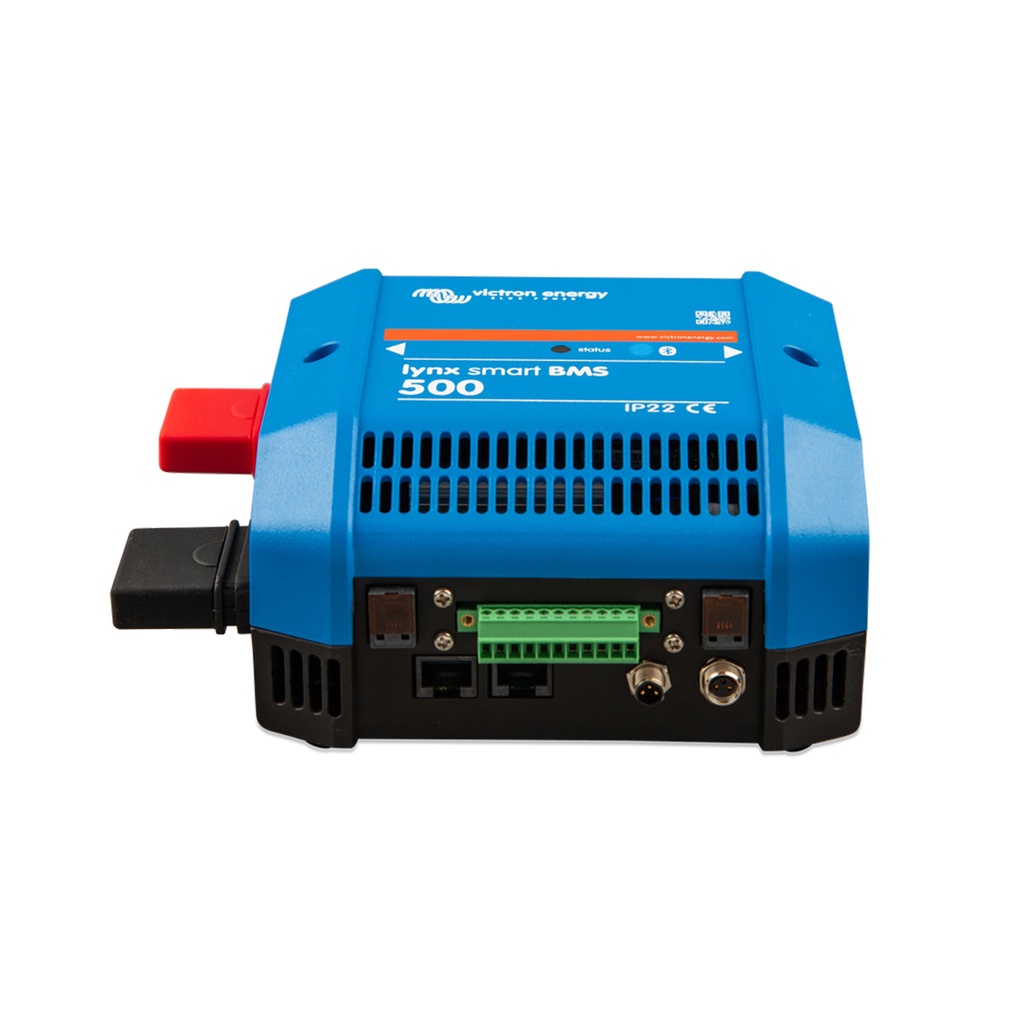

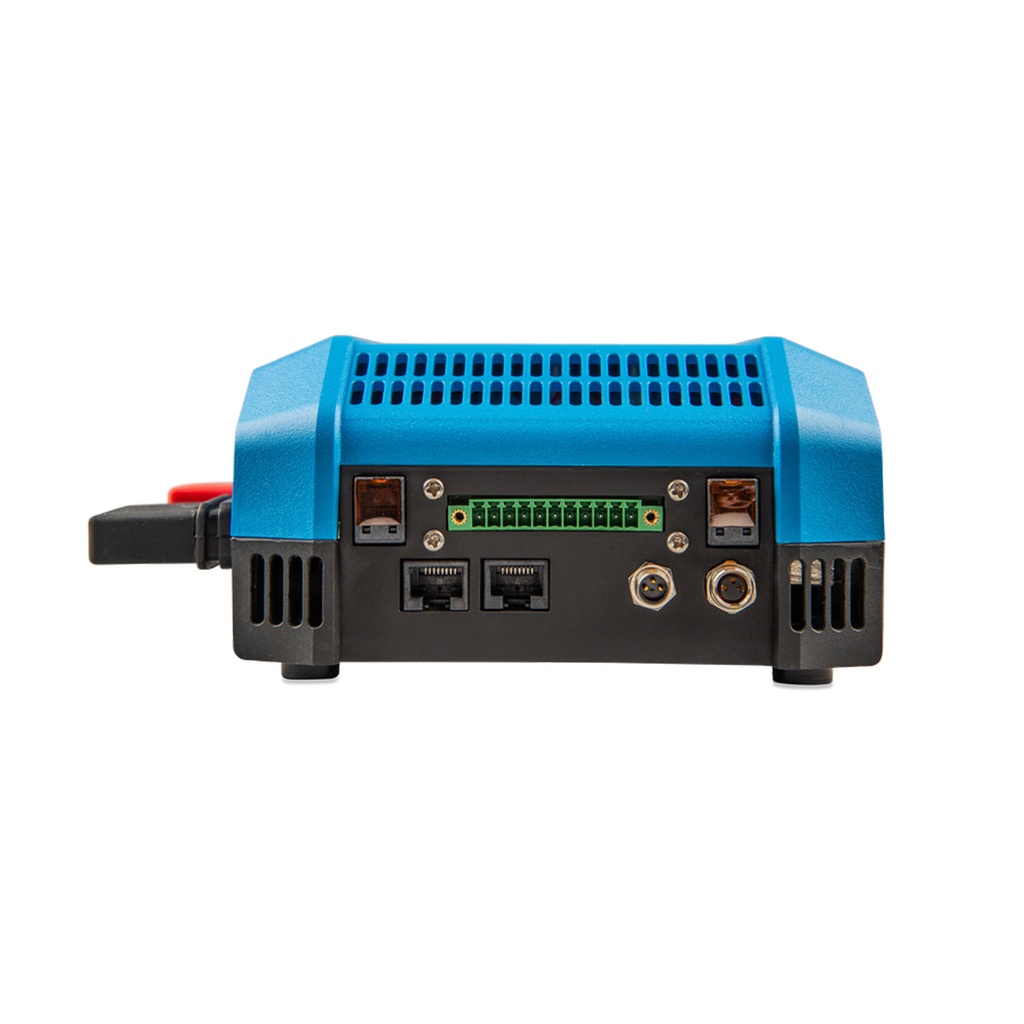

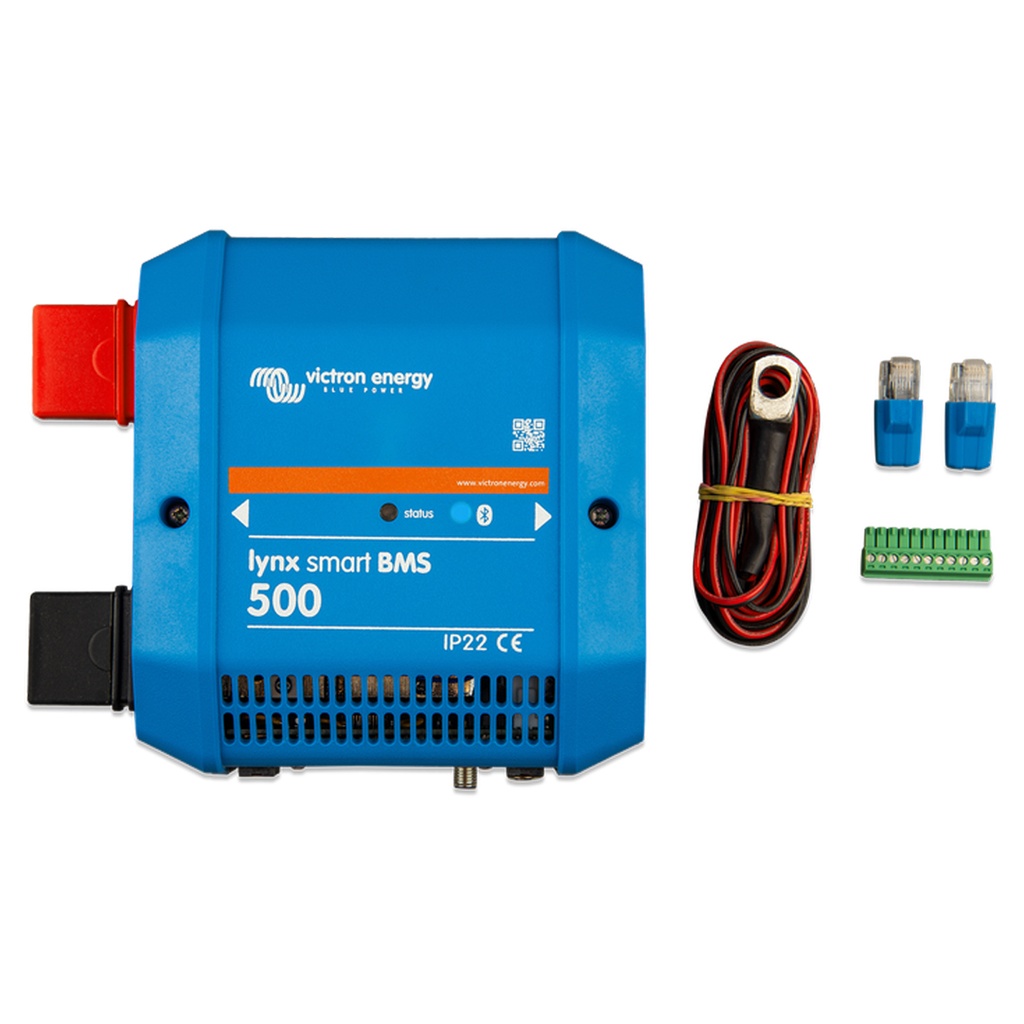

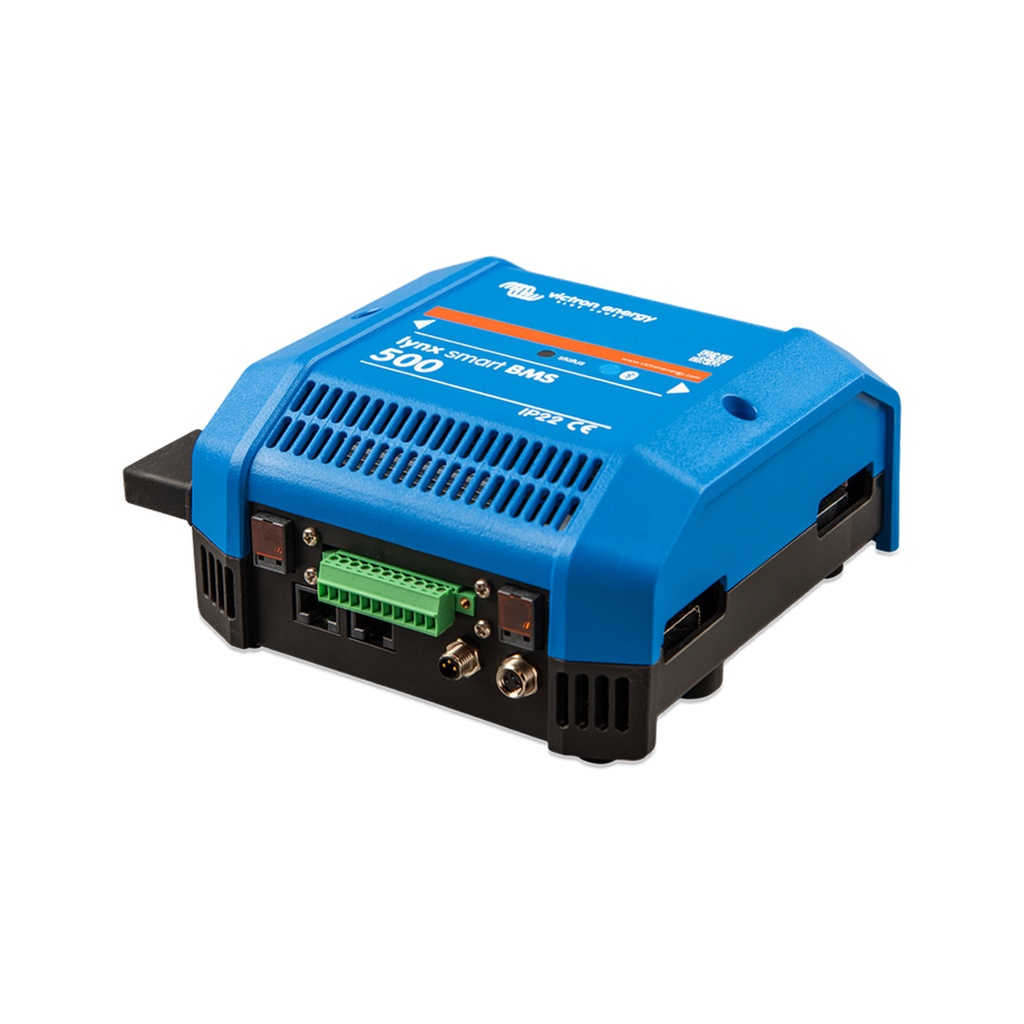

Lynx Smart BMS

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A (with M8 busbar connections) and 1000A (with M10 busbar connections).

The main features are:

Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
Battery monitor, indicating state of charge percentage and more data.
Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

manual_Lynx_Smart_BMS-pdf-en.pdf

Download

Datasheet-Lynx-Smart-BMS-EN.pdf

Download

Product Specification

Battery voltage range	9 – 60 VDC
Maximum input voltage	75 VDC
Supported system voltages	12, 24 or 48 V
Reverse polarity protection	No
Main safety contactor continuous current rating	1000 A continuous
Main safety contactor peak current rating	1200 A for 5 minutes
Power consumption OFF mode	0.3 mA for all system voltages
Power consumption in Standby mode	Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode	Approximately 4.2 W (350 mA at 12 V) depending on the state of the relays
Minimum load resistance for pre-charging	10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating	1.1 A continuous, protected by resettable fuse
Allow-to-charge port Maximum current rating	0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port Maximum current rating	0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT) Maximum current rating	2 A at 60 VDC
Busbar	M10 (Torque: 33 Nm) (17 Nm for units with a serial number before HQ2340XXXX)
VE.Can	RJ45
I/O	Removable multi-connector with screw terminals
Battery BTV cables	Male and female circular 3-pole connector with M8 screw ring Up to 20 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules)	RJ10 (cable ships with each Lynx Distributor)
Enclosure material	ABS
Enclosure dimensions (h x w x d)	230 x 180 x 100 mm
Unit weight	2.7 kg
Busbar material	Tinned copper
Busbar dimensions (h x w)	8 x 30 mm
Operating temperature range	-40 °C to +60 °C
Storage temperature range	-40 °C to +60 °C
Humidity	Max. 95 % (non-condensing)
Protection class	IP22
Safety	EN-IEC 63000:2018
EMC	EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS	NEN-EN-ISO 9001:2015
