Features:
- DC-DC Converter
- Adjustable Output
- Remote On/Off Connector
- Can be Paralleled to Increase Output Current
- Easy to Install
Brand: Victron |
Features:
Remote On/Off Connector:
The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or by the engine run/stop switch.
Adjustable Output:
All models with adjustable output can also be used as a battery charger. For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can also be paralleled to increase output current. Up to five units can be connected in parallel.
Easy to Install:
Product includes four Insulated Fastons Female Crimp 6.3mm.
Applications:
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Brand | Victron |

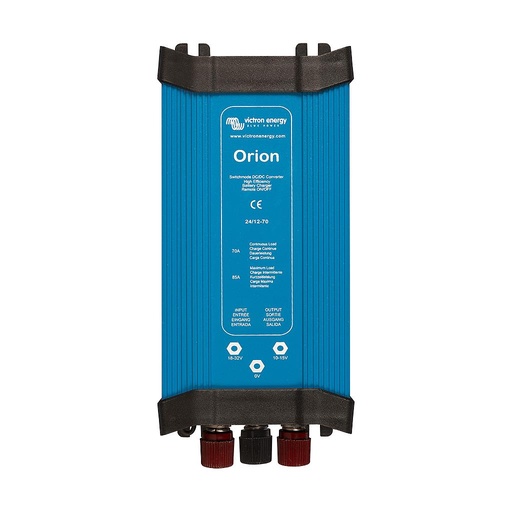

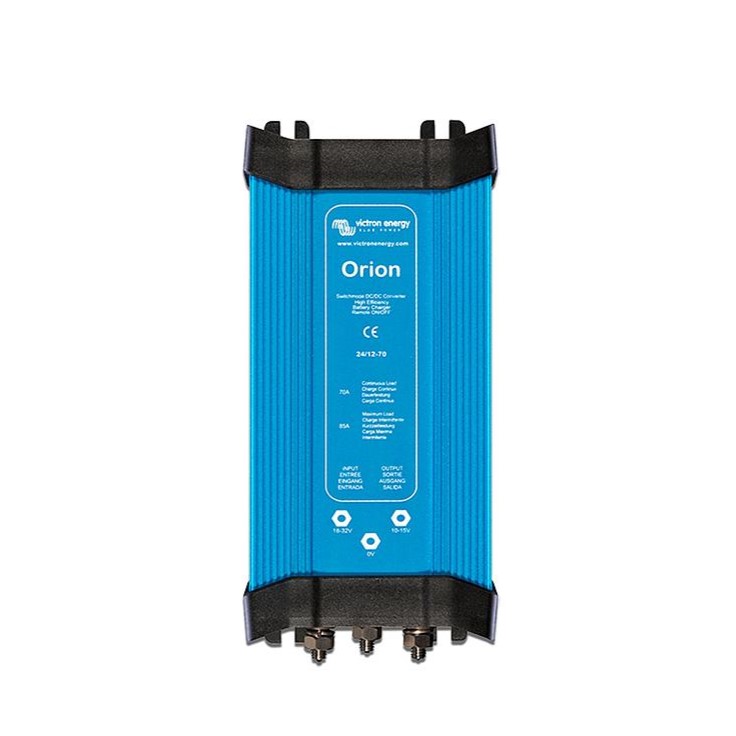

Orion DC-DC Converter | |
Input voltage range | 18-35V |
Under voltage shutdown | 14V |
Under voltage restart | 18V |
Output voltage adjustable with potentiometer | yes |
Output voltage | Adjustable 10-15V F set 13.2V |
Efficiency | 92% |
Suitable to buffer-charge a battery | yes |
Can be connected in parallel | yes |
Continuous output current | 70A |
Max. Output current | 85A |
Fan-assisted cooling (temp. controlled) | yes |
Galvanic isolation | no |
Off load current | < 20mA |
Remote on-off | no |
Operating temperature range (derate 3% per °C above 40°C) | -20 to +55°C |
DC connection | M6 bolts |
Weight | 0.9kg |
Dimensions | 65 x 88 x 195mm |
Safety Standard | EN 60950 |
Emission Standard | EN 61000-6-3, EN 55014-1 |
Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
Automotive Directive | ECE R10-4 |
