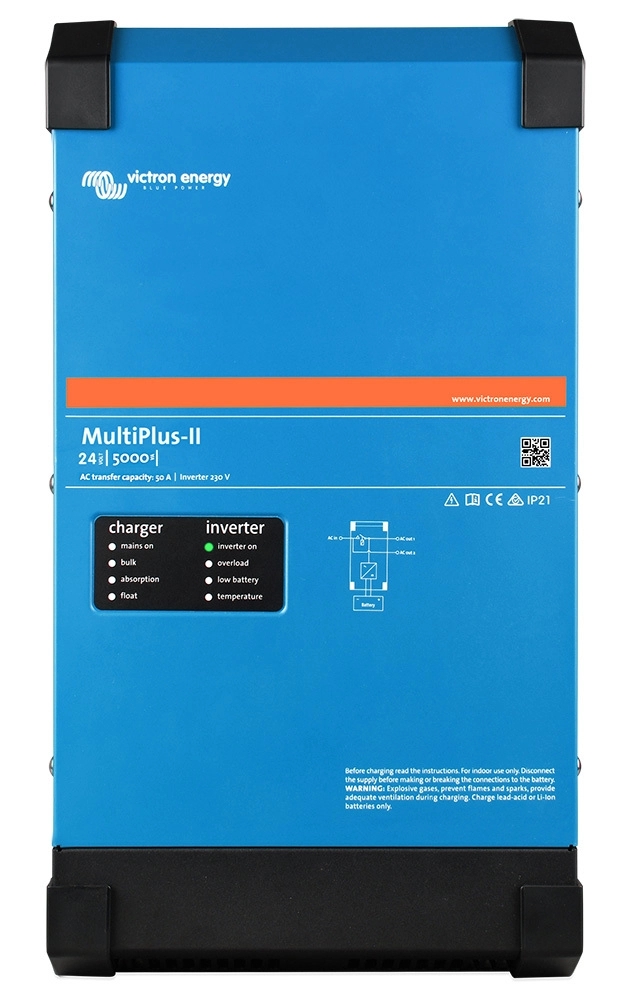

Victron Multiplus-Il 24/5000/120-50

(0 reviews)

24V 5000VA MultiPlus-II inverter/charger with 120A charger and 50A transfer switch, ESS ready

$ 3,022.65 - Inc GST 3022.65 in stock AUD $ 3,022.65 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaIn stock

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: INVERTER CHARGERS, Victron, Multiplus

SKU: PMP242505010

Victron MultiPlus-II 24/5000/120-50

Features:

24V inverter/charger: 5000VA pure sine wave inverter and 120A battery charger in one
50A transfer switch and AC input
ESS (Energy Storage System) ready: grid-tied self-consumption with a GX device
PowerControl and PowerAssist
Auxiliary AC output for loads that should run only with AC input
Parallel and three-phase capable (VE.Bus)
Adaptive charging with battery temperature sensor
Up to 96% efficiency

Where to use it

Off-grid homes, backup power and grid-connected energy storage (ESS) with a 24V battery bank, as well as large motorhomes and boats.

Add a Cerbo GX for ESS, remote monitoring on VRM and system control. Must be installed by a licensed electrician.

Dimensions

Dimensions (h x w x d)	607 x 330 x 149 mm
Weight	30 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Quick-Install-Guide-MultiPlus-II-24V48V-3000VA-48V-5000VA-230Vac-EN.pdf

Download

Manual_MultiPlus-II___Quattro-II_120V-230V-pdf-en.pdf

Download

Datasheet_MultiPlus-II-inverter-charger-EN.pdf

Download

Product Specifications

DC Input voltage range	19-33V
Output	230V AC ±2%, 50/60 Hz
Continuous output power at 25°C	5000 VA / 4000 W
Continuous output power at 40°C	3700 W
Continuous output power at 65°C	3000 W
Peak power	9000 W
Maximum efficiency	96%
Zero load power	18 W
Zero load power in AES mode	12 W
Zero load power in Search mode	2 W
Transfer switch	50A
Maximum AC input current	50A
PowerControl & PowerAssist	Yes
Charger AC input	187-265V AC
Charge voltage 'absorption'	28.8V
Charge voltage 'float'	27.6V
Storage mode	26.4V
Max. battery charge current	120A
Battery temperature sensor	Yes
Auxiliary output	Yes (50A)

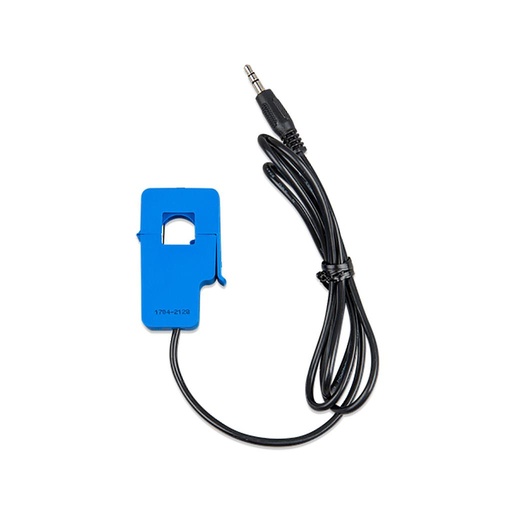

External AC current sensor (optional)	50A or 100A
Programmable relay	Yes
VE.Bus communication port	Parallel and three phase, monitoring and system integration
General purpose com. port	Yes, 2x
Remote on-off	Yes
Operating temperature range	-40 to +65°C (fan assisted cooling)
Enclosure	Steel, blue RAL 5012, IP22
Battery-connection	Four M8 bolts (2 plus, 2 minus)
230 V AC-connection	M6 bolts
Weight	30 kg
Dimensions (h x w x d)	607 x 330 x 149 mm
