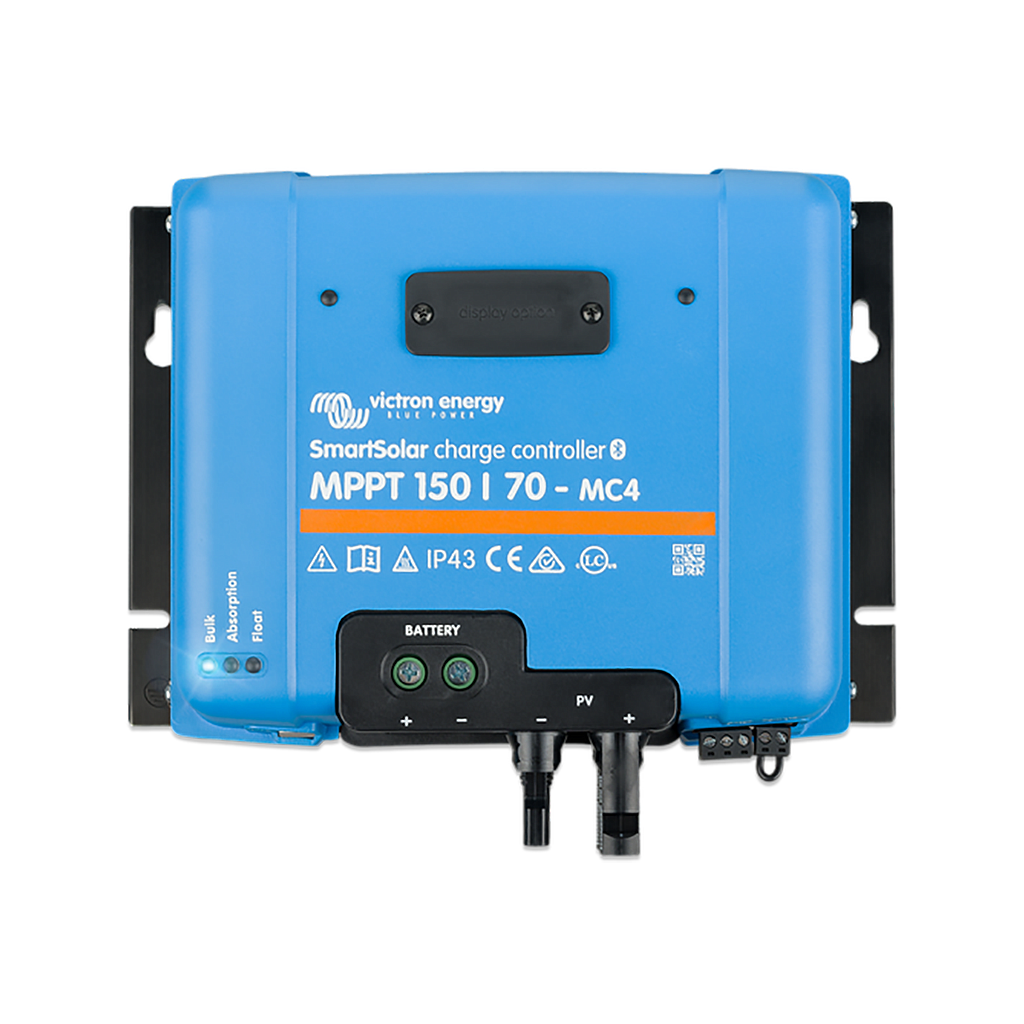

Victron 150/70 SmartSolar MPPT MC4 VE.Can Controller

Victron 150/70 SmartSolar MPPT MC4 VE.Can Controller

(0 reviews)

150 V / 70 A maximum power point tracking solar charge controller with MC4 terminal & VE.Can connections for 12 - 48 V systems

$ 717.20 - Inc GST 717.2 in stock AUD $ 717.20 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Solar Controllers, MPPT Charge Controllers, Solar Controllers, MPPT Charge Controllers

SKU: SCC115070511

Victron 150/70 SmartSolar MPPT MC4 VE.Can Controller

Features

Maximum power point tracking solar charge controller
Built-in Bluetooth for ease of programming & monitoring
150V
70 A
Suitable for 12 / 24 / 48 V systems
Internal temperature sensor
Direct communication port for wired data connection
Over-temperature sensor
Flexible charge algorithm
VE.Direct & VE.Can communication ports
MC4 terminal connections
Intelligent battery management
Programmable battery charge algorithm

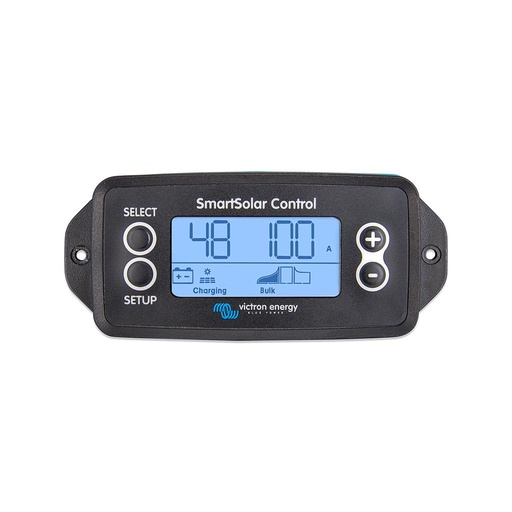

Additional SmartSolar LCD display available

Where to use it

A Victron SmartSolar MPPT charge controller is used in off-grid solar power systems to maximise energy harvest, particularly in mobile applications like RVs, boats, and campervans, or remote, off-grid cabins.

Engineered for mobile life, they handle vibration and provide efficient charging for 12 - 48 V systems. Its built-in Bluetooth allows for easy monitoring via the VictronConnect app, making it ideal for systems with variable shading or varying light conditions.

Dimensions

Width	250 mm
Height	215 mm
Depth	95 mm
Weight	3 kg

Safety features

EN/IEC 62109-1
UL 1741
CSA C22.2
IP43 rated

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet_SmartSolar-charge-controller-MPPT-150-70-up-to-150-100-VE.Can-EN.pdf

Download

Manual_SmartSolar-charge-controller-MPPT-150-70-to-150-100-&-250-70-to-250-100-VE.Can-EN-NL-FR-DE-ES-SE-IT-.pdf

Download

Product Specifications

Battery voltage	12 / 24 / 48 V Auto Select (36 V: see manual)
Rated charge current	70 A
Nominal PV power, 12 V	1000 W
Nominal PV power, 24 V	2000 W
Nominal PV power, 36 V	3000 W
Nominal PV power, 48 V	4000 W
Max. PV short circuit current	50 A (max 30 A per MC4 conn.)
Maximum PV open circuit voltage	150 V absolute maximum coldest conditions 145 V start-up and operating maximum
Maximum efficiency	98%
Self-consumption	Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge voltage 'absorption'	Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'float'	Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge algorithm	multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
Temperature compensation	-16 mV / -32 mV / -64 mV / °C
Protection	PV reverse polarity / Output short circuit / Over temperature
Operating temperature	-30 to +60 °C (full rated output up to 40 °C)
Humidity	95%, non-condensing
Maximum altitude	5000m (full rated output up to 2000m)
Environmental condition	Indoor, unconditioned
Pollution degree	PD3
Data communication	VE.Can, VE.Direct and Bluetooth
Remote on/off	Yes (2 pole connector)
Programmable relay	DPST AC rating: 240 V AC / 4 A DC rating: 4 A up to 35 V DC, 1 A up to 60 V DC
Parallel operation	Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
Colour	Blue (RAL 5012)
PV terminals	Two pairs of MC4 connectors
Battery terminals	35mm² / AWG2
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	3 kg
Dimensions	215x 250 x 95 mm
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
