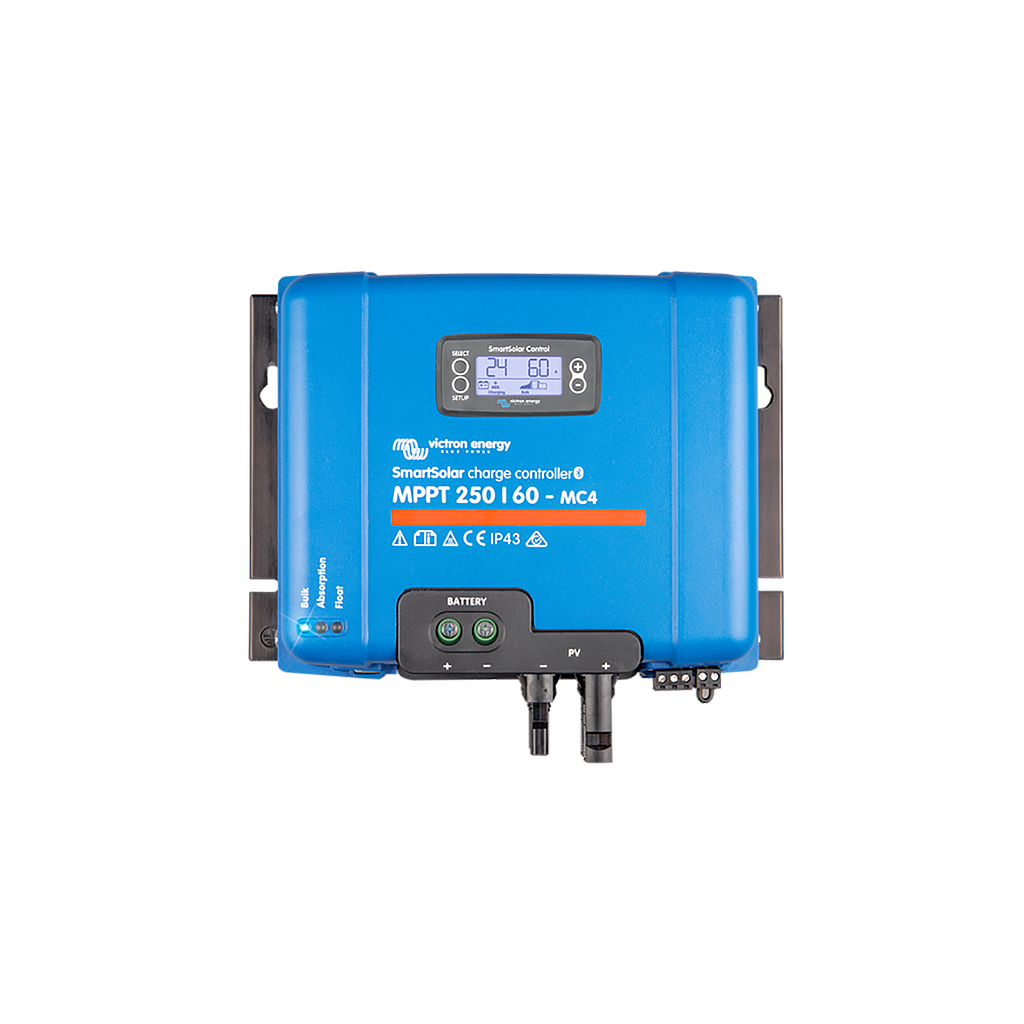

Victron SmartSolar MPPT 250/60 MC4

Victron SmartSolar MPPT MC4 Solar Charge Controller

Features:

• Maximum Power Point Tracking Solar Charge Controller
• Built-in Bluetooth for Ease of Programming & Monitoring

• 250V / 60A MC4 Connection, Suitable for 12/24/36/48V Systems
• Internal Temperature Sensor
• Direct Communication Port for Wired Data Connection
• Over-Temperature Sensor
• Flexible Charge Algorithm
• Additional SmartSolar LCD Display Available


A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

PWM and MPPT charge controllers are both widely used to charge batteries with solar power. The PWM controller is in essence a switch that connects a solar array to the battery. The result is that the voltage of the array will be pulled down to near that of the battery. The MPPT controller is more sophisticated (and more expensive): it will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement of the battery plus load. Thus, it essentially decouples the array and battery voltages so that there can be, for example, a 12V battery on one side of the MPPT charge controller and panels wired in series to produce 36 volts on the other.

It is generally accepted that MPPT will outperform PWM in a cold to temperate climate, while both controllers will show approximately the same performance in a subtropical to tropical climate. Besides performing the function of a basic controller, an MPPT controller also includes a DC to DC voltage converter, converting the voltage of the array to that required by the batteries, with very little loss of power.

An MPPT controller attempts to harvest power from the array near its Maximum Power Point, whilst supplying the varying voltage requirements of the battery plus load. Thus, it essentially decouples the array and battery voltages, so that there can be a 12V battery on one side of the MPPT charge controller and two 12V panels wired in series to produce 36 volts on the other. If connected to a PV array with a substantially higher nominal voltage than the battery voltage, an MPPT controller will therefore provide charge current even at very high cell temperatures or in low irradiance conditions when a PWM controller would not help much.

As array size increases, both cabling cross-sectional area and cable length will increase. The option to wire more panels in series and thereby decrease current is a compelling reason to install an MPPT controller as soon as the array power exceeds a few hundred Watts (12V battery), or several 100 Watts (24V or 48V battery)

More Product Features:

Bluetooth Smart Built-in (No Dongle Needed):

The wireless solution to set up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct:

For a wired data connection to a Color Control panel, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT):

Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in Case of Partial Shading Conditions:

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding Conversion Efficiency:

No cooling fan. Maximum efficiency exceeds 99%.

Flexible Charge Algorithm:

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Programming, Real-Time Data and History Display Options:

Modern Apple and Android smartphones, tablets, MacBooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.

Programmable Relay:

Can be programmed (i.e. with a smartphone) to trip on an alarm, or other events.

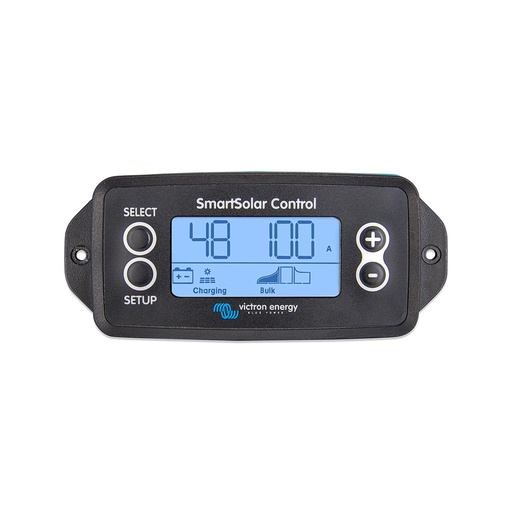

Optional Pluggable LCD Display:

Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.

Remote On/Off:

To connect to an external device, such as a VE.Bus BMS.

Extensive Electronic Protection:

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal Temperature Sensor:

Compensates absorption and float charge voltage for temperature.

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins
