Simarine Quad Shunt 4x 25A + 4x Tank

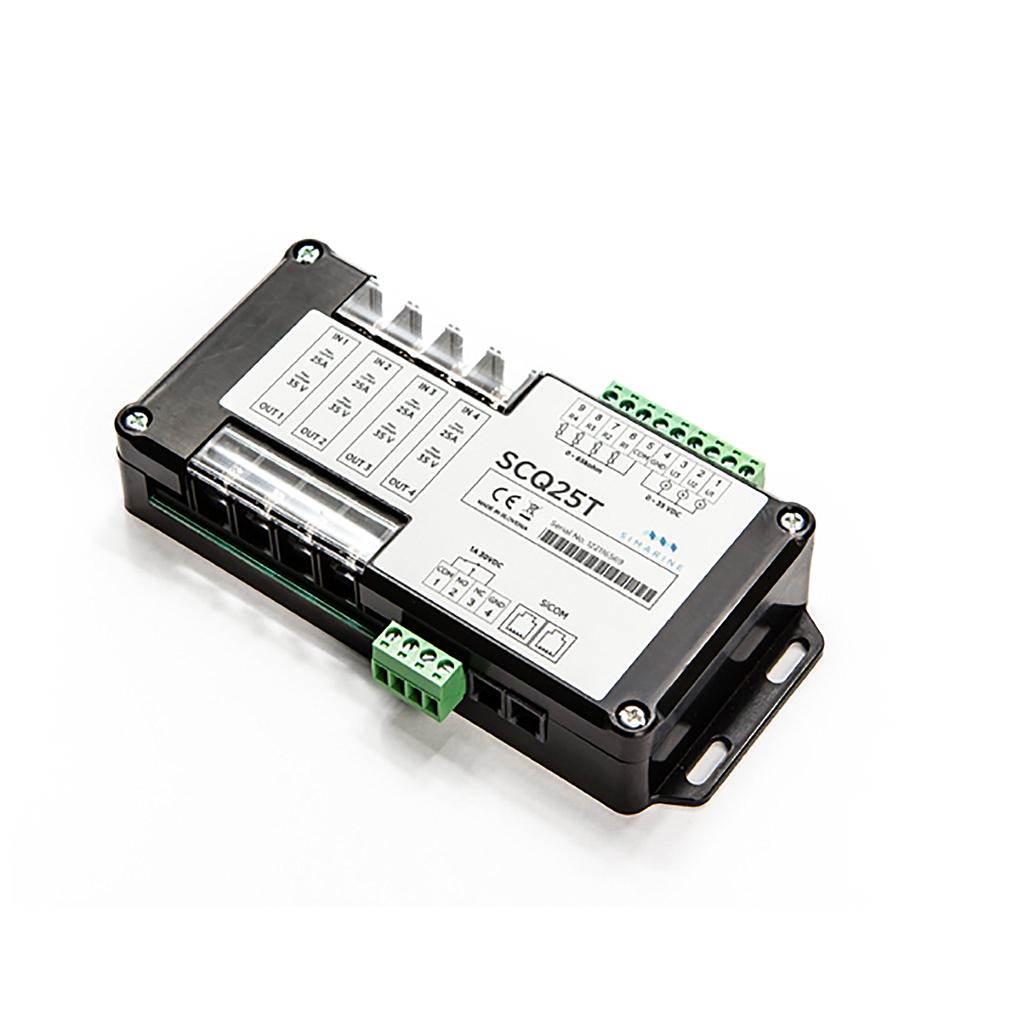

Simarine SI-SCQ25T Quad shunt:

SCQ25T is an innovative combination of the SCQ25 shunt module PLUS the T107 Voltage and Resistance input Module with:

• Four current inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input
• Can handle 12V or 24V systems, (same voltage used per device)
• Innovative protected architecture allows wiring in either negative (low) or positive (high) side. (same system used per device)
• Very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power.
• Current channels can be combined for higher amperage, meaning 2 x 25A channels can be used for measuring up to 50A.
• Up to five modules can be connected simultaneously to monitor up to 20 current channels with PICO Battery Monitor.
• Assignable NO or NC output relay.

Plus it is equipped with:

• four resistance inputs for resistance-type tank level or temperature sensors and
• three voltage inputs for voltage-type tanks sensors and battery voltages allows wide connection possibilities.
• assignable relay output NO or NC.

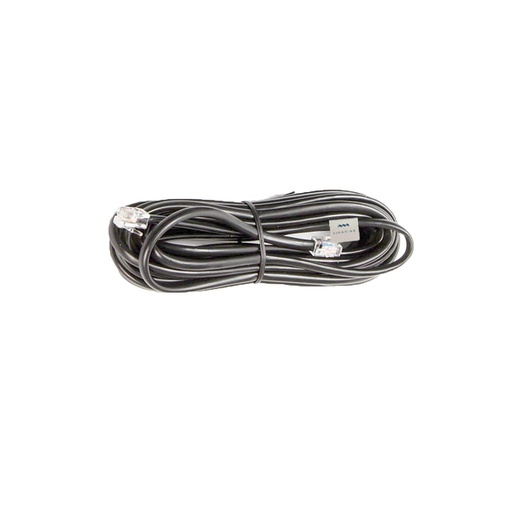

It receives its power to operate via the twisted pair communication cable from the splitter power block.

It is a versatile module for monitoring:

• Tanks of all descriptions

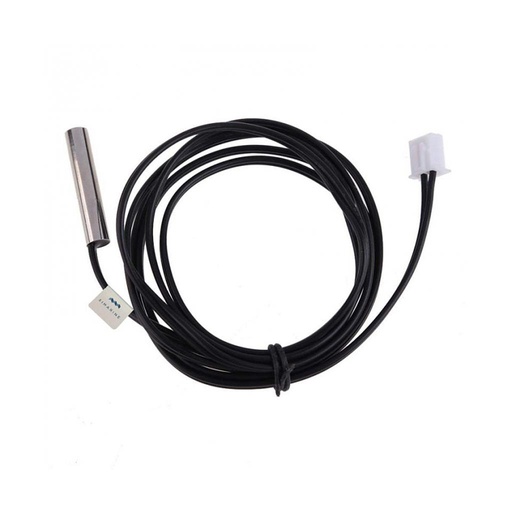

• Temperature sensors
• Battery voltage
• Inclinometer inputs (x and Y need an input each)
• AC current sense
• Irradiation sensor for solar performance

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins
