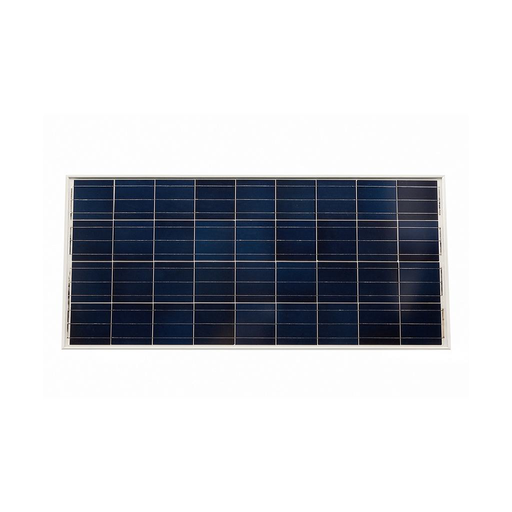

Victron 24V 330W Poly Solar Panel

Victron 20V 330W Poly Solar Panel

Features:

• Polycrystalline Solar Panel
• Silver Anodized Aluminium Frame
• Low Voltage-Temperature Coefficient
• Triple-Layer Backsheet
• 20V 330W


• 1980 x 1002 x 40mm


Victron solar panels are made using high-quality Polycrystalline cells. Victron provides a full range of solar panel modules ranging from 20W - 360W. They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravans, camping, marine or any other systems with a 12V battery or battery bank.

Solar panels can be utilised to extend battery run time when powering multiple accessories. A number of factors can influence this, which include the time of year, weather conditions, battery capacity and how long you run your appliances. It's important to oversize your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping.

*Note the Victron 20V range of solar panels is suitable for Charging 12V battery systems when using a PWM or MPPT Controller. If charging a 24V battery bank you would need 2 panels wired in series.

More Product Features:

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-year limited warranty on power output and performance.
• 5-year limited warranty on materials and workmanship.
• Sealed, waterproof, multifunctional junction box gives a high level of safety.
• High-performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre-wired quick-connect system with PV-ST01 connectors.

  *Images are for display purposes only

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins
