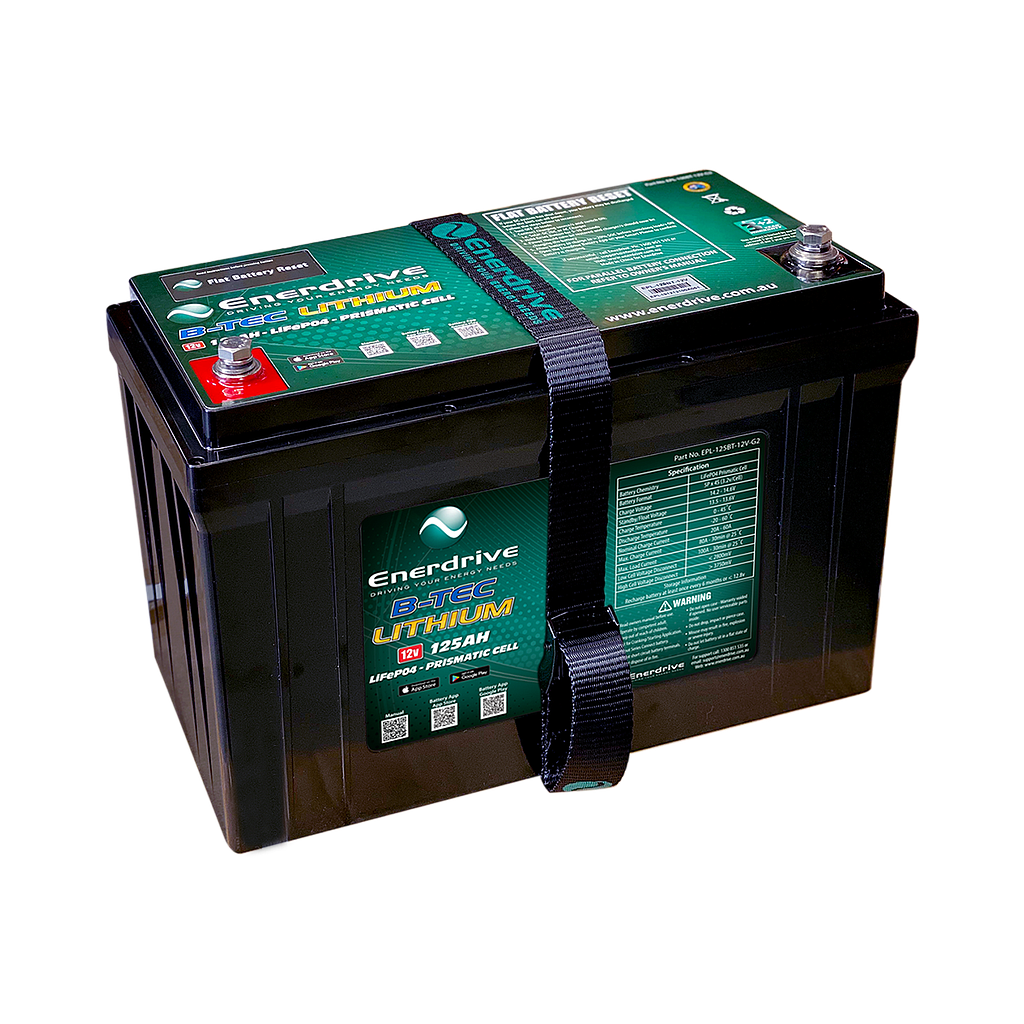

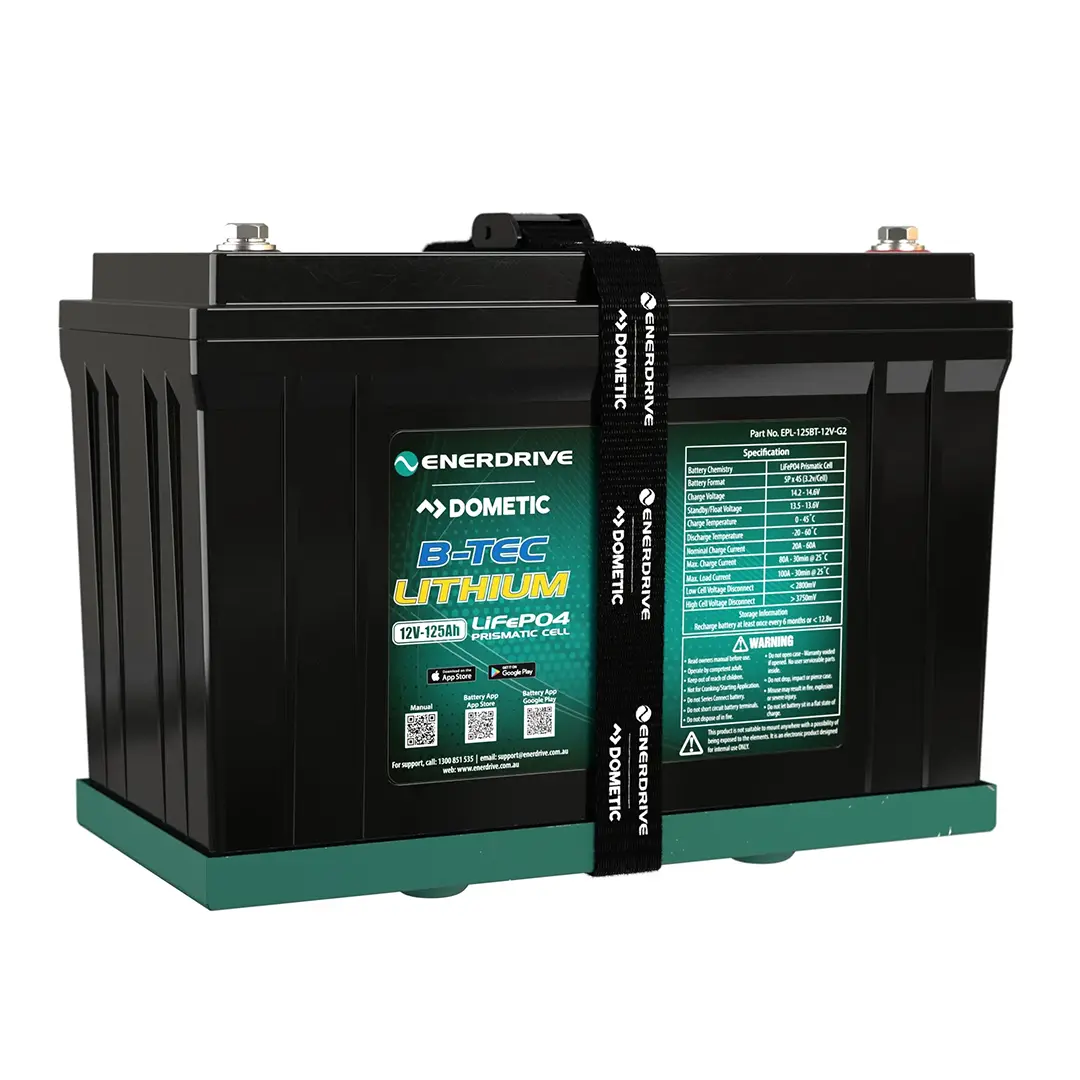

Enerdrive B-TEC 12V 125Ah LiFePO4 Battery
https://www.springers.com.au/shop/epl-125bt-12v-enerdrive-b-tec-12v-125ah-lifepo4-battery-9378 https://www.springers.com.au/web/image/product.template/9378/image_1920?unique=e0fbd79Features:
• 125Ah Lithium-Iron Phosphate (LiFePO4) Battery
• Built-in Bluetooth Monitoring
• 5-Year Warranty
Brand: Enerdrive |
ENERDRIVE
ePOWER B-TEC LiFeP04 12v 125Ah G2 Lithium Battery:
Available in 12v 125Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative. The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

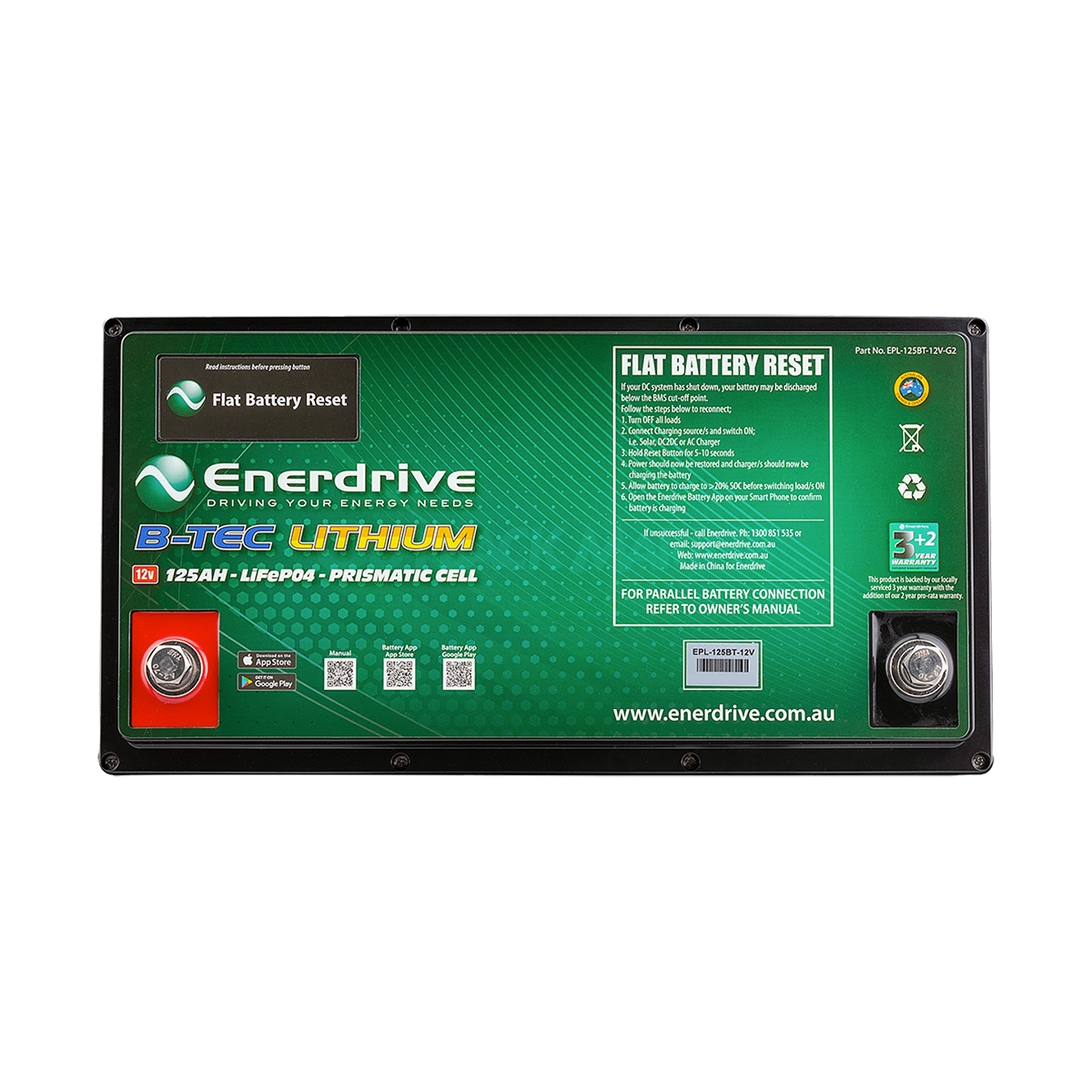

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
The New Enerdrive Generation 2 (G2) B-TEC 125Ah Lithium Battery now comes with a 3 year full replacement warranty. Additionally, we have also included a further 2 year Pro-Rata warranty to giving you peace of mind knowing that Enerdrive have got you covered.
Smart Phone Monitoring System:
The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System:
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings:
Lithium v AGM Capacities;
- 100Ah Lithium = 160Ah AGM
- 125Ah Lithium = 200Ah AGM
- 200Ah Lithium = 320Ah AGM
- 300Ah Lithium = 480Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%)).
The increase in height allows for full 360° connection of the battery cables the make installation easier and more flexible. Also included for free is a hold down strap to complete the installation process.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Enerdrive:
Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.
Specifications
Brand | Enerdrive |
Tags | |
---|---|
Tags |
|
Product Specification
Nominal Voltage | 12.8V |
Nominal Capacity | 125Ah |
Cycle Life (DOD - 80% under controlled conditions) | ≥2000 Cycles |
Battery Charge Temperature | 0 - 45˚C |
Normal Charge Voltage CV/CC* | 14.20 ~14.60 |
Standby (Float) Voltage | 13.50 ~13.80 |
Maximum Charge Current | 80A @ 25˚C for 30mins |
Nominal Charge Current for Maximum Life | 20~60A |
Battery Discharge Temperature | -20˚C ~ 60˚C |
Battery Output Voltage Range | 11.20 ~ 14.60V approx. |
Maximum Discharge Current | 100A @ 25˚C ±5˚C for 30 mins |
Pulse Discharge Current | 450A for 1.0s |
Discharge Cut-O Voltage | ≤11.20V |
Circuit Protection | The battery is supplied with a LiFePO4 Battery Management System (BMS) that can monitor and optimise each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery. |
Over-Charge Protection Per Cell | 3.750 ± 0.03V |
Over-Charge Release Per Cell | 3.60 ± 0.05V |
Over-Charge Release Method | Discharge below release voltage |
Over-Discharge Protection Per Cell | 2.80V ± 0.05V |
Over-Discharge Release Per Cell | 3.20V ± 0.05V |
Over-Disharge Release Method | Apply Charge/Voltage ≥12.8v |
Discharge Over Current | 110A for 30s - 450A for 1s |
Protection Reset Time | Approx 10s Auto Release |
Over Current Release Method | Disconnect Load |
Battery Discharge Over Temp | Protection to 65˚C ± 5˚C Release at 50˚C ± 5˚C |
Battery Charge Over Temp | Protection to 55˚C ± 5˚C Release at 45˚C ± 5˚C |
Short Circuit Protection | Auto release after 5s |
Length | 318mm |
Width | 165mm |
Height | 232mm |
Weight | Approx. 15.5kg |
Temperature & Humidity Range | ≤30 days - 20˚C to 60˚C, 5 ~ 75% RH ≥90 days - 10˚C to 45˚C, 5 ~ to 75% RH |
Self-Discharge Rate | ≤3% per month |
