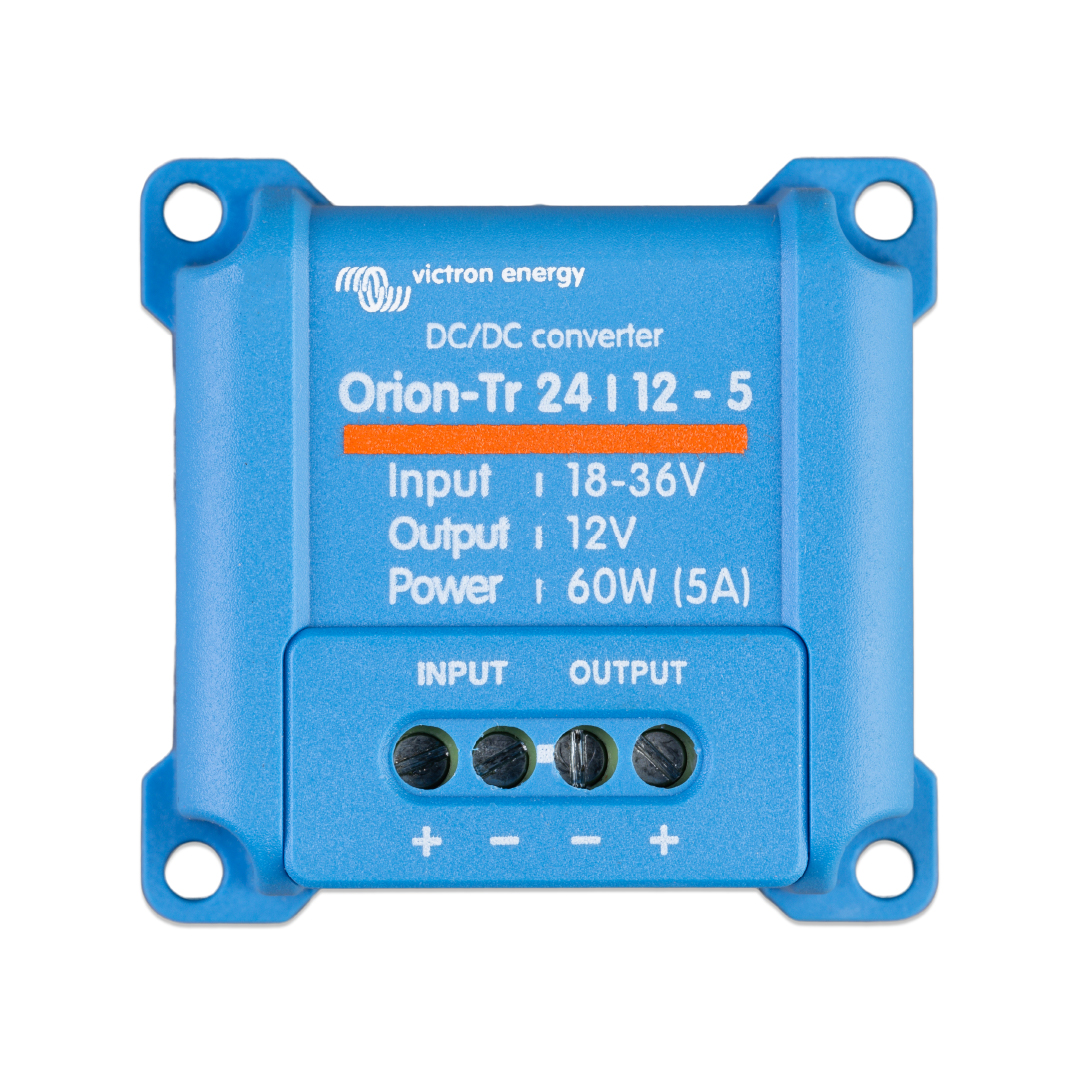

Victron Orion-Tr 24/12-5A (60W) DC-DC Converter

Orion-Tr 24/12-5A DC-DC Converter

Features:

• 24V - 12V / 5Amps
• Smart DC-DC Charger
• Built-in Bluetooth
• IP43 Protection
• Easy Installation

High Efficiency:

Using synchronous rectification, full load efficiency exceeds 95%.

Remote On/Off:

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short-circuit proof and can be paralleled to increase the output current. An unlimited number of units can be connected in parallel.

High Temperature Protected:

The output current will reduce at high ambient temperatures.

IP43 Protection:

When installed with the screw terminals oriented downward.

Screw Terminals:

No special tools are needed for installation.

Applications:

Marine

RV's

Motor Homes

4WD

Motor Vehicles

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
