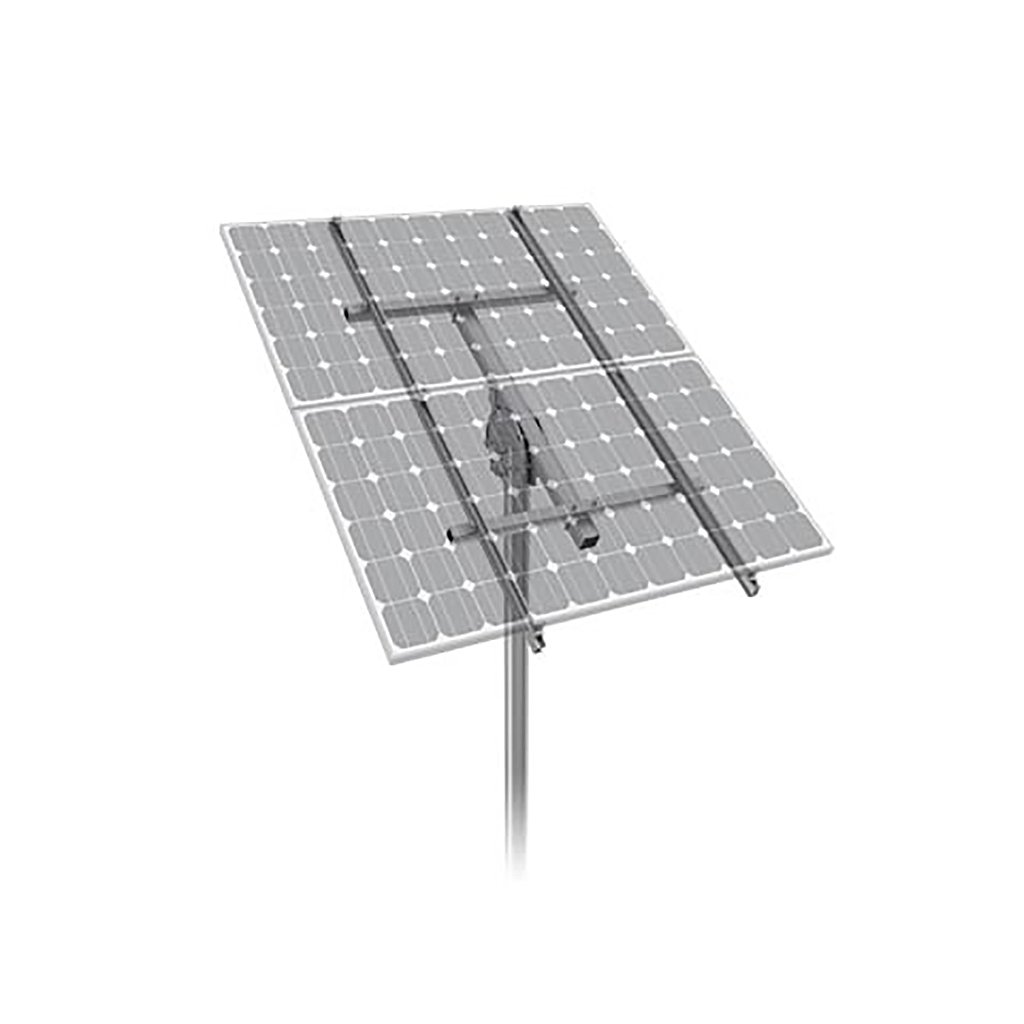

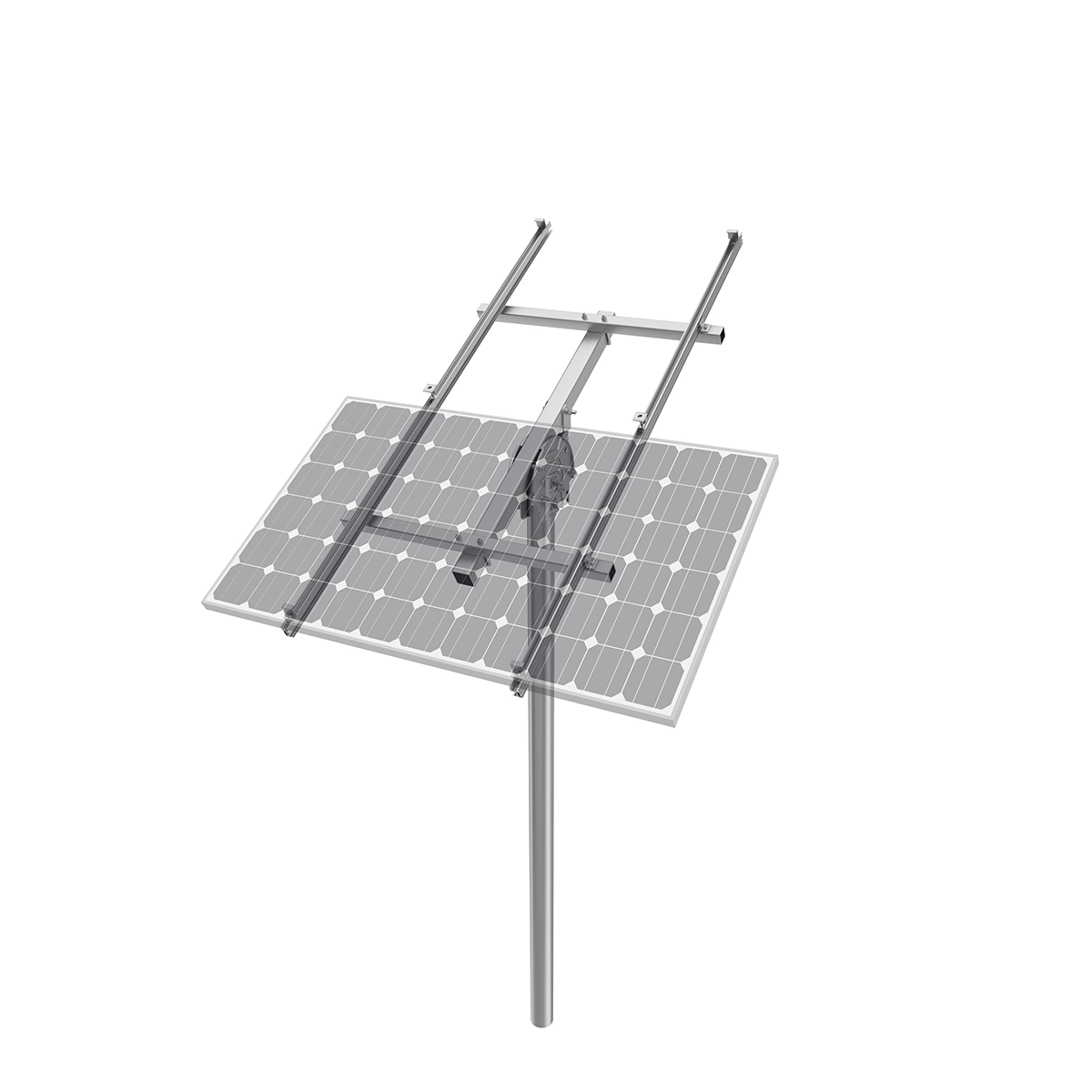

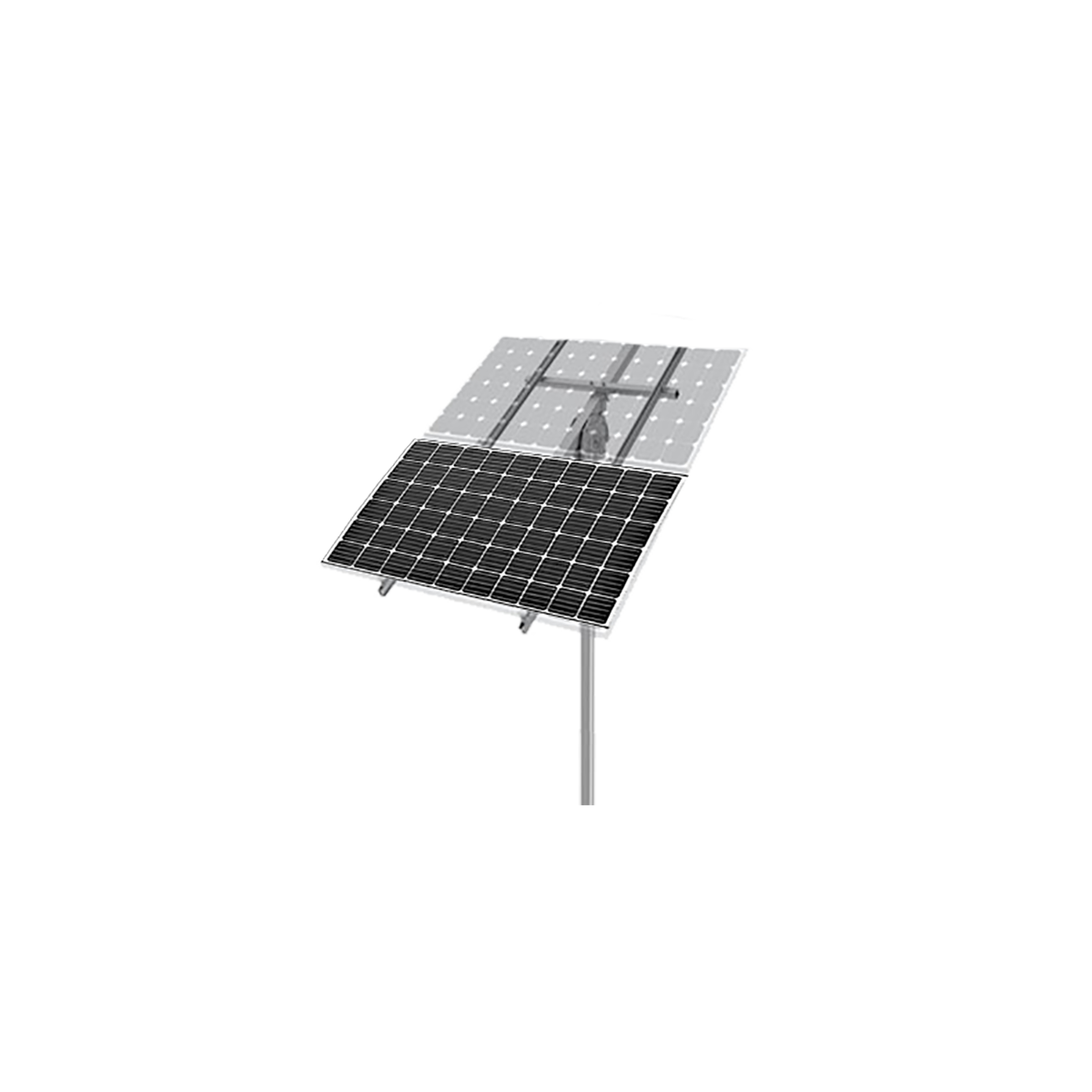

Clenergy Post Mount Kit 2 Module

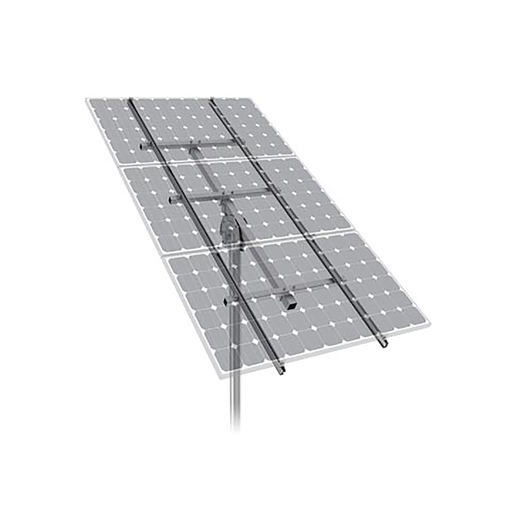

Clenergy Ezrack post mount kit:

PV-ezRack PostMount-A delivers flexible and durable designs to mount from one to four panels per post. It’s ideal for remote off-grid applications such as water pumps or small residential and commercial systems. The panel tilt is easily adjustable between 10° and 60° throughout the year and comes with hassle-free mounting thanks to patented components such as the PV-ezRack rails and clamps. The combination of high quality aluminium, stainless steel and galvanised steel components make this a robust, reliable system with excellent corrosion resistance.

The PV-ezRack PostMount 2-A parts, when installed in accordance with the installation guide, will be structurally adequate and will meet the AS/NZS1170.2:2011 Amdt 2-2012 standard.

Key benefits:

Robust and reliable- Mounted on aluminium rails the panels are supported by robust galvanised steel landscape and master tubes secured with stainless steel bolts. The post is fixed into a concrete foundation.

Quick and easy installation- Innovative and internationally patented, the Z-Module technology is used in almost all PV-ezRack components. The Z-Module provides a quick, easy and safe installation method and can be inserted into the rail at any given point, secured with just three hand grips.

Suitable for every soil condition- With its concrete foundation, PostMount can be installed on even or uneven ground or on a slope, making it suitable for any soil type and a wide range of applications.

Adjustable tilt angle- The steel cap (post head) is designed to tilt panels between 0° and 60° to ensure that you get the required power output you need - anywhere, anytime. Changing the angle merely requires a single pair of spanners.

Components:

- End clamp

- Inter clamp

- Galvanize pole

- Steel cap

- Adjust tube

- Master tube

- Angle bracket

- Light rail

- U bolt
