Simarine Quad Shunt 4x 50A + 1x Relay

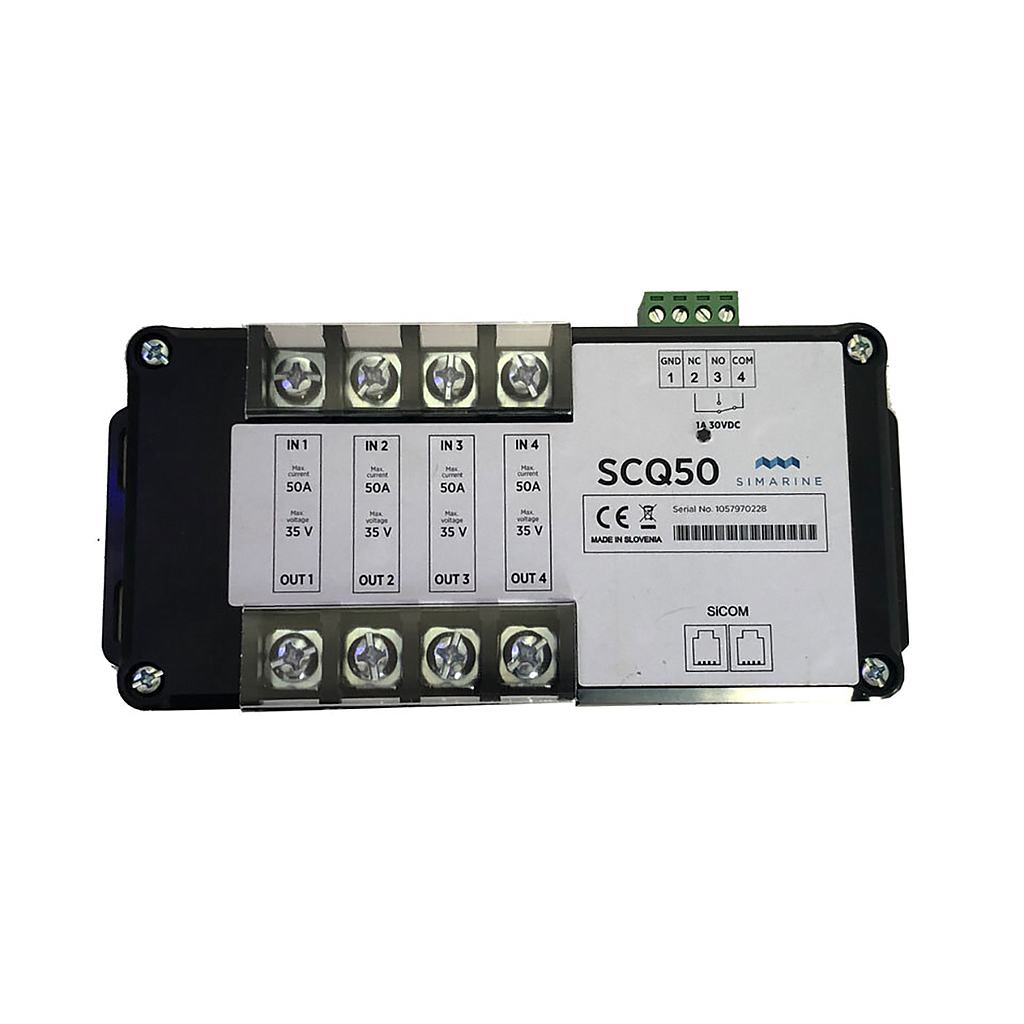

Simarine SI-SCQ50 Quad shunt:

Highly versatile digital shunt module for monitoring consumer devices and/or generators up to 50A current per channel. The channels can be combined to reach higher amperage if neccessary. Up to four SCQ50/SCQ50T modules can be connected to a PICO system. SCQ50 is an innovative shunt module with:

• Four inputs for monitoring individual consumer and generator continuous currents up to 50A (70A peak) per input
• Can handle 12V or 24V systems, (same voltage used per device)
• Innovative protected architecture allows wiring in either negative (low) or positive (high) side. (same system used per device)
• Very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power.
• Current channels can be combined for higher amperage, meaning 2 x 50A channels can be used for measuring up to 100A.
• Up to five modules can be connected simultaneously to monitor up to 20 current channels with PICO Battery Monitor.
• Assignable NO or NC output relay.

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins
