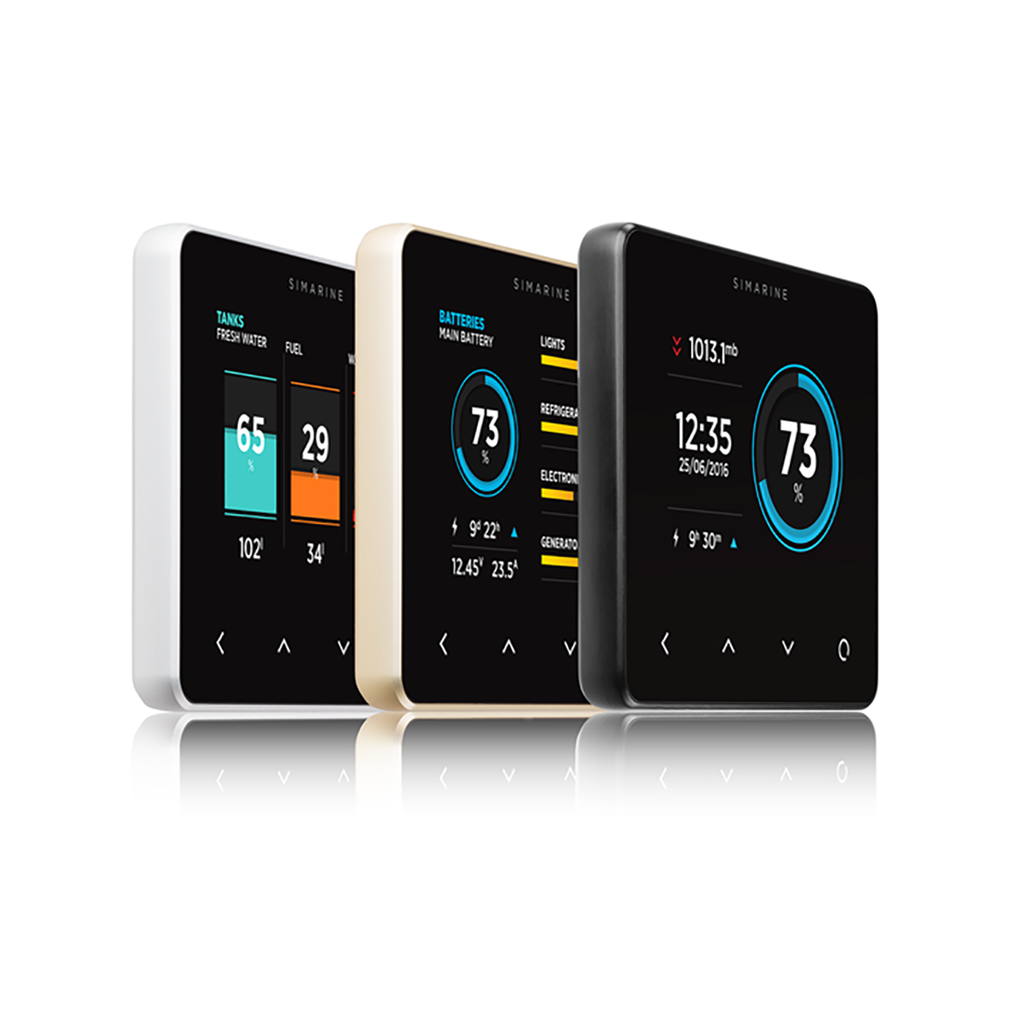

Simarine Pico Stand Alone Silver

Pico standard display silver • ip67 casing • 3.5’’ inch ips lcd

$ 469.00 - Inc GST 469.0 in stock AUD $ 469.00

$ 469.00

Brand

This combination does not exist.

ADD TO CART

Brand: Simarine

SIMARINE

SKU: ANL050

Category: MONITORING

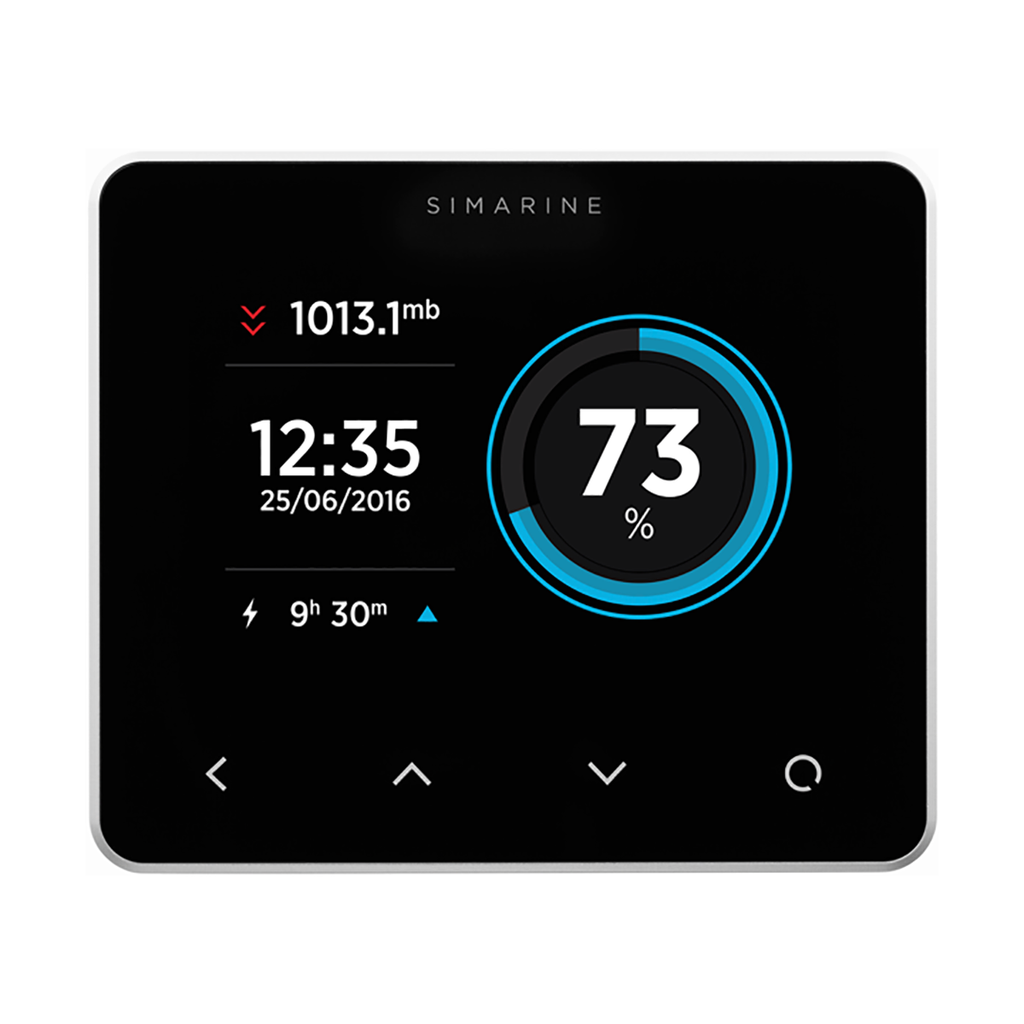

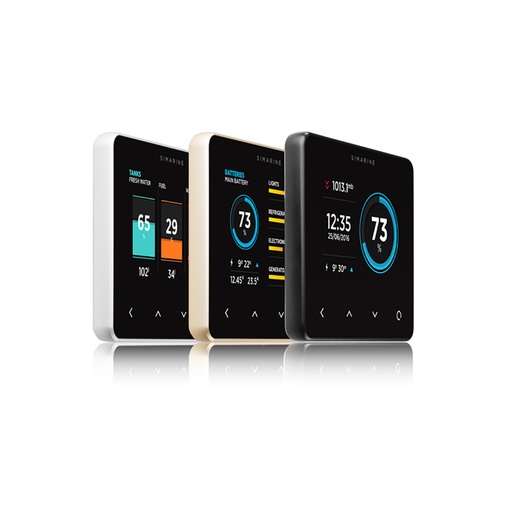

Simarine Pico:

SIMARINE sets new standards for marine battery and tank monitors in ﬁelds of design, functionality, connectivity and ease of use. The IP67 casing of the main unit is CNC-milled from a single piece of high quality 6000 series anodized aluminium (corrosion-proof). The 3.5’’ inch IPS LCD display is optically bonded with Anti-Reﬂective Gorilla Glass®. Our unique Real Time Battery Health™ algorithm ensures very precise battery state of charge and health measurements.

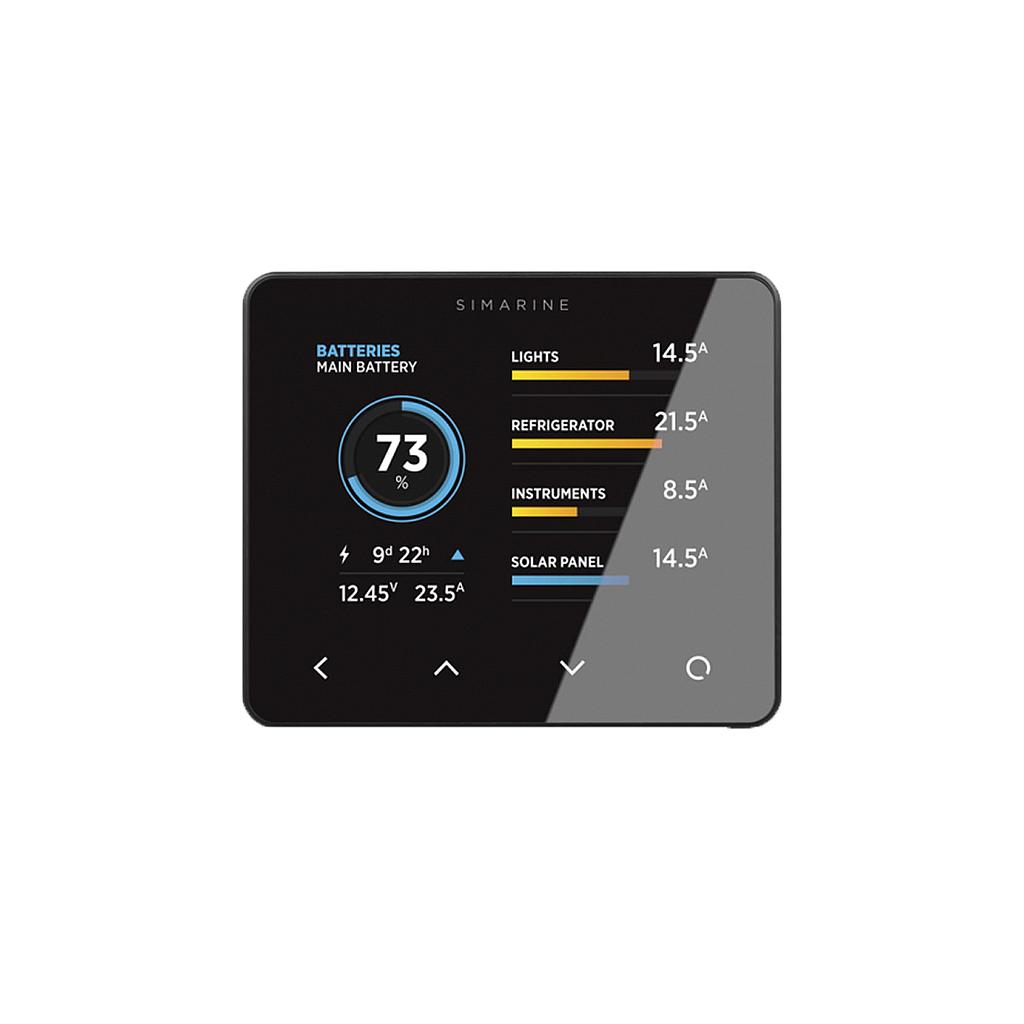

Active battery shunt modules:

The high precision active digital shunt/s available for the system can monitor currents up to 500A on 12V, 24V, 48V, 60V and 72V systems. Up to six shunts can be used to monitor up to six battery banks on a PICO system.

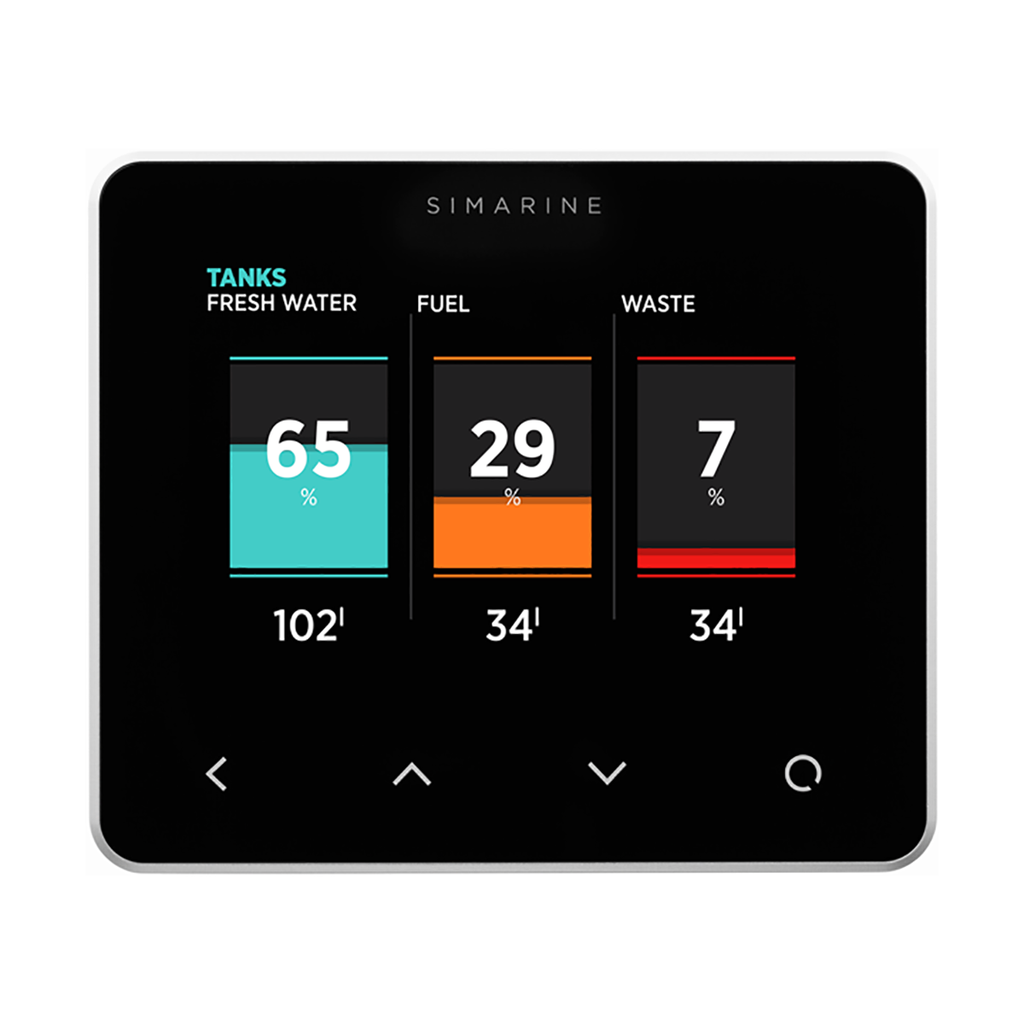

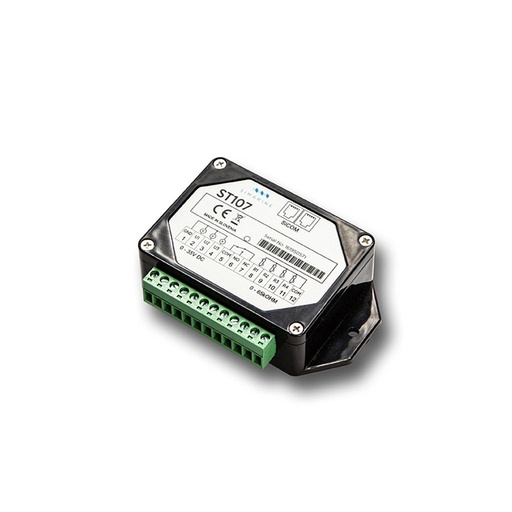

Tank level modules:

Highly versatile digital module for monitoring up to 7 tank levels, 3 battery voltages and 4 temperatures. Up to three ST107 modules can be connected to a PICO system.

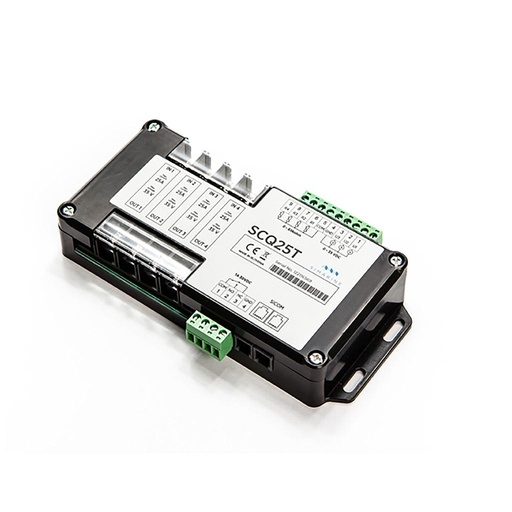

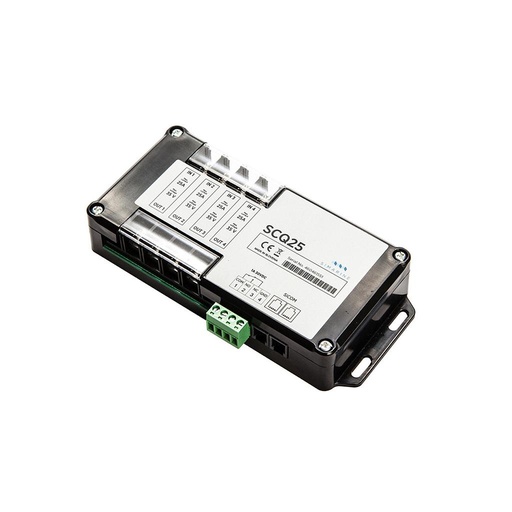

Quad digital shunt modules:

Highly versatile digital shunt module for monitoring consumer devices and/or generators up to 25A current per channel. The channels can be combined to reach higher amperage if necessary. Additionally, the SCQ25T allows monitoring 7 tank levels, 3 battery voltages and 4 temperatures.Up to four SCQ25/SCQ25T modules can be connected to a PICO system.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Simarine:

Founded on a belief that electronic devices should be easy to understand and use, Simarine provides energy-efficient, user-friendly products built sustainably with high-quality materials. Their state-of-the-art electronic solutions for caravans, campervans, motorhomes and marine applications are a staple of the industry. Their mission is to provide lovers of the great outdoors and seekers of breathtaking views with accurate and reliable data on, and control over, their batteries, tank levels, temperatures, individual consumers and generators, and much more. All in an easy-to-understand format.

Specifications

Brand

Simarine

Manual_Pico_EN_1.4.pdf

Download

Product Specification

Operating
Voltage Range	6 – 35 V
Temperature Range	-10 – +70 °C (+10 – +160 °F)
Power Consumption at 12V
Operating, Wi-Fi on, 100% illumination	90 mA
Operating, Wi-Fi on, 70% illumination	35 mA
Operating, Wi-Fi on, 0% illumination	18 mA
Power off, logger still active	5 mA
Resolution
Current	± 0.01 A
Voltage	± 0.01 V
Amp hours	± 0.1 Ah
State of charge (0 - 100%)	± 0.1 %
Temperature	± 0.1 °C/°F

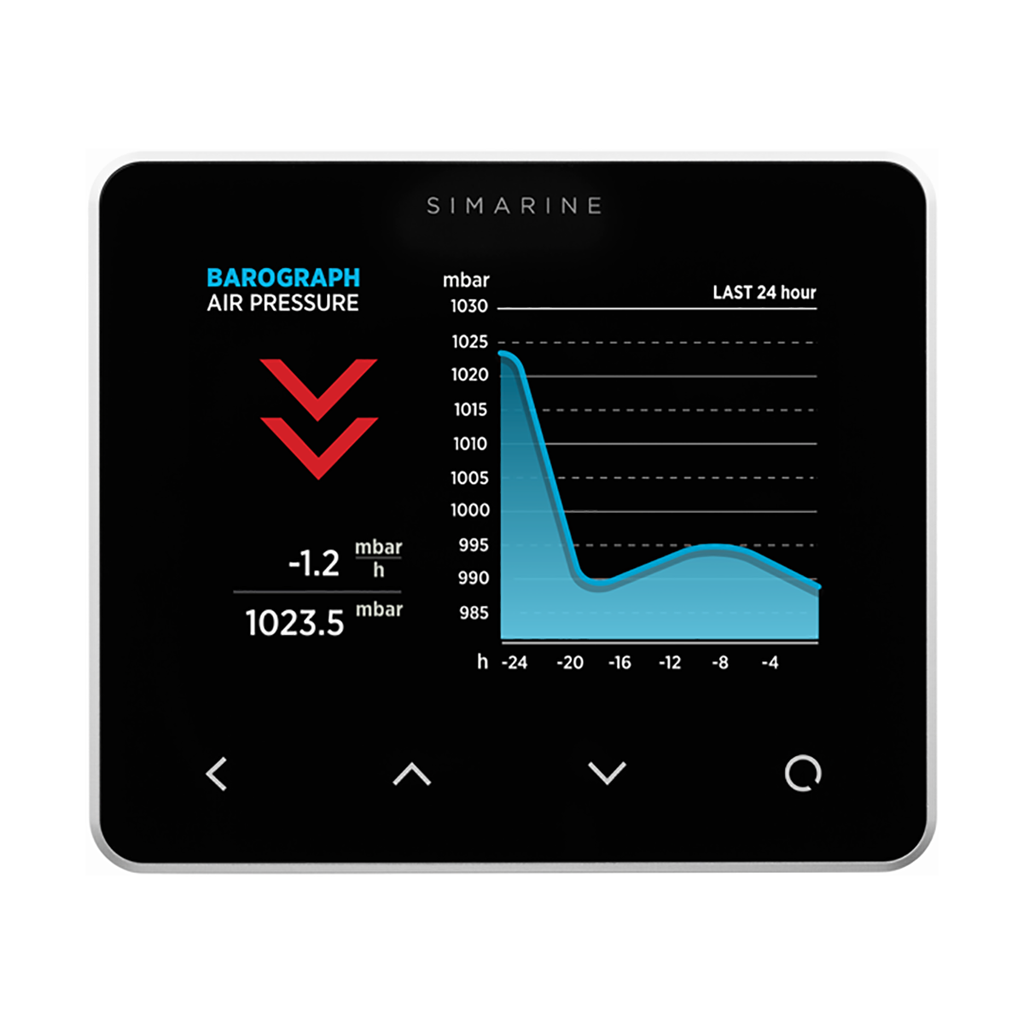

Barometer
Operating range	950 – 1080 hPa
WiFi
Radio frequency bands	2.4 GHz
Dimensions (without connector)
Standalone	98 x 84 x 10 mm 3.85 x 3.30 x 0.39 in
Panel	108.5 x 94 x 10 mm 4.27 x 3.70 x 0.39 in
Connectivity	Up to
Batteries	6
Shunts	24
Temperature sensors	10
Tank level sensors	14
Inclinometer sensors	2
Smart phone application	1
Logger capacity	up to 3 months
