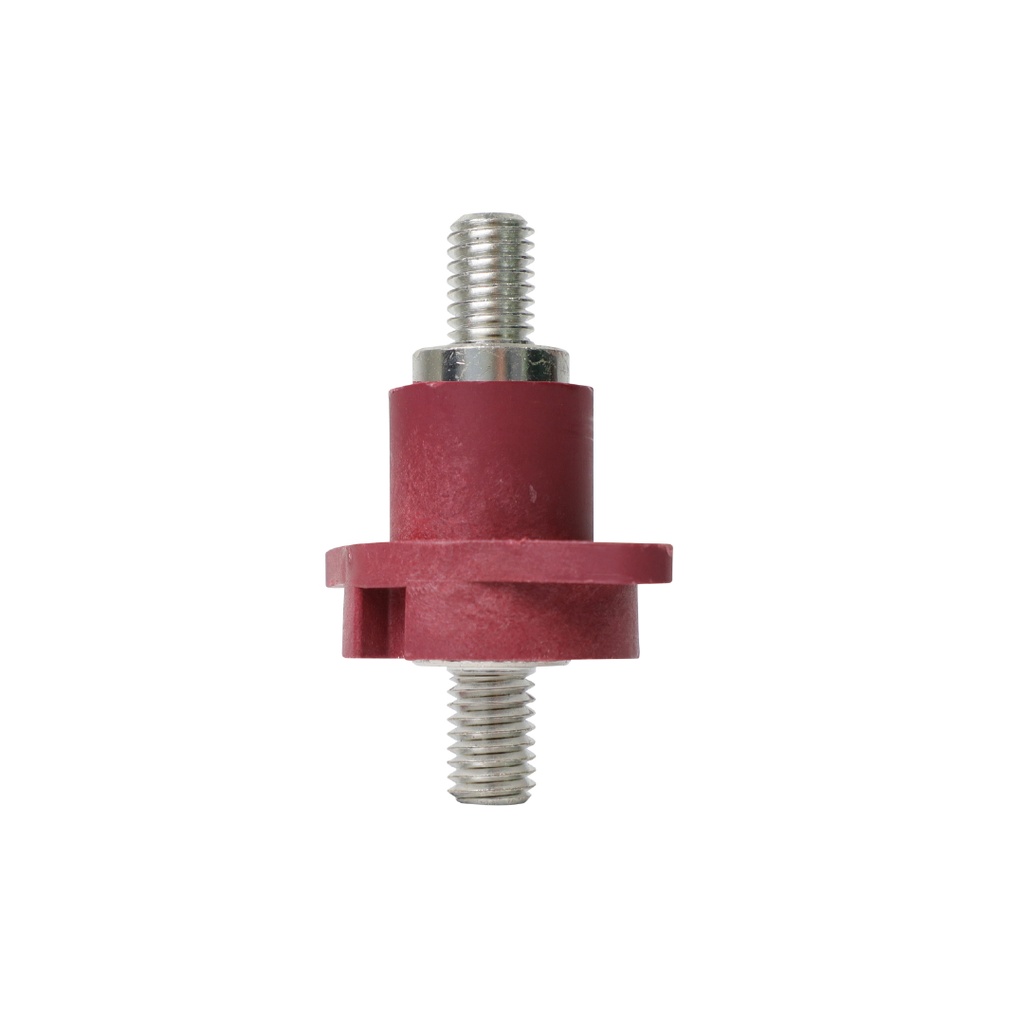

Alvolta M8 Thru Wall Terminal Stud Red

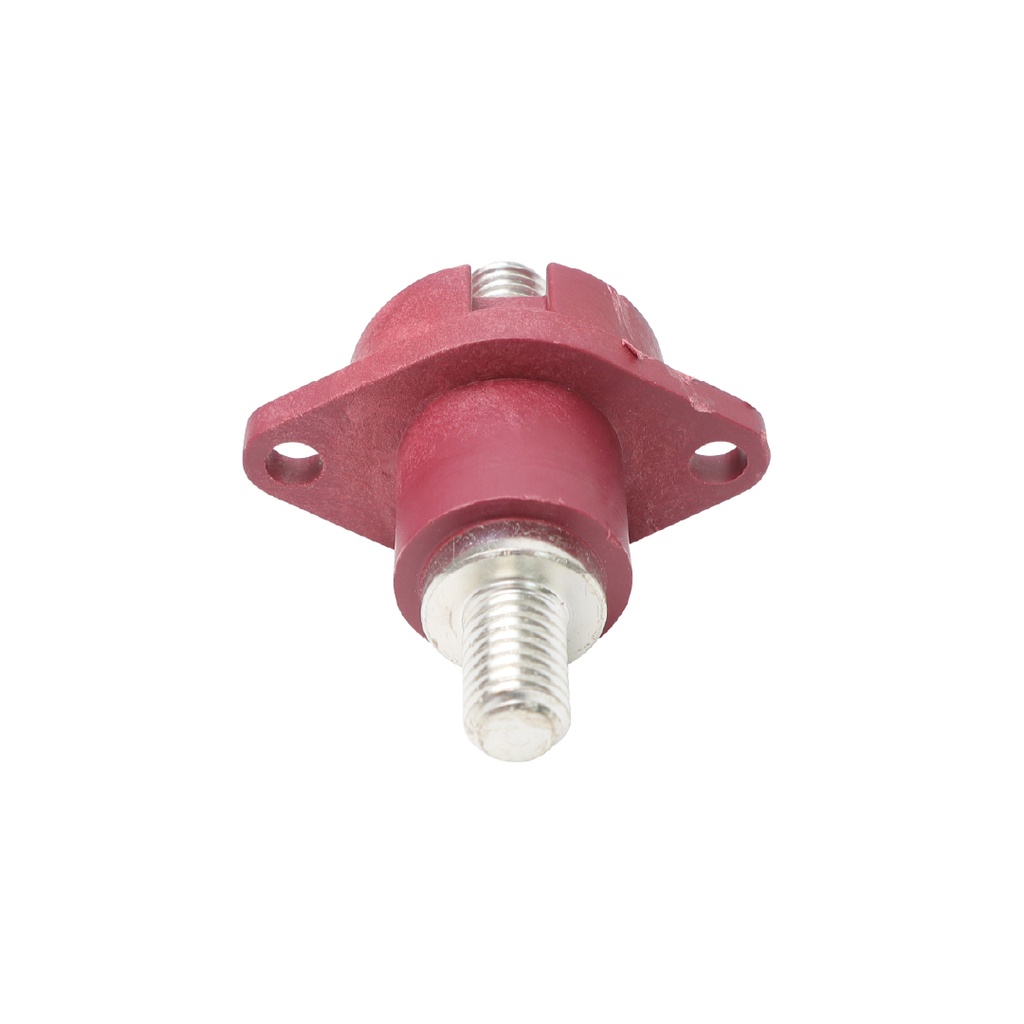

Alvolta M8 Thru Wall Terminal Stud Red_2

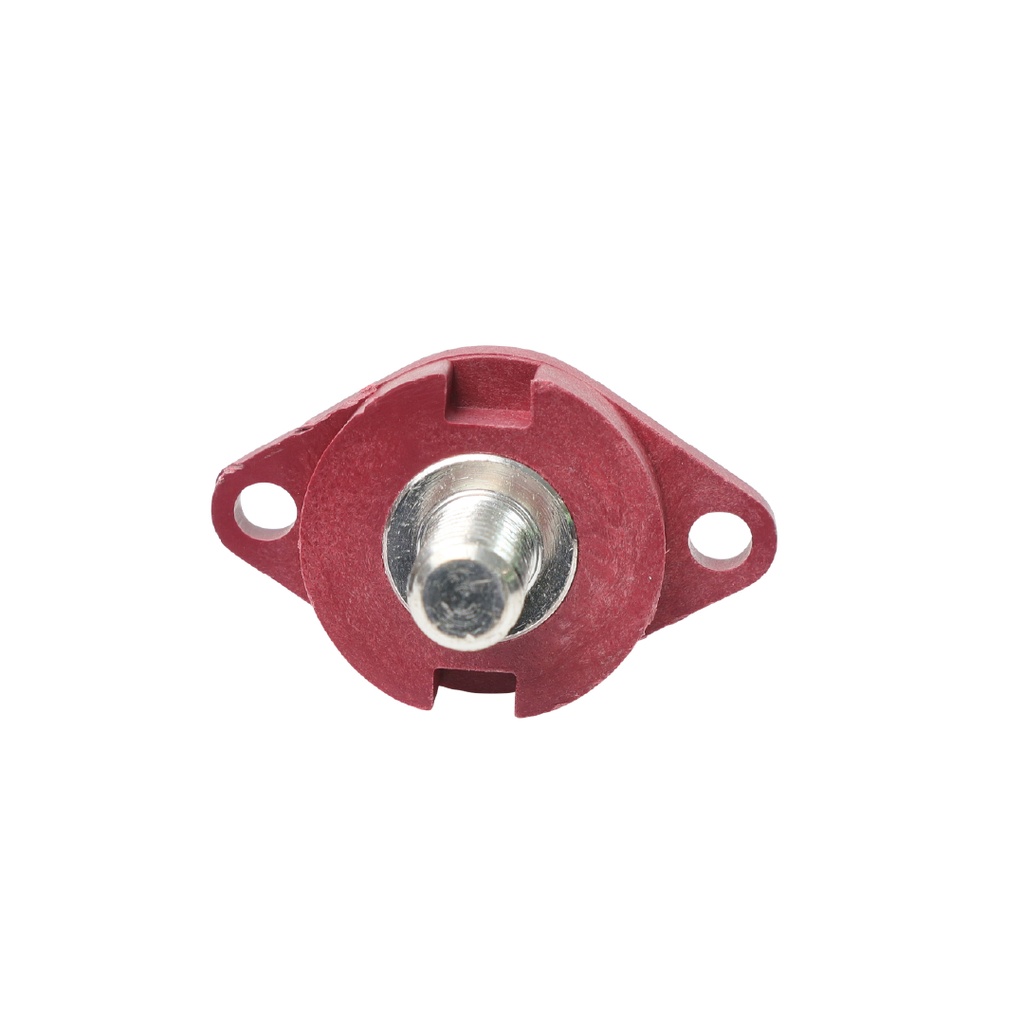

Alvolta M8 Thru Wall Terminal Stud Red_3

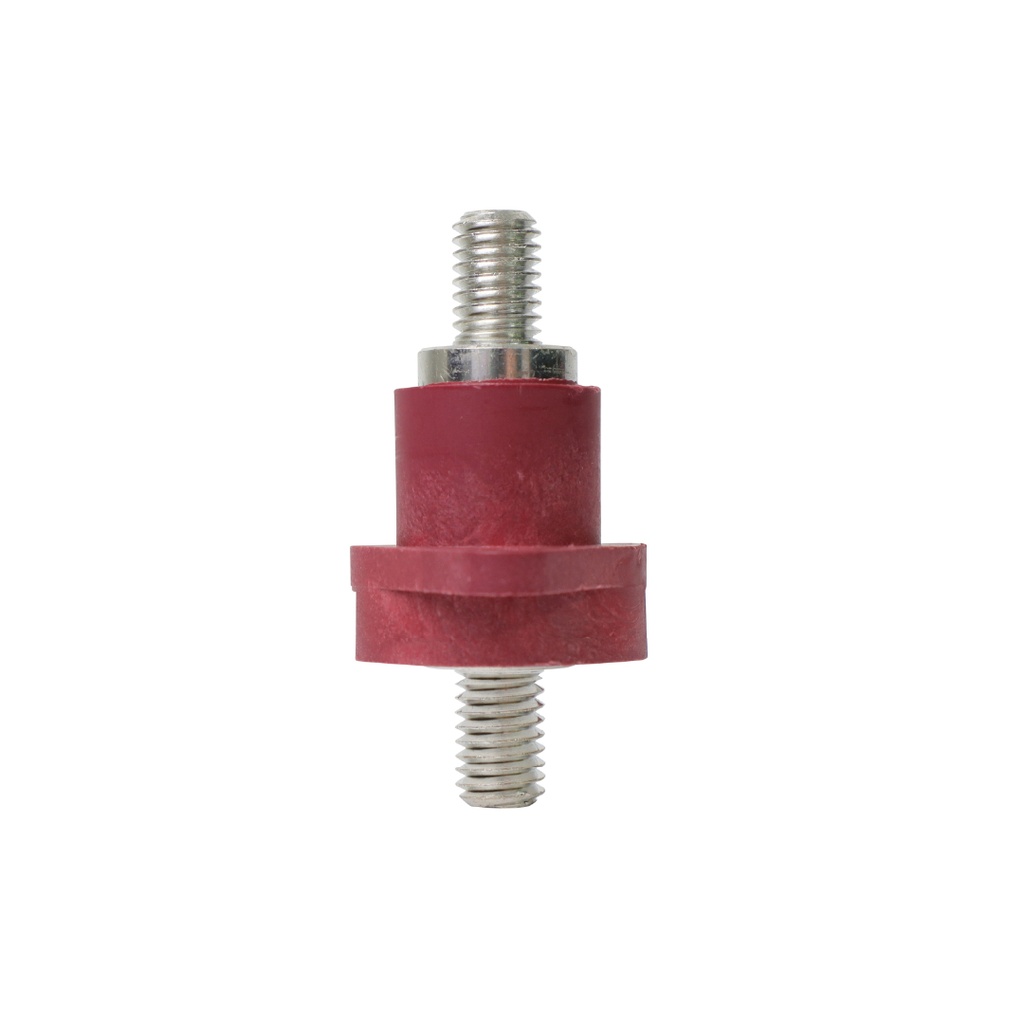

Alvolta M8 Thru Wall Terminal Stud Red_4

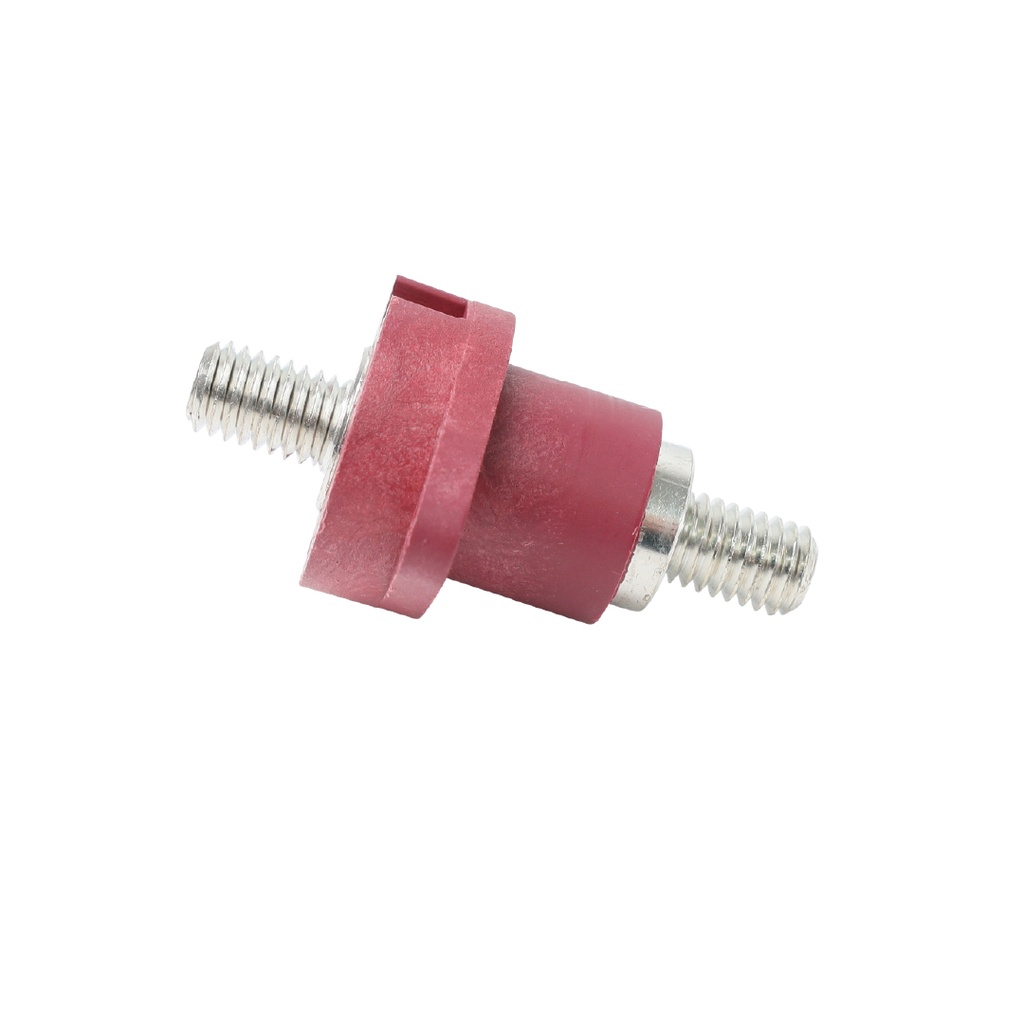

Alvolta M8 Thru Wall Terminal Stud Red_5

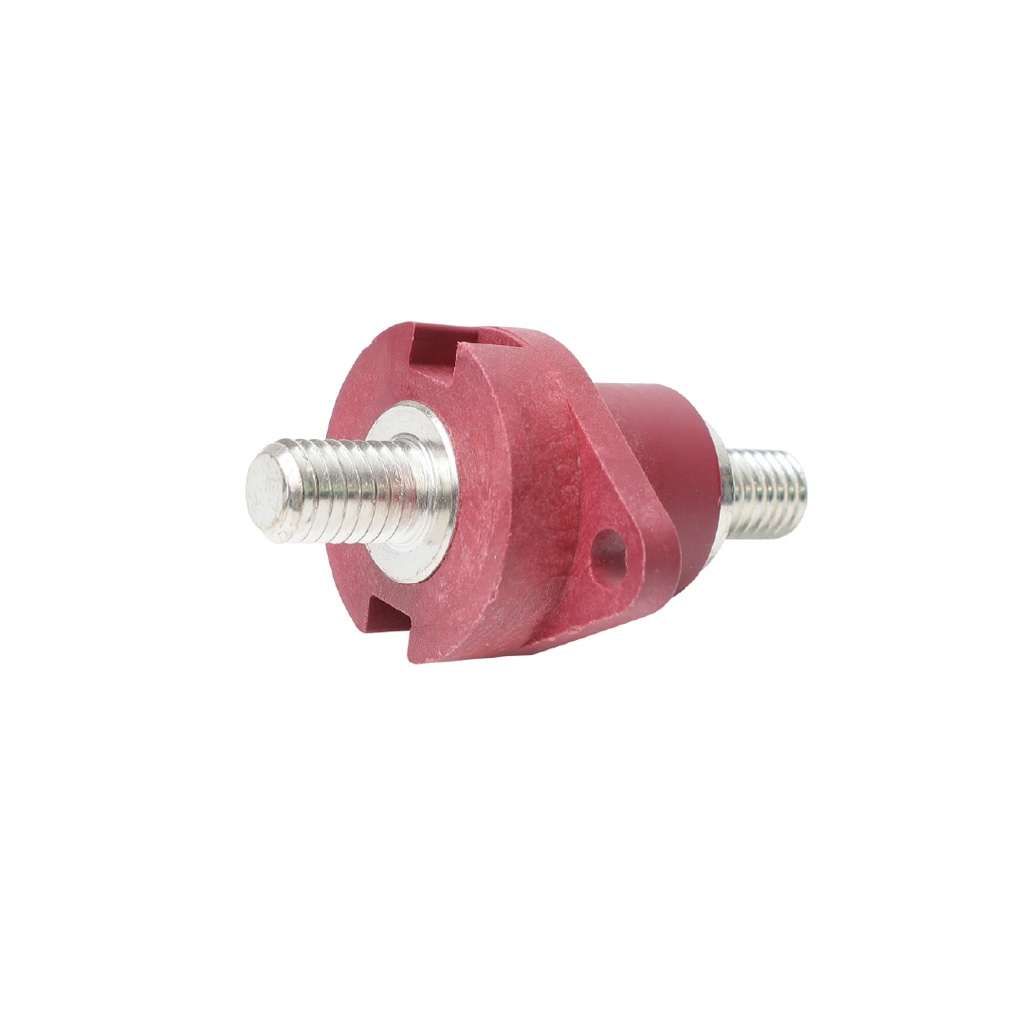

Alvolta M8 Thru Wall Terminal Stud Red_6
Alvolta M8 Thru Wall Terminal Stud Red_7
Alvolta Logo
Alvolta M8 Thru Wall Terminal Stud Red
Alvolta M8 Thru Wall Terminal Stud Red_2
Alvolta M8 Thru Wall Terminal Stud Red_3
Alvolta M8 Thru Wall Terminal Stud Red_4
Alvolta M8 Thru Wall Terminal Stud Red_5
Alvolta M8 Thru Wall Terminal Stud Red_6
Alvolta M8 Thru Wall Terminal Stud Red_7
Alvolta Logo

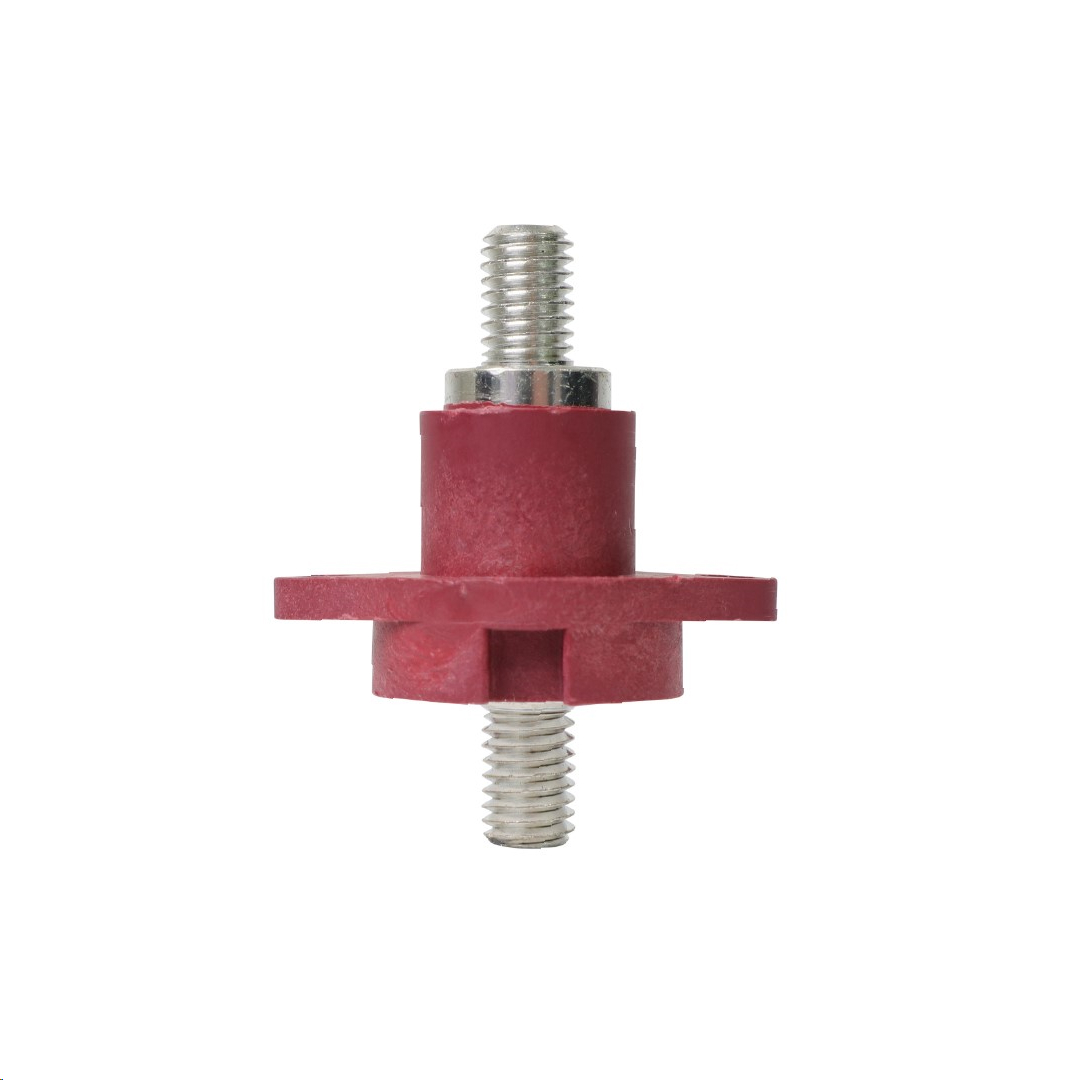

Alvolta M8 Thru Wall Terminal Stud Red

https://www.springers.com.au/web/image/product.template/12600/image_1920?unique=b0a6adc
(0 review)

M8 'through-wall' stainless steel terminal post to connect two or more voltage lines

$ 29.90 - Inc GST 29.9 AUD $ 29.90

Not Available For Sale

($ 29.90 / Unit)
  • Brand

This combination does not exist.

You have already submitted a query for this product today.
Contact Us
Brand: Alvolta
ALVOLTA
Shipping information
30-day returns & refunds
Ships from Brisbane
ACCESSORIES, Distribution

Specifications

Brand Alvolta
Datasheet_ALVTW8R-Terminal-Stud.pdf
Download

Terminal studs are used to connect and distribute electrical power between multiple cables or circuits in a DC system. They provide a safe and reliable mounting point for cable lugs, making them essential for battery banks, distribution panels, inverters, and fuse systems in 12V, 24V, and 48V applications.

Terminal studs are available in various thread sizes (e.g. M6, M8, M10) and current ratings, depending on your system requirements. They can be mounted on insulated bases (for isolated connections) or common busbars (for shared connections). Choose a size and rating that match your cable lugs and current load.

Insulated terminal studs are mounted on non-conductive bases, keeping them isolated from the mounting surface which is ideal for positive and negative power distribution points. Non-insulated studs, on the other hand, are used when the connection point is intentionally bonded to the chassis or grounding surface.

Yes. Many terminal studs are made from tinned copper or stainless steel to resist corrosion and are housed in sealed or covered bases for extra protection. For marine or off-road applications, choose marine-grade or IP-rated studs to ensure long-lasting, reliable performance in harsh environments.

Product Specifications


Maximum Voltage
1000 V DC
Maximum Current
200 A
Dielectric Strength
3000 V
Terminal Type
M8
Terminal Material
Stainless Steel
Hex Nut Material
Stainless Steel
Base Material
Glass Fiber Reinforced Nylon
Mounting Holes
5 mm (M5)
Colour
Red
Dimensions
50 x 29 x 60 mm
Weight
0.15 kg

Accessory Products

[C16] Tycab 16mm² Tinned Twin Core Cable
TYCAB AUSTRALIA
Tycab 16mm² Tinned Twin Core Cable
$ 14.95 $ 14.95
SKU:C16

Alternative Products

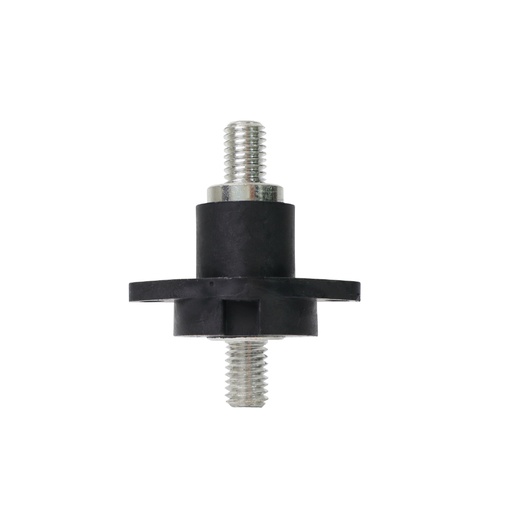

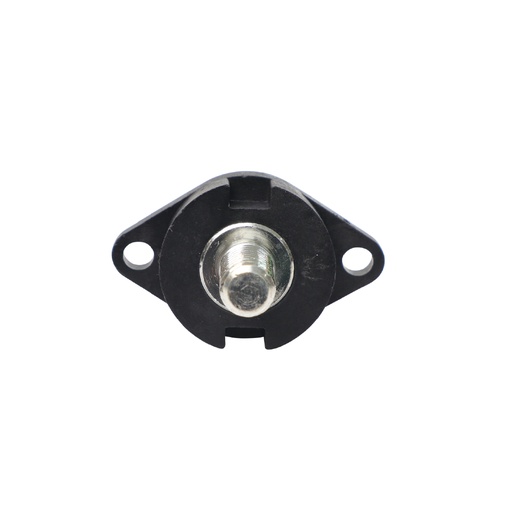

[ALVTW8B] Alvolta M8 Thru Wall Terminal Stud Black
