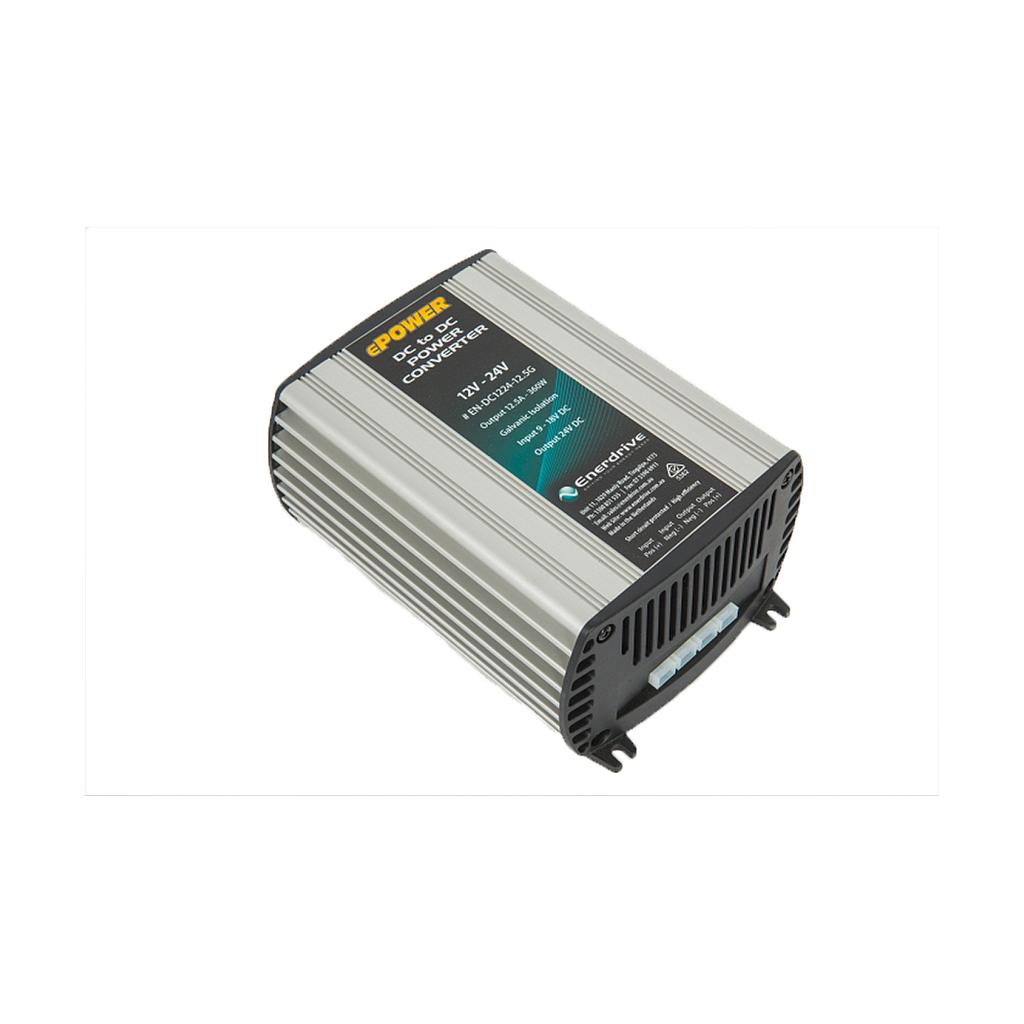

Enerdrive 12V-24V/12.5A Glv Iso DC-DC Converter

Enerdrive 12V-24V/12.5A Glv Iso DC-DC Converter

Features:
• DC-DC Converter with Galvanic Isolation
• Switch Mode Technology with Additional Protection
• 5-year Warranty

$ 479.00 - Inc GST 479.0 in stock AUD $ 479.00

$ 479.00

Brand

This combination does not exist.

ADD TO CART

Brand: Enerdrive

ENERDRIVE

SKU: ANL050

Category: Converters Isolated

Enerdrive 12V-24V 12.5A Glv Iso Dc Converter:

These compact and rugged DC to DC converters with galvanic isolation units omit little heat making them safe and convenient for installation where space is hard to come by. Enerdrive’s DC to DC galvanic isolation converters use Switch Mode technology with protection against over-current / overload, over-heating, over-voltage and reverse polarity connection. Units can be paralleled multiple times to increase overall output. Models with 27.6V output can also be used as a 24V battery charger.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Enerdrive:

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.

Specifications

Brand

Enerdrive

Manual_SwitchedMode-DC2DC-Galvanic-Installation.pdf

Download

Product Specification

Input (VDC)	9 – 18
Output (VDC)	24
Current (A)	12.5
Load (W)	360
Weight	1400g
Dimension LxWxH	160mm x 163mm x 64mm
Note: Specifications subject to change without notice.
