Enerdrive Board 40A Ac 40A Dcdc Inc Simarine
This system is designed for the end user requiring a medium level of power requirements along with ac & dc charging ability • includes en31240 ac
Charger • en3dc40+ dc-dc charger • simarine battery monitoring • 5 year warranty
| Brand: Enerdrive |
ENERDRIVE
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
Enerdrive DIY boards:
Introducing Enerdrives DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.
Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Enerdrive also have you covered from a service and support angle with the DIY Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely. Suits all lead acid battery types and lithium batteries.
*Please note, Enerdrive boards are made to order and can take 2-4 weeks lead time to build upon ordering.

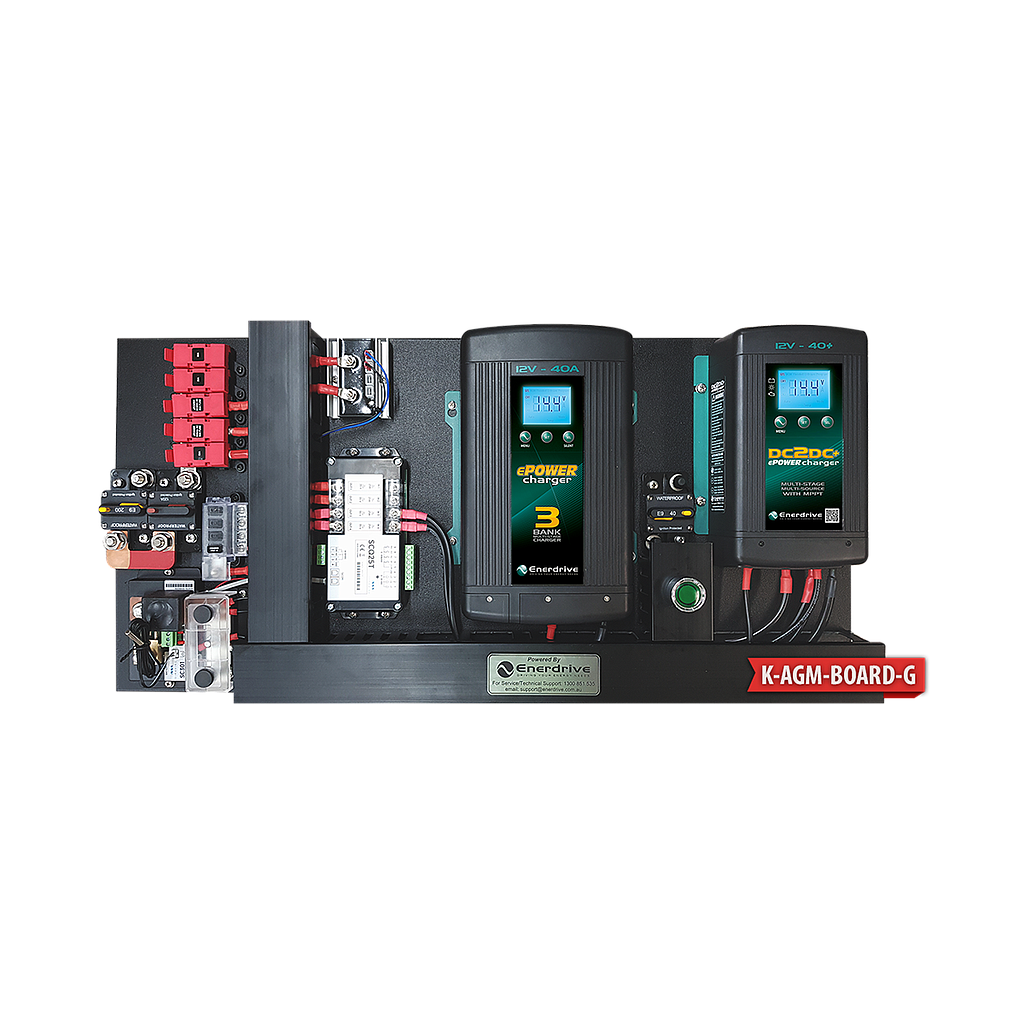

K-AGM-Board-G board includes
-Enerdrive ePOWER 12V 40A DC to DC battery charger (EN3DC40+)
- Enerdrive ePOWER 12V 40A AC battery charger (EN31240)
- Enerdrive ePOWER 12/24V 40A low battery cutout IP66 (EN-LBC1224-40)
- Simarine LCD WIFI monitoring screen (PICO)
- Simarine SC301 300A main battery shunt
- Simarine individual load/charge module (SCQ25T)
- 3 Stud main negative busbar
- Main system circuit breaker 120A
- Inverter circuit breaker 200A
- Solar input positive circuit breaker 40A
- ePOWER DC2DC 60A output fuse connection
- ePOWER AC Charger 50A output fuse connection
- 2 x 30A load output fuse connections
- 24hr critical load 4 circuit "wedge" fuse block
- Battery restart switch (lithium batteries)
- 12mm Black plastic mounting board. Water & rot resistant
Enerdrive DIY boards overview:
| Items Included | K-AGM-Board-C | K-AGM-Board-D | K-AGM-Board-E | K-AGM-Board-F | K-AGM-Board-G | K-DIY-Board-01 |
| ePOWER AC 40Amp 230v Charger | * | * | * | * | * | * |
| ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * | * | * | * | * | * |
| ePRO Plus 500A Battery Monitor with Remote Display | * | * | * | |||
| Simarine Pico LCD WIFI Monitoring Screen | * | * | * | |||
| Simarine SC301 300A Main Battery Shunt | * | * | * | |||
| Simarine SCQ25T Individual Load/Charge Module | * | * | * | |||
| 3 Stud Main Negative Bus Bar | * | * | * | * | * | * |
| 40A Low Battery Cutout | * | * | * | * | * | * |
| Main System Circuit Breaker 120A | * | * | * | * | * | * |
| Inverter Circuit Breaker 200A | * | * | * | * | * | * |
| Solar Input Positive Circuit Breaker 40A | * | * | * | * | ||
| ePOWER DC2DC 60A Output Fuse Connection | * | * | * | * | * | * |
| ePOWER AC Charger 50A Output Fuse Connection | * | * | * | * | * | * |
| 1 x 30A Load Output Fuse Connections | * | |||||
| 2 x 30A Load Output Fuse Connections | * | * | ||||
| 50A Load Output Fuse Connection | * | |||||
| 24hr Critical Load 4 Circuit "Wedge" Fuse Block | * | * | * | |||
| 24hr Critical Load 8 Circuit "Wedge" Fuse Block | * | |||||
| Main 6 Circuit "Wedge" Fuse Block with Negative Bus and Cover | * | |||||
| Main 12 Circuit "Wedge" Fuse Block with Negative Bus and Cover | * | * | ||||
| ePOWER 2000W AC Transfer Inverter with RCD & AC Transfer Switch | * | * | ||||
| Battery Restart Switch (Lithium Batteries) | * | * | * | * | * | |
| 12mm Black Plastic Mounting Board. Water & Rot Resistance | * | * | * | * | * | * |
| 175A Anderson Plug (Inverter) | * | |||||
| 50A Anderson Plug (Solar Input) | * | |||||
| 50A Anderson Plug (Vehicle Input) | * | |||||
| Dimensions (L x W x D) | 1185 x 380 x 130 mm | 600 x 490 x 100 mm | 600 x 490 x 100 mm | 1185 x 380 x 130 mm | 790 x 380 x 100 mm | 580 x 580 x 100 mm |
| Weight | ||||||
| (*) Indicates Standard Fitment | ||||||
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Enerdrive:
Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.
Accessory Products
![[C16] Tycab 16mm² Tinned Twin Core Cable](/web/image/product.product/1094/image_512/%5BC16%5D%20Tycab%2016mm%C2%B2%20Tinned%20Twin%20Core%20Cable?unique=90e2fd3)

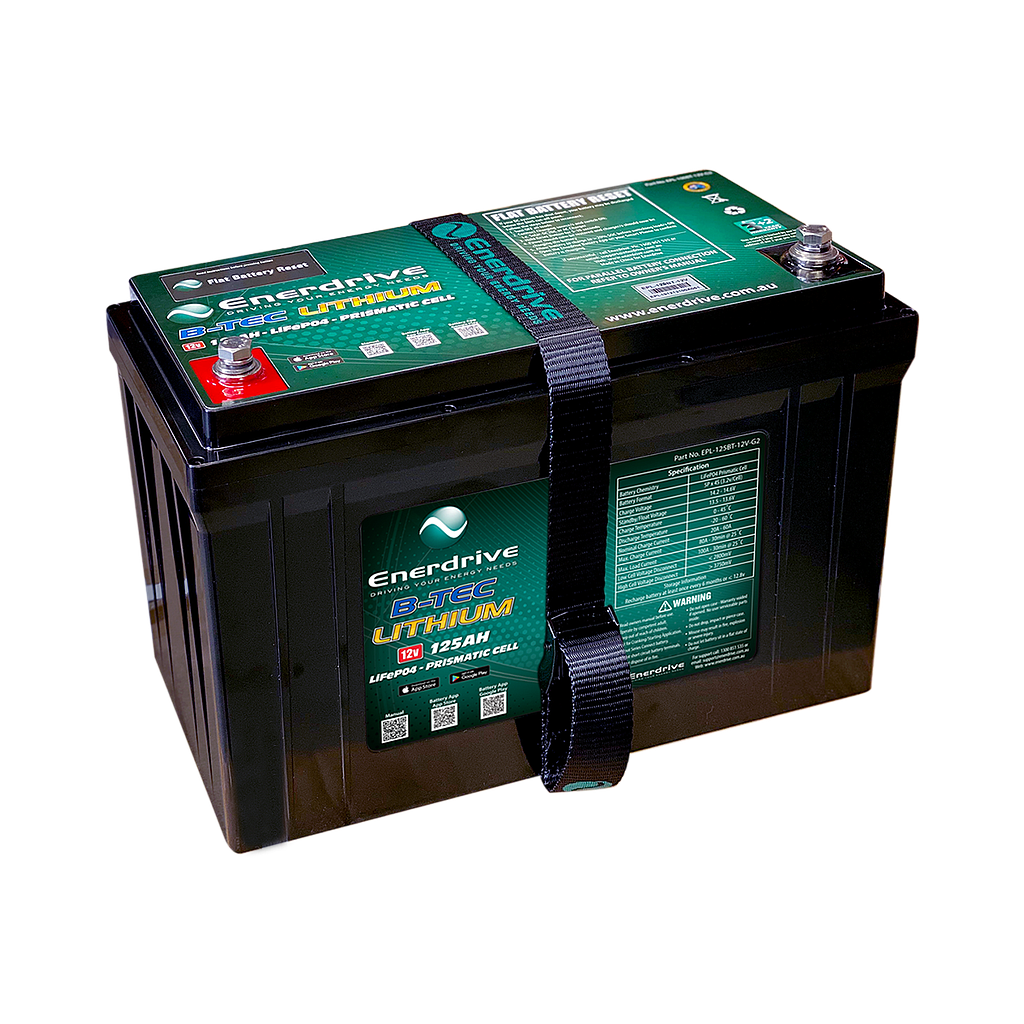

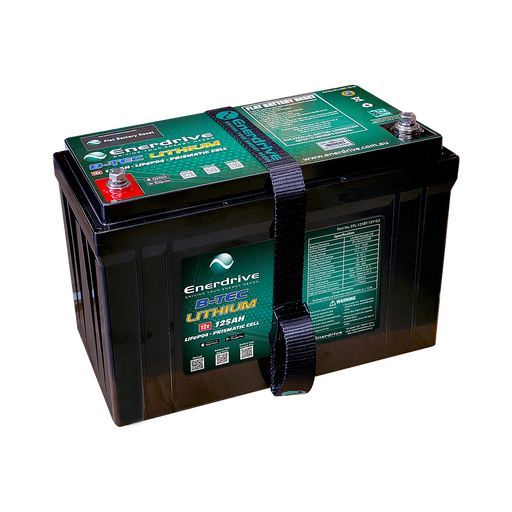

![[EPL-125BT-12V] Enerdrive B-TEC 12V 125Ah LiFePO4 Battery](/web/image/product.product/9378/image_512/%5BEPL-125BT-12V%5D%20Enerdrive%20B-TEC%2012V%20125Ah%20LiFePO4%20Battery?unique=db30fde)
Alternative Products
![[K-ADVENTURER-02-L] Enerdrive Adventurer System LEFT 40AC, 40DC, 2000X inc. Simarine SCQ50](/web/image/product.template/13050/image_512/%5BK-ADVENTURER-02-L%5D%20Enerdrive%20Adventurer%20System%20LEFT%2040AC%2C%2040DC%2C%202000X%20inc.%20Simarine%20SCQ50?unique=b4fc13c)
![[eSYS-F] Enerdrive Board 40A Ac 40A Dcdc 2000X Inc Simarine](/web/image/product.template/9412/image_512/%5BeSYS-F%5D%20Enerdrive%20Board%2040A%20Ac%2040A%20Dcdc%202000X%20Inc%20Simarine?unique=f071099)

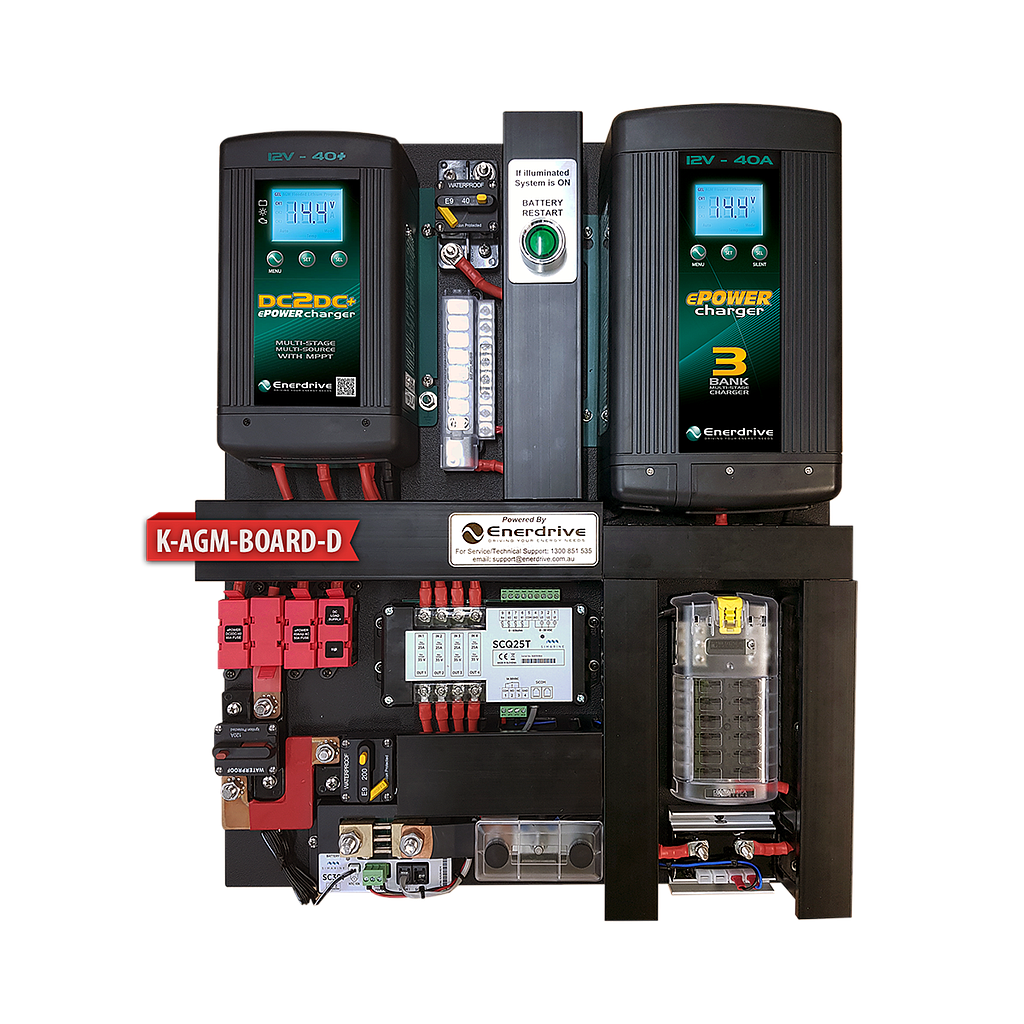

![[eSYS-D] Enerdrive Board 40A Ac 40A Dcdc Inc Simarine](/web/image/product.template/9410/image_512/%5BeSYS-D%5D%20Enerdrive%20Board%2040A%20Ac%2040A%20Dcdc%20Inc%20Simarine?unique=1211e5b)
![[K-EXPLORER-02-L] Enerdrive Explorer System LEFT 40DC inc. Simarine SCQ50](/web/image/product.template/13042/image_512/%5BK-EXPLORER-02-L%5D%20Enerdrive%20Explorer%20System%20LEFT%2040DC%20inc.%20Simarine%20SCQ50?unique=f91d527)

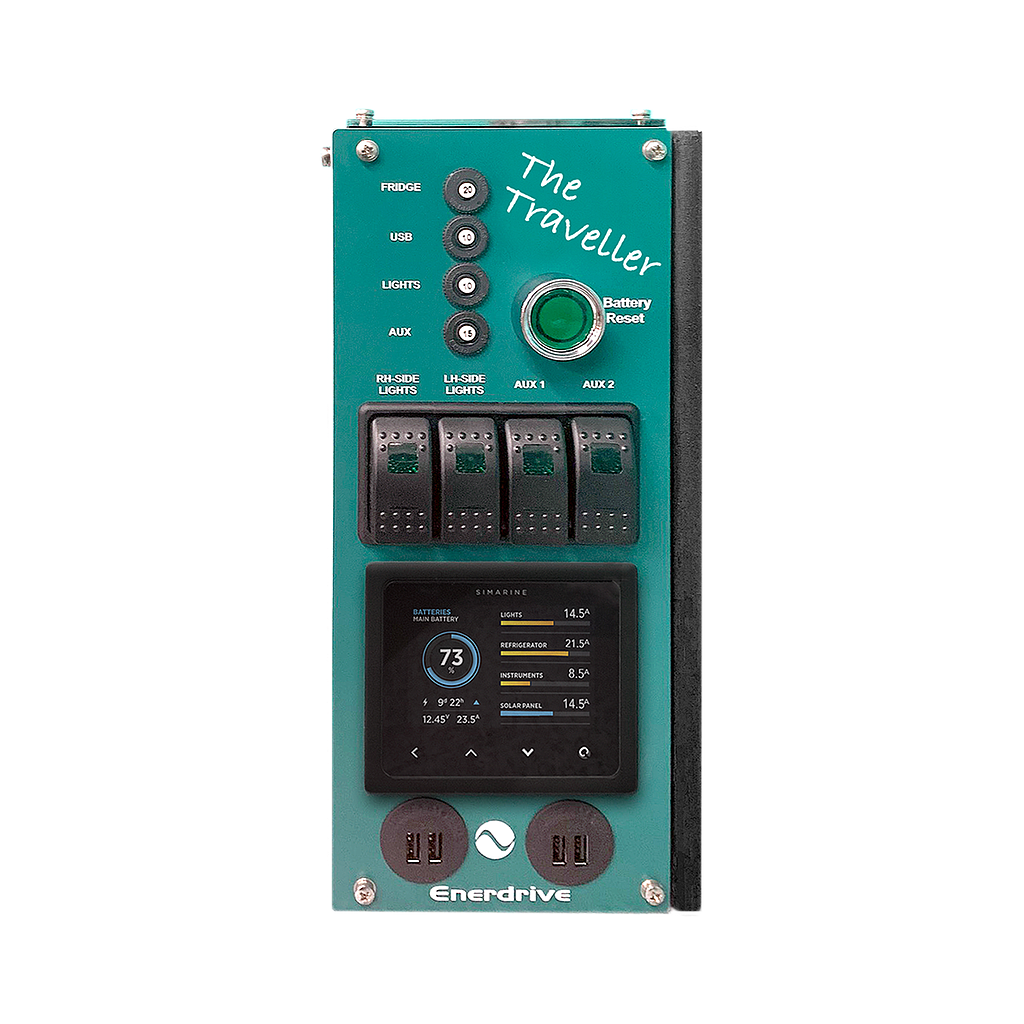

![[K-TRAVELLER-02] Enerdrive Traveller System 40AC 40DC with Simarine PICO](/web/image/product.template/13046/image_512/%5BK-TRAVELLER-02%5D%20Enerdrive%20Traveller%20System%2040AC%2040DC%20with%20Simarine%20PICO?unique=0a9bb2b)
