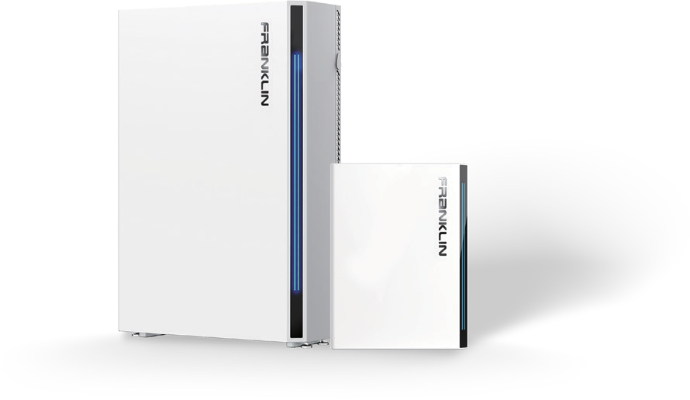

FranklinWH aPower
aPower Home Battery Solution
The FranklinWH system intelligently integrates multiple energy sources such as solar, battery, grid, generator, and EV power, creating a robust and open energy ecosystem that optimises energy supply and use, maximises solar efficiency, and enhances energy security.
Minimise your electricity bills, maintain whole-home backup during outages, and empower your family with 100% energy independence. FranklinWH is suitable for single-phase properties and offers a simple retrofit solution for existing solar energy systems.
Scalable
AI-Integrated Technology
Storm Hedge Forecasting
Comprehensive Warranties
High Efficiency
Blackout Protection
Advanced safety features
Handles High Demand
Ideal for handling demanding energy needs, aPower boasts a 13.6kWh storage capacity. Continue to power your home for extended periods at night or during outages.
Protected Investment
An industry-leading 12-year warranty protects your investment and guarantees long-term savings. Maximise your ROI with smart energy consumption tactics and exporting programs.
Scalable for Continued Growth
Scale your system as your energy needs grow, with the ability to connect up to 15 aPower batteries to one aGate. Achieve a maximum of 204kWh storage capacity.
Severe Weather Forecasting
When severe weather is forecast, Storm Hedge will automatically charge aPower to its maximum capacity to prepare for an outage.
aPower Battery
SKU: Franklin136
| Battery Type | Lithium-Ion Phosphate (LiFePO4) |
| Energy Capacity per Single Module | 13.6 kWh |
| Scalable | Supports 4 - 15 units per aGate module, dependent on overall system voltage capacity |
| Depth of Discharge | 89% round-trip efficiency |
| Blackout Protection | Yes |
| Backup Power | Single-phase backup only |
| Protection Rating | IP67 |
| Installation Method | Floor-standing or wall-mounted |
| Weight | 185 kg |
| Dimensions | 1150 x 750 x 290 mm |
| Safety | Intelligent thermal stability and management, advanced electrical protection and weatherproof construction |
| Warranty | 12-year Warranty |

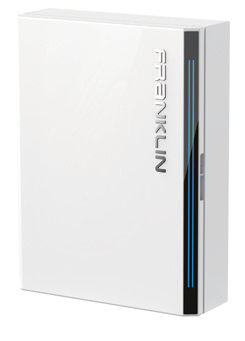

aGate
The aGate is the brain of your FranklinWH system. It connects the grid, solar, and battery power sources to keep your home powered.
When the grid fails, the aGate will seamlessly transition the home to battery power with an instant switchover.
The AC-coupled design makes FranklinWH compatible with various solar inverters to offer a simple retrofit solution.Quality Components.
23 Years Experience.
Proven Performance.
FranklinWH aPower
aPower Home Battery Solution
The FranklinWH system intelligently integrates multiple energy sources such as solar, battery, grid, generator, and EV power, creating a robust and open energy ecosystem that optimises energy supply and use, maximises solar efficiency, and enhances energy security.
Minimise your electricity bills, maintain whole-home backup during outages, and empower your family with 100% energy independence. FranklinWH is suitable for single-phase properties and offers a simple retrofit solution for existing solar energy systems.
Scalable
AI-Integrated Technology
Storm Hedge Forecasting
Comprehensive Warranties
High Efficiency
Blackout Protection
Advanced safety features
Key Features
Handles High Demand
Ideal for handling demanding energy needs, aPower boasts a 13.6kWh storage capacity. Continue to power your home for extended periods at night or during outages.
Protected Investment
An industry-leading 12-year warranty protects your investment and guarantees long-term savings. Maximise your ROI with smart energy consumption tactics and exporting programs.
Scalable for Continued Growth
Scale your system as your energy needs grow, with the ability to connect up to 15 aPower batteries to one aGate. Achieve a maximum of 204kWh storage capacity.
Severe Weather Forecasting
When severe weather is forecast, Storm Hedge will automatically charge aPower to its maximum capacity to prepare for an outage.
FranklinWH aPower Battery
| Battery Type | Lithium-Ion Phosphate (LiFePO4) |
| Energy Capacity per Single Module |
13.6 kWh
|
| Scalable | Supports 4 - 15 units per aGate module, dependent on overall system voltage capacity |
| Depth of Discharge | 89% round-trip efficiency |
| Blackout Protection | Yes |
| Backup Power | Single-phase backup only |
| Protection Rating | IP67 |
| Installation Method | Floor-standing or wall-mounted |
| Weight | 185 kg |
| Dimensions | 1150 x 750 x 290 mm |
| Safety | Intelligent thermal stability and management, advanced electrical protection and weatherproof construction |
| Warranty | 12-year Warranty |
Frequently asked questions
Here are some common questions about the FranklinWH aPower.
The FranklinWH aPower is a lithium iron phosphate (LFP) battery designed for residential solar and storage applications, offering backup power, load management, and seamless integration with solar systems.
Each aPower unit has 13.6 kWh usable capacity. It has a continuous power output of 5kW and a peak power output of 10kW, which can be used for short durations.
Yes, the aPower works with most hybrid inverters and solar systems in Australia via the FranklinWH aGate, which manages energy flows between solar, battery, grid, and home loads.
Yes. When paired with the FranklinWH aGate (Smart Energy Control system), the aPower can provide whole-home or partial-home backup during a grid outage.
You can install up to fifteen aPower units per aGate module, depending on the system’s overall voltage capacity. This offers a total of over 200 kWh of usable storage.
FranklinWH offers a 12-year warranty on the aPower, with a guarantee of at least 70% usable capacity at the end of that period (depending on usage and conditions).
Springers Solar also offers a 10-year workmanship warranty on the installation of FranklinWH aPowers.
You'll have access to the FranklinWH app, where you can view real-time production and consumption data, as well as customise system settings like battery discharge priorities and grid imports & exports.
Frequently asked questions
Here are some common questions about the FranklinWH aPower.
The FranklinWH aPower is a lithium iron phosphate (LFP) battery designed for residential solar and storage applications, offering backup power, load management, and seamless integration with solar systems.
Each aPower unit has 13.6 kWh usable capacity. It has a continuous power output of 5kW and a peak power output of 10kW, which can be used for short durations.
Yes, the aPower works with most hybrid inverters and solar systems in Australia via the FranklinWH aGate, which manages energy flows between solar, battery, grid, and home loads.
Yes. When paired with the FranklinWH aGate (Smart Energy Control system), the aPower can provide whole-home or partial-home backup during a grid outage.
You can install up to fifteen aPower units per aGate module, depending on the system’s overall voltage capacity. This offers a total of over 200 kWh of usable storage.
FranklinWH offers a 12-year warranty on the aPower, with a guarantee of at least 70% usable capacity at the end of that period (depending on usage and conditions).
Springers Solar also offers a 10-year workmanship warranty on the installation of FranklinWH aPowers.
You'll have access to the FranklinWH app, where you can view real-time production and consumption data, as well as customise system settings like battery discharge priorities and grid imports & exports.
aGate
The aGate is the brain of your FranklinWH system. It connects the grid, solar, and battery power sources to keep your home powered.
When the grid fails, the aGate will seamlessly transition the home to battery power with an instant switchover.
The AC-coupled design makes FranklinWH compatible with various solar inverters to offer a simple retrofit solution.
YOUR FRANKLINWH PREFERRED INSTALLER
Why Choose Us?
We are Queensland's most trusted and longest-serving solar installer, with over 23 years of experience. With our 100% in-house team of hybrid system designers, engineers, and electricians, we've partnered with FranklinWH to stay up-to-date with training and ensure gold-standard workmanship and servicing.
FranklinWH Overview
Springers Solar is proud to recommend and install FranklinWH's battery solutions for homes around Greater Brisbane.
Offering Residential Energy Solutions
Franklin Home Power is an all-in-one home energy solution based on an AC battery and AI-integrated technologies to give everyone maximum comfort, control, and energy security.
Operating Since 1029
Founded in 2019, FranklinWH has quickly established itself as a global leader in developing whole-home energy solutions.
Dedicated Australian Service & Support
With their dedicated Australian-based teams, FranklinWH provides service & support for solar installers and customers across the country.
YOUR FRANKLINWH PREFERRED INSTALLER
Why Choose Us?
We are Queensland's most trusted and longest-serving solar installer, with over 23 years of experience. With our 100% in-house team of hybrid system designers, engineers, and electricians, we've partnered with FranklinWH to stay up-to-date with training and ensure gold-standard workmanship and servicing.
FranklinWH Overview
Springers Solar is proud to recommend and install FranklinWH's battery solutions for homes around Greater Brisbane.
Offering Residential Energy Solutions
Franklin Home Power is an all-in-one home energy solution based on an AC battery and AI-integrated technologies to give everyone maximum comfort, control, and energy security.
Operating Since 2019
Founded in 2019, FranklinWH has quickly established itself as a global leader in developing whole-home energy solutions.
Dedicated Australian Service & Support
With their dedicated Australian-based teams, FranklinWH provides prompt service and support for solar installers and customers across the country.
