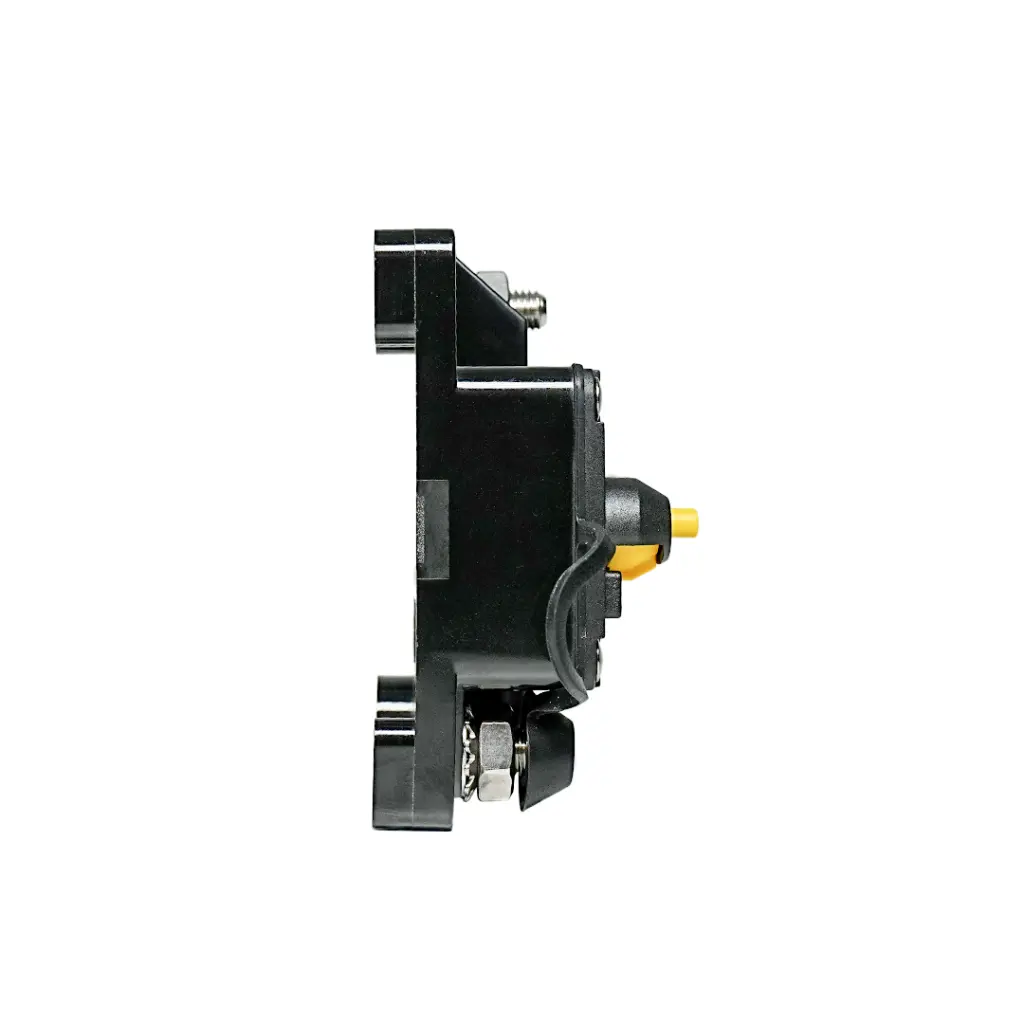

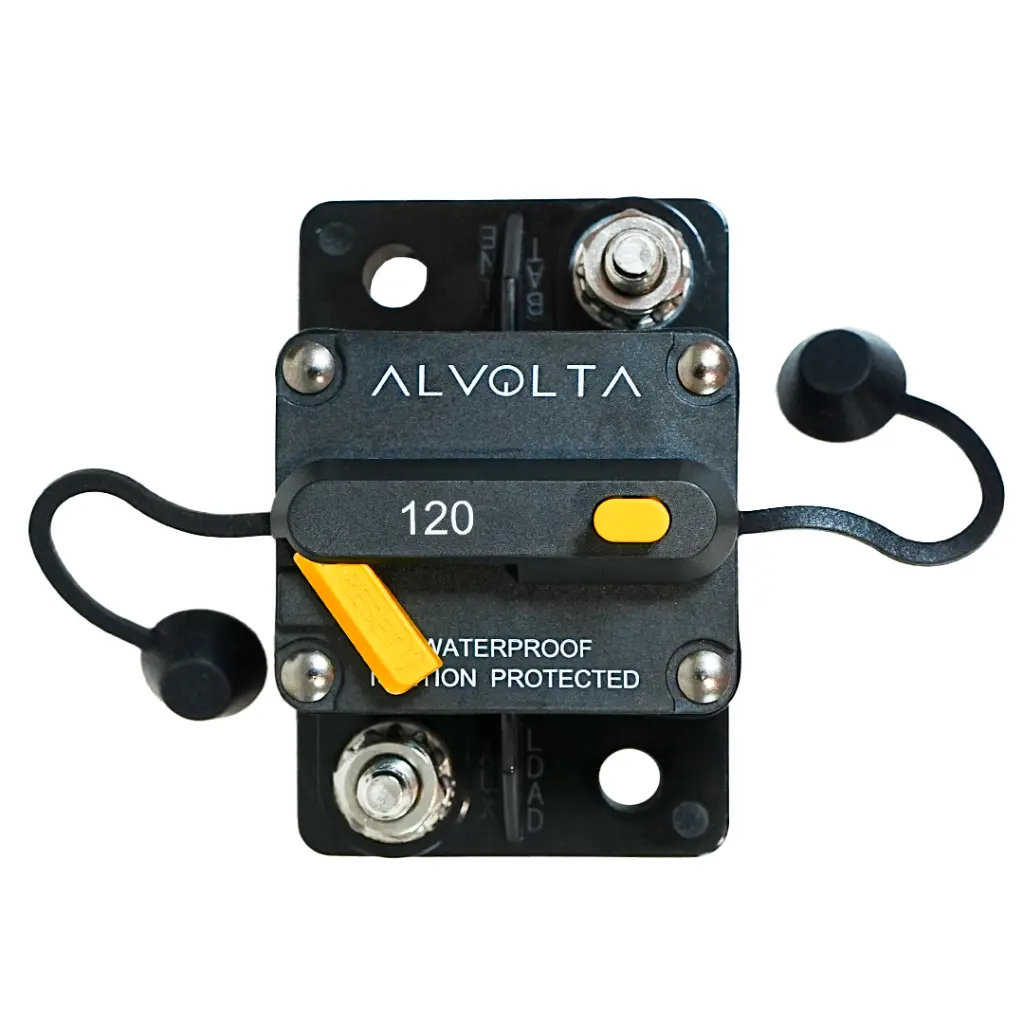

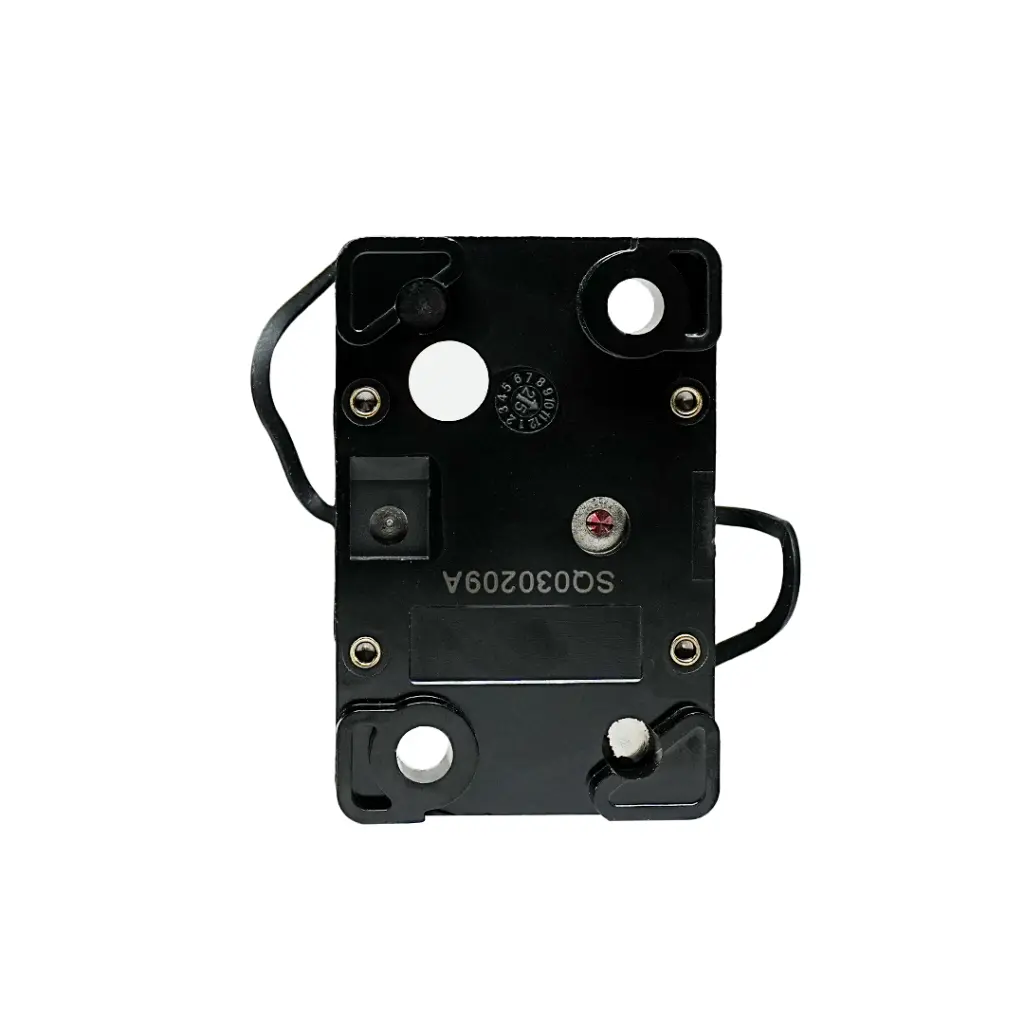

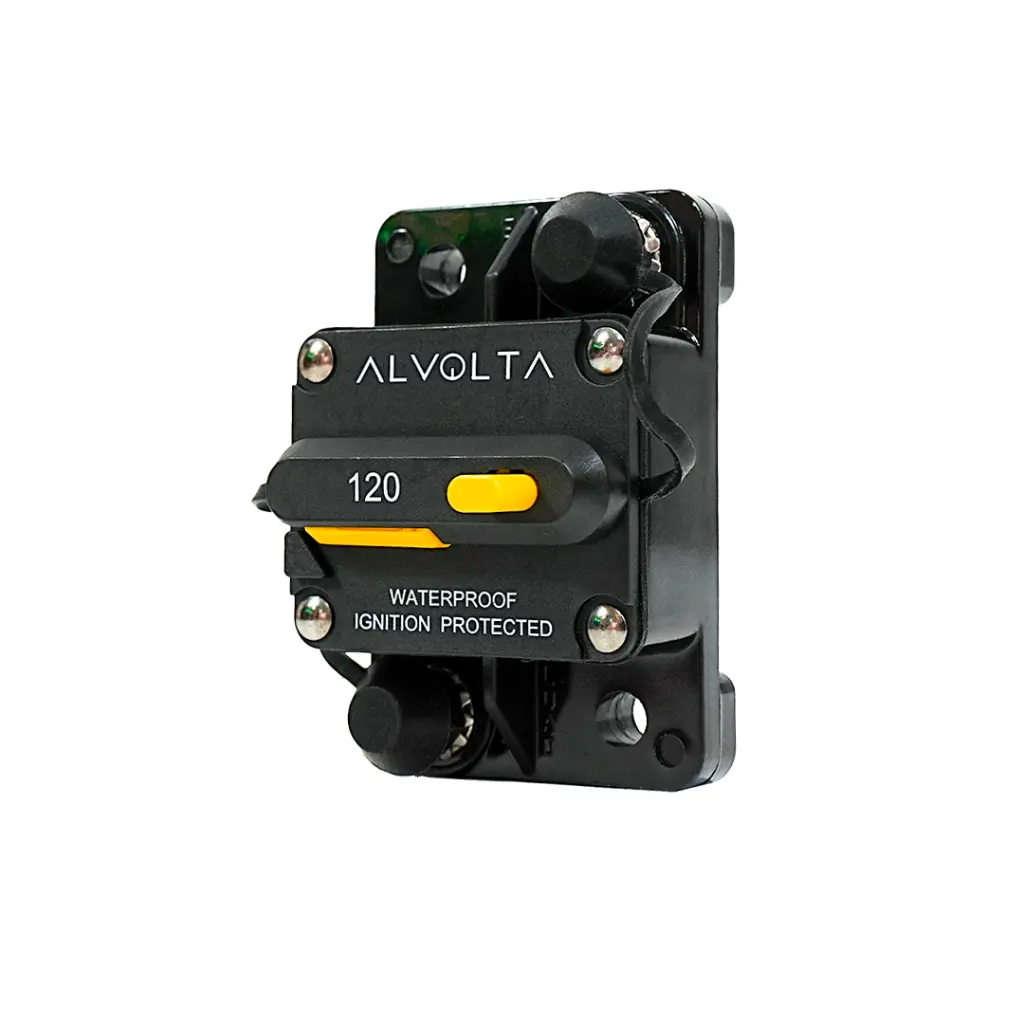

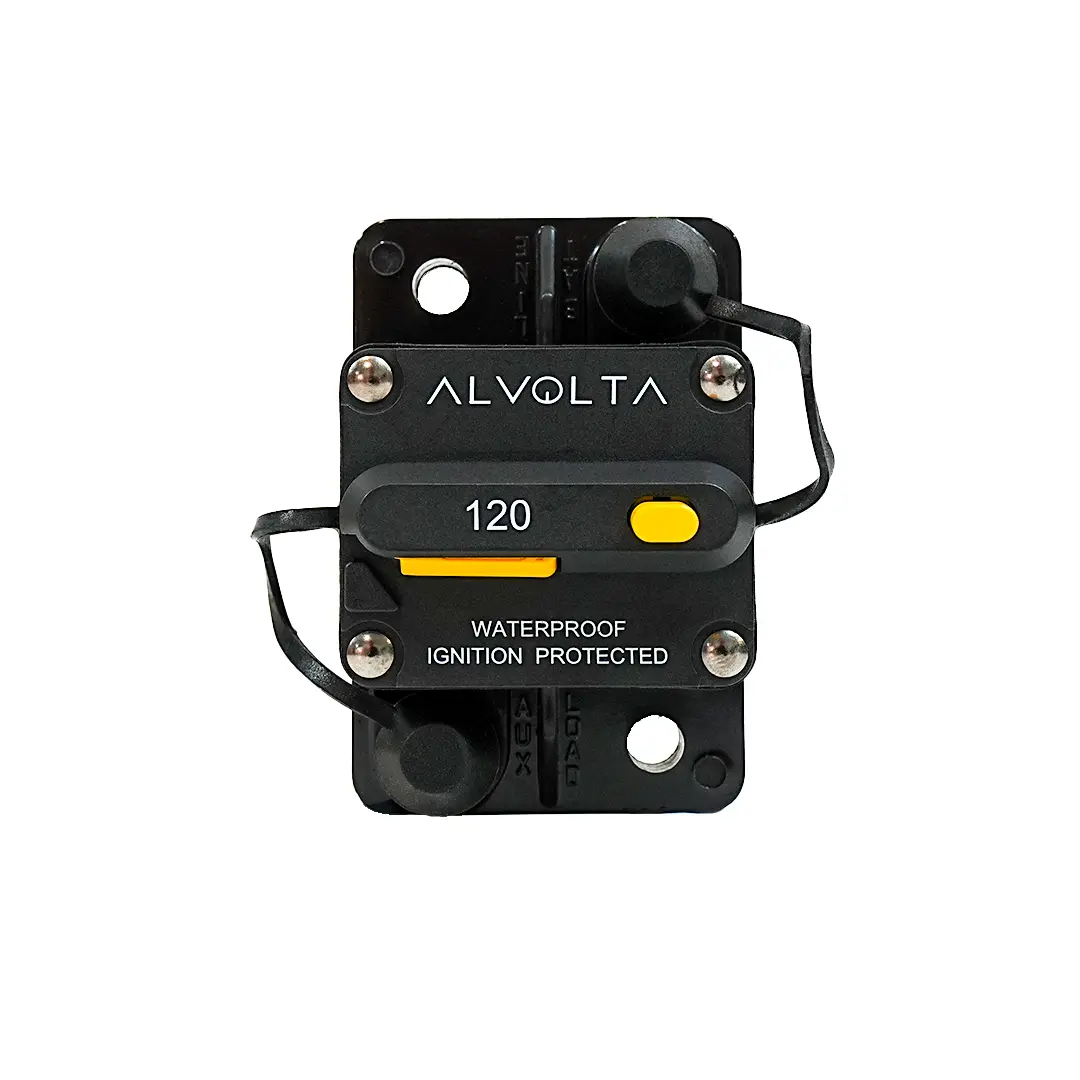

Alvolta 120A Surface Manual Reset Circuit Breaker

Alvolta 120A Surface Manual Reset Circuit Breaker

(0 review)

Surface mount circuit breaker with 1/4" terminal studs

$ 29.95 - Inc GST 29.95 AUD $ 29.95

This combination does not exist.

ADD TO CART Buy now

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

Buy Bulk & Save More

Price

Quantity

$ 29.95 Inc. GST

10+

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Shipping: 2-3 Business Days

Category: Circuit Protection, Circuit Breakers, Surface Mount

Alvolta 120A Standard Manual Reset Circuit Breaker

Features

120 A
Manual reset circuit breaker
Surface mount for simple on-wall installation
Suitable for 12 - 48 V systems
M6 terminal studs
IP67 rated
Ignition protected
Circuit switching and protection in one
Clear, single lever operation
Trip-free design
Recessed mounting holes for tidy installation

Where to use it

Alvolta surface mount circuit breakers are ideal for under bonnet applications. They are suitable for use in motorhomes, 4WD, boats, marine, and off-grid setups.

Its durable design and IP67 rating make these an excellent choice for off-road applications. It is sealed internally against moisture, dust, and dirt.

Dimensions

Width	48.2 mm
Height	74 mm
Depth	38.1 mm
Weight	0.14 kg

Compliance

SAE J553
SAE J1625
SAE J1248
UL1500
SAE J1171 (Ignition protection)
IP67

Warranty

3-year warranty

Applications

4WD

RV's

Caravans

Marine

Off-Grid Systems

Tiny Houses

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_ACB-M120S_V1_compressed.pdf

Download

A manual reset circuit breaker protects your electrical system from overloads and short circuits. When tripped, it cuts off power to prevent damage, and can be manually reset once the issue is investigated and resolved - making it ideal for automotive, marine, solar, and off-grid applications.

A manual reset breaker stays off after tripping, allowing you to inspect and correct the fault before restoring power. In contrast, an automatic reset breaker reconnects power automatically once it cools down, which can risk repeated faults if the issue isn't fixed.

Alvolta manual reset circuit breakers are IP67 rated, meaning they are internally sealed for protection against moisture, dust, and dirt. They are also ignition protected.

Circuit breakers will experience less voltage drop across the circuit. When they are tripped, you can simply reset the device as opposed to having to source and install a new fuse, should a fuse blow. These units offer lower voltage drop than a fuse and can be used as an occasional isolation switch.

These breakers are designed for flush mounting on a surface. Simply mount the breaker to the surface with M8 bolts and connect your positive circuit wires to the terminals as directed. Always ensure the breaker's rating matches your circuit's current load.

Product Specifications

Amperage	120 A
Voltage	48 V DC
Interrupting Rating	5 kA at 18 V, 3.5 kA at 48 V, 1 kA at 80 V DC
Mounting Type	Surface Mount
Trip Type	Thermal with Manual ON/OFF
Stud Size	M6
Mounting Holes	M6
Material	Thermal Plastic, UL Rated 94V0
Class	Type III w/ Push to Trip
Operating Temperature	-32°C - +82°C
Ingress Protection	IP67
Colour	Black
Dimensions	74 X 48.2 x 35.8 mm
Compliance	SAE J553, J1171, J1625, J1428, UL1500
Warranty	3 Years
