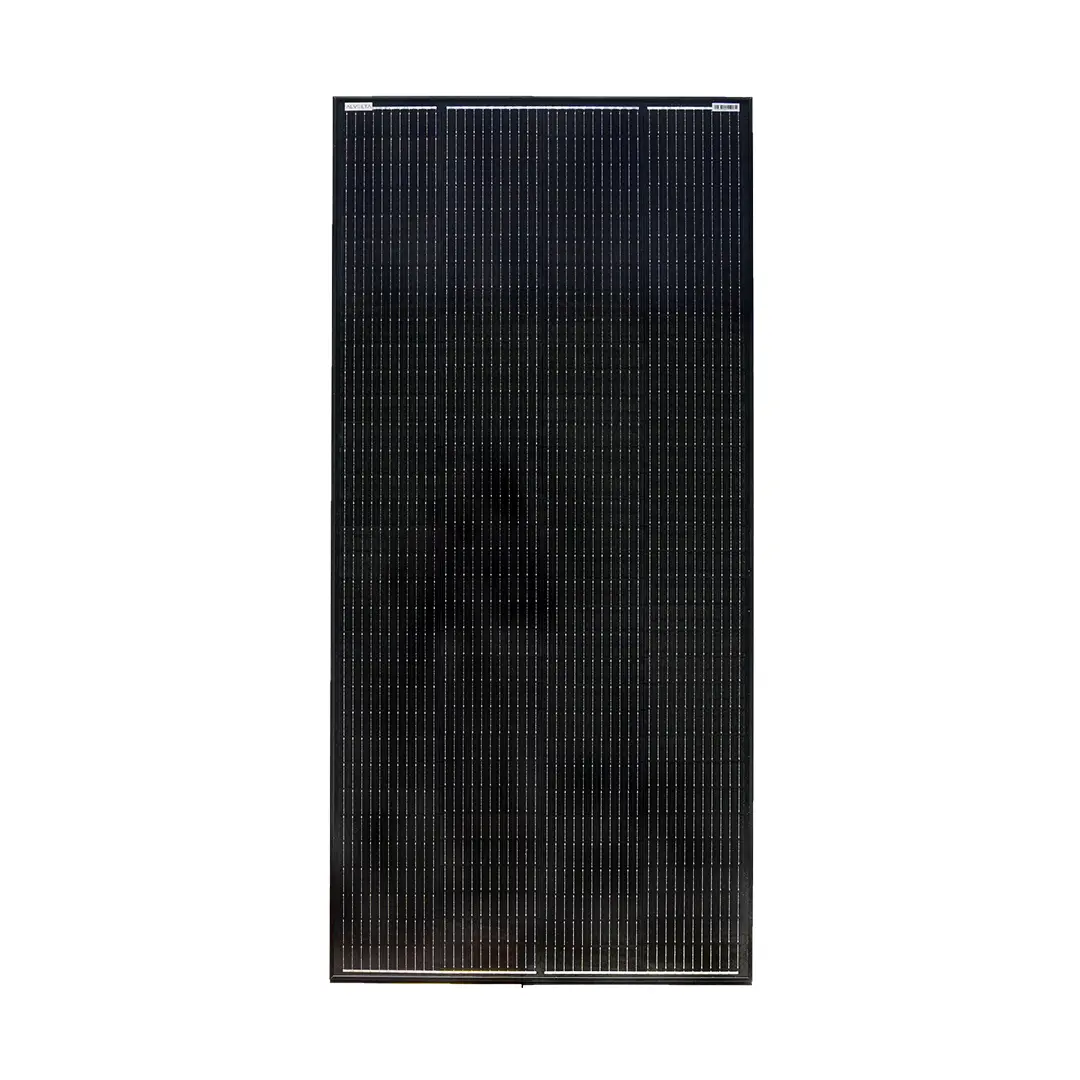

Alvolta Eclipse Max 240W Solar Panel
https://www.springers.com.au/shop/alv-240sp-max-alvolta-eclipse-max-240w-solar-panel-18574 https://www.springers.com.au/web/image/product.template/18574/image_1920?unique=88d8ee0ALVOLTA
Alvolta Eclipse Max 240W Solar Panel
Performance features
- 240 W maximum power output
- 22.7% efficiency rating
- Suitable for 12 V / 24 V / 48 V systems
- Compatible with some MPPT solar regulators*
Solar cell features
- A-grade monocrystalline solar cells
- Tempered glass for improved protection and resistance against weather
- Fixed solar panel design for improved durability
Frame features
- Anodised aluminium frame
- Black frame and black back sheet for improved aesthetics
Inclusions
- IP65-rated sealed junction box
- MC4-style connectors
- 900 mm of 4 mm² output cable
Where to use it
Dimensions
Width | 770 mm |
Height | 1615 mm |
Depth | 35 mm |
Weight | 12.14 kg |
Safety features and certifications
- 2011/ 65/ EU and amending directive (EU)2015/863
- EN IEC 62368-1:2020+A11:2020
Warranty
- 5-Year Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
Product Specifications
| Electrical Data | |
| Maximum Power | 240 W |
| Optimum Operating Voltage | 76.6 V |
| Optimum Operating Current | 3.14 A |
| Open Circuit Voltage | 89.6 V |
| Short Circuit Current | 3.29 A |
| Module Efficiency | 22.7% |
| Maximum System Voltage | 1000 V DC |
| Power Tolerance | ±3% |
| Thermal Data | |
| Operating Temperature Range | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Temperature Coefficient (Voc) | -0.275%/°C |
| Temperature Coefficient (Isc) | -0.045%/°C |
| Mechanical Data | |
| Solar Cells | Monocrystalline 182 mm Cells |
| No. of Cells | 132 (4 x 33) |
| Dimensions | 1615 x 770 x 35 mm |
| Weight | 12.14 kg |
| Frame | Anodised Aluminium |
| Junction Box | IP65 Rated |
| Connectors | MC4 Style |
| Output Cables | 4 mm², 900 mm |
