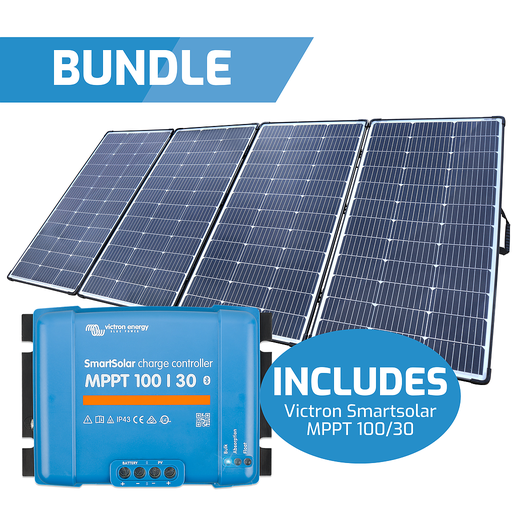

Alvolta Ultra 440W Slim Portable Solarcase with Victron 30A MPPT

Alvolta Ultra 440W Slim Portable Solarcase with Victron 30A MPPT

(0 reviews)

440 W portable folding solar panel and 100 V / 30 A MPPT solar charge controller for 12 V / 24 V systems

$ 901.55 - Inc GST 901.55 in stock AUD $ 949.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

Buy Bulk & Save More

Price

Quantity

$ 806.65 Inc. GST

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Solar Panels, Portable Panels, Solar DIY Kits, Alvolta Bundles

SKU: ALV-440VMPPT

Alvolta Ultra 440W Slim Portable Solarcase with Victron 30A MPPT

440W solarcase performance features

440 W maximum power output
22.8% efficiency rating
Suitable for 12 V / 24 V / 36 V systems
Suitable for series and parallel configuration

440W solarcase solar cell features

A-grade monocrystalline cells
PVDF cell sheeting for improved protection and resistance against weather
Fixed solar panel design for improved durability

440W solarcase frame features

Anodised aluminium frame
Black frame and black back sheet for improved aesthetics
Adjustable legs to achieve an optimum tilt angle
12.84kg light-weight design
Folds into a carry case for compact storage
Saves space in your vehicle - 100 mm thick carry case
Features sturdy, quick-release clasps to keep the solarcase closed
Corner protectors for a bump-proof frame

SmartSolar 100/30 MPPT features

Maximum Power Point Tracking Solar Charge Controller
Built-in Bluetooth for Ease of Programming & Monitoring
100 V PV open circuit voltage
30 A charge current
Suitable for 12 V / 24 V systems
98% maximum efficiency
Internal temperature sensor
VE.Direct communication port for wired data connection
Over-temperature sensor
Flexible charge algorithm for smart battery management
Additional SmartSolar LCD display available

Where to use it

This kit is a plug-and-play solution, designed to provide extra power whenever you need it. Lightweight and portable, the Alvolta 440 W Solarcase can be easily stored in your vehicle and can be pulled out when you need to charge your battery bank. With a flexible charging algorithm, intelligent battery management and built-in Bluetooth, the Victron SmartSolar 100/30 can easily and efficiently utilise the solar energy generated by the 440 W solarcase to keep your batteries charged.

Ideal for use in 4WD and touring setups, caravans and camper trailers, and RV and motorhome camping.

Don't have enough roof space to mount fixed solar panels? Use a fixed-panel portable solar case for reliable power generation, and pack it away when you're charged.

440W solarcase dimensions

Folded in carry case

Width	590 mm
Height	1130 mm
Depth	100 mm

Folded outside carry case

Width	547 mm
Height	1072 mm
Depth	90 mm

Unfolded

Width	2188 mm
Height	1072 mm
Depth	280 mm
Weight	12.84 kg

SmartSolar 100/30 dimensions

Width	590 mm
Height	1130 mm
Depth	100 mm
Weight	1.3 kg

440W solarcase safety features and certifications

2011 / 65 / EU and amending directive (EU) 2015/863
EN IEC 62368-1:2020+A11:2020

SmartSolar safety features and certifications

EN/IEC 62109-1
UL 1741
CSA C22.2

Warranty

5-year warranty

Applications

4WDs

RVs

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet_ALV-440SPC_V4_compressed.pdf

Download

Manual-SmartSolar-charge-controller-MPPT-100-30---100-50-EN-NL-FR-DE-ES-SE.pdf

Download

Datasheet-SmartSolar-charge-controller-MPPT-100-30-&-100-50-EN.pdf

Download

Portable solar panels are typically used to recharge 12 V or 24 V batteries that run camping appliances such as fridges, lights, induction cooktops, and phone / laptop chargers. The exact devices you can power depend on the wattage of the panel and the size of your battery system.

Most portable solar panels are plug and play. Simply unfold the panel, place it in direct sunlight, and connect it to your battery through a solar regulator (to prevent overcharging). Many kits, including the Alvolta portable solarcases, include leads with alligator clips or Anderson plugs for quick connection.

Yes, but performance is reduced. On overcast days, you can expect lower power output, often around 20 - 50% of the panel's rated capacity. In comparison, a sunny day with perfect conditions would see a power output of around 80% of the panel's rated capacity. For consistent energy supply, many campers size their panels to account for cloudy conditions or carry a backup charging method.

Start by calculating the daily energy usage of your appliances (in watt-hours). Match this against the expected solar energy you can generate (panel wattage x average peak sun hours per day). As a rule of thumb, a 200 W portable panel suits most campers running a 12 V fridge and a few small devices.

A quality portable solar panel will be composed of fixed solar panels. Fixed solar panels are made of tough glass and aluminium frames which can withstand the Australia's harsh climate. They are designed to withstand heat, UV exposure, and light rain. Flexi solar panels, solar blankets, and ultra thin solar panels are not comparable to a fixed portable solarcase as they will not withstand outdoor weather for extended periods of use.

Product Specifications

Alvolta 440 W Solarcase
Electrical Data
Maximum Power	440 W
Optimum Operating Voltage	40.0 V
Optimum Operating Current	11.0 A
Open Circuit Voltage	48.0 V
Short Circuit Current	12.0 A
Module Efficiency	22.8%
Maximum System Voltage	200 V DC
Power Tolerance	±3%
Thermal Data
Operating Temperature Range	-20°C to +70°C
Temperature Coefficient (Pmax)	-0.38%/°C
Temperature Coefficient (Voc)	-0.36%/°C
Temperature Coefficient (Isc)	-0.05%/°C
Mechanical Data
Solar Cells	Monocrystalline 166 mm Cells
No. of Cells	144 (3 x 12 x 4)
Dimensions	2188 x 1075 x 25 mm
Dimensions in Carry Case	1130 x 590 x 90 mm
Weight	12.84 kg
Frame	Anodized Aluminium
Junction Box	IP68 Rated
Connectors	Anderson Style
Output Cables	4 mm², 900 mm

Victron SmartSolar 100/30
Battery voltage	12/24 V Auto Select
Rated charge current	30 A
Nominal PV power, 12 V	440 W
Nominal PV power, 24 V	880 W
Maximum PV open circuit voltage	100 V
Max. PV short circuit current	35 A
Maximum efficiency	98 %
Self-consumption	12 V: 30 mA / 24 V: 20 mA
Charge voltage 'absorption'	Default setting: 14.4 V / 28.8 V (adjustable)
Charge voltage 'float'	Default setting: 13.8 V / 27.6 V (adjustable)
Charge algorithm	multi-stage adaptive
Temperature compensation	-16 mV / °C resp. -32 mV / °C
Protection	PV reverse polarity, Output short circuit, Over temperature
Operating temperature	-30 to +60 °C (full rated output up to 40 °C)
Humidity	95 %, non-condensing
Colour	Blue (RAL 5012)
Power terminals	16 mm² / AWG6
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	1.3 kg
Dimensions	130 x 186 x 70 mm
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2

Accessory Products

ALVOLTA

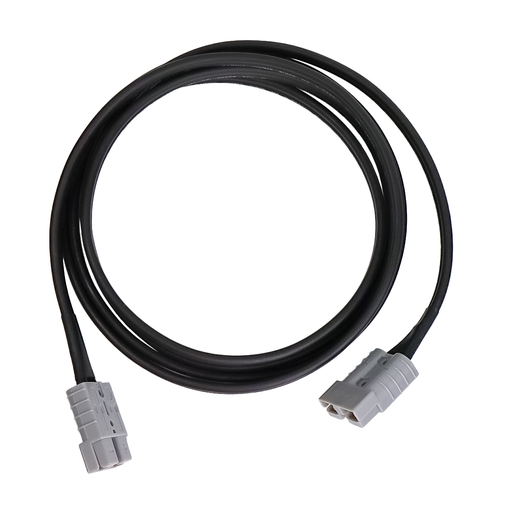

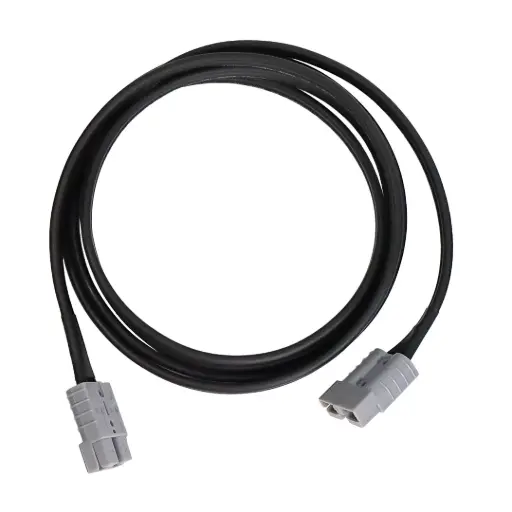

Alvolta 3m Anderson Extension Cable

$ 39.95 ~~$ 39.95~~ 39.95 AUD

Tax Included

SKU: ALV-AEXT3

ALVOLTA

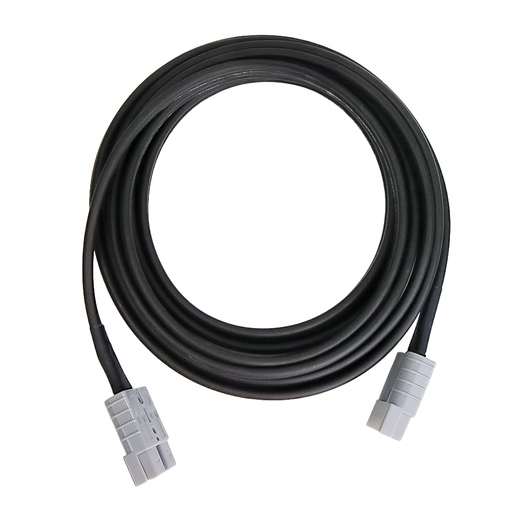

Alvolta 5m Anderson Extension Cable

$ 49.95 ~~$ 49.95~~ 49.95 AUD

Tax Included

SKU: ALV-AEXT5

ALVOLTA

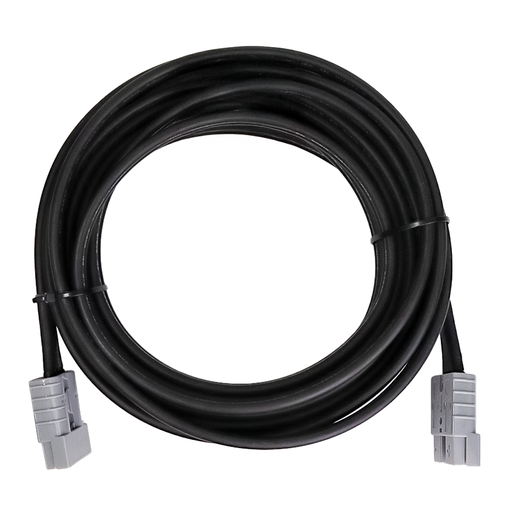

Alvolta 8m Anderson Extension Cable

$ 64.90 ~~$ 64.90~~ 64.9 AUD

Tax Included

SKU: ALV-AEXT8

Alternative Products

ALVOLTA

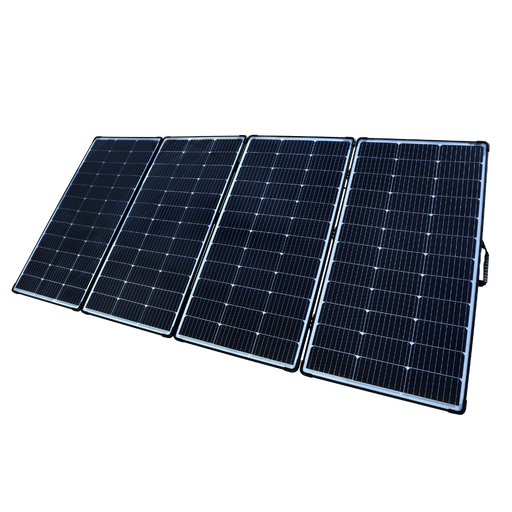

Alvolta Ultra 440W Slim Portable Solarcase
