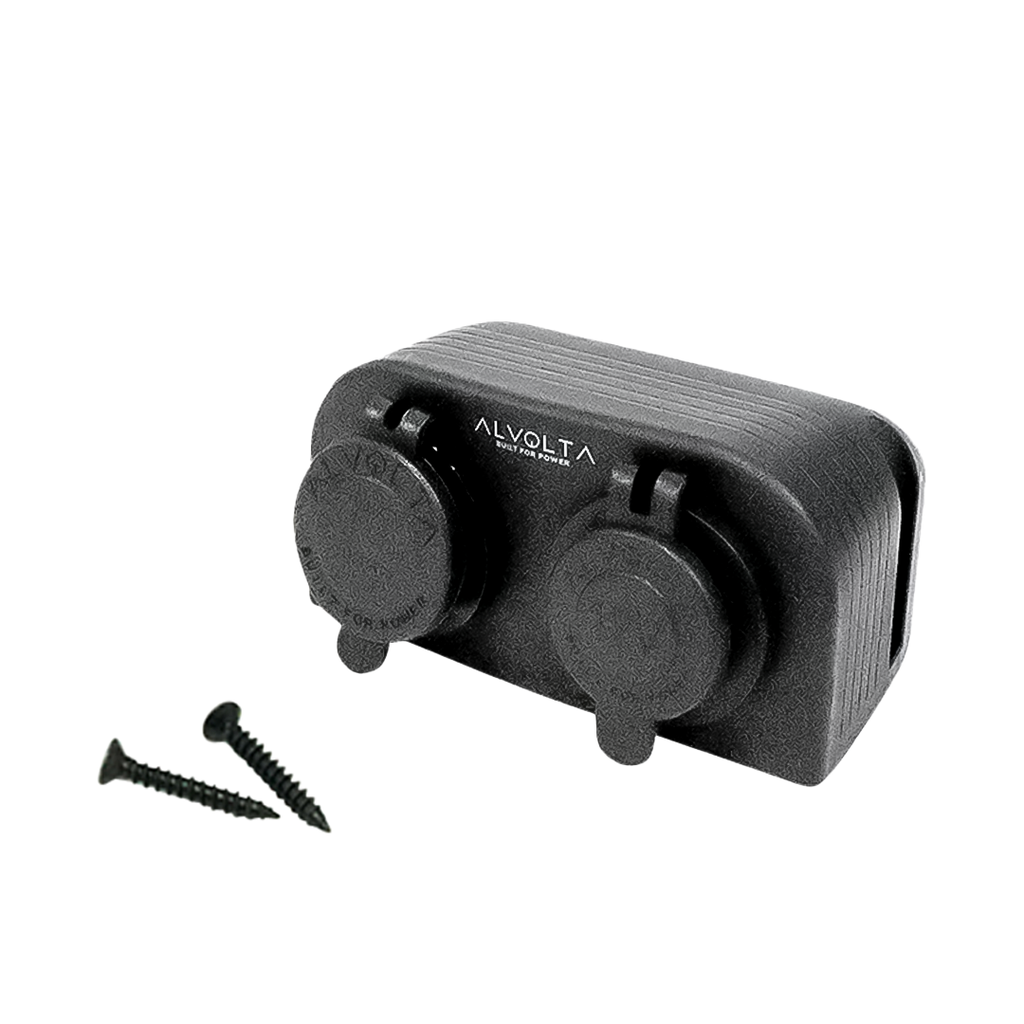

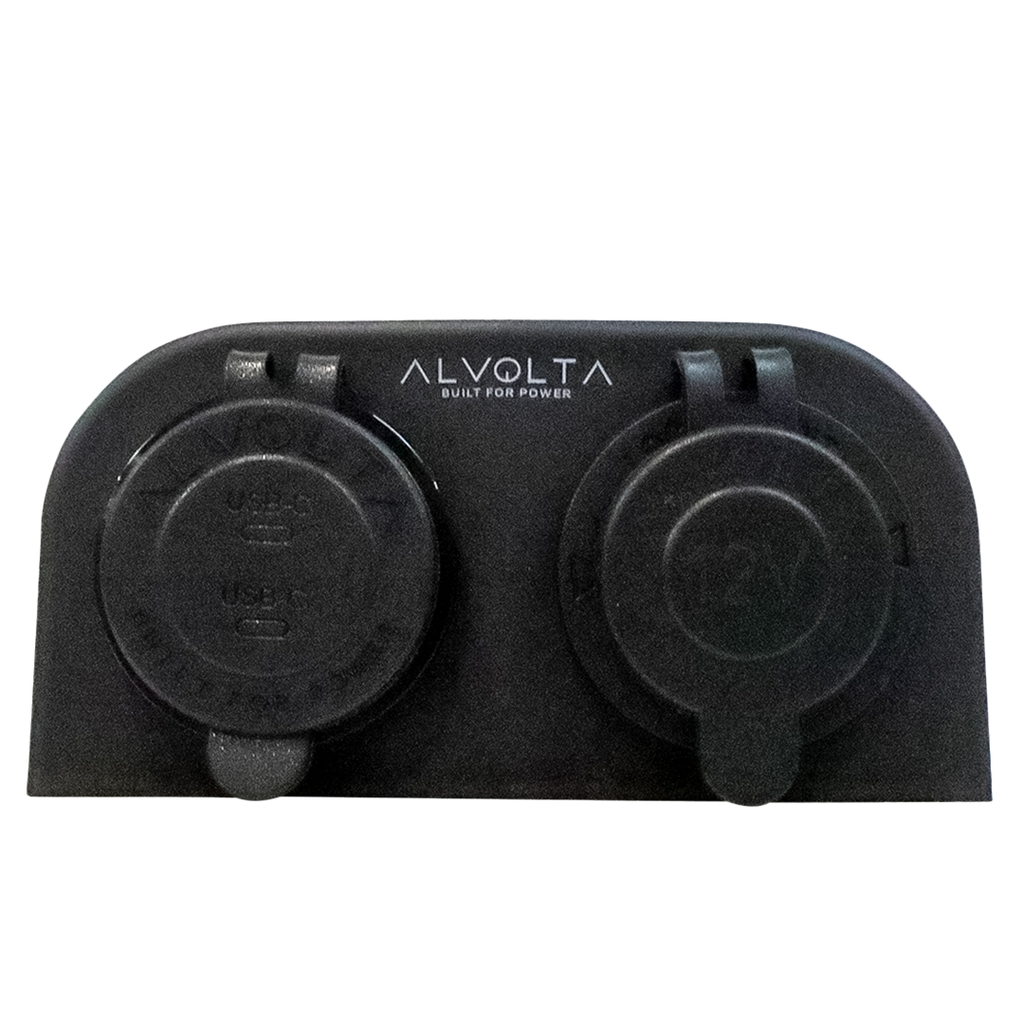

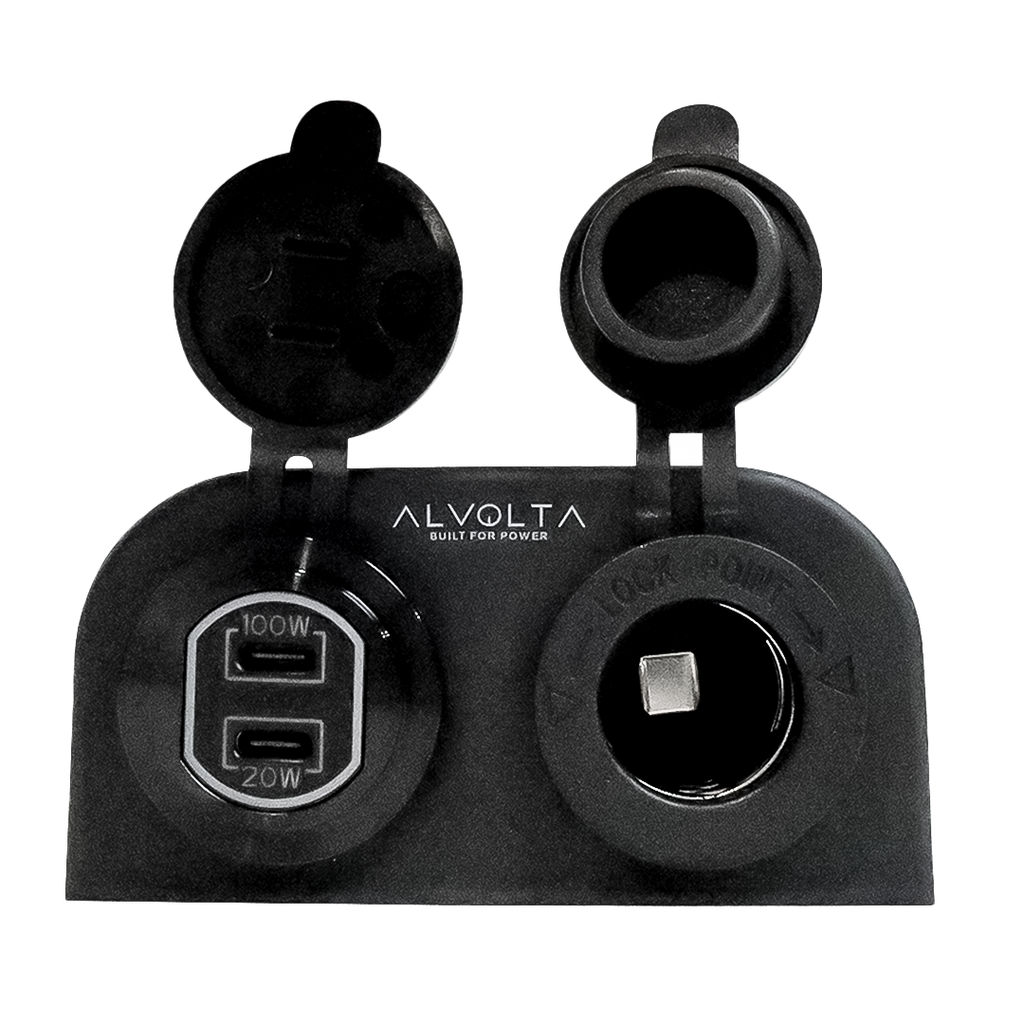

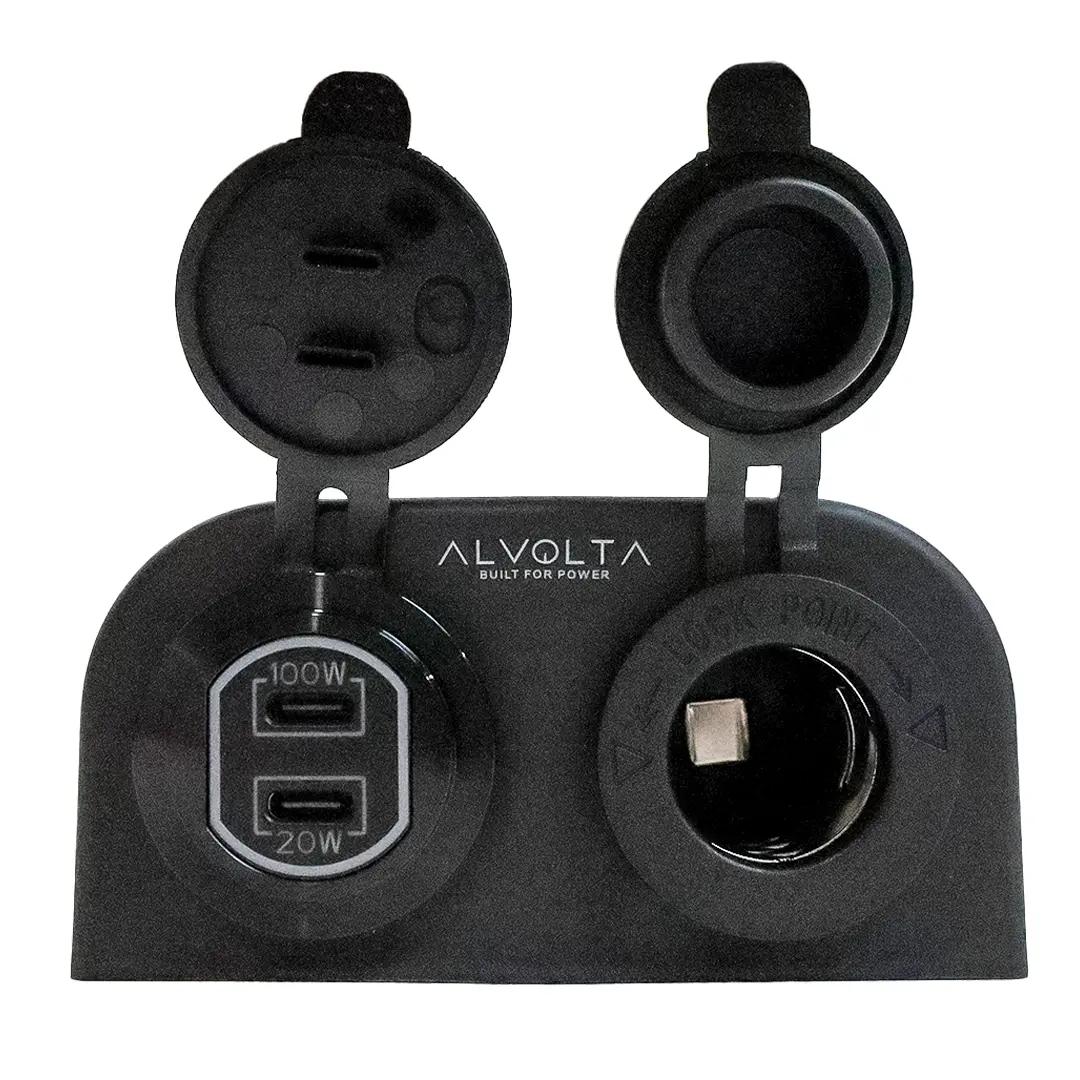

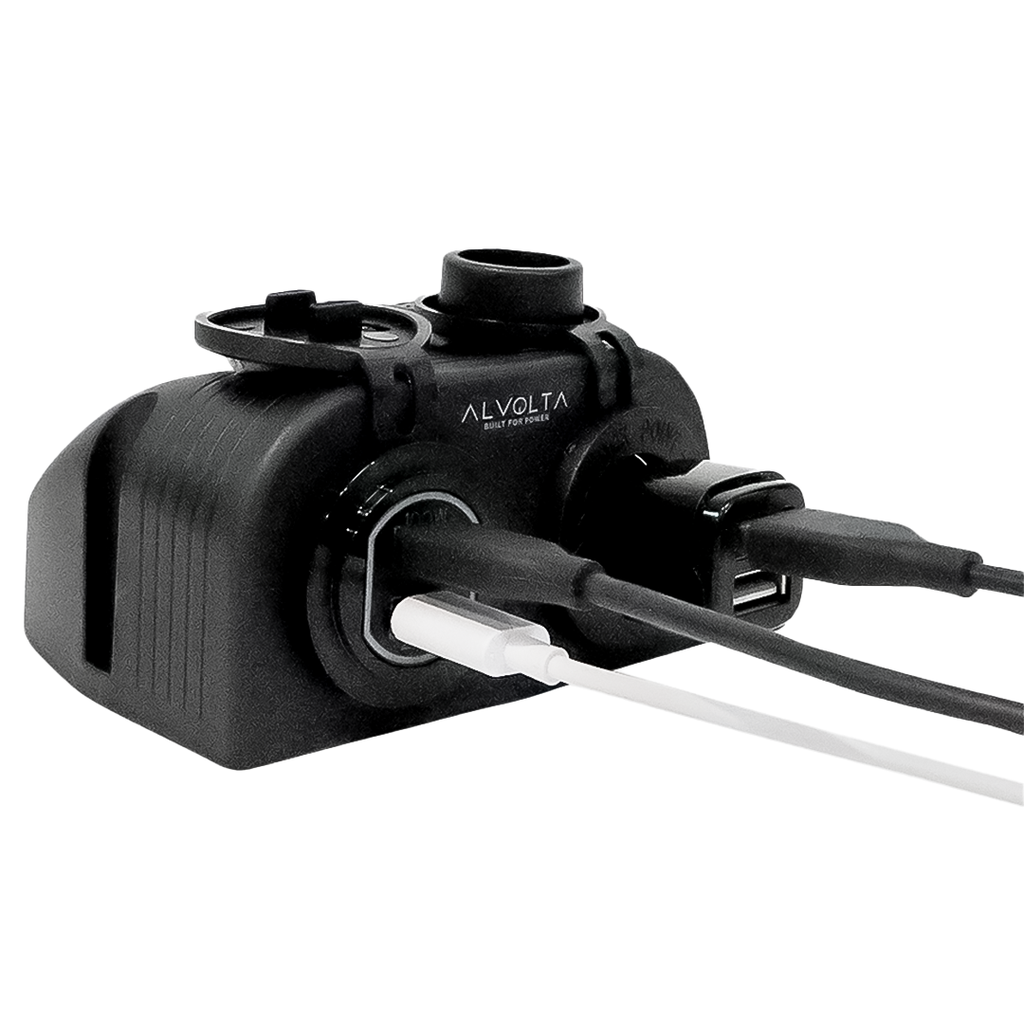

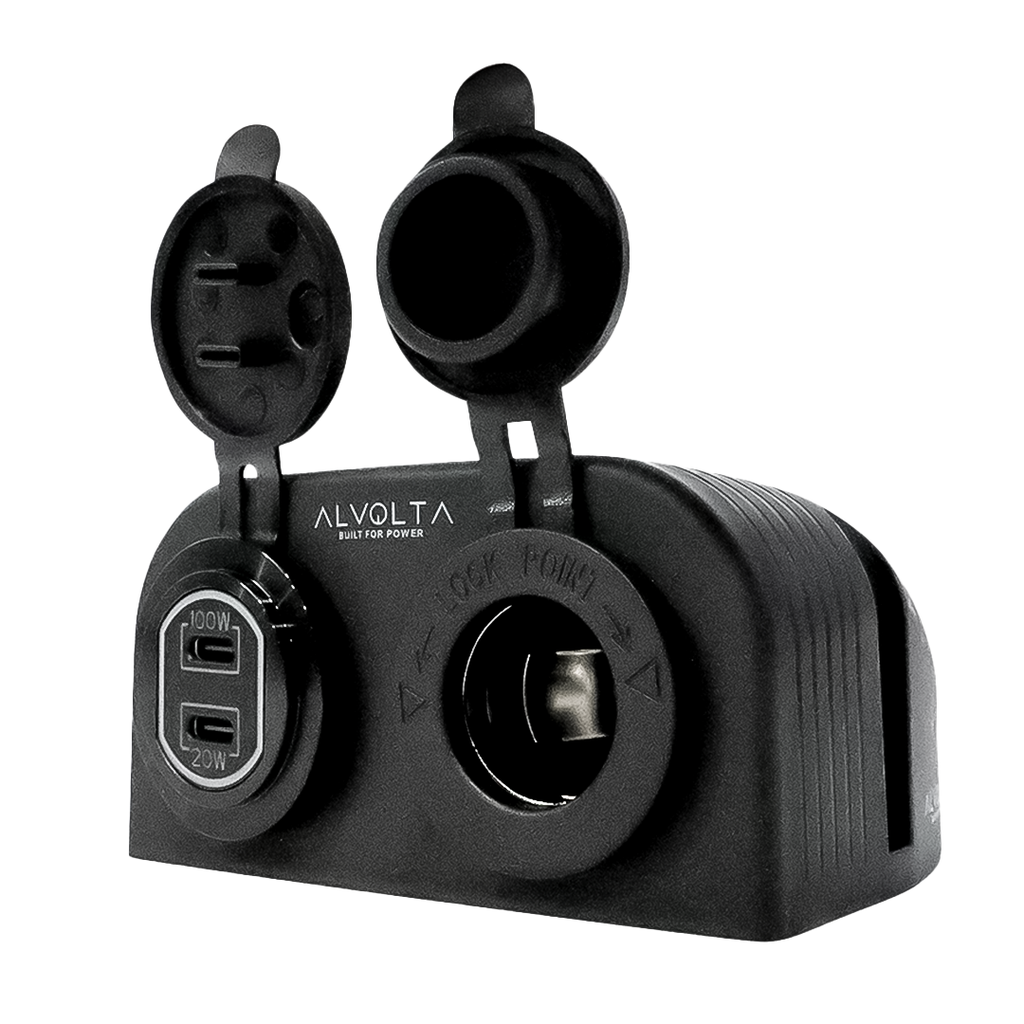

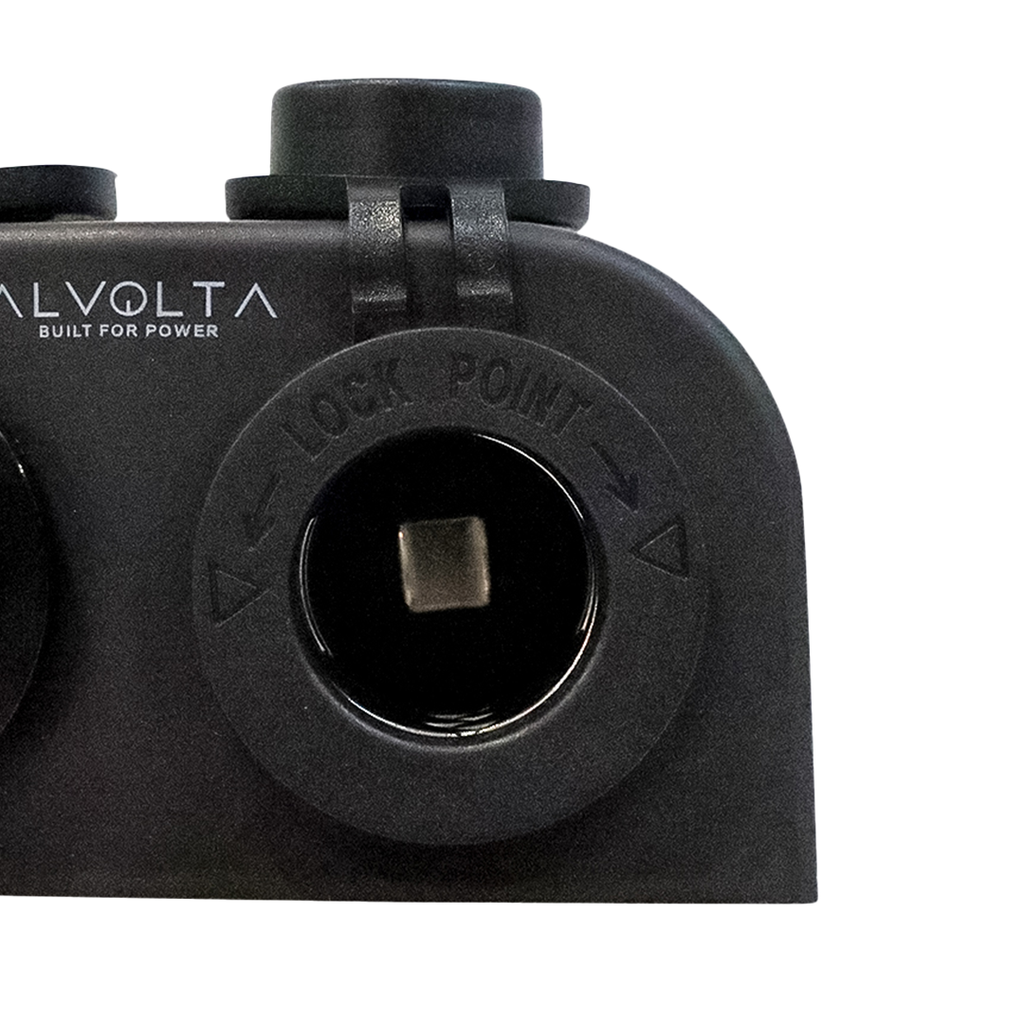

The Alvolta Duo Power/USB C+C Surface Mount Socket is built to give you power and charging in one clean install, wherever the journey takes you. Combining a 120 - 240 W power socket with a dual USB-C charging port, it runs 12 / 24 V accessories like fridges, lighting and compressors alongside phones, tablets and other USB-C devices, with one port pushing out up to 20 V / 5 A QuickCharge for fast top-ups.

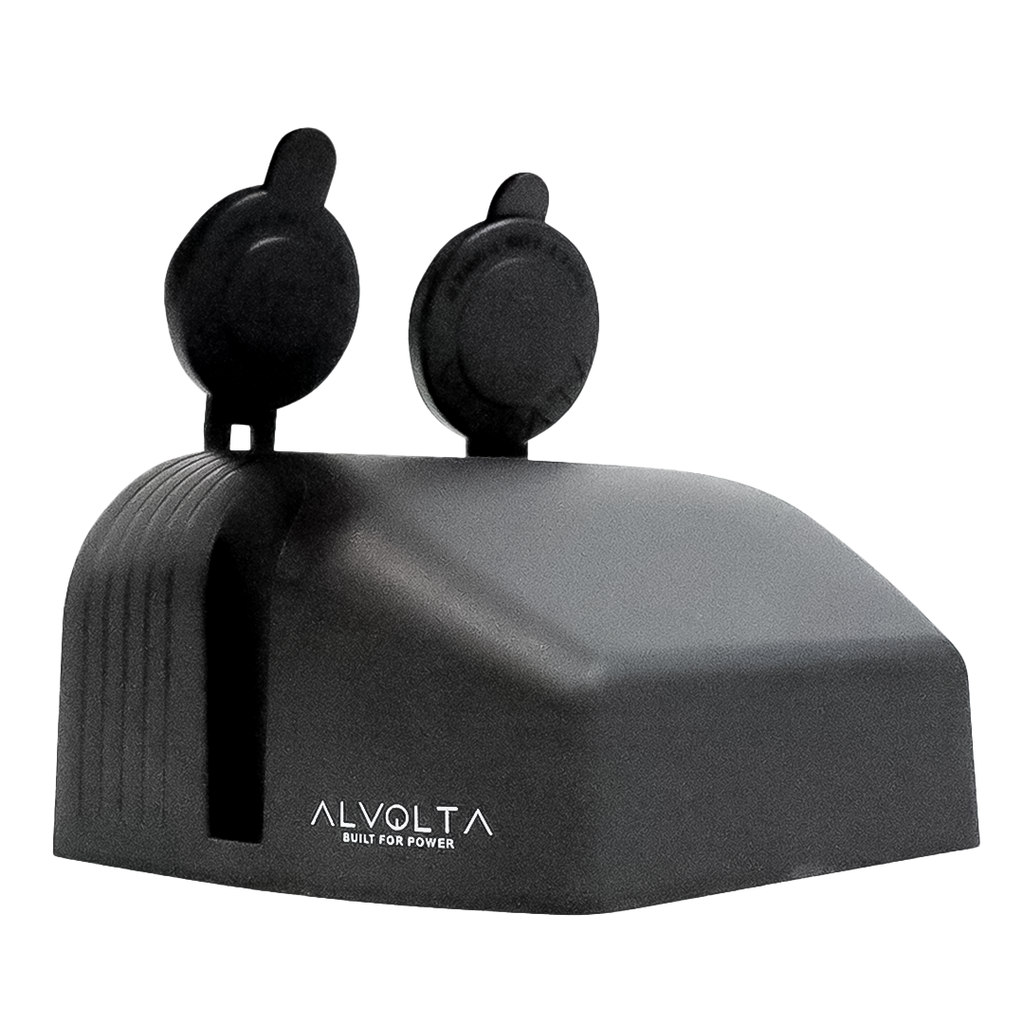

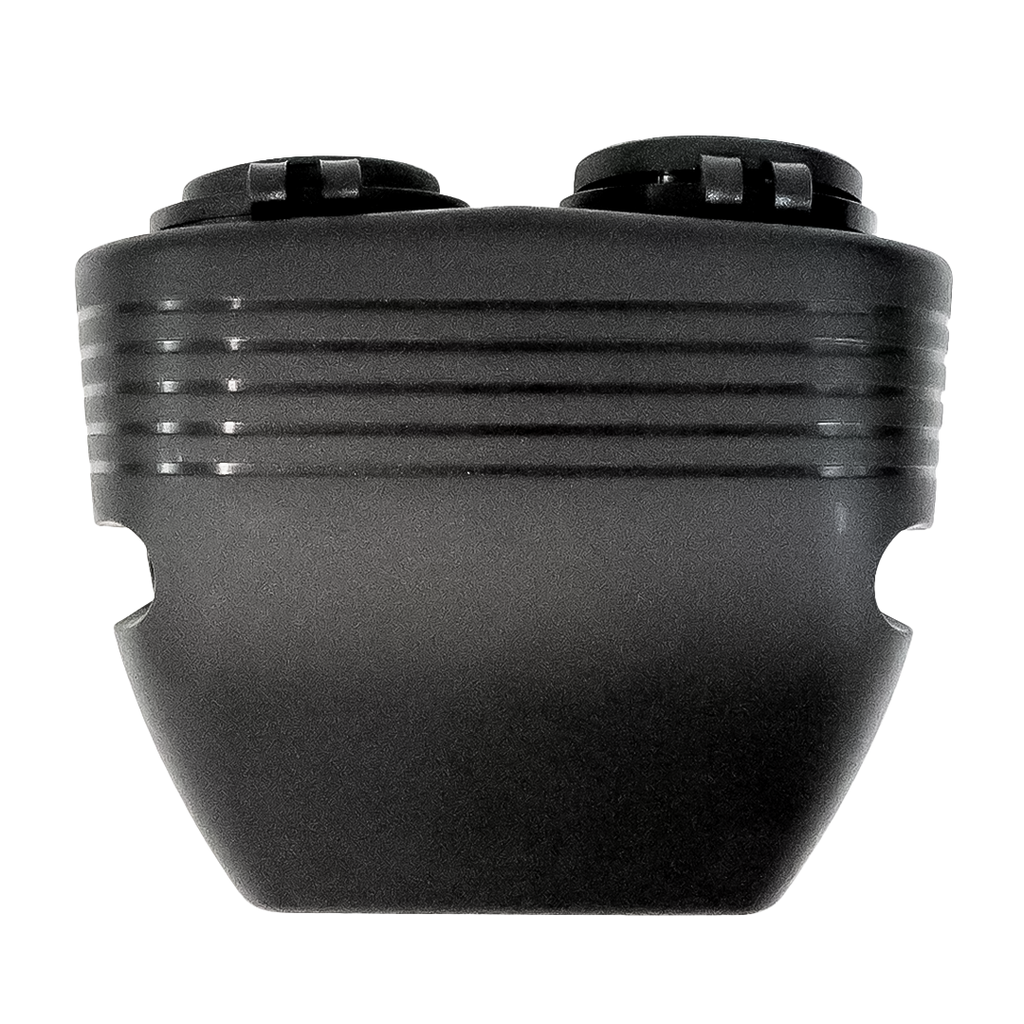

Its durable PA6 nylon housing is IP65 rated, so it holds up in caravans, camper trailers and 4WDs just as well as it does on a boat or marine console, and the surface-mount design makes for a simple install on dash tops, consoles or panels with no flush-cutting required, with both modules mounted side by side. Rated to operate from -25°C to +85°C, it's built for Australian conditions, and it's backed by a 3-year warranty for genuine peace of mind.
Width | 98.7 mm |
Height | 49 mm |
Depth | 79 mm |
Weight | kg |
Suitable System Voltages | 12 / 24 V |
Maximum Output Power | 120 W |

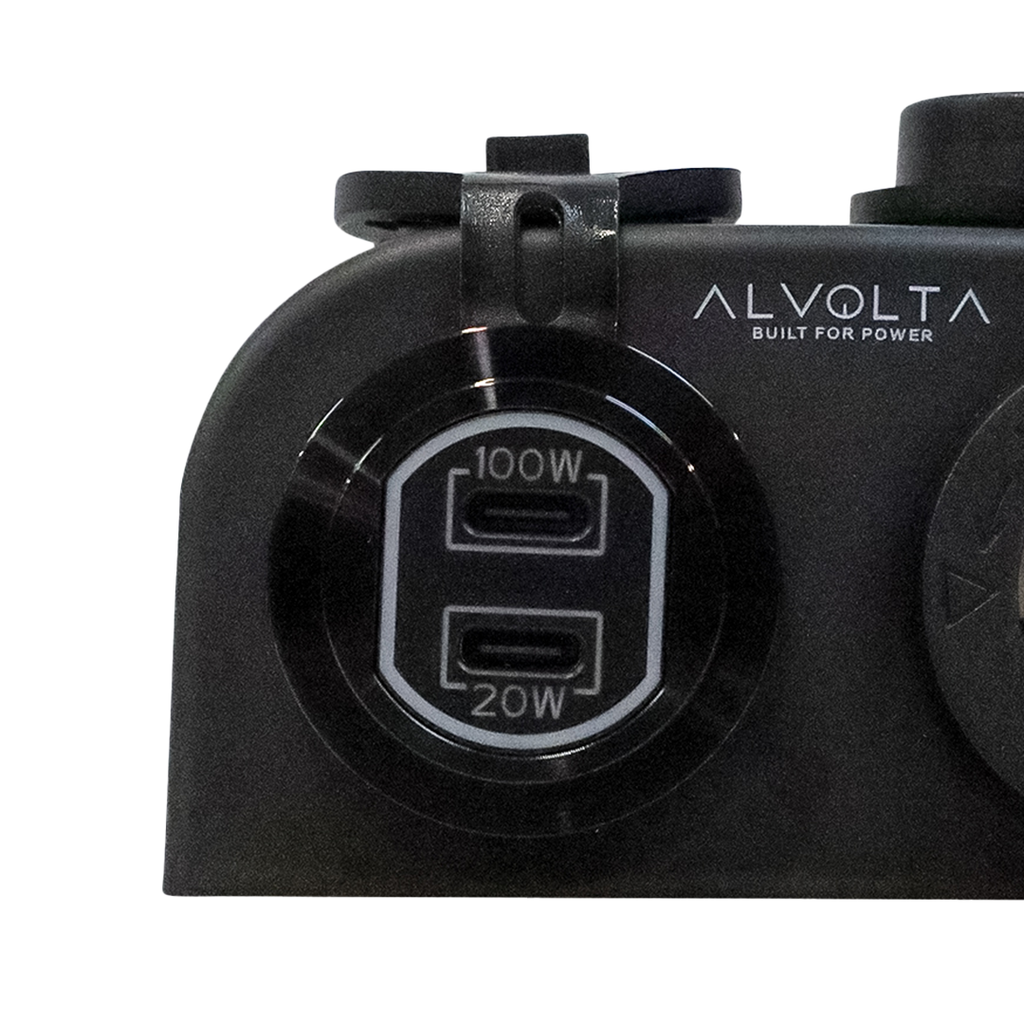

USB-C 1 Output | 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A |
USB-C 2 Output | 5V / 3A, 9V / 2.22A, 12V / 1.67A |
Included Cable | UL 1015 cable, 4 mm² diameter, 100 mm length |
USB Impedance | < 100 mΩ |
Power Plug Current Rating | 1500 mA |
Power Plug Output | 120 - 240 W |
Mounting Type | Surface Mount |
Mounting Hole Size | 4 mm |
Ingress Protection | IP65 |
Salt Spray Test | 8 hr min, NaCl 5% |
Operating Temperature Range | -25°C - +85°C |
Housing Material | PA6 (Polyamide/Nylon 6) |
Colour | Black |
Dimensions (w x h x d) | 55 x 49.5 x 81 mm |
Weight | kg |
Warranty | 3 years |
