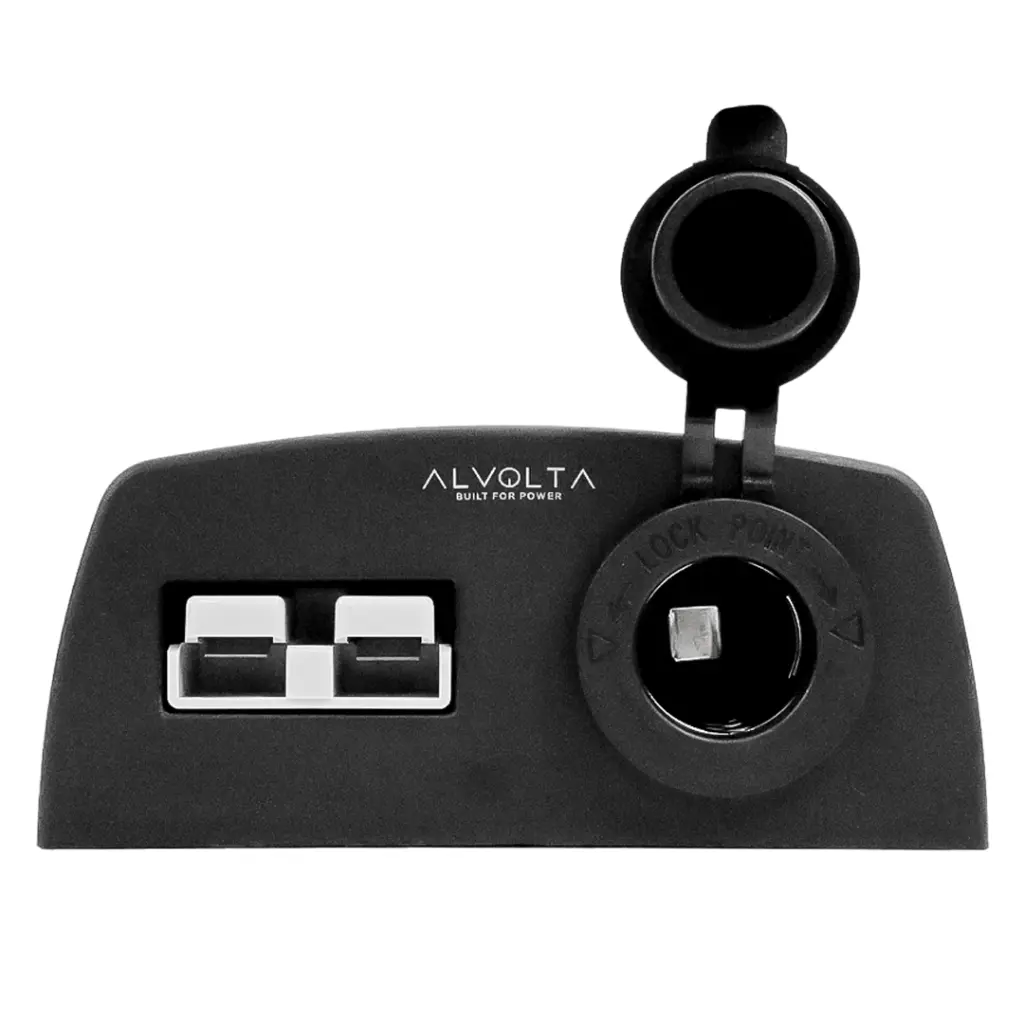

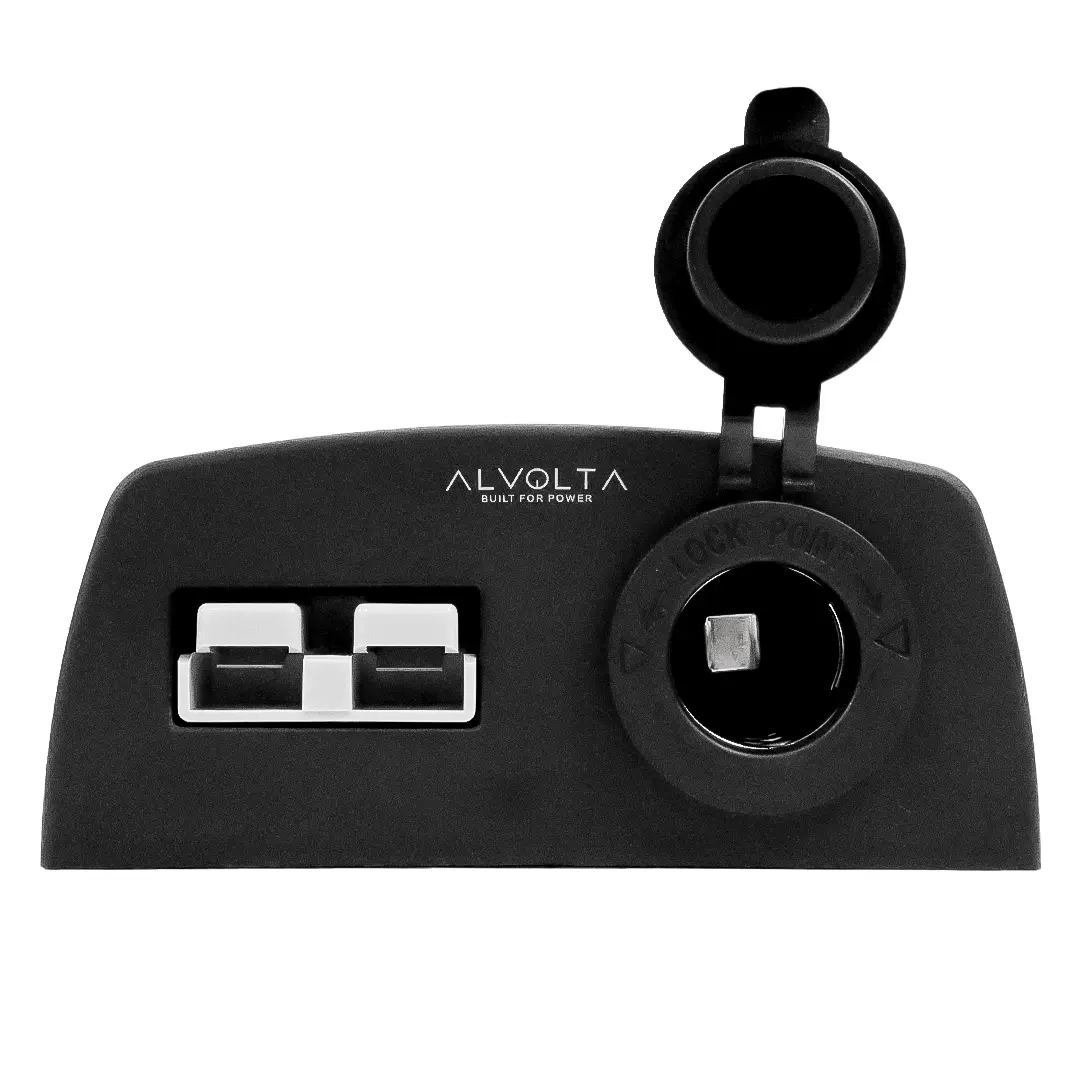

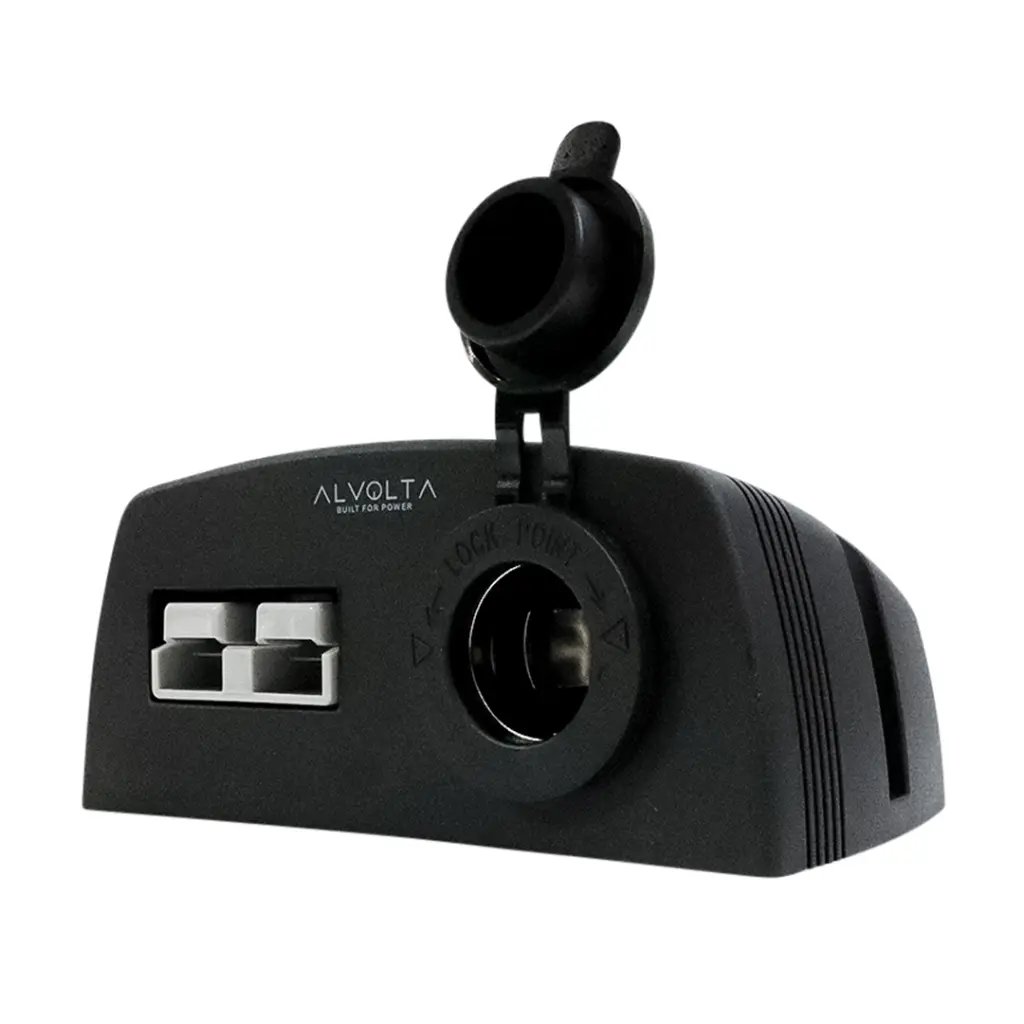

Alvolta Duo Anderson/Power Surface Mount Socket

Alvolta Duo Anderson/Power Surface Mount Socket

(0 reviews)

Pre-wired socket duo with power/cigarette socket & Anderson plug socket for 12 / 24 V systems

$ 29.95 - Inc GST 29.95 in stock AUD $ 29.95 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Plugs and Sockets

SKU: ALV-BSB50PSS

Alvolta Duo Anderson/Power Surface Mount Socket

Features

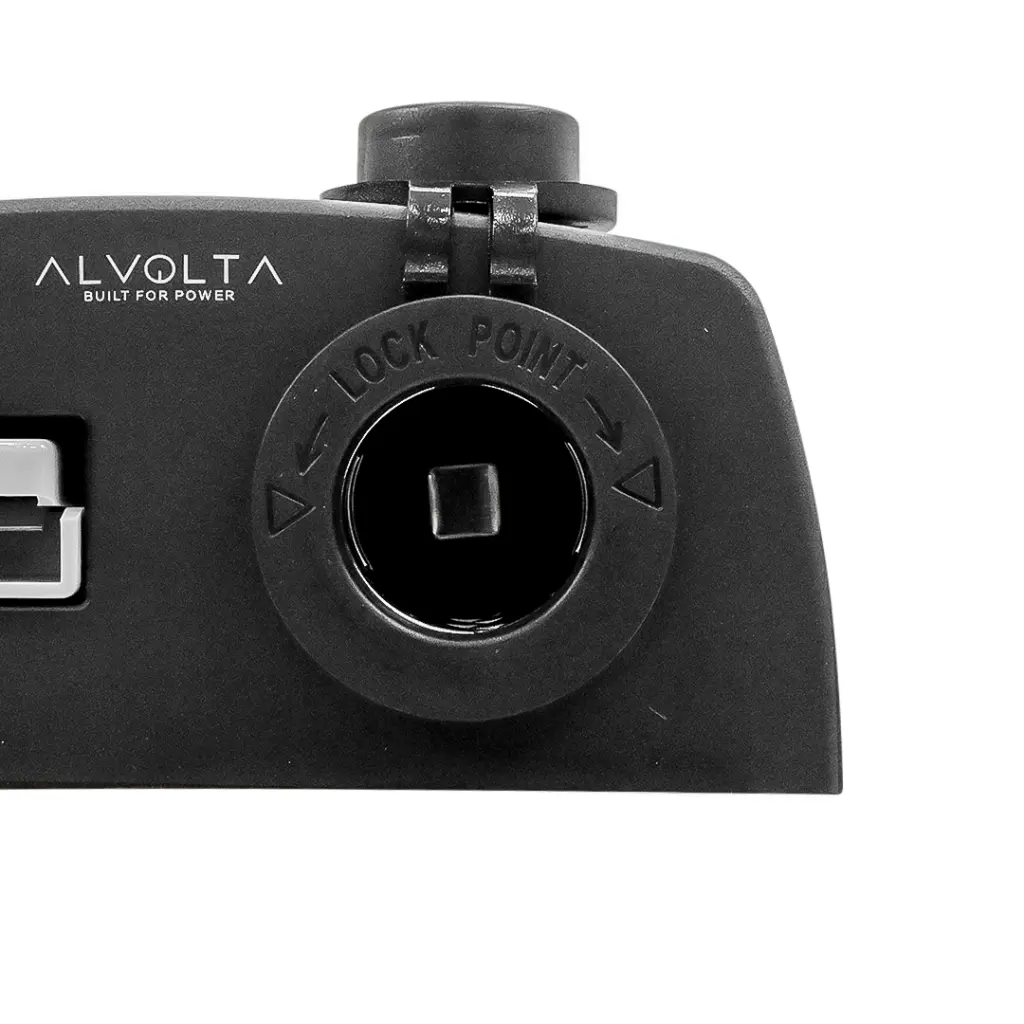

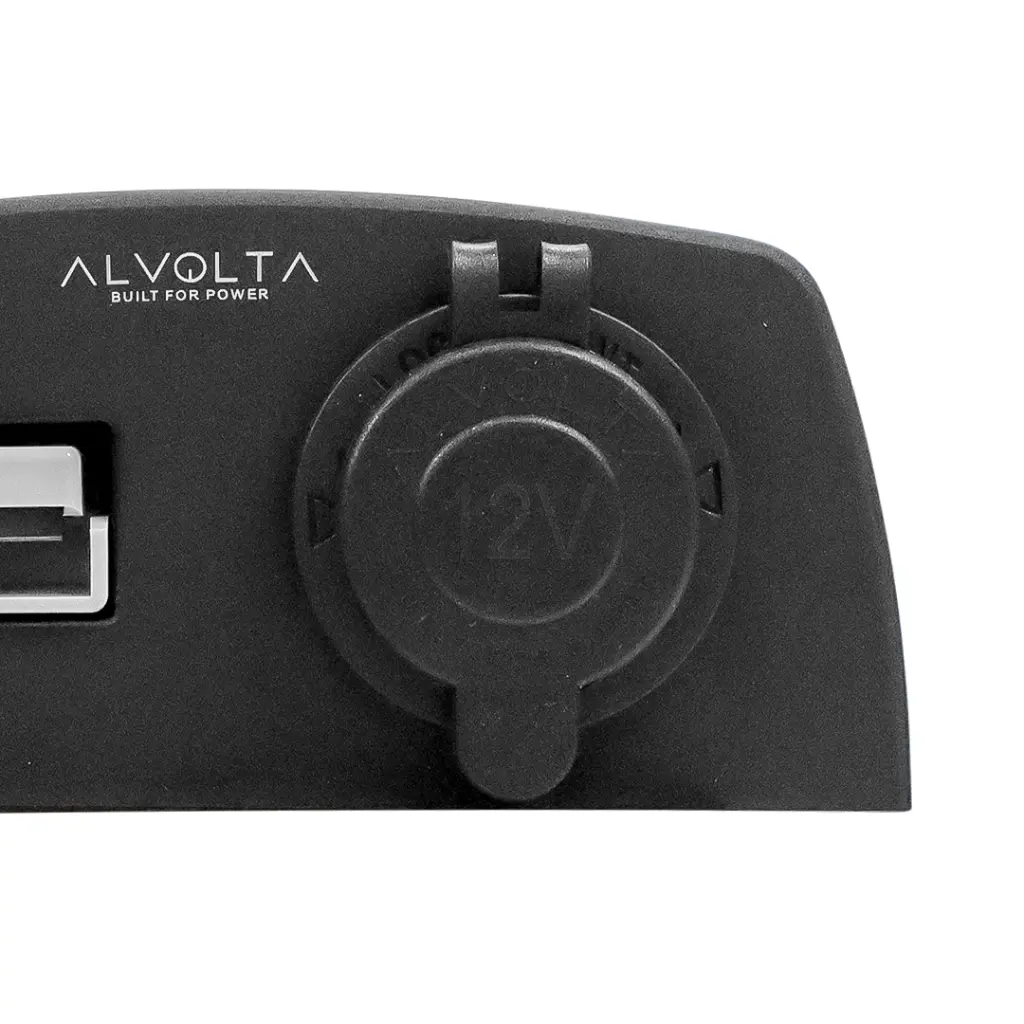

Power/cigarette socket
Provides DC power to appliances
Provides 120 - 240 W power output

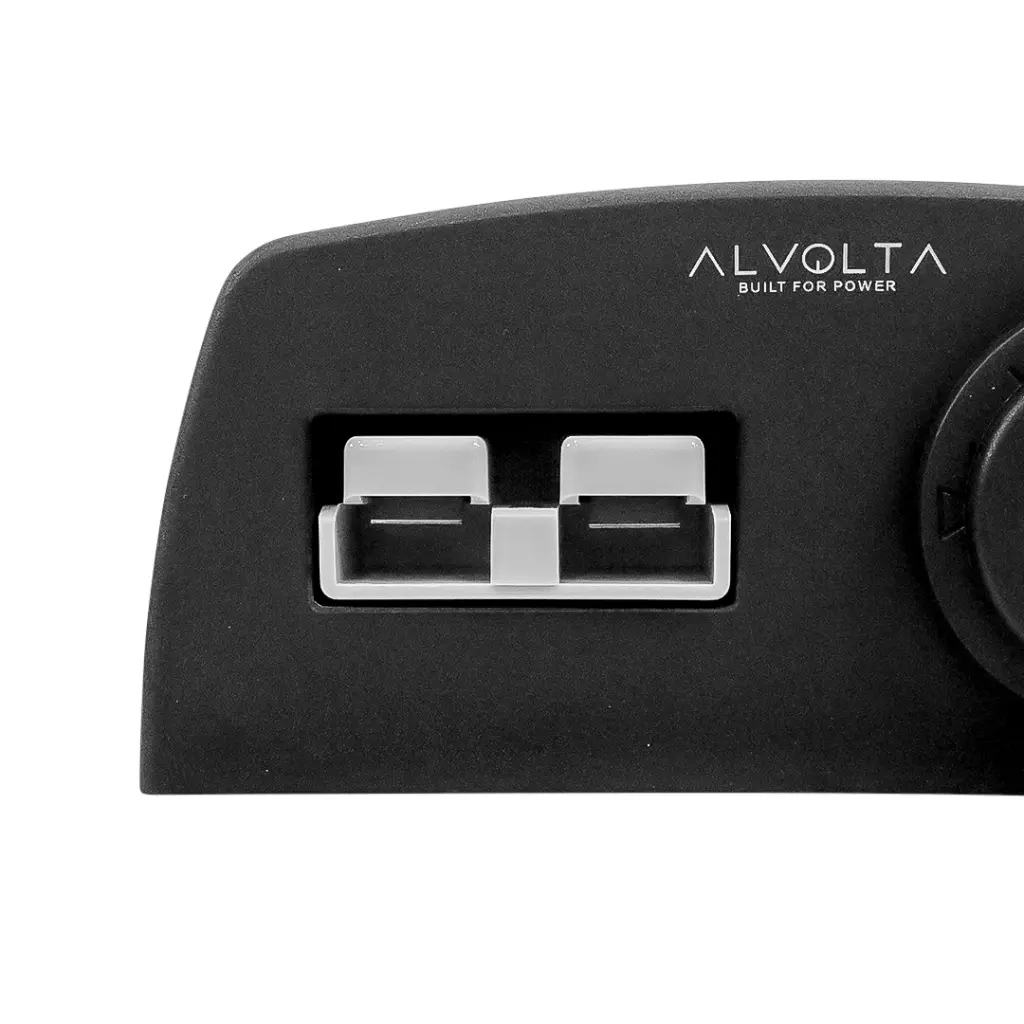

50A Anderson socket
Provides DC power
Suitable for 12 / 24 V systems
Surface mounted
IP65 rated
Durable nylon design

Inclusions

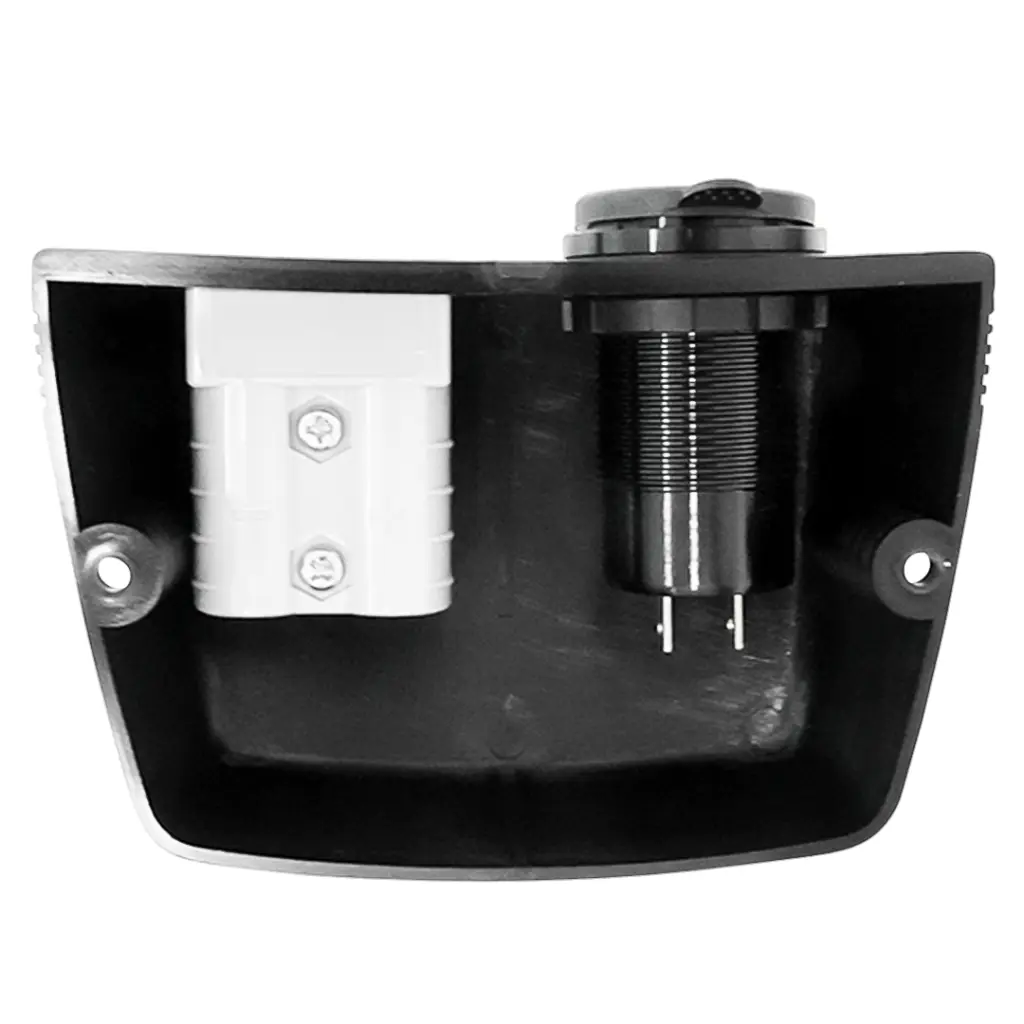

Anderson plug socket & power socket pre-assembled in surface mounting panel
4mm² UL 1015 cables for the power socket
2x Anderson contacts
2x 4mm mounting screws

Where to use it

The Alvolta Duo Anderson/Power Surface Mount Socket is built to give you high-current connection and power in one clean install, wherever the journey takes you. A 50 A Anderson plug lets you connect solarcases, DC-DC chargers, jump-start leads and other high-draw accessories straight into your system, while the paired 120 - 240 W power socket runs 12 / 24 V accessories like fridges, lighting and compressors alongside it.

Its durable PA6 nylon housing and flame retardant PVC Anderson plug are IP65 rated, so it holds up in caravans, camper trailers and 4WDs just as well as it does on a boat or marine console, and the surface-mount design makes for a simple install on dash tops, consoles or panels with no flush-cutting required. Rated to operate from -25°C to +85°C, it's built for Australian conditions, and it's backed by a 3-year warranty for genuine peace of mind.

Dimensions

Width	120 mm
Height	53.2 mm
Depth	86.4 mm

Warranty

3-year warranty

Applications

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_ALV-BSB50PSS_V1compressed.pdf

Download

Combines a 50A Anderson plug with a dual USB or power charging port in one panel - high-current connection and device charging in a single install.

The Anderson plug module and either the USB module or the power module pre-assembled in one panel, a pre-wired 4mm² UL 1015 cable for the USB/power side, 2x Anderson contacts, and mounting screws.

The Alvolta Duo Anderson sockets work with both 12 V and 24 V systems.

50A, on 12V or 24V systems.

Product Specifications

Suitable System Voltages	12 / 24 V
Power Plug Current Rating	1500 mA
Power Plug Output	120 - 240 W
Anderson Current Rating	50 A
Included Cable	UL 1015 cable, 4 mm² diameter, 100 mm length
Mounting Type	Surface Mount
Mounting Hole Size	4 mm
Anderson Plug Material	Flame Retardant PVC
Housing Material	PA6 (Polyamide/Nylon 6)
Ingress Protection	IP65
Operating Temperature Range	-25°C - +85°C
Colour	Black
Dimensions (w x h x d)	120 x 53.2 x 86.4 mm
Warranty	3 years

Alternative Products

ALVOLTA

Alvolta Duo Anderson/Power Flush Mount Panel

$ 29.95 ~~$ 29.95~~ 29.95 AUD

Tax Included

SKU: ALV-SB50PFS

ALVOLTA

Alvolta Duo Anderson/USB C+C Flush Mount Panel

$ 44.95 ~~$ 44.95~~ 44.95 AUD

Tax Included

SKU: ALV-SB50CCFS

ALVOLTA

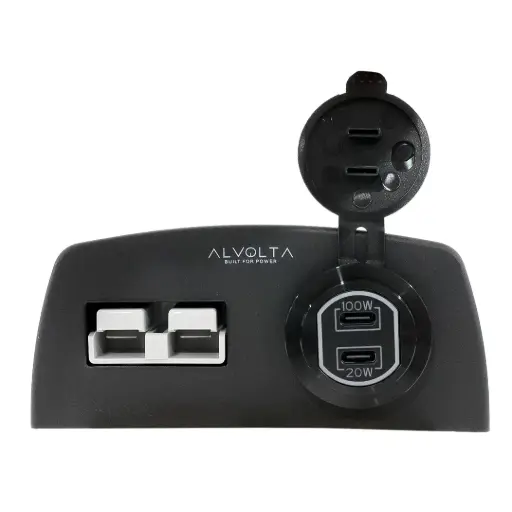

Alvolta Duo Anderson/USB C+C Surface Mount Socket
