- Alvolta Branch Solar Panel Parallel Connectors (Pair)

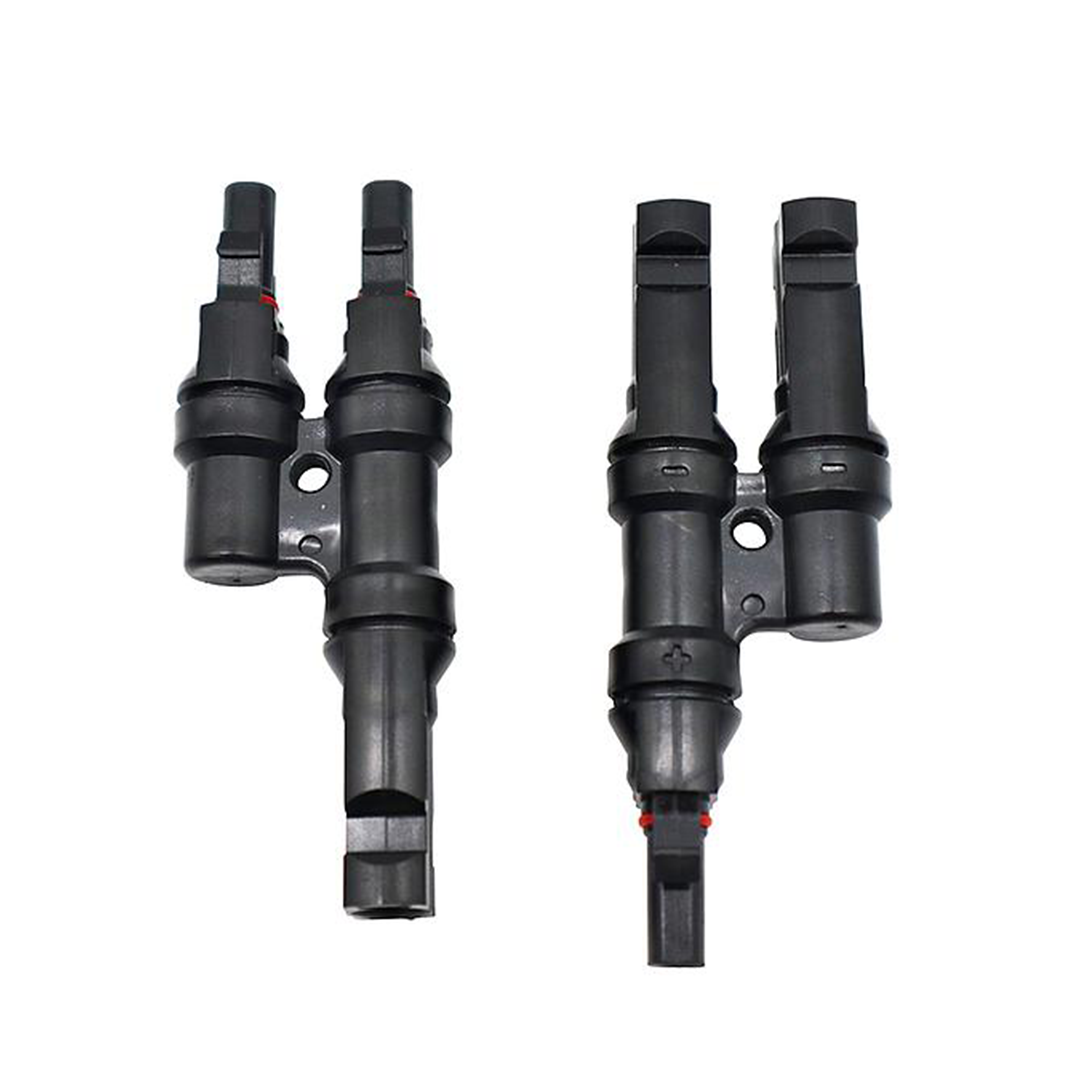

Alvolta Branch Solar Panel Parallel Connectors (Pair)
https://www.springers.com.au/shop/amc2-alvolta-branch-solar-panel-parallel-connectors-pair-15839 https://www.springers.com.au/web/image/product.template/15839/image_1920?unique=99e5c62
(0 review)
1x male & 1x female branch solar connector for 4-6mm² cable
ALVOLTA
Solar Hardware, Cables & Accessories, Cables & Accessories, Solar Cables, Plugs and Sockets

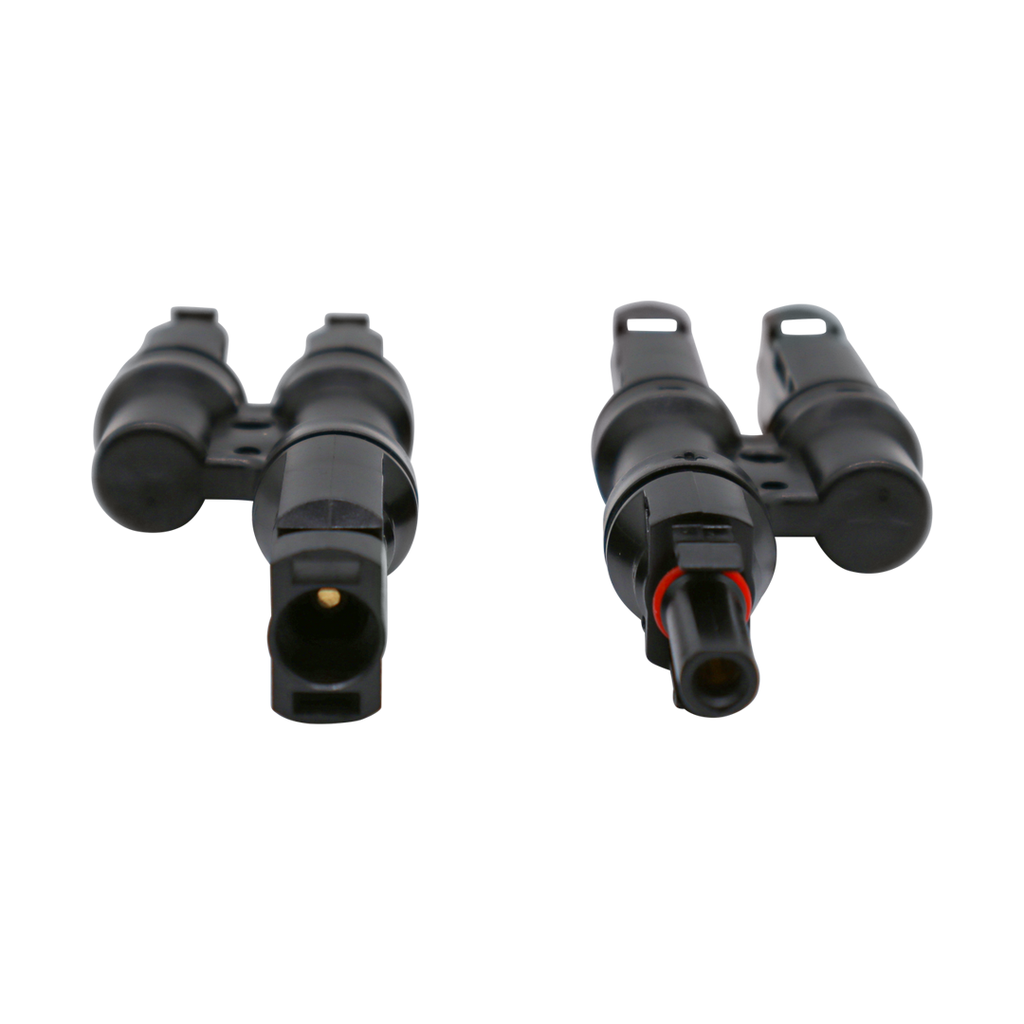

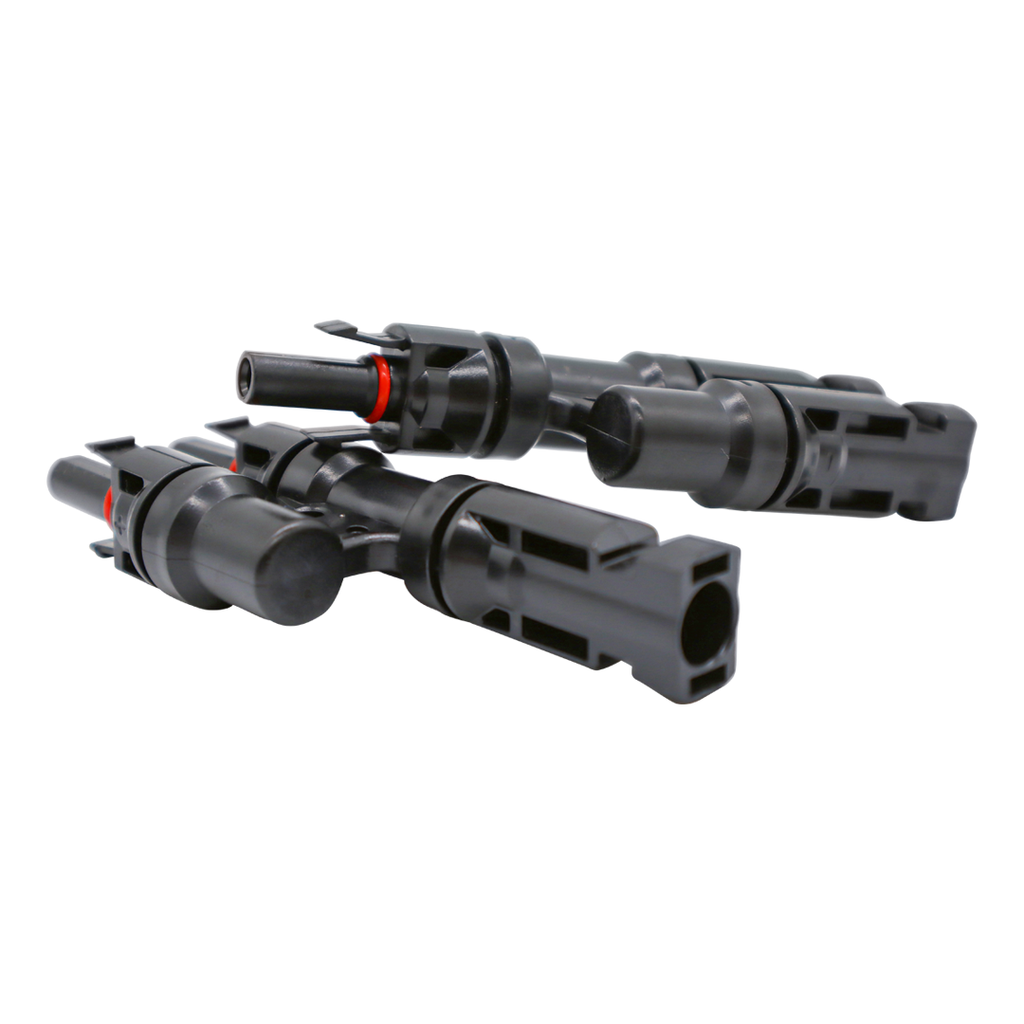

Alvolta Branch Solar Panel Parallel Connectors (Pair)
Features
- 1x female solar connector
- 1x male solar receptacle
- Suitable for 4-6mm² cable
- Snap-in locking
- Tried and tested plug connectors
- UV protected
- IP68 rated
Where to use it
These connectors are designed to connect multiple solar panels together in parallel, link panels to charge controllers, inverters or portable power stations, or bring power into 4WDs, caravans, campers or other off-grid applications. They are durable, weather-resistant connectors that ensure a stable and safe DC connection and are a vital part of a photovoltaic (PV) solar system.
Female connector dimensions
Length | 107.5 mm |
Width | 41 mm |
Weight | 25 g |
Male connector dimensions
Length | 107.5 mm |
Width | 41 mm |
Weight | 25 g |
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
Datasheet_AMC2_V1_compressed.pdf
Download
Yes, but care and the right tools are required. You’ll need an MC4 crimping tool to ensure a secure connection. Incorrect installation can lead to voltage drop, overheating, or safety risks, so if unsure, it’s best to have a qualified installer assemble them.
Branch solar connectors, also know as Y-branch connectors, allow you to connect two or more solar panels in parallel, combining their current (amps) while keeping the voltage the same. They’re ideal for expanding your solar array to increase total charging capacity.
In a parallel connection, the voltage remains the same as a single panel, but the current output increases. In contrast, a series connection increases voltage while keeping the current the same. Parallel setups are commonly used in 12V and 24V systems to match the input limits of solar regulators.
Most branch connectors use MC4-compatible fittings, which are the industry standard on modern solar panels. As long as your panels use MC4 connectors and have matching polarity, these branch connectors will fit securely.
Yes. Quality branch connectors are IP67-rated, UV-resistant, and made from durable materials to withstand heat, moisture, and dust. They’re designed for long-term outdoor use in caravans, camping setups, and fixed solar installations.
Product Specifications
Current Rating | 50 A |
Voltage Rating | 1500 V DC |
Suitable Cable Size | 2.5 mm², 4 mm², 6mm² |
Fuse Type | Schottky Diode/PV Fuse |
Connectors Locking System | Snap-in locking |
Contact Resistance | 0.5 mΩ |
Contact Material | Tin-plated copper |
Optimal Temperature Range | -40°C - +90°C |
Protection | IP68 |
Flame Protection Class | UL94-HB/UL94-V0 |
Colour | Black |
Female Connector Dimensions | 107.5 x 41 mm |
Male Connector Dimensions | 107.5 x 41 mm |
Total Weight | 50 g |
