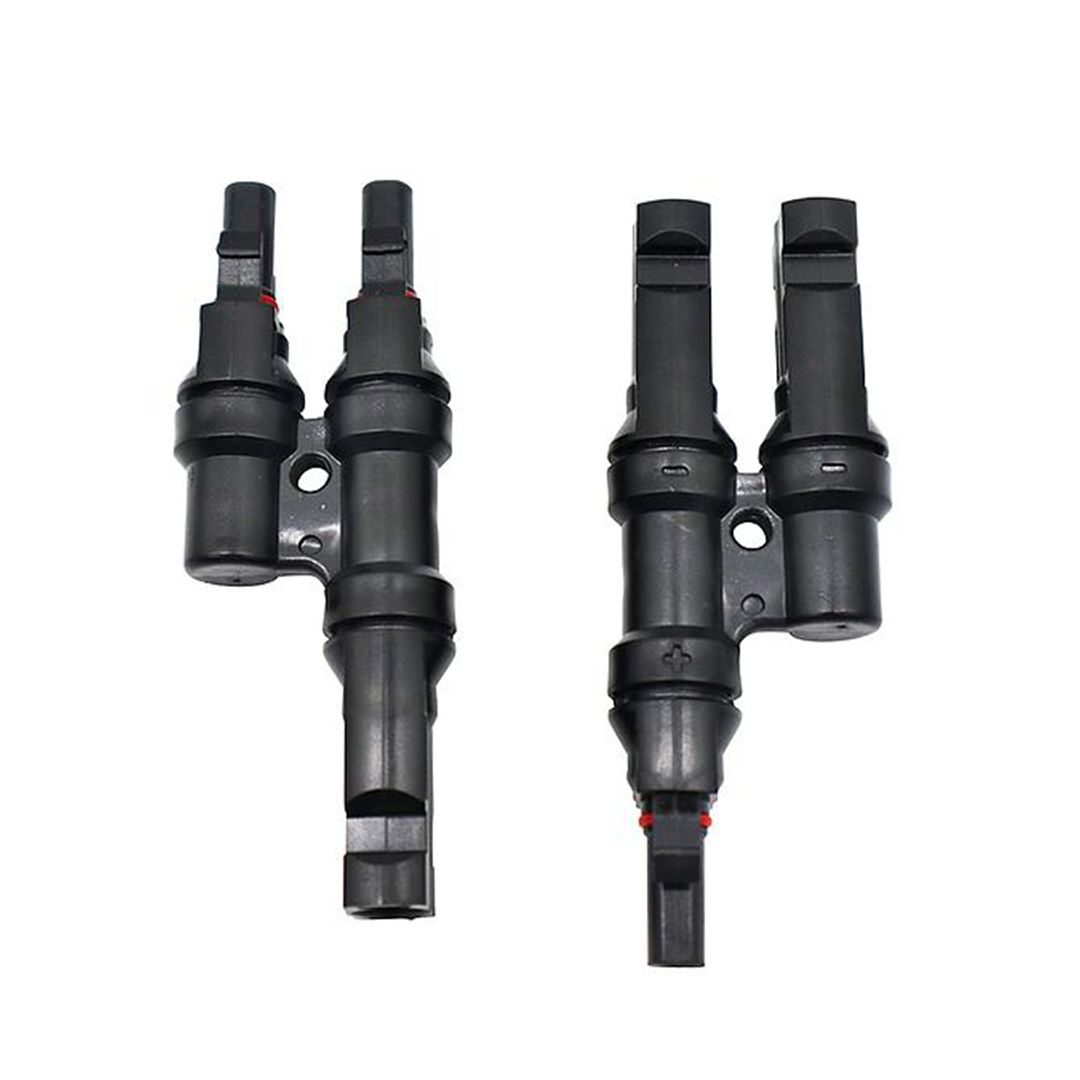

Alvolta Branch Solar Panel Parallel Connectors (Pair)

Alvolta Branch Solar Connectors (Pair)_2

Alvolta Branch Solar Connectors (Pair)_3

Alvolta Branch Solar Panel Parallel Connectors (Pair)

(0 reviews)

1x male & 1x female branch solar connector for 4-6mm² cable

$ 19.50 - Inc GST 19.5 AUD $ 19.50 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Solar Hardware, Cables & Accessories, Cables & Accessories, Solar Cables, Plugs and Sockets

SKU: AMC2

Alvolta Branch Solar Panel Parallel Connectors (Pair)

Features

1x female solar connector
1x male solar receptacle
Suitable for 4-6mm² cable
Snap-in locking
Tried and tested plug connectors
UV protected
IP68 rated

Where to use it

These connectors are designed to connect multiple solar panels together in parallel, link panels to charge controllers, inverters or portable power stations, or bring power into 4WDs, caravans, campers or other off-grid applications. They are durable, weather-resistant connectors that ensure a stable and safe DC connection and are a vital part of a photovoltaic (PV) solar system.

Female connector dimensions

Length	107.5 mm
Width	41 mm
Weight	25 g

Male connector dimensions

Length	107.5 mm
Width	41 mm
Weight	25 g

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_AMC2_V1_compressed.pdf

Download

Yes, but care and the right tools are required. You’ll need an MC4 crimping tool to ensure a secure connection. Incorrect installation can lead to voltage drop, overheating, or safety risks, so if unsure, it’s best to have a qualified installer assemble them.

Branch solar connectors, also know as Y-branch connectors, allow you to connect two or more solar panels in parallel, combining their current (amps) while keeping the voltage the same. They’re ideal for expanding your solar array to increase total charging capacity.

In a parallel connection, the voltage remains the same as a single panel, but the current output increases. In contrast, a series connection increases voltage while keeping the current the same. Parallel setups are commonly used in 12V and 24V systems to match the input limits of solar regulators.

Most branch connectors use MC4-compatible fittings, which are the industry standard on modern solar panels. As long as your panels use MC4 connectors and have matching polarity, these branch connectors will fit securely.

Yes. Quality branch connectors are IP67-rated, UV-resistant, and made from durable materials to withstand heat, moisture, and dust. They’re designed for long-term outdoor use in caravans, camping setups, and fixed solar installations.

Product Specifications

Current Rating	50 A
Voltage Rating	1500 V DC
Suitable Cable Size	2.5 mm², 4 mm², 6mm²
Fuse Type	Schottky Diode/PV Fuse
Connectors Locking System	Snap-in locking
Contact Resistance	0.5 mΩ
Contact Material	Tin-plated copper
Optimal Temperature Range	-40°C - +90°C
Protection	IP68
Flame Protection Class	UL94-HB/UL94-V0
Colour	Black
Female Connector Dimensions	107.5 x 41 mm
Male Connector Dimensions	107.5 x 41 mm
Total Weight	50 g
