Alvolta In-Line AMI/Midi Fuse Holder

(0 review)

Fuse holder for in-line AMI/Midi fuses with M5 terminal posts and a sealable cover

This combination does not exist.

LawntonContact Us

CapalabaContact Us

Sunshine CoastContact Us

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Circuit Protection, Fuse & Fuse Holder, Fuse, Distribution

Alvolta In-Line AMI/Midi Fuse Holder

Features

Fuse holder suitable for in-line AMI/Midi fuses
M5 stainless steel terminal posts
Protective sealable cover
Plastic compound achieving superior stiffness and impact resistance
Copper alloy terminals
Thermal and flame retardant
Maximum voltage 58V DC
Maximum current 200 A

*Fuse is not included.

Where to use it

Alvolta fuse holders are designed to securely hold your fuses in high-current applications, which makes them ideal for battery and alternator connectors and other heavy-gauge cables requiring ultra-high protection.

Pair with

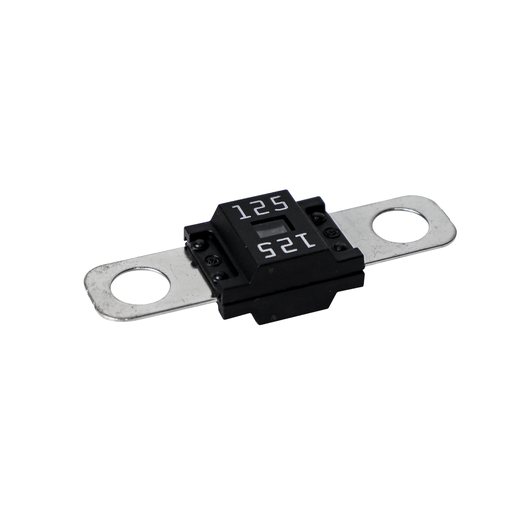

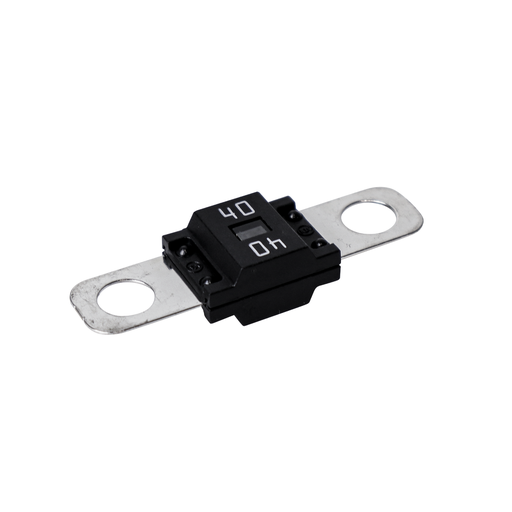

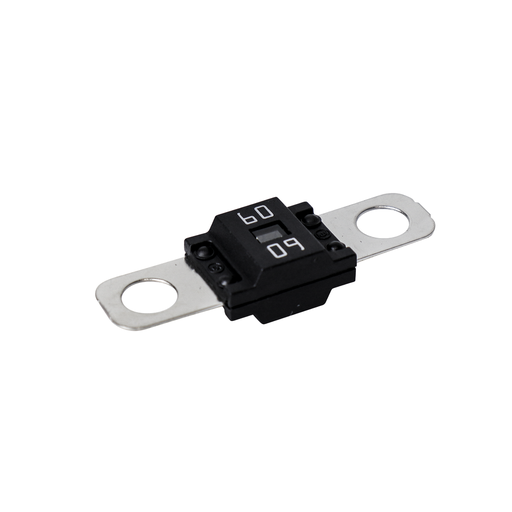

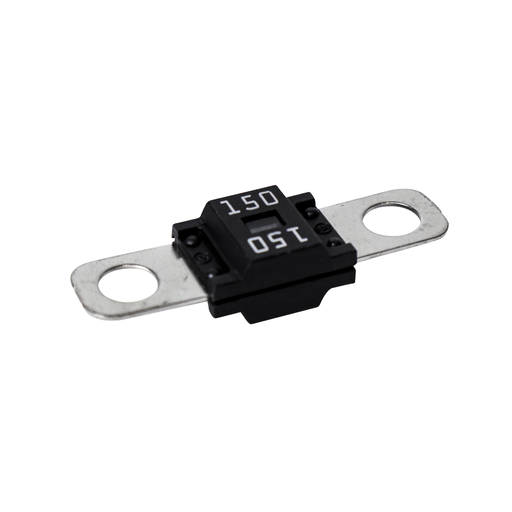

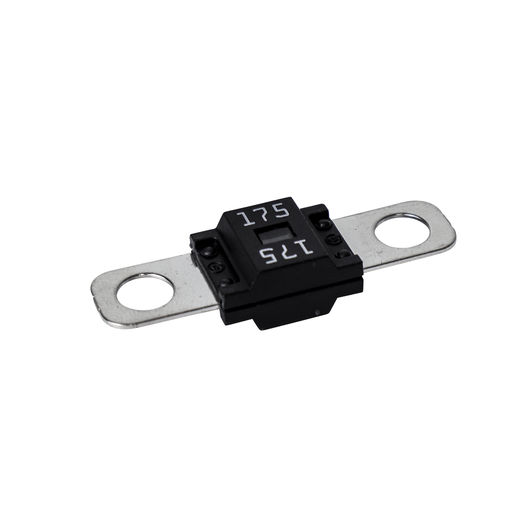

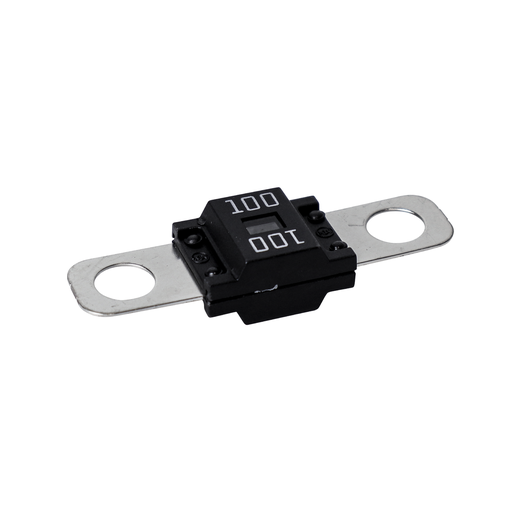

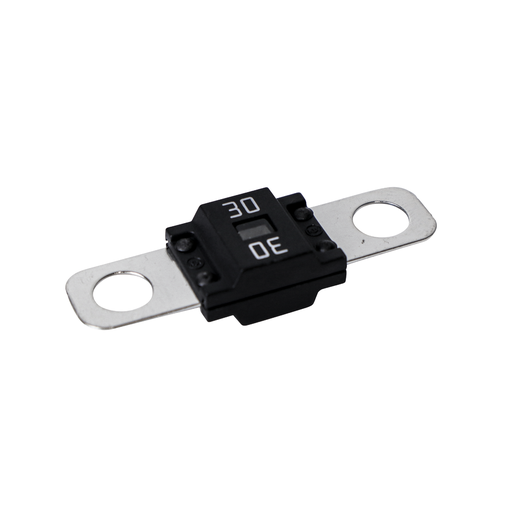

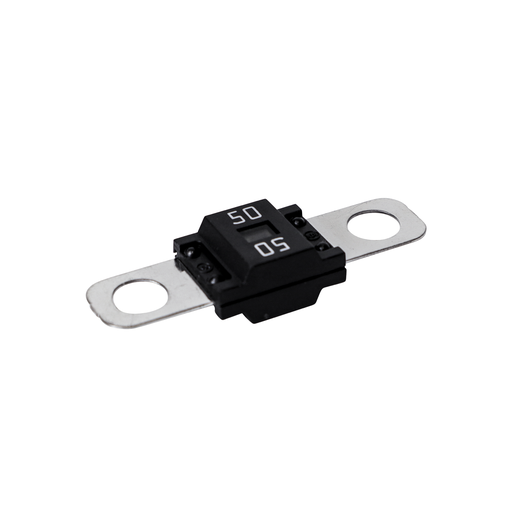

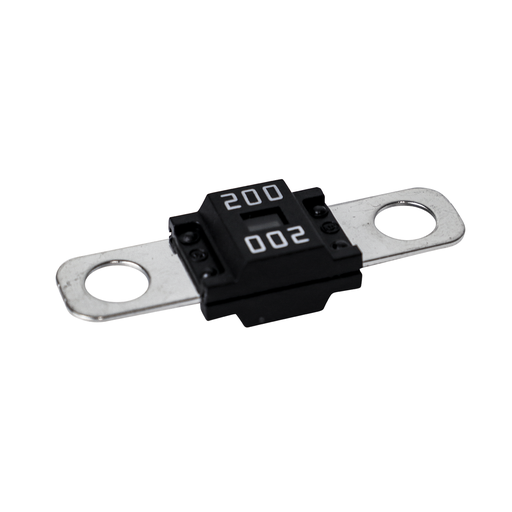

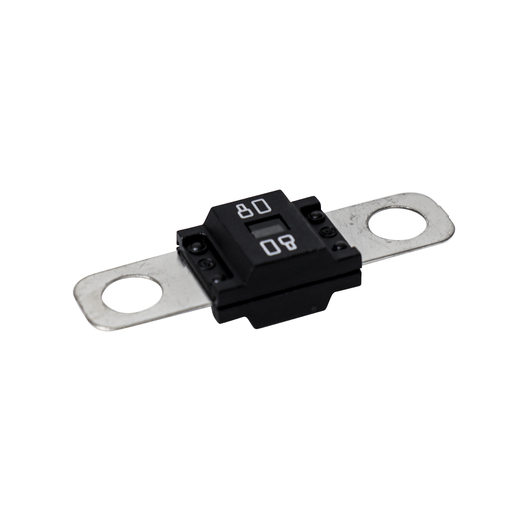

The Alvolta in-line AMI/Midi fuse range.

Fuse guides

Alvolta Fuse Guide

Alvolta Fuse Holder Guide

Dimensions

Length	84 mm
Width	24.3 mm
Depth	27.5 mm

Warranty

3-year warranty

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_AMI-IH_V2_compressed.pdf

Download

AMI and Midi fuses are the same, there are just different naming conventions from manufacturers. Both feature bolt-down connections and typically range from 30A to 200A. Maxi fuses, on the other hand, are blade-style fuses that plug into holders rather than bolt down.

Select a fuse that’s rated slightly above your circuit’s maximum continuous current draw. For example, a 40A circuit should use a 50A fuse. Always check that the fuse rating matches your cable gauge and the current-handling capacity of your connected equipment.

AMI (also known as Midi) fuse holders are designed to secure and protect AMI/Midi-style bolt-down fuses, which are used in medium to high-current DC circuits. They're ideal for safely protecting wiring in 12 V and 24 V systems - such as solar, automotive, marine, and off-grid setups.

These holders are compatible with AMI/Midi fuses, typically rated between 30 A and 200 A. Always ensure the fuse rating matches your circuit's protection requirements and the current capacity of your cables and devices.

Yes. Alvolta AMI/Midi fuse holders are composed of heat-resistant, flame-retardant plastic and include a protective cover. This makes them durable enough for outdoor, vehicle, or marine use - where vibration and weather exposure are common.

Product Specifications

Fuse Type	AMI/Midi Fuses
Maximum Voltage	58 V DC
Maximum Current	200 A
Operating Temperature	-40 °C to +120 °C
Insulating Body	Plastic
Terminal	Copper Alloy
Contact Strip	Stainless Steel
Bolt	Stainless Steel
Wiring Method	One Input with One Output
Colour	Black
Dimensions	84 x 24.3 x 27.5 mm
