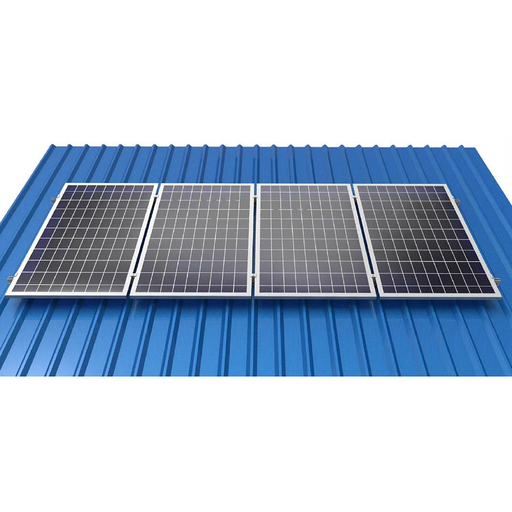

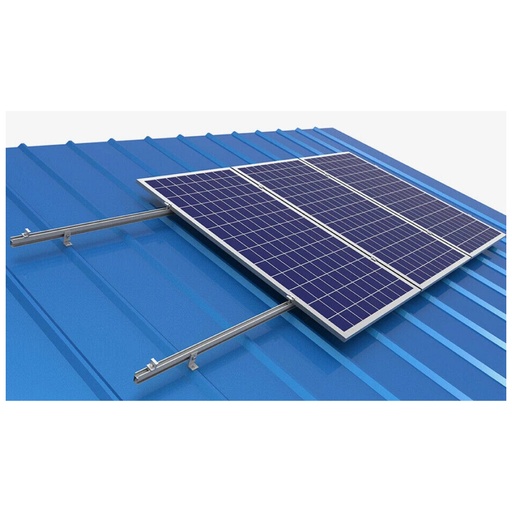

Modular tilt roof mount system for four solar panels
This roof mount kit has been designed to make installation as straightforward as possible. The system utilises a limited number of components to reduce confusion and time. The majority of kit accessories are pre-assembled to help provide an efficient and simple installation.
Each roof mount kit includes two extra joiner bars, so you can easily increase the array size by adding another kit.
Suitable for installation on structures with a tin roof up to 20 metres in height and up to 60 degrees tilt angle.
| Description | Dimensions | Quantity |
| Tripod Mount | 2x aluminium 1550 mm 1x aluminium 620 mm 5x stainless steel bolts and stainless steel nuts 2x stainless steel bolts and aluminium nuts 2x L brackets | 3 |
| Rail | 1500 (L) x 50.8 (H) x 28.8 (W) mm | 6 |
| T Head Rail Connector with Washer & Nut | M8*25 | 10 |
| Adjustable End Clamp | 35 - 40 mm | 4 |
| Mid Clamp (Earthing) | 35 - 40 mm | 4 |
| Mid Clamp (No Earthing) | 35 - 40 mm | 4 |
| Rail Joiner | 140 mm | 6 |
| Earthing Lug | N/A | 2 |
| Roofing Screw | 6.3 x 80 mm | 6 |
| Rail Cap | N/A | 4 |
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
| SKU | AMR1TD |
| Material | SU304 & Aluminium |
| Anodised | Yes |
| Suitable Roof Angle | Up to 60 Degrees |
| Installation height | Up to 20 Meters |
| Safety Standard | Yes |
| Roof Type | Corrugated Iron |
| Rail Length | 1500 mm |
| Panel Height | 35 - 40 mm |
| Warranty | 5 Years |
