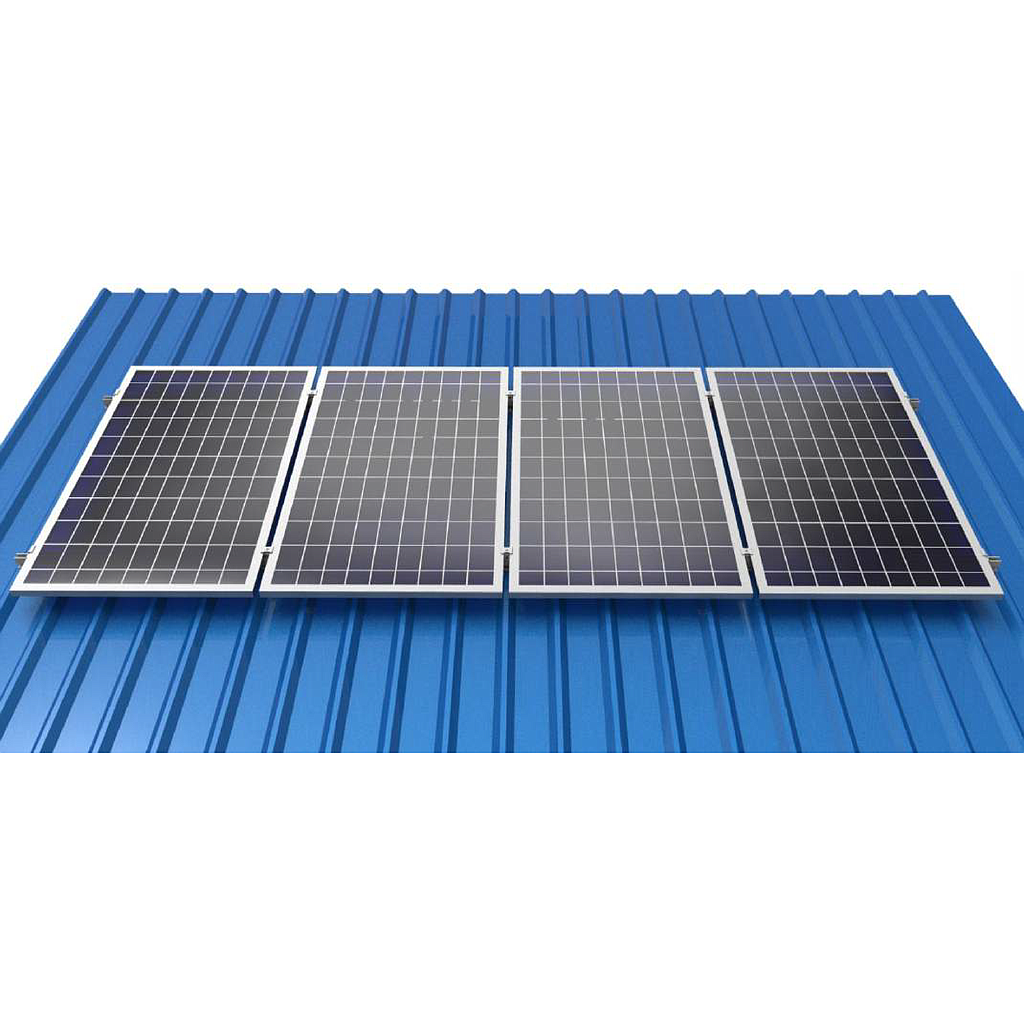

Ships from BrisbaneAlvolta 4x Solar Panel Tin Roof Mounting Kit
Features
- Tin roof mounting kit
- Flat-to-roof
- Modular system
- Suitable for four solar panels per mounting kit
- Designed for installation on tin roofs
- Stainless steel 304 & aluminium composition
- Corrosion-resistant
- L-foot mounting
- Lightweight, less than 9.5 kg (excluding solar panels)
Simple installation
This roof mount kit has been designed to make installation as straightforward as possible. The system utilises a limited number of components to reduce confusion and time. The majority of kit accessories are pre-assembled to help provide an efficient and simple installation.
Tip: The washers on roofing screw are designed to create a waterproof seal. When installed correctly, they compress slightly against the roof surface to prevent leaks. To ensure a proper seal, drive the screw about three-quarters of the way in, then continue slowly until the washer applies light, even pressure against the roof. Stop at this point - overtightening can distort the washer, compromise its waterproofing ability, and require replacement.
Modular system
Each roof mount kit includes two extra rail joiner (splice) bars, so you can easily increase the array size by adding another kit.
Recommended solar panels
- Any
Where to use it
Suitable for installation on structures with a tin roof up to 20 metres in height and up to 60 degrees tilt angle.
- Sheds
- Cabins
- Warehouses
- Airbnbs
- Tiny homes
- Donga shipping containers
- Remote sites
Warranty
- 5-year warranty
What's in the box?
Description | Dimensions | Weight | Quantity |
Rail | 1550 x 50.8 x 28.8 mm | 0.9 kg | 6 |
L-bracket with roofing screw and EDPM rubber | 6.3 x 80 mm | 0.85 kg | 10 |
T-head rail connector with screw, washer, and nut | M8*25 | 0.025 kg | 10 |
Adjustable end clamp | 30 - 40 mm | 0.45 kg | 4 |
Mid clamp (earthing) | 30 - 40 mm | 0.06 kg | 4 |
Mid clamp (no earthing) | 30 - 40 mm | 0.06 kg | 4 |
Splice (rail joiner) | 140 mm | 0.025 kg | 6 |
Earthing lug | - | - | 2 |
Roofing screw | 6.3 x 80 mm | 0.2 kg | 10 |
End cap | - | 0.01 kg | 4 |
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
