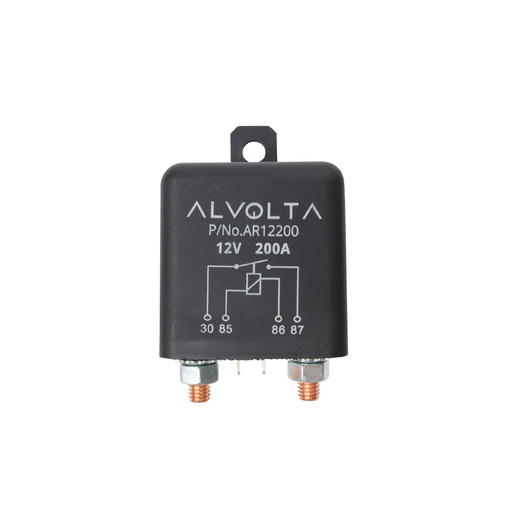

Alvolta Heavy Duty 12V 200A Ignition Relay
Relay features
- 200A maximum switching current
- Maximum switching voltage 40V DC
- 4 terminals: 2x M6 studs and 2x 6.3mm male lucar (coil) terminals
- 12V coil
Build
- ABS plastic housing with fixed mounting bracket
- Silver tin-oxide contacts
- 6mm mounting hole
- Operating temperature -40°C to +85°C
- Compliant with IEC 61810-7
Where to use it
The Alvolta Heavy Duty 12V 200A Ignition Relay switches a heavy DC load from a small ignition or switch signal. In a dual battery setup it links the starter and auxiliary batteries only while the ignition is on, so the starter battery can't be drained when the engine is off. It also suits accessory isolation in 4WDs, caravans, motorhomes and boats.
Connect the main cables to the M6 studs and the ignition signal and earth to the lucar terminals, and fuse the main cables close to each battery. It bolts down through the 6mm hole in its bracket, operates from -40°C to +85°C and is backed by a 1-year warranty.
Dimensions
Width | 55 mm |
Height | 88 mm |
Depth | 57 mm |
Weight | 0.94 kg |
Safety features
- Compliant with IEC 61810-7
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
Warranty
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
