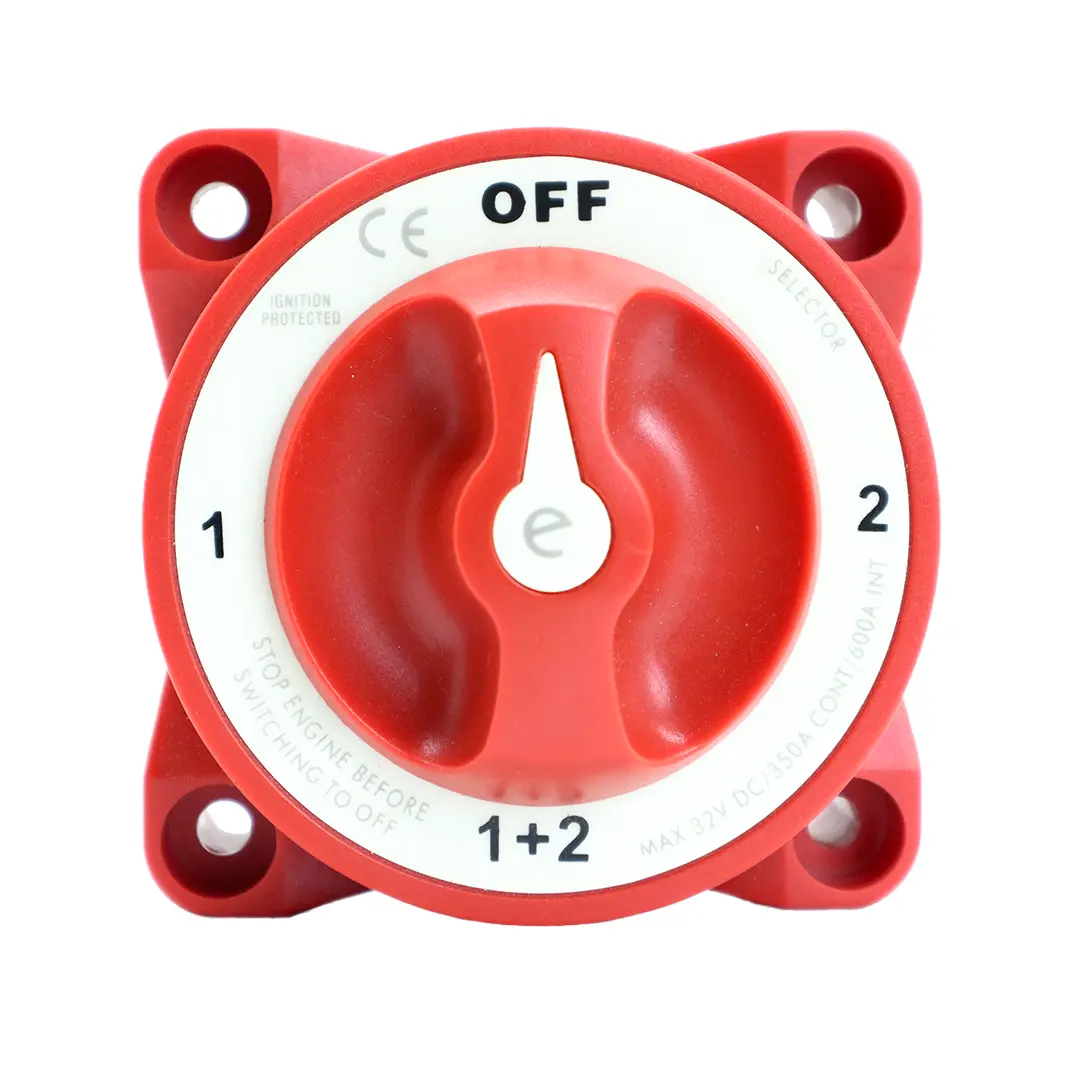

Alvolta 4 Position 350A Battery Switch (Red)
Switch features
- 4-position selector (1, 2, 1+2 combined, off)
- 350A continuous
- 525A intermittent (5 minutes)
- 700A cranking (30 seconds)
- Maximum system voltage 32V DC
Build

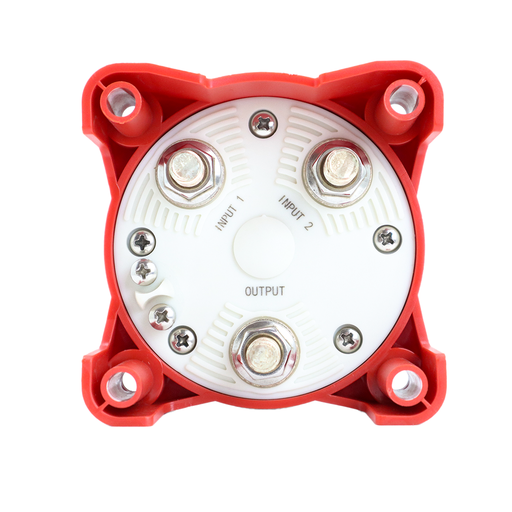

- M10 tinned copper terminal studs
- Takes cable up to 120mm² (4/0 AWG)
- M6 mounting holes
- PVC housing
- IP66 rated
- Red colour
Where to use it
The Alvolta 4 Position 350A Battery Switch (Red) switches between two battery banks: battery 1, battery 2, both combined, or off. Use it to protect a battery from flat-draining while a vehicle, caravan or boat is stored, or to manage a starter and auxiliary battery in 4WDs, caravans, motorhomes, boats and off-grid setups.
Mount it through M6 holes and connect cables with M10 ring terminals, tightened to 15.82Nm (140 in-lb). The PVC housing is IP66 rated, and the switch is backed by a 1-year warranty.
Dimensions
Width | 97.79 mm |
Height | 97.79 mm |
Depth | 78.67 mm |
Weight | 0.4 kg |
Safety features
Warranty
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
Tiny Houses
