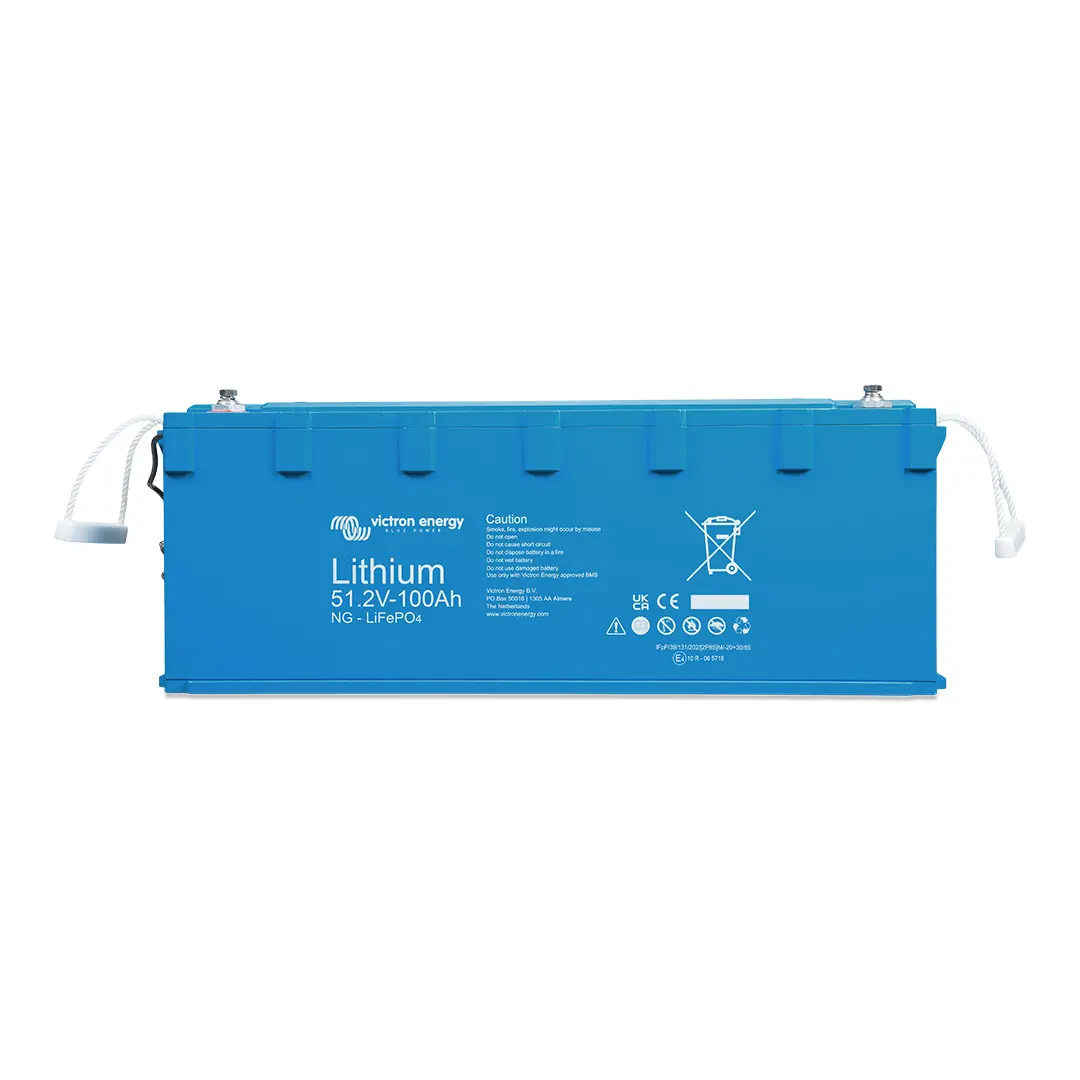

Victron 51.2V 100Ah NG Lithium Battery

(0 review)

IP65-rated LiFePO4 battery with integrated cell balancing and Bluetooth monitoring

$ 3,599.00 - Inc GST 3599.0 AUD $ 3,599.00

This combination does not exist.

ADD TO CART Buy now

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Shipping: 2-3 Business Days

Category: BATTERIES, Lithium

Victron 51.2V 100Ah NG Lithium Battery

Features

Lithium-ion phosphate (LiFePO4) battery
Can power 12 V, 24 V or 48 V systems
Integrated shunt for system monitoring
Can be connected in series, parallel or a combination of both
Up to 25 batteries can be connected in a bank, offering a maximum 128 kWh capacity
Bracket and strap mounting included
Low self-discharge rate
Integrated cell balancing

Where to use it

The Victron 51.2V NG Lithium Battery is a high-performance lithium-ion phosphate battery. Its high voltage capacity makes it ideal for 48 V systems that require reliable, high energy density, such as residential solar, off-grid cabins, industrial applications, and marine setups.

Dimensions

Width	648 mm
Height	235 mm
Depth	162 mm
Weight	37 kg

Safety Features

IP67 rated - protected against dust and rain
Protected against overheating

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Marine

Off-Grid Systems

Tiny Houses

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_LiFePO4 Battery51,2V.pdf

Download

Datasheet_LiFePO4 Battery.pdf

Download

Product Specifications

Voltage and Capacity
Nominal voltage	51.2 V
Nominal capacity @ 25 °C	100 Ah
Nominal energy @ 25 °C	5120 Wh
Capacity loss	(per 100 cycles, @ 25 °C, 100 % DoD): <1 %
Energy loss	(per 100 cycles, @ 25 °C, 100 % DoD): <1 %
Round trip efficiency	92 %
Cycle Life
80 % DoD	2500 cycles
70 % DoD	3000 cycles
50 % DoD	5000 cycles
Discharge
Max continuous discharge current (C-rate)	100 A (1C)
Max pulse discharge current 10s (C-rate)	200 A (2C)
End of discharge voltage	44.8 V
Internal resistance	8 mΩ
Charge
Charge voltage	Between 14 V / 28 V / 56 V and 14.4 V / 28.8 V / 56.8 V
Float voltage	13.5 V / 27 V / 54 V
Max continuous charge current (C-rate)	100 A (1C)
Max pulse charge current 10s (C-rate)	200 A (2C)
General

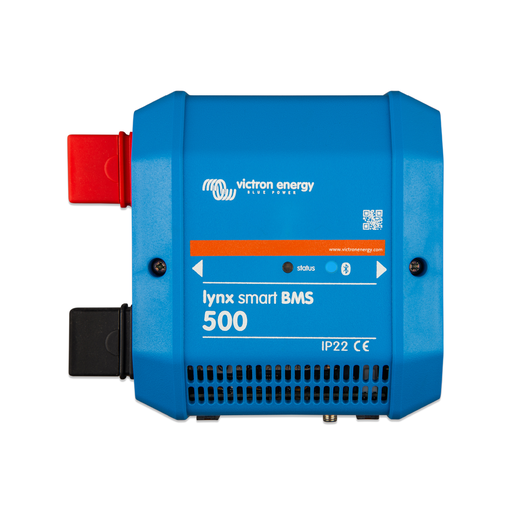

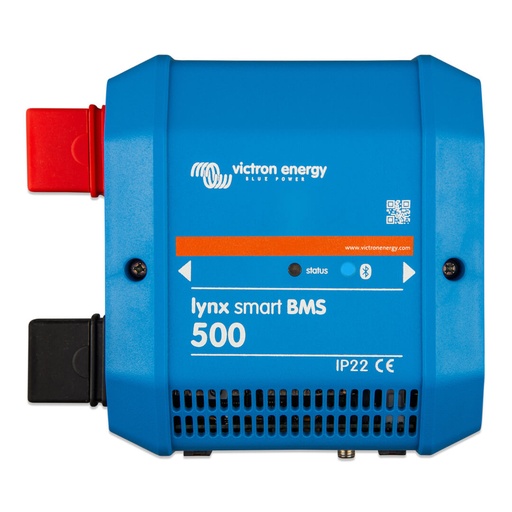

BMS-es	Lynx Smart BMS NG 500 A / 1000 A (M10 busbars), must be purchased separately
Cell measurements	Cell voltages and temperatures, battery current
Battery BMS interface	Male + female cable with M8 circular connector with high-speed digital communication, length 50 cm M8 extension cables are available separately for purchase in various lengths between 1 and 5 meters
Alarm feature	Pre-alarm contact on BMS
Bluetooth	In the BMS
Max batteries per BMS	25 (128 kWh per BMS)
Battery firmware updates	Battery firmware automatically updated by BMS
Repairable	Yes (cover can be removed with screws)
Operating Conditions
Operating temperature	Discharge: -20 °C to +50 °C \| Charge: +5 °C to +50 °C
Storage temperature	-45 °C to +70 °C
Humidity (non-condensing)	Max. 95 %
Protection class	IP65
Mounting

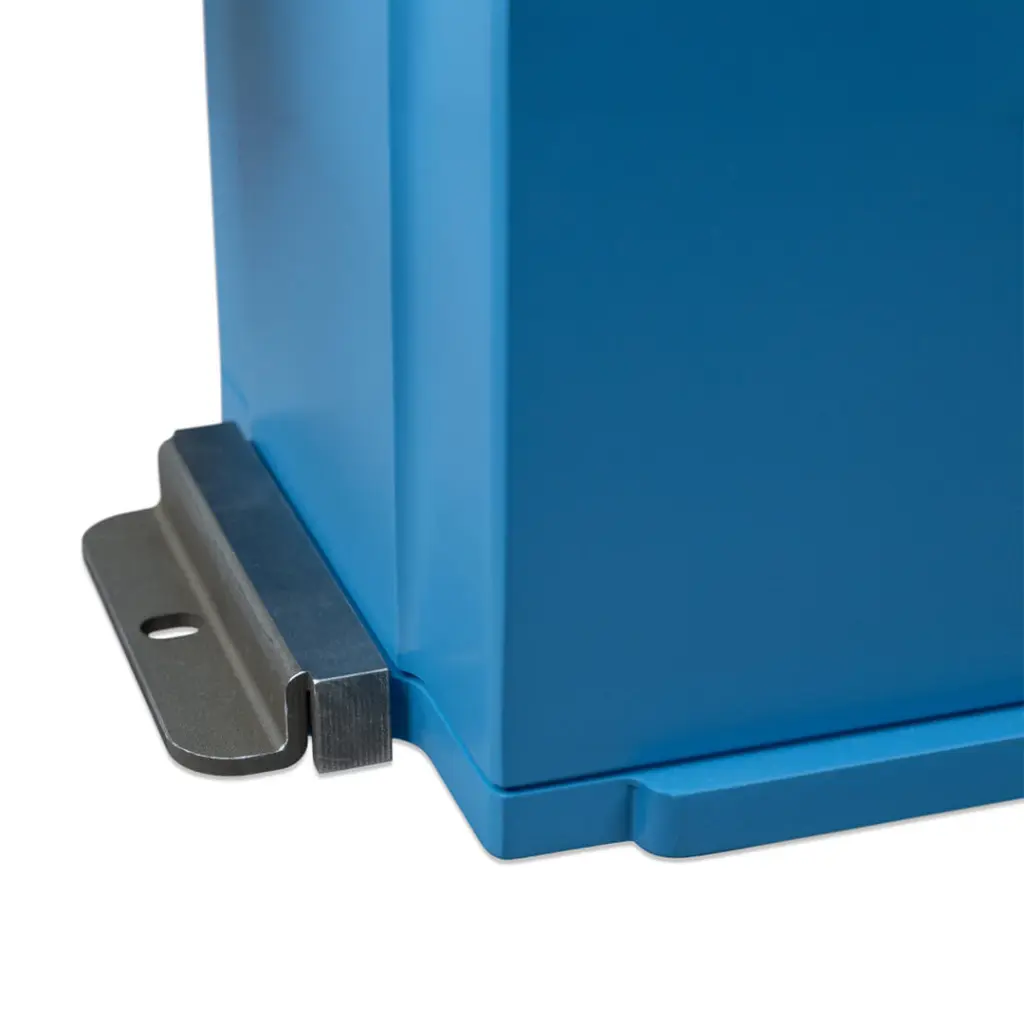

Mounting options	Strap or mounting brackets (brackets included)
Can be placed on their sides	Yes
Other
Self-discharge rate	≤ 3 % per month @ 25 °C
Power connection	M8 (threaded inserts and bolts)
Dimensions	235 x 648 x 162 mm
Weight	37 kg
Standards
Safety (cells)	UL1973 UL9540A IEC62619 (all three pending)
Safety (battery)	IEC 62619 (pending), UL 2054
EMC	EN 61000-6-3, EN 61000-6-2
Automotive	ECE R10-6
Performance	IEC 62620
