Features:
• Combines Two or More DC Power Sources
• Guarantees Continuous DC Power to Load
• 80Amps
Brand: Victron |
Features:

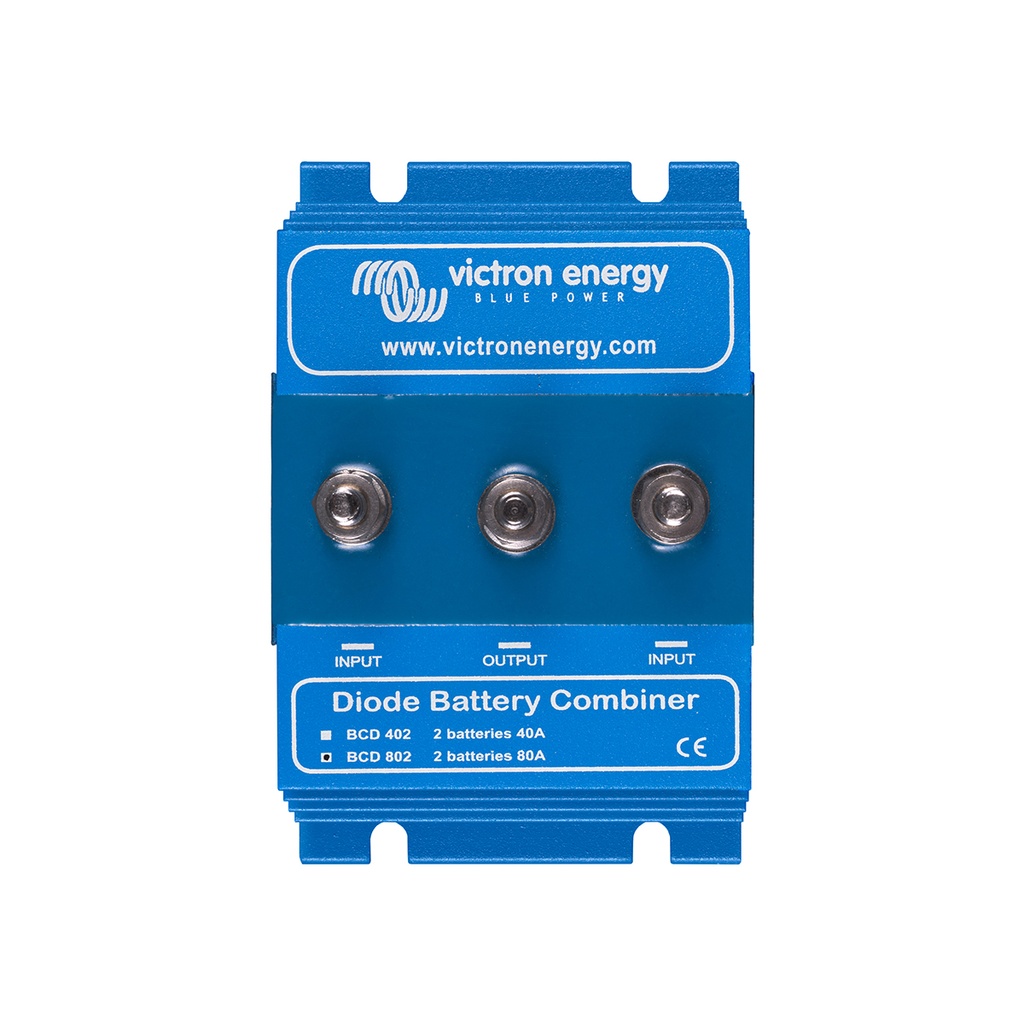

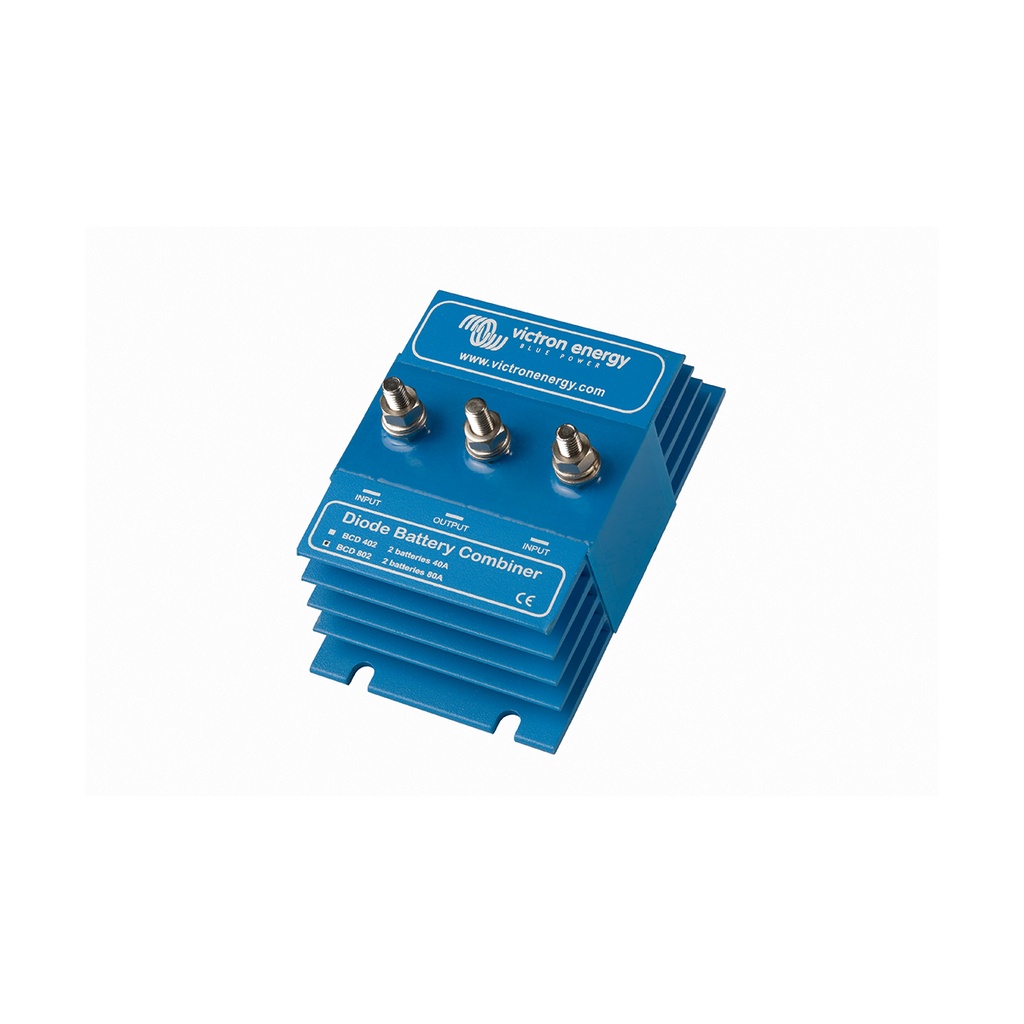

Diode Battery Combiners are used to guarantee continuous DC power to mission-critical equipment, such as an electronic engine control system. With a diode battery combiner, two or more DC power sources can be used in parallel to supply the mission-critical load. Failure of one source will not interrupt power to the critical load.
The Argo Battery Combiners feature a low voltage drop thanks to the use of Schottky diodes: at low current, the voltage drop is approximately 0.3 V and at the rated output approximately 0.45 V.
Warning: Hot surface, mount the Argo Diode Battery Combiner on a non-flammable surface only.
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Brand | Victron |
Product Specifications
Maximum continuous current (A) |
80
|
Number of batteries
|
2
|
Nominal battery voltage
|
12V and 24V
|
Connection
|
M6 bolts
|
Weight
|
0.8kg |
Dimensions
| 60 x 120 x 75mm |
