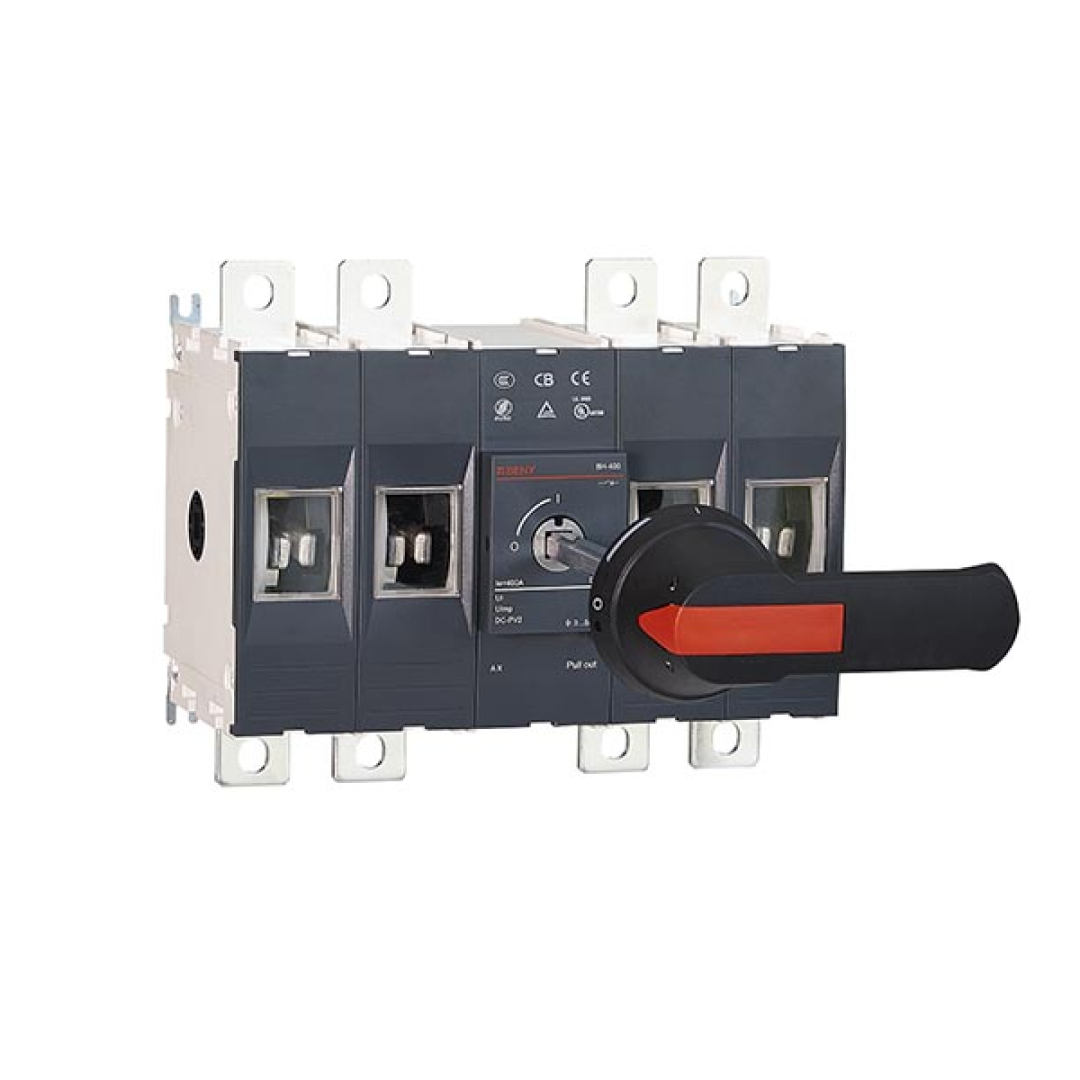

ZJ Beny 4P 1500V 400A DC Isolator
Isolator features
- 4-pole PV DC isolation switch, 400A at up to 1500V DC
- Isolates two strings (2 poles in series per string)
- 10kA breaking capacity; contact resistance <0.5mΩ
- Front or side operation via coupling shaft
Build
- M10 screw terminals for 120-240mm² copper cable or bar
- Supplied with handle, coupling square shaft, interphase barrier and M10 binding kit
- IEC/EN 60947-3, AS 60947.3 and UL 98B
Where to use it
The BH-400 isolates high-current DC circuits in large commercial and utility-scale PV plants running 1000V or 1500V strings, and in large battery systems.
It mounts inside an enclosure of at least 400 x 350 x 180mm and must be protected by a PV fuse or PV circuit breaker (max prospective current 10kA). Installed by a licensed electrician.
Dimensions
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About ZJ Beny
ZJ Beny (Zhejiang Benyi Electrical) makes DC protection and switching gear for solar PV and battery storage: DC isolators, miniature and moulded case circuit breakers, AC isolators and enclosures, tested to IEC and AS standards with SAA approval.
