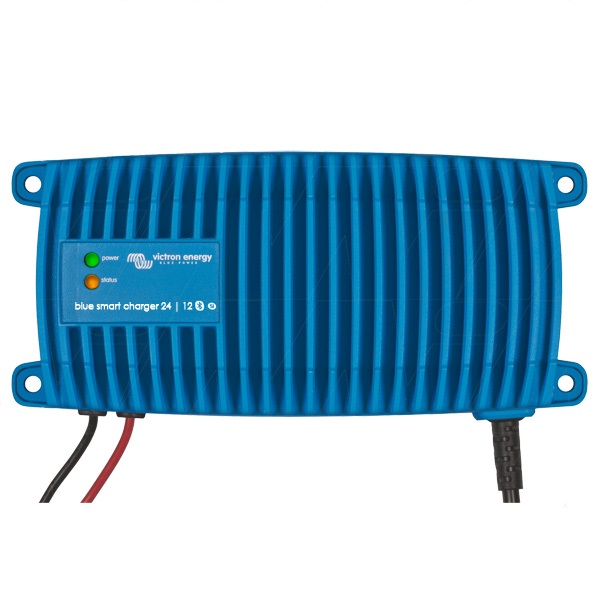

Victron Blue Smart IP67 Charger 24/12

(0 reviews)

24 V 12 A IP67 waterproof Bluetooth battery charger for lead-acid and lithium batteries

$ 243.88 - Inc GST 243.88 in stock AUD $ 243.88 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Battery Chargers, AC Chargers, AC Chargers

SKU: BPC241247016

Victron Blue Smart IP67 Charger 24/12

Features

24 V, 12 A Bluetooth battery charger
IP67: fully waterproof and dust proof, sealed aluminium case
5-stage adaptive charge algorithm
Lead-acid and lithium (Li-ion) charge modes
LOW mode (4 A) for smaller batteries
Recovery of fully discharged batteries
Can be used as a 24 V power supply
Up to 96% efficiency

Where to use it

The Blue Smart IP67 24/12 is built for wet and harsh spots: boats, engine bays, trailers, farm machinery and outdoor installations.

Mount it permanently and check charging from your phone with the VictronConnect app.

Dimensions

Height	99 mm
Width	219 mm
Depth	65 mm
Weight	2.4 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Marine

Off-Grid Systems

Tiny Houses

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet_Blue-Smart-IP67-Charger-230VAC-EN.pdf

Download

Manual_Blue_Smart_IP67_Charger-en.pdf

Download

Product Specifications

Blue Smart IP67 Charger 24/12 230VAC
Nominal voltage range and frequency	220-240 V AC, 50-60 Hz
Input voltage range and frequency	180-265 V AC, 45-65 Hz
Efficiency	96%
No load power consumption	0.5 W
Charge voltage 'absorption'	Normal: 28.8V, High: 29.4V, Li-ion: 28.4V
Charge voltage 'float'	Normal: 27.6V, High: 27.6V, Li-ion: 27.0V
Charge voltage ‘storage’	Normal: 26.4V, High: 26.4V, Li-ion: 27.0V
Charge current, normal mode	12A
Charge current, LOW	4A
Charge algorithm	5-stage adaptive
Can be used as power supply	yes
Protection	Battery reverse polarity (fuse), Output short circuit, Over temperature
Operating temp. range	-30°C to +60°C (full rated output up to 40°C), Derate 3% per °C above 40°C
Humidity	Up to 100%
Start interrupt option (Si)	Short circuit proof, current limit 0.5 A, Output voltage: max one volt lower than main output
Enclosure
Material & Colour	Aluminium (blue RAL 5012)
Battery-connection	Black and red cable of 1.5 meter
230 V AC-connection	Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Protection category	IP67
Weight	2.4 kg
Dimensions	99 x 219 x 65 mm
Standards
Safety	EN 60335-1, EN 60335-2-29
Emission Immunity	EN 55014-1, EN 61000-6-3, EN 61000-3-2
Automotive Directive	EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
