Victron Cerbo GX MK2

Victron Cerbo GX

Features

• System Communication Centre
• VE.Direct, VE.Bus, VE.Can, USB & Ethernet Ports
• Built-in WiFi
• Smart Power Solution

• Maximise System Performance

Cerbo GX MK2: this model is a small hardware improvement over the prior one. For most systems insignificant. In short, use the MK2 for systems that require either (a) an isolated VE.Can port or (b) dual full function CAN-bus ports, for example in larger RV and coach systems that contain both a VE.Can network as well as a RV-C network, or (c) three fully functional USB ports, instead of two.

The Cerbo GX sits at the heart of your energy installation. All the other system components - such as inverter/chargers, solar chargers, and batteries - are connected to it. The Cerbo GX ensures that they all work in harmony.

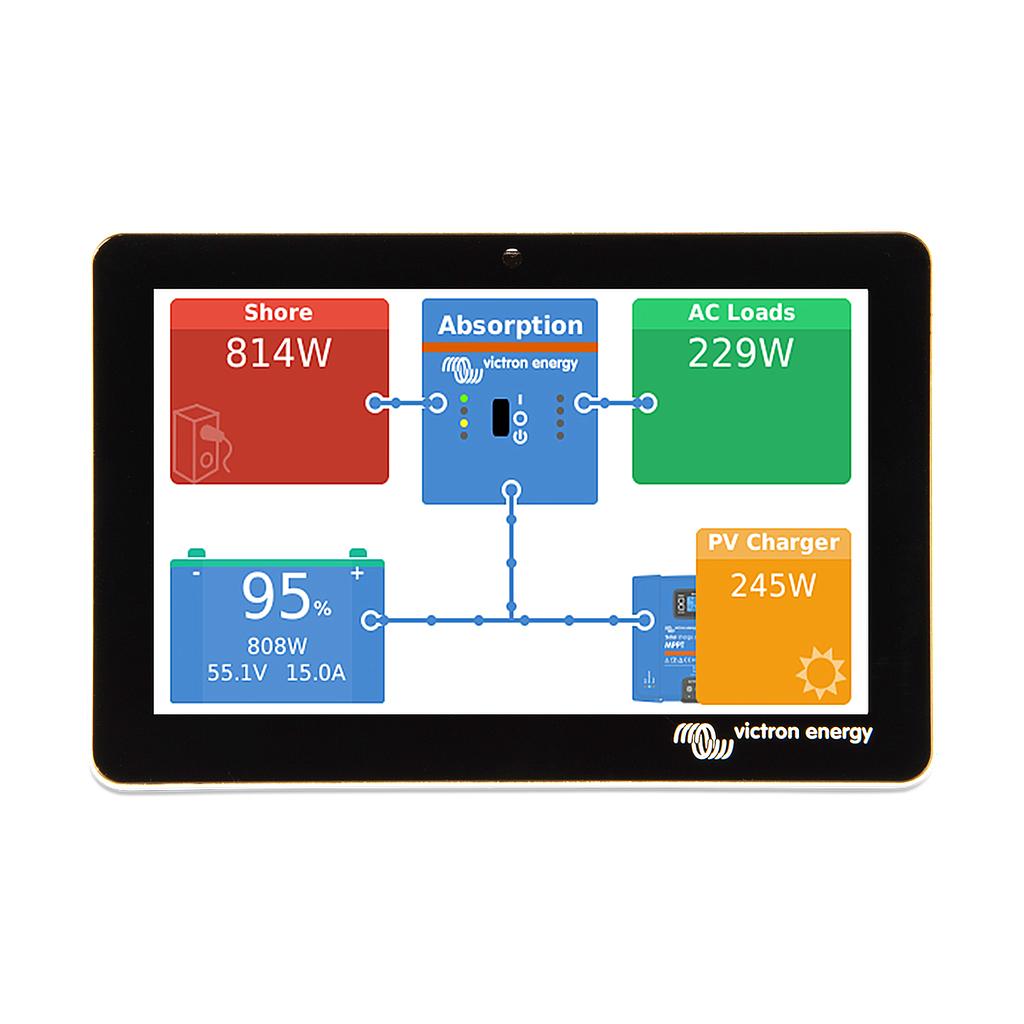

There is an optional touchscreen accessory for the Cerbo GX called the GX Touch. Monitoring of the system can be done either with the Cerbo GX in front of you - or from anywhere in the world using an internet connection and the VRM Portal. The Cerbo GX also provides Remote firmware updates and allows settings to be Changed Remotely.

This all-new communication centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, an MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX range combines all the best of connectivity, redefining smart power solutions in every way. The Cerbo GX is part of the GX product family. GX products are Victron's state-of-the-art monitoring solution that runs our Venus OS operating system.

Cerbo GX Features:

Maximise Your System Performance:

The Cerbo GX maximises the performance of your system's components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely following managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boat's network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.

Expand Your View:

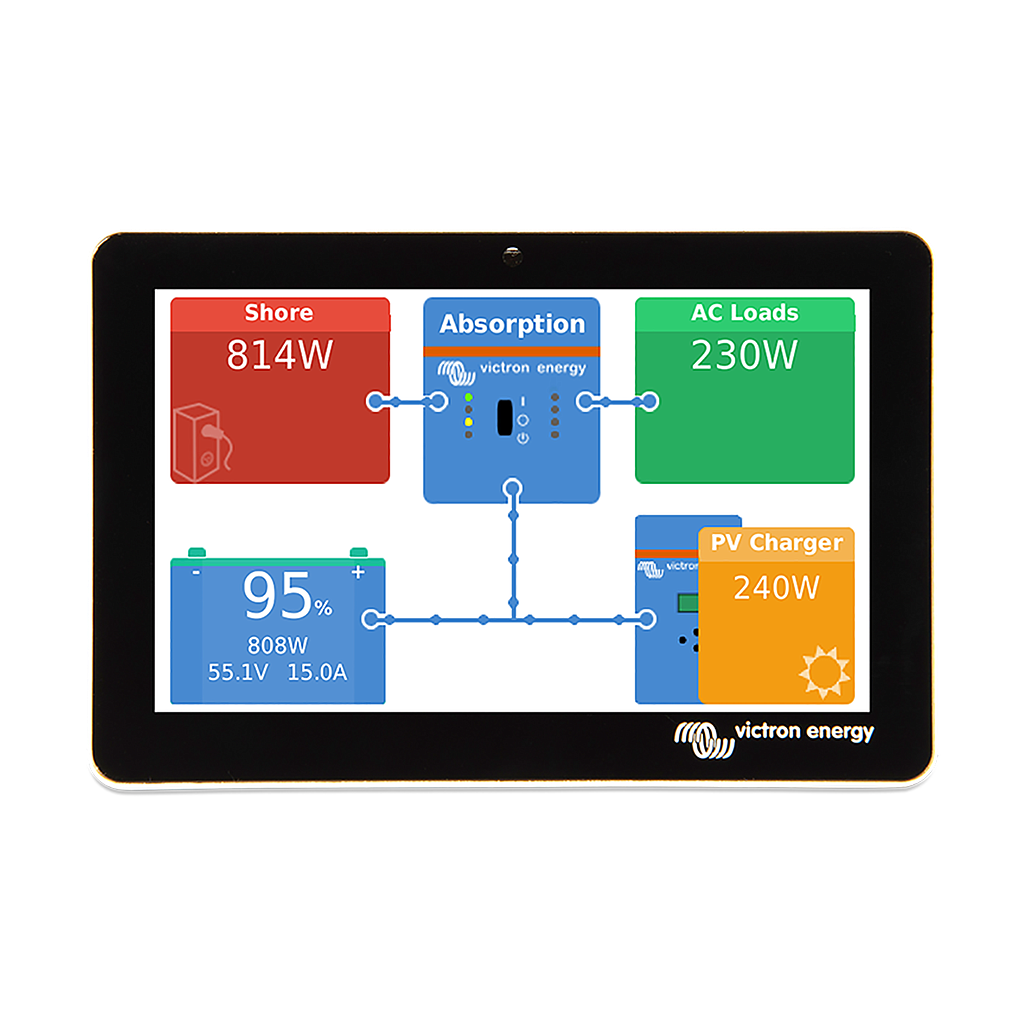

The new (optional) GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5-inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

Simple Mounting and Configuration:

The Cerbo GX is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.

Outsmart Any Power Challenge:

The Cerbo GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop your generator, or delay ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks in during power cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few.

Applications:

Marine

RV's

Motor Homes

4WD

Motor Vehicles

​More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
