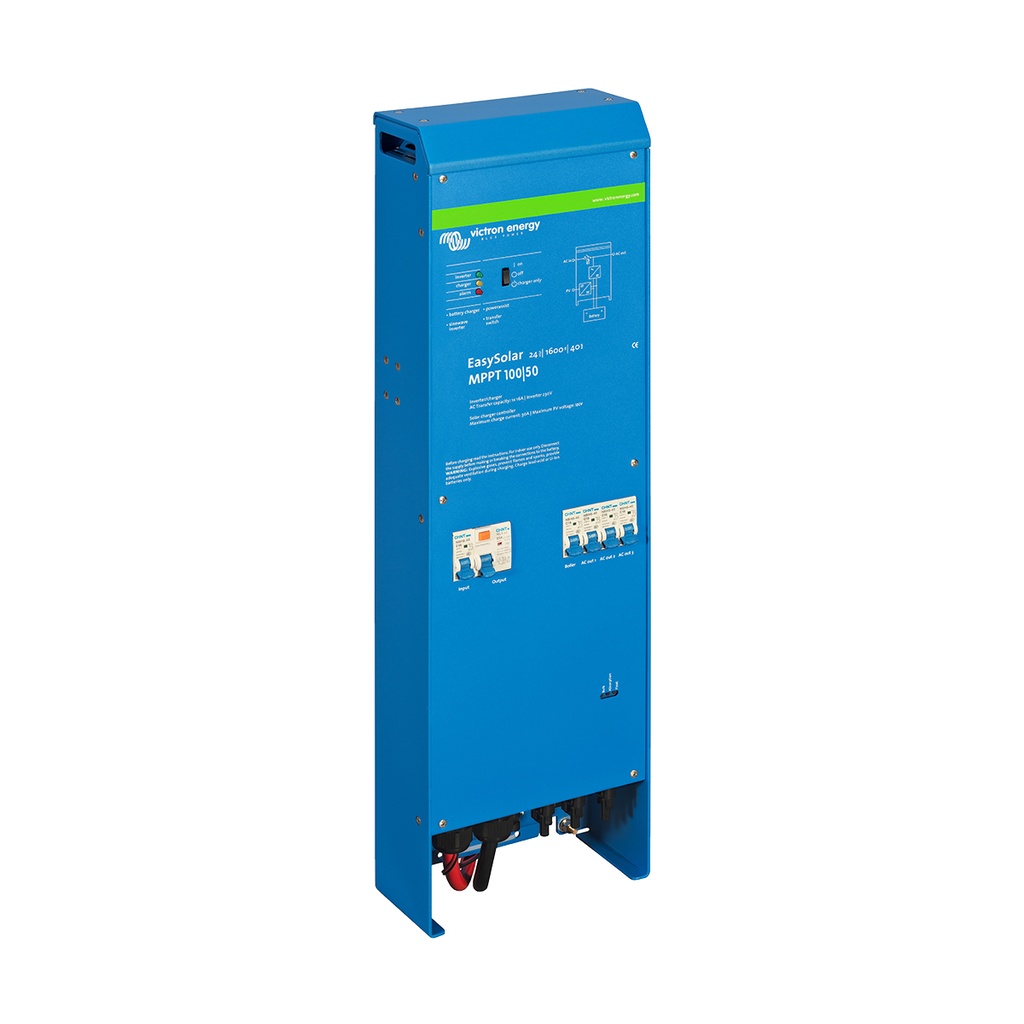

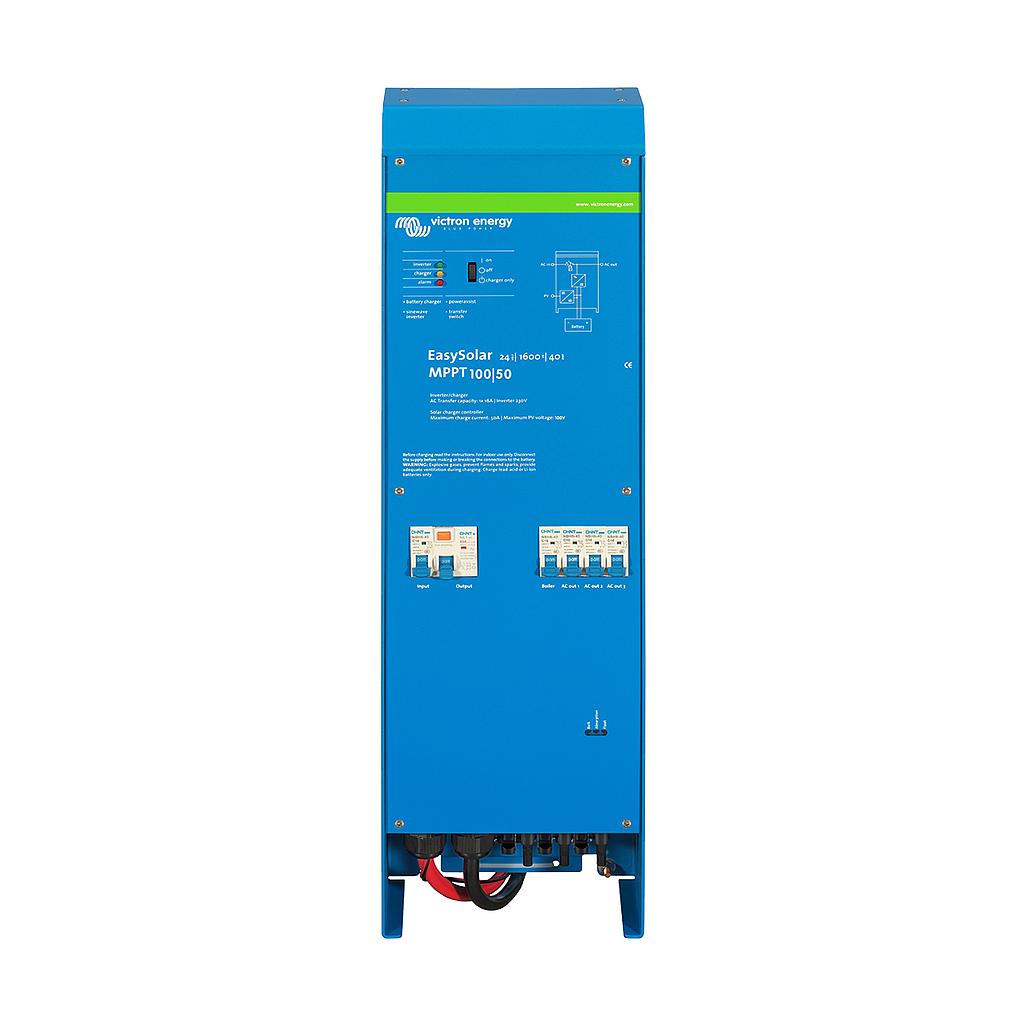

Victron EasySolar 12/1600/70-16 MPPT 100/50

Victron EasySolar 12/1600/70-16 MPPT 100/50

(0 review)

Power system with built-in inverter/charger and 50 A MPPT solar controller for 12 V systems

$ 1,636.46 - Inc GST 1636.46 AUD $ 1,636.46 Tax Included

Brand

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

Brand: Victron

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: INVERTER CHARGERS, Victron, Easysolar

Victron EasySolar 12/1600/70-16 MPPT 100/50

Features

All-in-one solar power solution
MPPT Solar Charge Controller
AC Distribution
An inverter/charger
Easy to install with minimum wiring

All-in-one solar power solution

The EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.

The solar charge controller: Blue Solar MPPT 100/50

Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.

The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40

The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.

AC distribution

The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.

PowerAssist

Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.

Unique solar application software

Several software programs (Assistants) are available to configure the system for various grid-interactive or stand-alone applications. Please see http://www.victronenergy.nl/support-and-downloads/software/

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Datasheet_Easysolar_24V_1600_40-16_MPPT_100-50.pdf

Download

Manual_Easysolar_48V_1600_40-16_MPPT_100-50.pdf

Download

Product Specifications

Inverter/Charger
Transfer switch	16A
Inverter
Input voltage range	9.5 - 17V
‘Heavy Duty’ output AC 0	16A
Output AC 1, 2, 3	Output Voltage: 230 VAC ± 2%, Frequency: 50Hz ± 0.1%
Cont. output power at 25°C	1600 VA / 1300 W
Cont. output power at 40°C	1200 W
Peak power	3000 W
Maximum efficiency	92%
Zero load power	8 W
Zero load power in search mode	2 W
Charger
AC input	Input voltage range: 187 - 265 VAC, Input frequency: 45 - 65Hz, Power factor: 1
Charge voltage 'absorption'	14.4 V
Charge voltage 'float'	13.8 V
Storage mode	13.2 V
Charge current house Battery	70 A
Charge current starter battery	4 (A)
Battery temperature sensor	Yes
Programmable relay	Yes
Protection	a - g
Solar Charge Controller
Model	MPPT 100/50
Maximum output current	50 A
Maximum PV power	700 W
Maximum PV open circuit voltage	100 V
Maximum efficiency	98%
Self-consumption	10 mA
Charge voltage 'absorption', default setting	14.4 V
Charge voltage 'float', default setting	13.8 V
Charge algorithm	Multi-stage adaptive
Temperature compensation	-16 mV/°C
Protection	a - g
Common Characteristics
Operating temperature range	-20 to +50°C (fan-assisted cooling)
Humidity (non-condensing)	Max 95%
Enclosure
Material & colour	Aluminium, Blue RAL 5012
Protection category	IP21

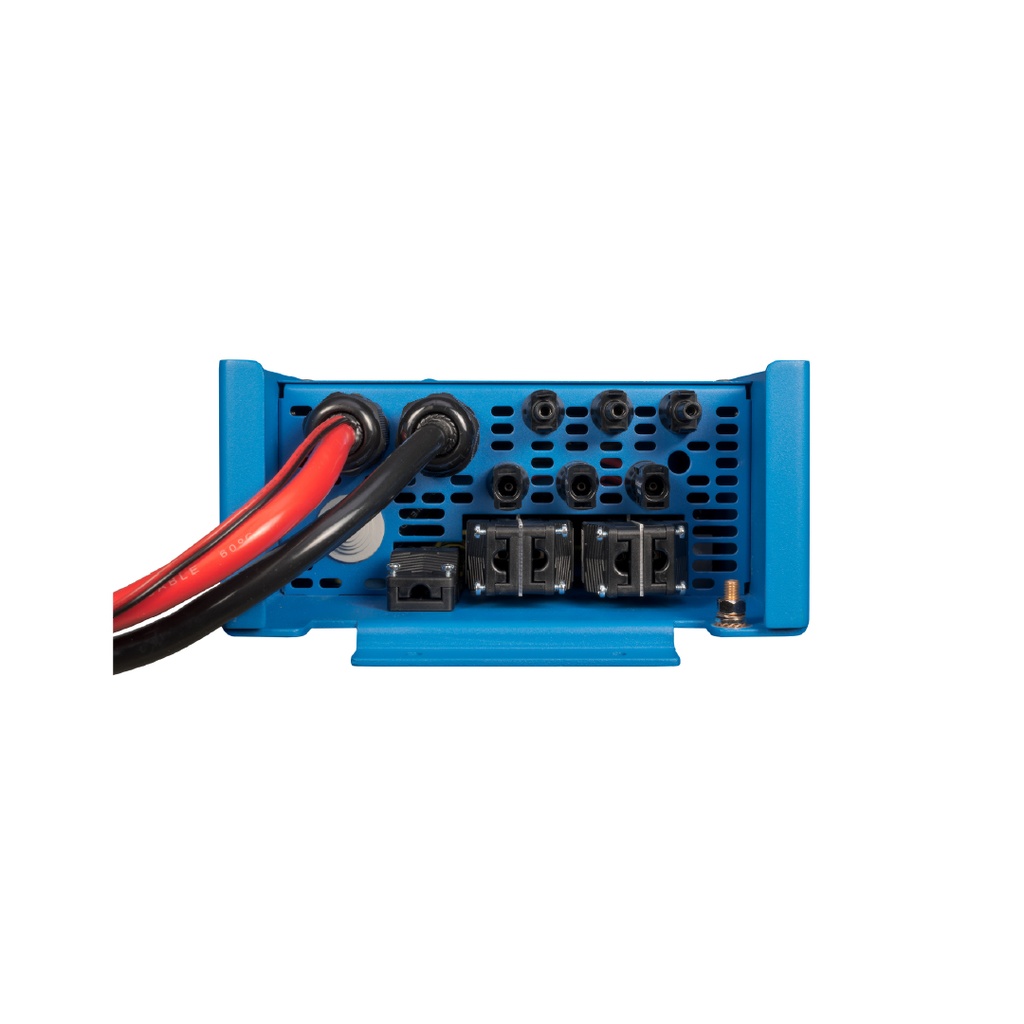

Battery connection	Battery Cables of 1.5 m
PV connection	Three Sets of MC4 (PV-ST01) PV Connectors
230 V AC-connection	G-ST18i connector
Weight	15 kg
Dimensions	745 x 214 x 110 mm
Standards
Safety	EN 60335-1, EN 60335-2-29, EN 62109
Emission / Immunity	EN 55014-1, EN 55014-2, EN 61000-3-3
Automotive directive	2004/104/EC
