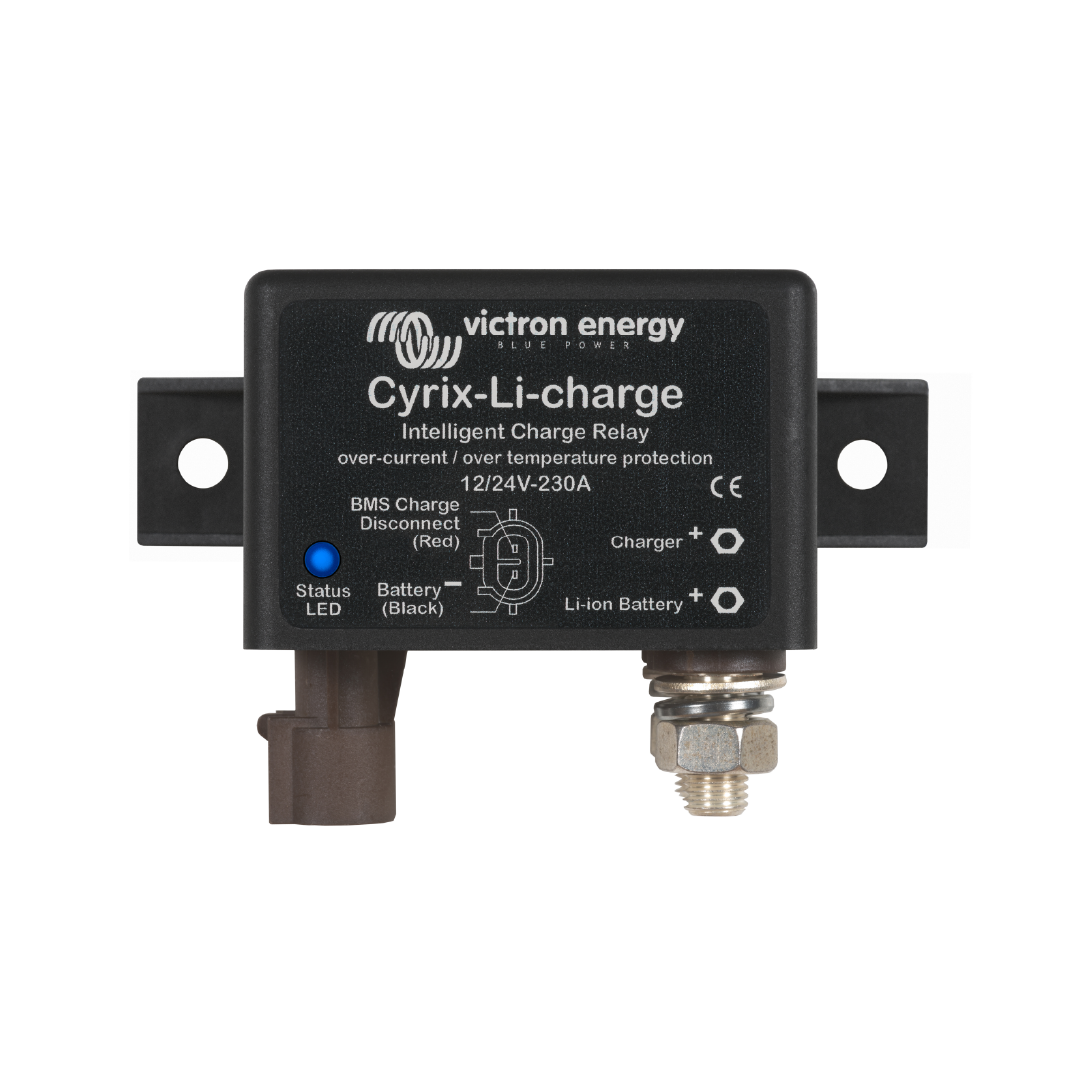

Victron Cyrix Li-Charge Relay 12/24V-230A

Victron Cyrix Li-Charge Relay 12/24V-230A

Features:

• Lithium-Ion Compatible
• Intelligent Charge Relay
• Connects Battery Charger with 3s Delay
• 230 Amp
• 12/24V Compatible

The LiFePO4 Battery: Preventing cell under voltage, over voltage and over temperature

The first line of protection is cell balancing. All Victron LiFePO4 batteries have integrated cell balancing. The second line of protection consists of:

• shut down of the load in case of imminent cell under voltage, and
• shut down or reduction of the charging current in case of imminent cell over voltage, high temperature (>50°C) or low temperature (<0°C).

The VE.Bus BMS is the core of the second protection line. However, not all loads or chargers can be controlled directly by the VE.Bus BMS. In order to shut down such loads or chargers several VE.Bus BMS controllable Cyrix switches are available.

Cyrix-Li-Charge:

The Cyrix-Li-Charge will connect a battery charger with 3 seconds delay:

• if the Charge Disconnect output of the VE.Bus BMS is high, and
• if it senses 13.7V (resp. 27.4V or 54.8V) or more on its battery charger connection terminal, and
• if it senses 2V or more on its battery terminal (the Cyrix will remain open, if not connected to the battery).

The Cyrix-Li-Charge will disengage immediately whenever its control input becomes free-floating, signalling cell over voltage or cell over temperature. In general, a cell over voltage alarm will reset shortly after charging has been stopped. The Cyrix will then reconnect the charger after a delay of 3 seconds. After two attempts to reengage with 3 seconds delay, the delay increases to 10 minutes. Whenever the battery voltage is less than 13.5V (resp. 27V or 54V), the Cyrix will disengage with a delay of 1 hour.

In case of zero discharge current, or a small discharge current, the Cyrix will not disengage shortly after the charger has been switched off and/or disconnected, because the battery voltage will remain higher than 13.5V.

If, after the Cyrix has disengaged, the output of the battery charger immediately increases to 13.7V or more, the Cyrix will re-engage, with 3 seconds delay.

Applications:

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins
