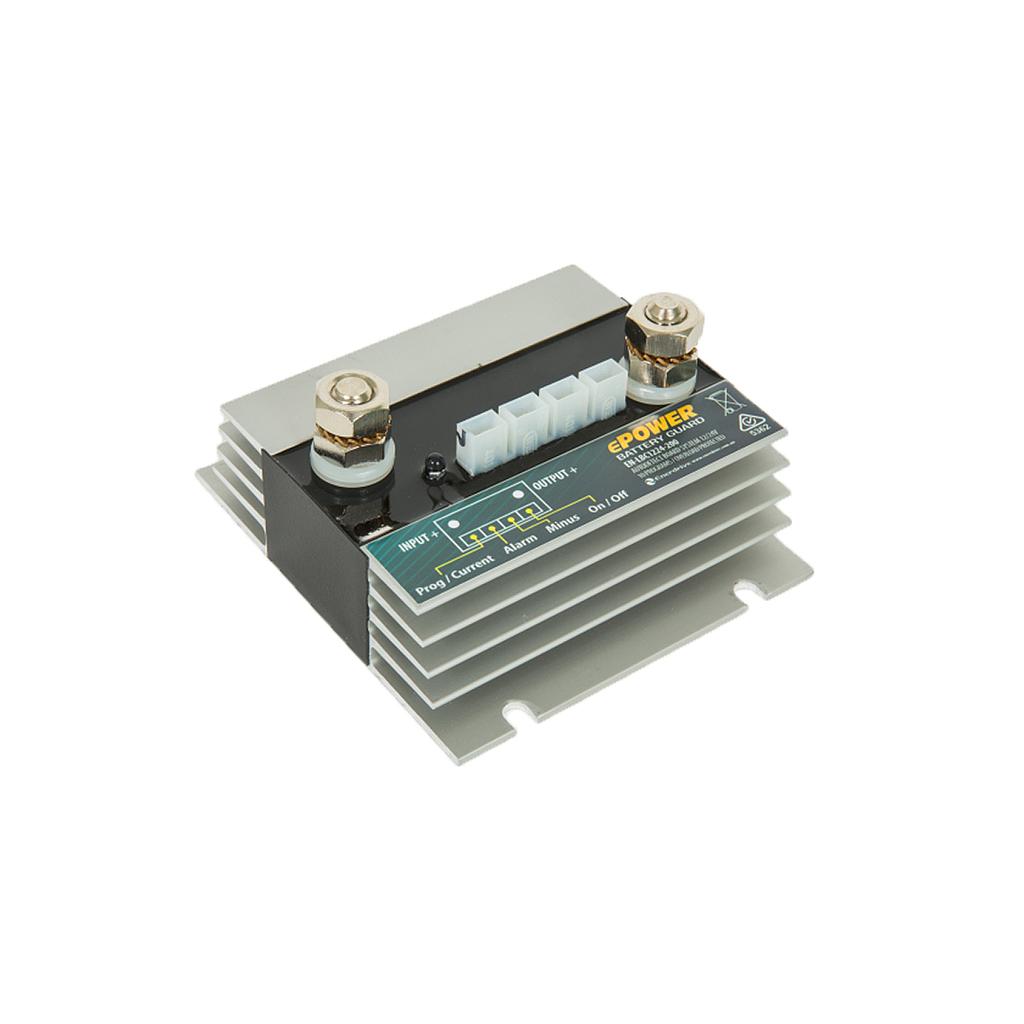

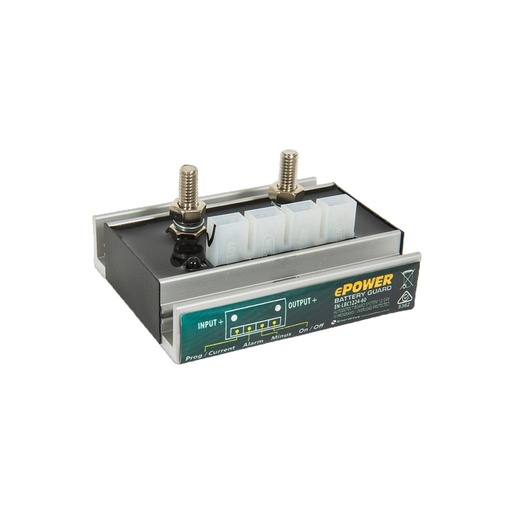

Enerdrive Smart Battery Guard 12/24V 200A

Enerdrive Smart Battery Guard 12/24V 200A

Features:
• Low Voltage Battery Disconnect
• Suitable for 12/24V Systems
• IP-66 Rated with a 5-year Warranty

$ 315.00 - Inc GST 315.0 in stock AUD $ 315.00

$ 315.00

Brand

This combination does not exist.

ADD TO CART

Brand: Enerdrive

ENERDRIVE

SKU: ANL050

Category: Cable & Accessories Battery Isolators

Enerdrive low voltage disconnect:

The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode). Microprocessor Controlled. The ePOWER LBC is microprocessor controlled with 10 different programs that engage or disengage the voltage load over several different voltage paramaters.

Features:

- Overvoltage Protection

- Ignition proof (no relay, no spark)

- Delayed alarm output

- Delayed load disconnect

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Enerdrive:

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.

Specifications

Brand

Enerdrive

Datasheet_EN-LBC1224-40-60-200-Installation.pdf

Download

Enerdrive-Warranty-Policy-2020.pdf

Download

Product Specification

Cable diameter	50mm2
Automatic detection of 12V or 24V system	8 - 20V → 12V mode 8 - 20V → 12V mode
Adjustable under voltage programs	10
Over voltage disconnect voltage	12V mode → 16V 24V mode → 32V
Maximum load / shutdown	approx. 200A - 210A
Surge	480A
Voltage drop	0.125V @ 200A
Current consumption	Output active: 4mA Output inactive: 2mA
Shutdown at overload / short circuit	After 5 seconds. (Switch on again 1 minute)
Voltage accuracy	2%
Current accuracy	20%
IP-code	IP66
Dimensions (H x W x D)	61 x 112 x 120mm
Weight	730g
