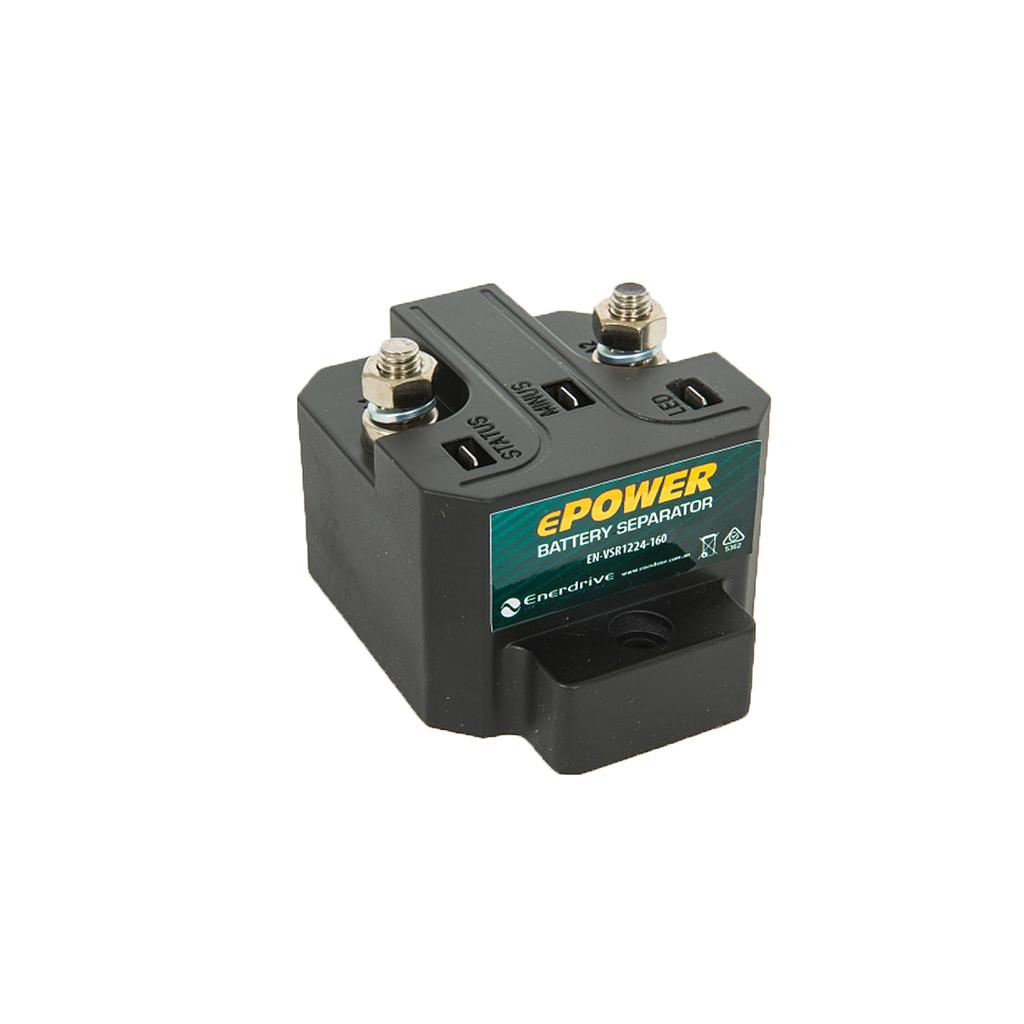

Enerdrive Dual VSR 12/24V 160A

Features:
• Dual Battery Isolator with Voltage Sensing Relay
• VSR Engages to Allow Dual Battery Charging
• 5-year Warranty

$ 153.90 - Inc GST 153.9 in stock AUD $ 153.90

$ 153.90

Brand

This combination does not exist.

ADD TO CART

Brand: Enerdrive

ENERDRIVE

SKU: ANL050

Category: Cable & Accessories Battery Isolators

Enerdrive voltage sensitive relay:

When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.

Features:

- No voltage loss

- Intelligent battery monitoring to prevent unwanted switching

- Starter battery priority

- Bipolar switching

- Voltage dependent switching

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Enerdrive:

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.

Specifications

Brand

Enerdrive

Datasheet_EN-VSR1224-160-Installation1-1.pdf

Download

Enerdrive-Warranty-Policy-2020.pdf

Download

Product Specification

Supply voltage	Auto detect 12 / 24 V
Connecting bolts for batteries	M8
Other terminals	6.3 mm spade terminals
Cable recommendations	Minimum 50 mm2 copper wire
Continuous current	160 A
Peak current	480 A / 250 msec
Switch-in voltage for 12V	13.2 V
Switch-in voltage for 24V	26.4 V
Switch-in delay	5 sec
Switch-out delay	60 sec
Fast switch-off at	11.8 V
Fast switch-off delay	4 sec
Switch-off for overvoltage	16 V for 12 V 32 V for 24 V
Complete relay	Water and gas-tight
Current us, relay passive	1.8 mA for 12 V 2.0 mA for 24 V
Current use, relay active	340 mA for 12 V 170 mA for 24 V
Switch in current use	700 mA max 100 msec
Weight	470 g
Dimensions	(L) 108 mm x (B) 72 mm x (H) 58 mm
