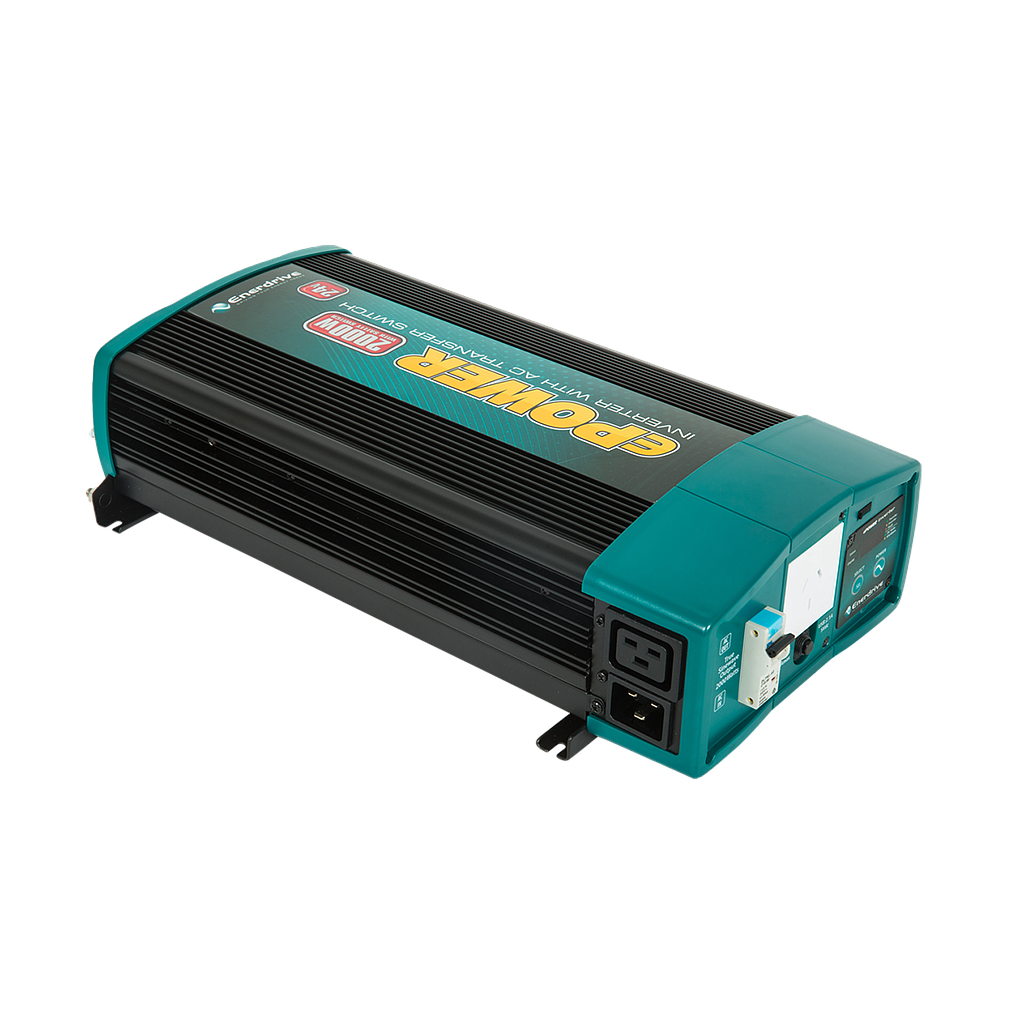

Enerdrive ePOWER 24V 2000W Inverter w/RCD & ATS

ENERDRIVE 24V 2000W W/RCD & AC TFER SWITCH

Enerdrive ePOWER 24V 2000W Inverter w/RCD & ATS

Features:
• 2000W Pure Sinewave Inverter
• Built-in RCD & Automatic Transfer Switch
• 5-year Warranty

$ 1,592.01 - Inc GST 1592.01 in stock AUD $ 1,516.20

$ 1,516.20

Brand

This combination does not exist.

ADD TO CART

Brand: Enerdrive

ENERDRIVE

SKU: ANL050

Category: Inverters RV Inverters

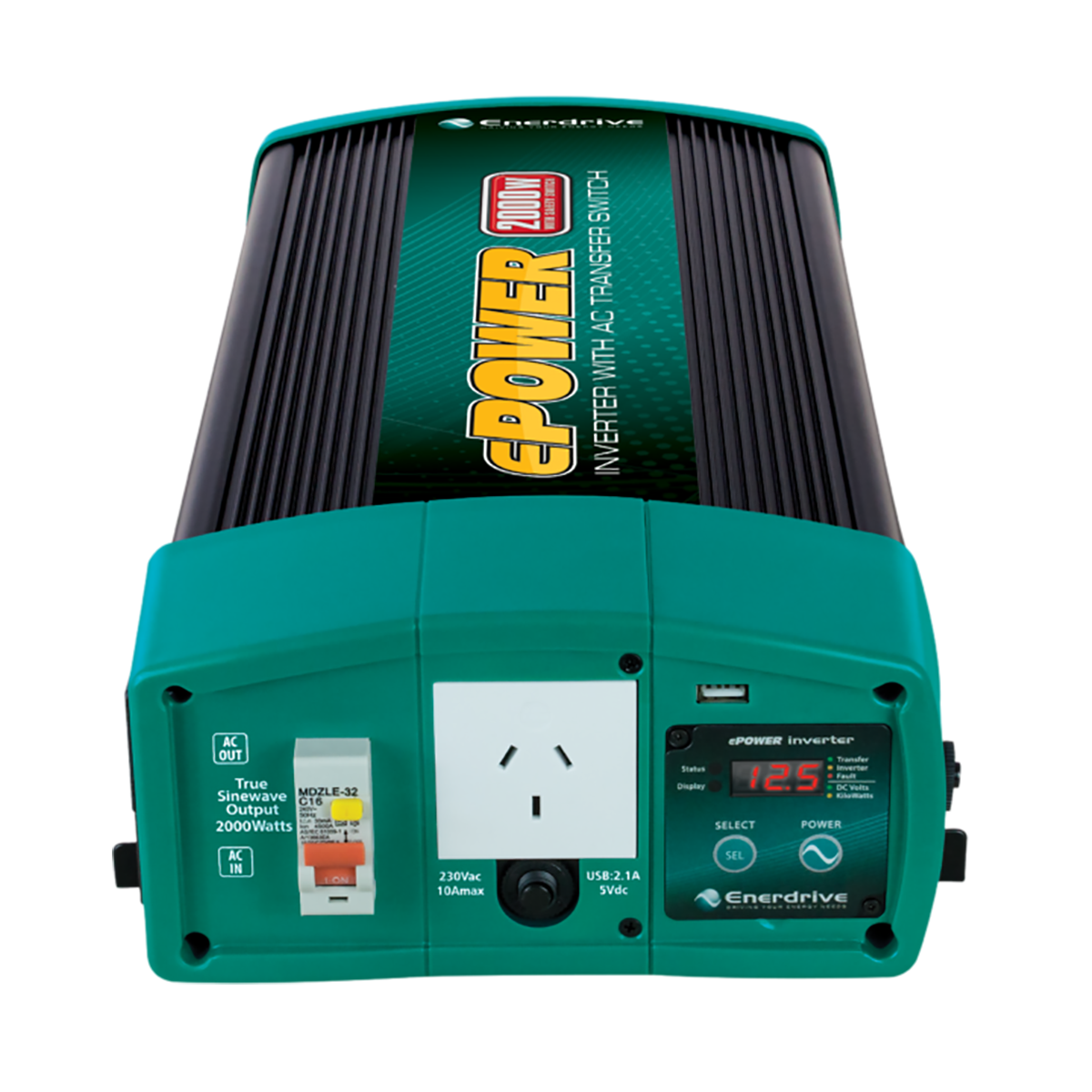

ePOWER 24V 2000W True Sine Wave Inverter with AC Transfer Switch & Safety Switch:

Enerdrive has state of the art, easy to use AC power inverters designed to be efficient and reliable in harsh Australian conditions. Our true sine wave inverter range offers reliable service for providing AC power and 5V USB* power for your motor home, boat, caravan, 4WD or commercial vehicle. Using the latest power conversion technology, Enerdrive ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.

These inverters are the most sophisticated inverters on the market today. They are designed to precisely replicate and even improve on the quality of electricity supplied by utility companies. There is generally no compatibility issues with any appliance run from a pure sine wave power inverter.

The ePOWER 2000W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply. This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board. Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second. The ePOWER 2000W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2000W of power for operation. All Enerdrive ePOWER Inverters are covered by our extensive 2-Year warranty.

ePOWER Inverter Features:

- Seamless 16A AC Internal Transfer Switch

- AC RCD/Safety Switch with test button

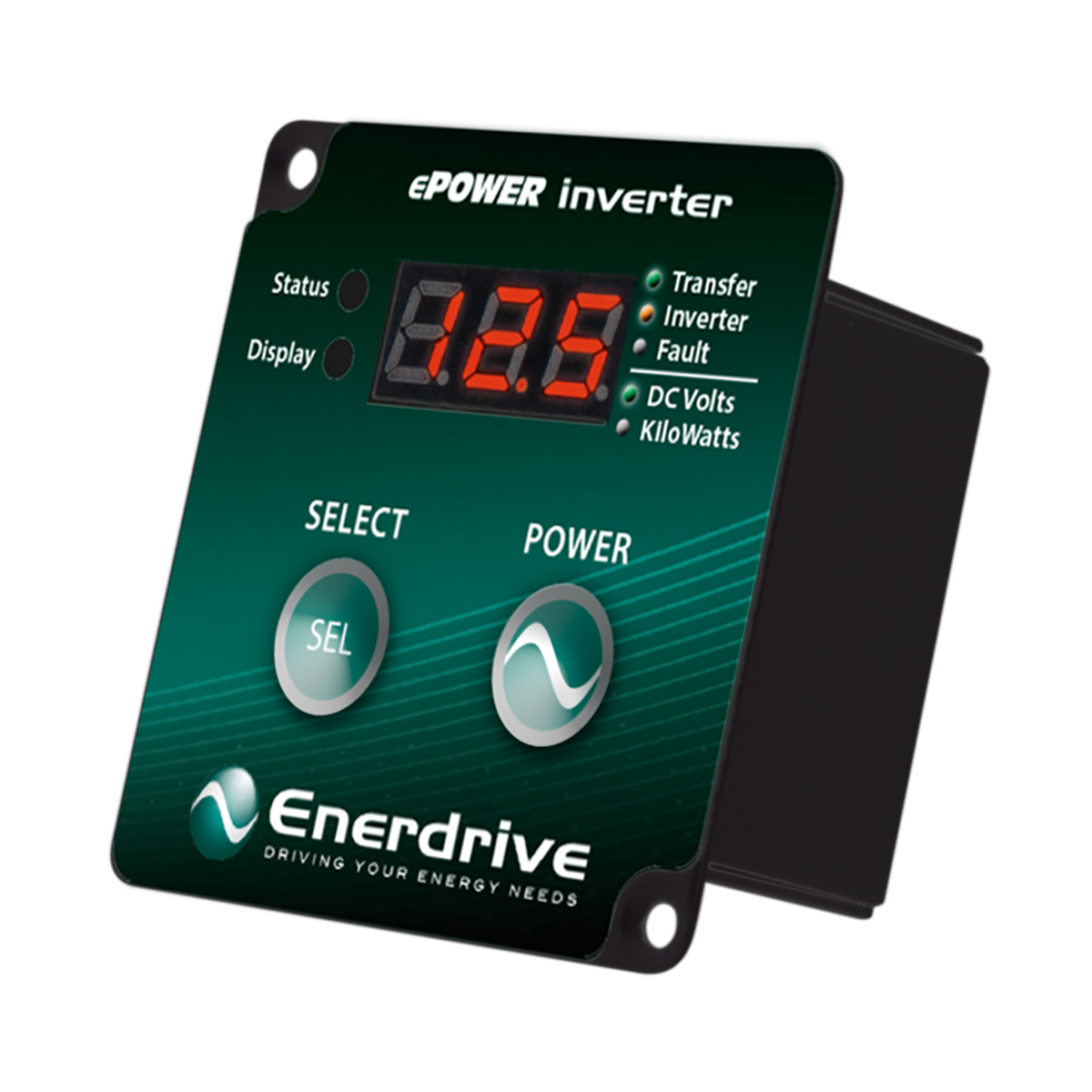

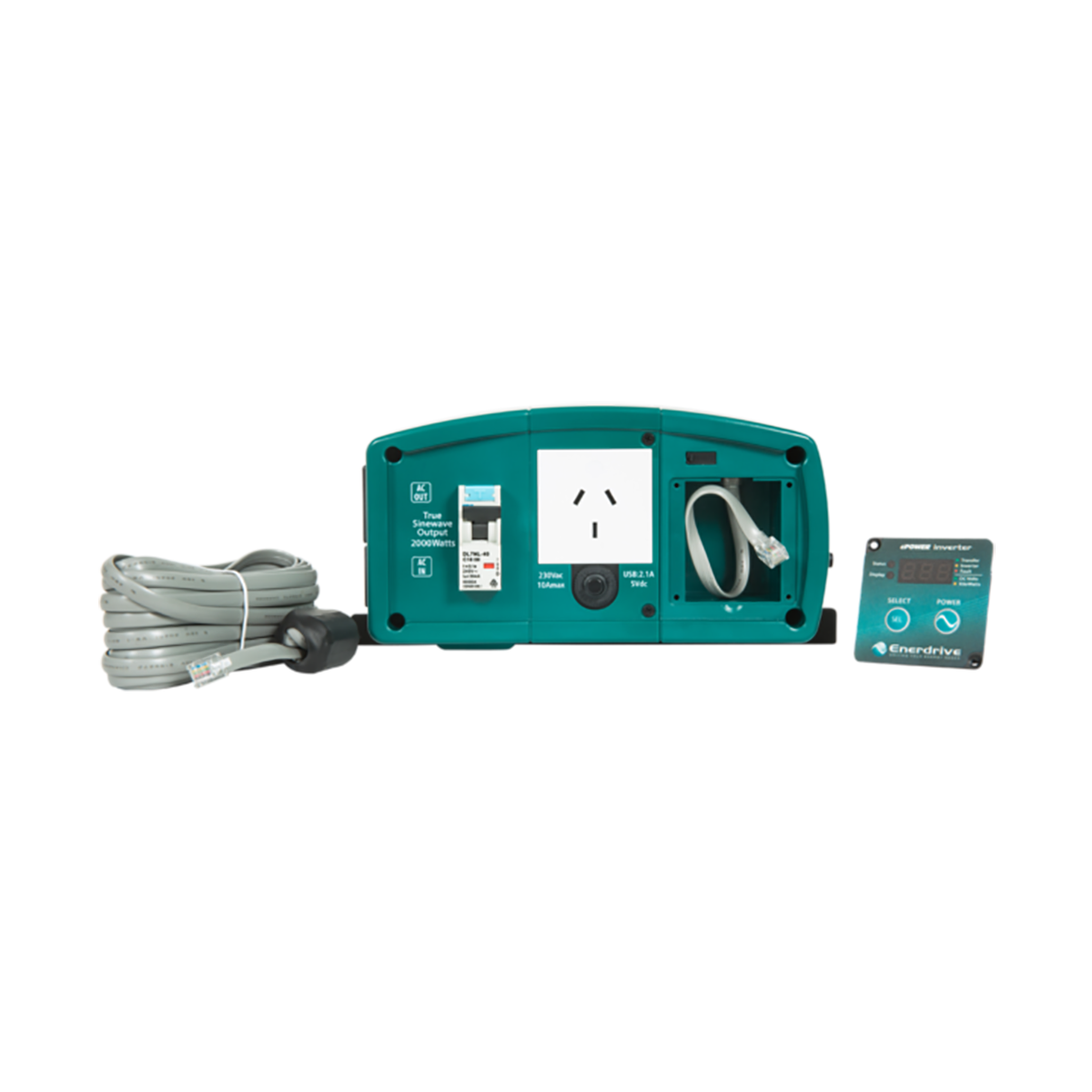

- Removable LED Remote Control Display Panel

- Regulated Pure Sine Wave Output

- Silent Operation

- Compact Size for Easy Installation

- USB Port for charging USB devices

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Enerdrive:

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.

Specifications

Brand

Enerdrive

Manual_and_Datasheet_Enerdrive-Inverter-X-2022_Rev-1.3_WEB.pdf

Download

Product Specification

AC Output Power	2000W
AC Output Current	8.7A
AC Output Voltage	230 VAC / 50 Hz
AC Output Waveform	Sinewave (<3% THD)
Nominal DC Input Voltage	12.5 VDC
No Load battery draw	< 1.5 ADC
DC Input Voltage operating range	21.0 – 31.0 VDC
Under Voltage Alarm	22.0 / 24.2 VDC
Under Voltage Alarm Recovery	22.6 / 24.6 VDC
Under Voltage Shutdown	21.0 / 23.6 VDC
Under Voltage Shutdown Recovery	24.0 / 25.2 VDC
Over Voltage Shutdown	31.0 VDC
USB Port	5V, 750 mA
Transfer Time	< 30 ms
Transfer Relay Rating	16A (resistive load)
AC Input socket IEC-C20	16A max
AC Output socket IEC-C19	16A max
AC Output Front GPO	10A max
Conformance	All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
EMI / EMC	CE EMC: EN/IEC 62040-2 category C1
Agency Markings	RCM , CE
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Relative Humidity	5 - 90% non-condensing
Operating Altitude	Up to 3000 meters above sea level
Weight	5.9 kg
Dimensions (W x L x H)	435x230x115
Warranty	5 Years

Product Specification

AC Output Power	2000W
AC Output Current	8.7A
AC Output Voltage	230 VAC / 50 Hz
AC Output Waveform	Sinewave (<3% THD)
Nominal DC Input Voltage	12.5 VDC
No Load battery draw	< 1.5 ADC
DC Input Voltage operating range	21.0 – 31.0 VDC
Under Voltage Alarm	22.0 / 24.2 VDC
Under Voltage Alarm Recovery	22.6 / 24.6 VDC
Under Voltage Shutdown	21.0 / 23.6 VDC
Under Voltage Shutdown Recovery	24.0 / 25.2 VDC
Over Voltage Shutdown	31.0 VDC
USB Port	5V, 750 mA
Transfer Time	< 30 ms
Transfer Relay Rating	16A (resistive load)
AC Input socket IEC-C20	16A max
AC Output socket IEC-C19	16A max
AC Output Front GPO	10A max
Conformance	All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
EMI / EMC	CE EMC: EN/IEC 62040-2 category C1
Agency Markings	RCM , CE
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Relative Humidity	5 - 90% non-condensing
Operating Altitude	Up to 3000 meters above sea level
Weight	5.9 kg
Dimensions (W x L x H)	435x230x115
Warranty	5 Years

Alternative Products

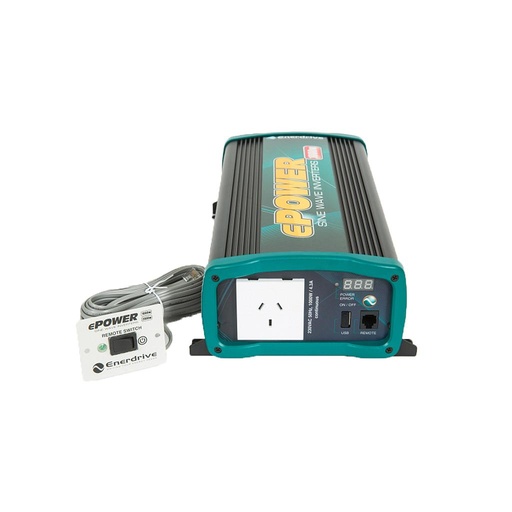

Enerdrive ePOWER 12V 1000W PSW Inverter

$ 576.45 $ 549.00

$ 1,516.20

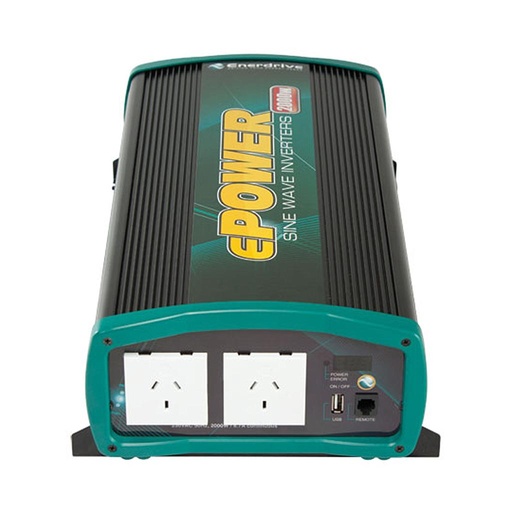

Enerdrive ePOWER 12V 2000W PSW Inverter

$ 994.98 $ 947.60

$ 1,516.20

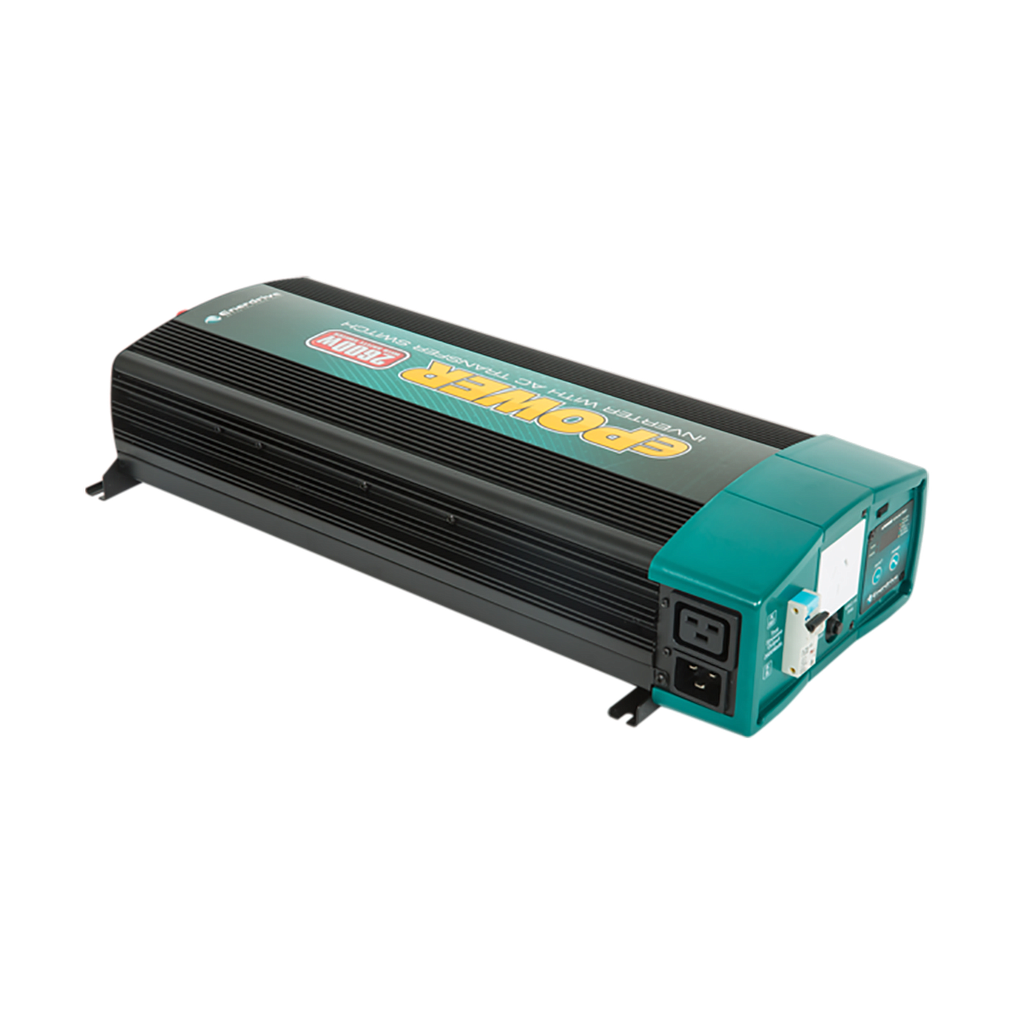

Enerdrive ePOWER 12V 2600W Inverter w/RCD & ATS

$ 1,783.95 $ 1,699.00

$ 1,516.20

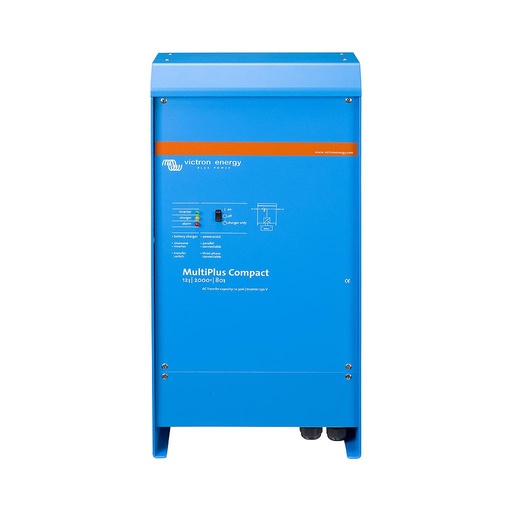

Victron MultiPlus Compact 12/2000/80-30
