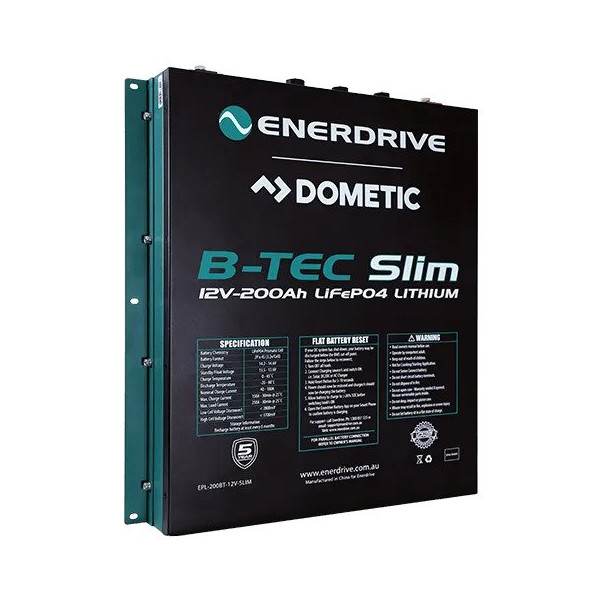

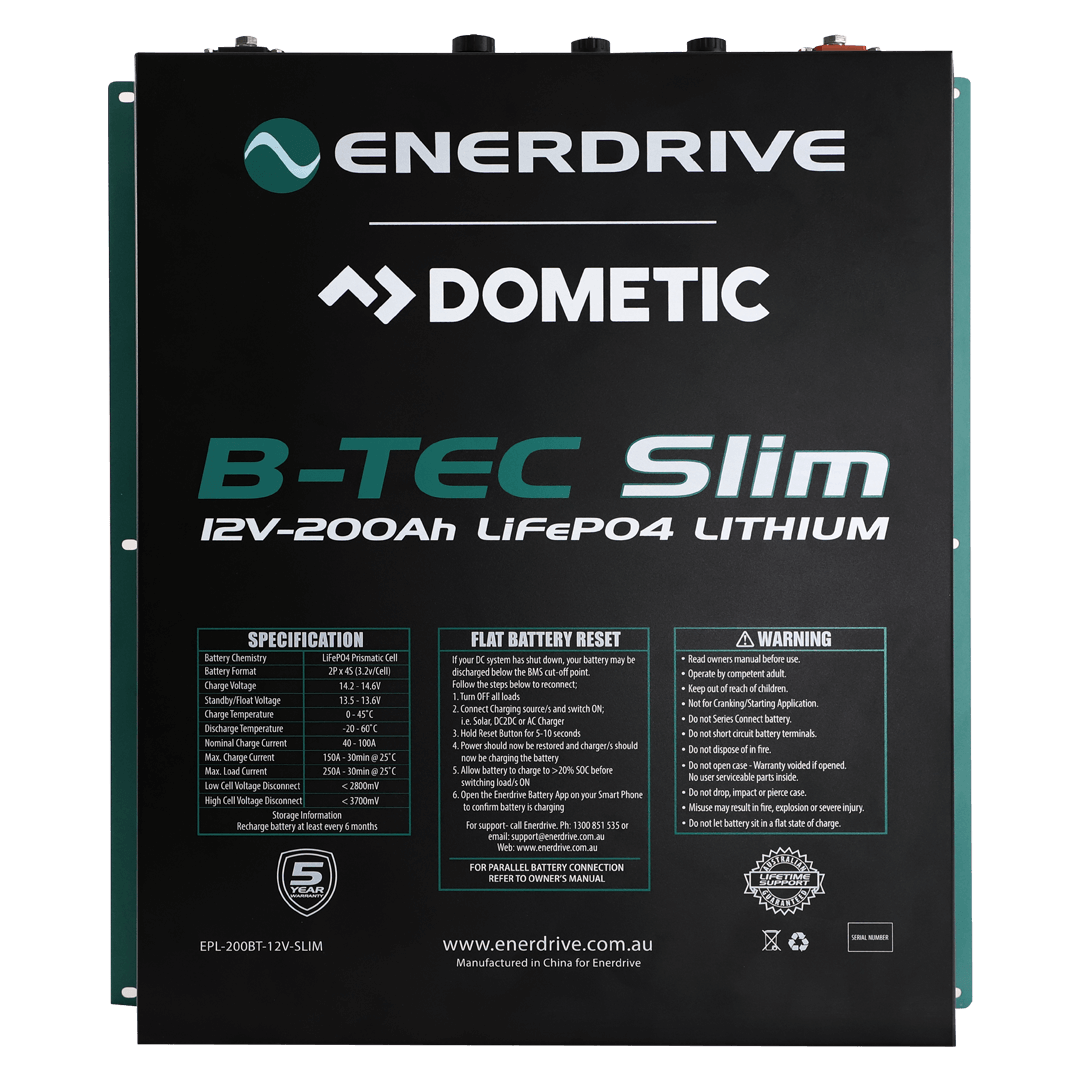

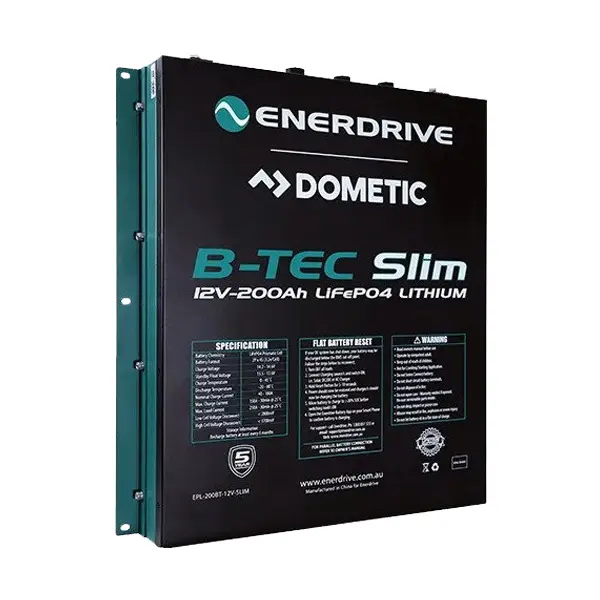

Enerdrive B-TEC 12V 200Ah LiFePO4 Slim Battery in Metal Case

Enerdrive B-TEC 12V 200Ah LiFePO4 Slim Battery in Metal Case

Features:

• 12V 200Ah Slimline Lithium Battery
• >2500 Charge Cycles @ 80% DOD
• Bluetooth Monitoring via Phone App
• Built-in Reset Button making re-starting a flat battery a breeze
• 530 x 83 x 600mm

The new 300Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small watercraft, low-power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

The B-TEC Slimline battery is able to be paralleled to a second B-TEC 12V 300Ah Slimline Lithium Battery. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS.

The 300Ah Slimline battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery. The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

​

More B-TEC Slim Features:

• Extremely compact size 530L x 83D x 600H mm

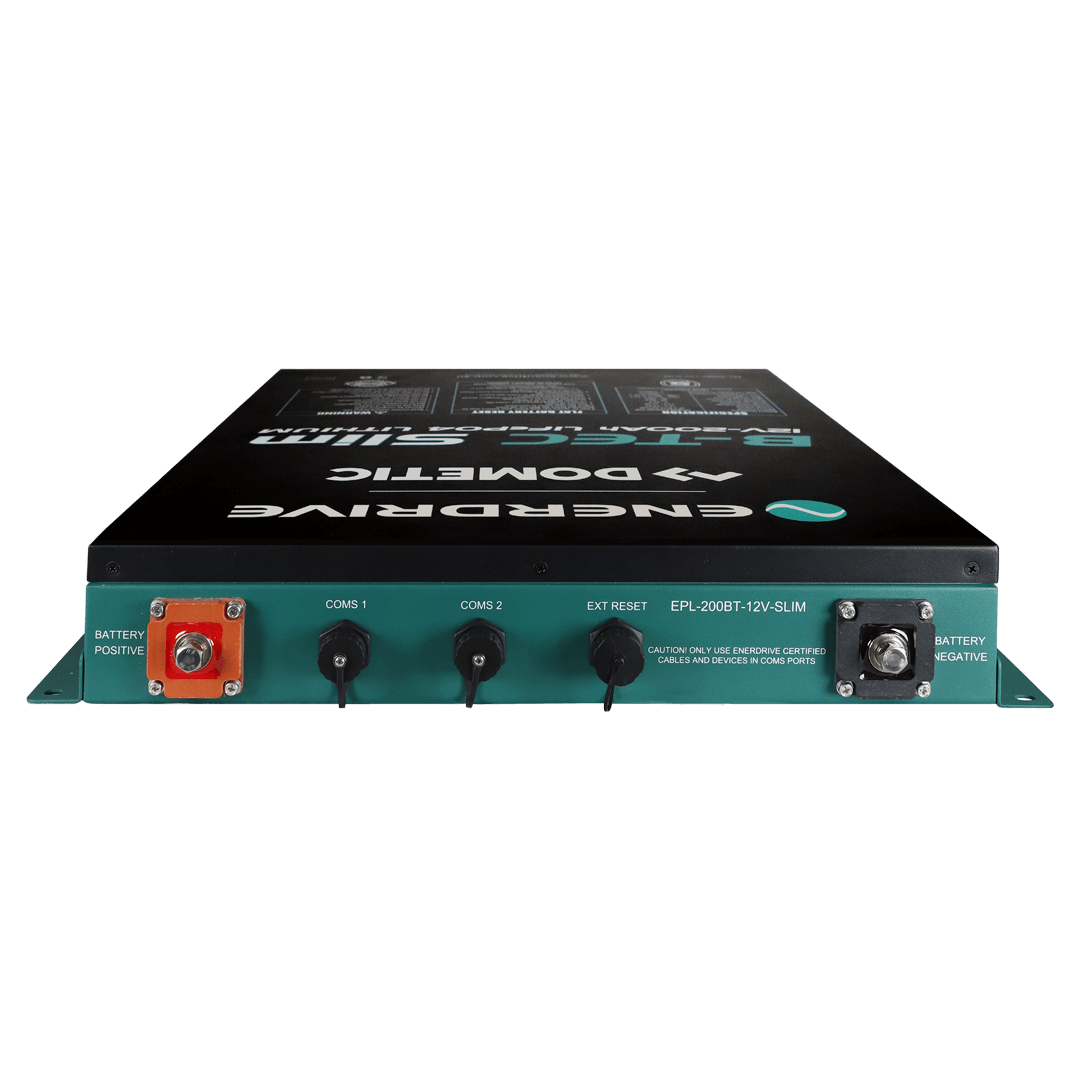

• All connection points for the battery are at one end including all Comms Ports and Reset Port.
• Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.
• Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
• Water resistant metal casing meeting IP52 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.

​

Smart Phone Monitoring System

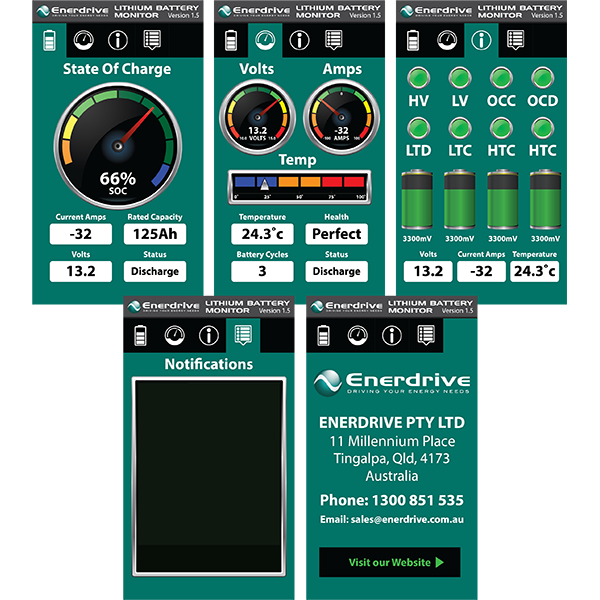

The Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information:

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information
• Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from overcharge, over discharge, over-temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery. Please note that a fully discharged battery (BMS is off) requires charging within 14 days to avoid cell damage.

​

Please note that B-TEC batteries must not be installed:

• In vehicle engine bays or in high-heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use only.
