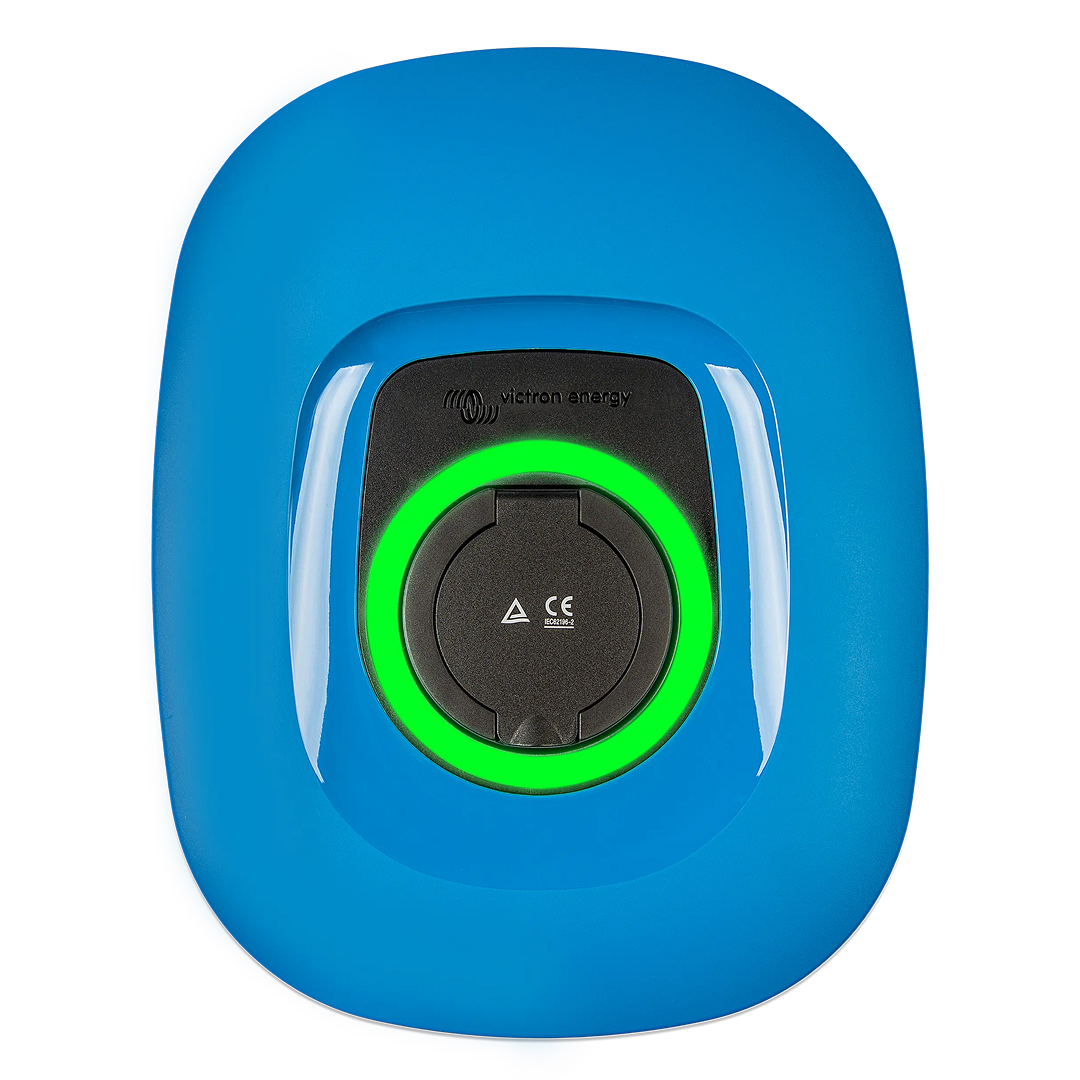

Victron EV Charging Station NS - Blue

(0 reviews)

22kW three-phase / 7.3kW single-phase EV charger with Victron solar integration

$ 1,428.90 - Inc GST 1428.9 in stock AUD $ 1,428.90 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: EV Chargers, EV Chargers

SKU: EVC200300200

Victron EV Charging Station NS - Blue

Features

Up to 22kW AC three-phase or 7.3kW single-phase EV charging
Adjustable charge current 6-32A per phase
Set up and monitor with VictronConnect (Bluetooth) or the built-in web interface; WiFi
Solar mode: can charge from excess solar in a Victron system
IEC 62196 Type 2 connector
Modern NS design with a blue front; IP44

Where to use it

Home and business EV charging, especially where a Victron inverter and solar system can feed the car with surplus solar.

Must be installed by a licensed electrician on a dedicated circuit with an external circuit breaker (40A recommended).

Dimensions

Dimensions (h x w x d)	372 x 292 x 122 mm
Weight	3 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet-EV Charging station NS - Blue.pdf

Download

manual-EV Charging station NS - Blue.pdf

Download

Product Specifications

EV Charging Station NS	EVC200300200
Input voltage range (V AC)	170 – 265 VAC
Rated charge current	32 A / phase
Nominal power	22 kW
Current output range	6 – 32 A
WiFi standards	802.11 b/g/n (2.4 Ghz only)
Self-consumption	15 mA@230 V
Configurable Max. Current	6 - 32 A
Configurable Min. Current	6 - 32 A
Connector type	IEC 62196 Type 2
GENERAL
Means to Disconnect	External circuit breaker (40 A recommended)
Configurable price/kWh calculator(Eur)	Default setting: 0.13 (adjustable)
Control type	Web page, GX Device over Modbus TCP, VictronConnect via Bluetooth
Light Ring	55 light configurable light effects available
Protection	External RCD is required
Operating temperature	-25 °C to +50 °C
Storage temperature	-40 °C to +80 °C
Humidity	95 %, non-condensing
Data communication	Modbus TCP over WiFi, Bluetooth
ENCLOSURE
Enclosure colour	Light Blue (RAL 5012), Traffic Black (RAL 9017), Traffic White (RAL 9016
Power terminals	6-10 mm² / AWG 10-8
Protection category	IP44
Ventilation	not required
Weight	3 kg
Dimensions (h x w x d)	372 x 292 x 122mm
STANDARDS
Safety	IEC 61851-1, IEC 61851-22 Detection for Relay Contact welded Detection for missing protective conductor Detection for missing Ground Detection for shorted CP
