Enerdrive Voyager System (Left) 3000W/100A Inverter Charger 40DC Inc. Simarine SCQ50

Enerdrive Voyager System (Left) 3000W/100A Inverter Charger 40DC Inc. Simarine SCQ50

Features:

• 3000W/100A Inverter Charger Unit
• Charge via a vehicle input, solar, or mains power
• Suitable for appliances that use up to 3000W of power
• Easily monitor the system with the in-built Simarine Battery Monitor
• Intelligent face panel design
• Left Orientation
• 830 x 700 x 155mm

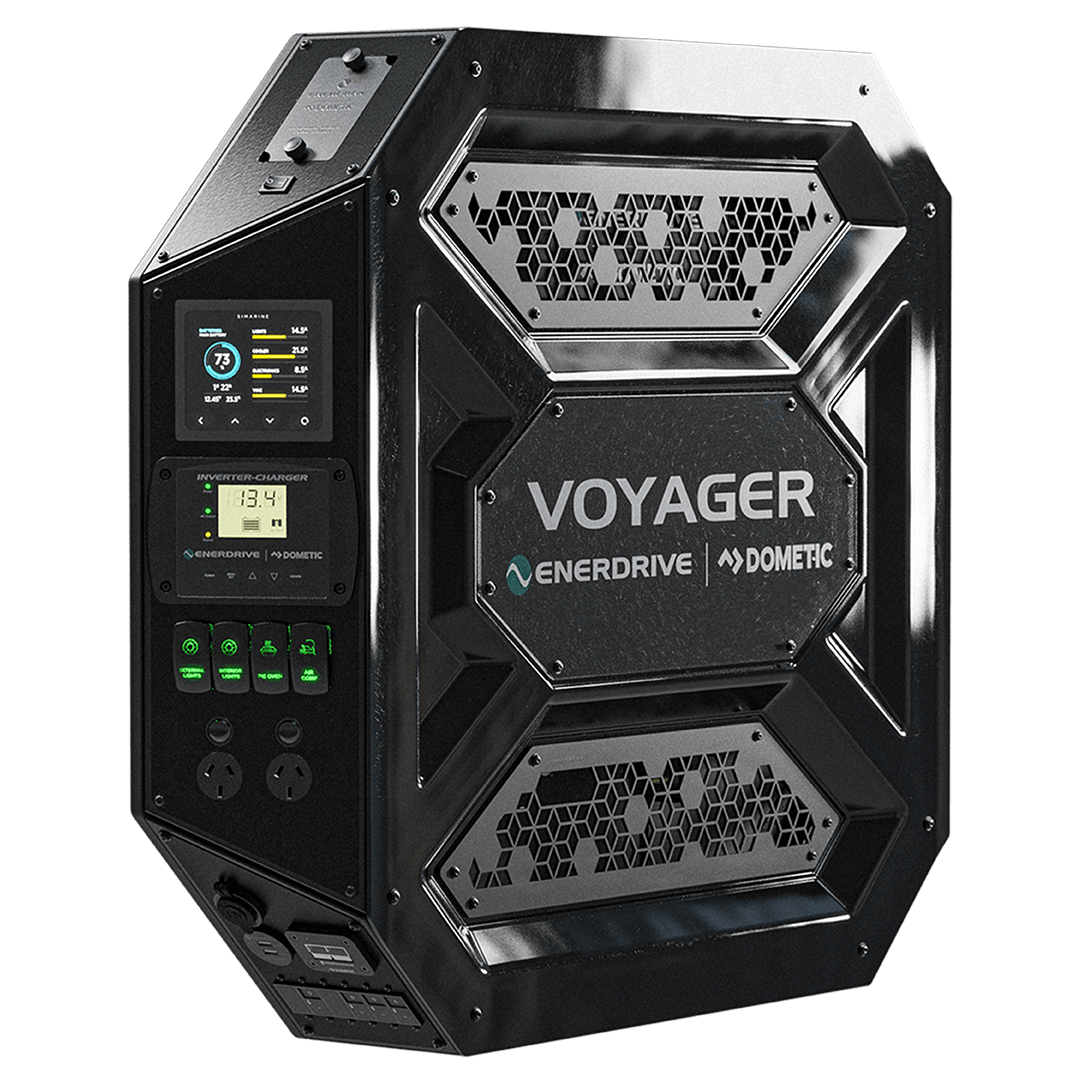

Voyager Power System – the most powerful canopy system Enerdrive have ever built.

Through extensive research on new manufacturing methods and hundreds of hours of physical prototype testing, Enerdrive has developed an all new canopy system. Featuring their new 3000W/100A Inverter-Charger unit, paired with their B-TEC range of batteries, the Voyager leads the charge in delivering truly next-generation off-grid power capabilities.

Complete Accessibility

The Voyager has been designed and built to give you access to every part of the build you may need without the hassle of finding tools to remove bulky covers or shifting everything within the canopy to access the side of your system.

All of your loads connect via the custom flush mounted 1 in, 12 out fuse panel at the top of the system, main system breakers are located at the bottom of the system and a subtle finger hole in the bottom grill gives you access to the Combi’s RCD reset switch.

Designed to Maximise Your Space

The Voyager has been designed to make use of all available space in your canopy build. The octagonal shape allows you to push the Voyager closer to the door return on your canopy while still allowing access to the fuse panel when needed. The most prominent design feature of Voyager is the angled display panel. This panel allows you to read and access your instruments with greater ease no matter the orientation or mounting location.

Hand Built Locally by the Experts in Mobile Power Solutions

The Voyager is completely built and wired in-house at Enerdrive’s Brisbane facility using only the best components to guarantee that every system meets our incredibly high standards. ENERDRIVE | DOMETIC Accessories Range components provide the ultimate in accessibility, with every system coming as standard with its own ‘1 in/12 out’ fuse block, an individually monitored Anderson Plug outlet and 2 x 12V socket outlets.

​

More Voyager Features:

• Charge via a vehicle input, Solar or Mains Power:
• • Vehicle: 12 or 24v 40A+ Output
  • Solar (DC2DC): up to 45V/800W
  • Mains 240V: 100A Charging
• Inverter suitable for appliances that use up to 3000W of power for operation, such as induction cooktops, microwaves, coffee machines and more
• Monitor battery, loads, charge input, and water/fuel tanks via the Simarine battery monitor or your mobile devices
• Custom rocker switches available
• Intelligent face panel design gives you access to:
• • 4 x Customisable laser-etched rocker switches
  • 1 x 12v DC Cig Socket
  • 1 x Dual USB-A + USB-C (Max. Output Power 100W) sockets come standard.
  • 1 x Anderson plug socket
  • 1 x Twin RCD-protected Power Point
  • 1 x (Optional) Inclinometer
  • 8 x ATO (Blade fuses) for easy sizing of your circuit protection

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More About Enerdrive

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.
