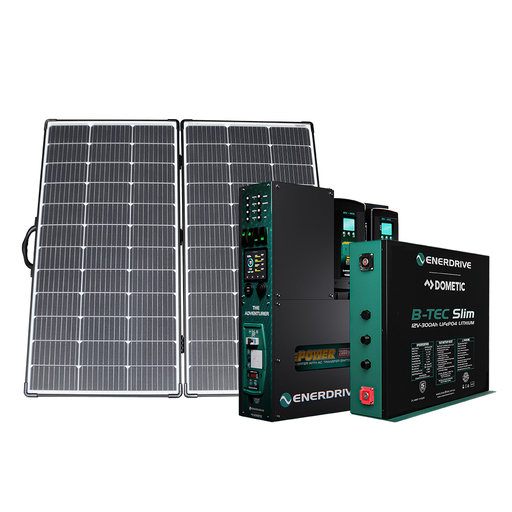

Enerdrive Voyager System (Top) 3000W Inc. 300Ah Slim B-TEC + Alvolta 220W Portable Solar Kit

Enerdrive Voyager System (Top) 3000W Inc. 300Ah Slim B-TEC + Alvolta 220W Portable Solar Kit

(0 reviews)

Features:
• 3000W/100A Inverter Charger Unit
• 12V 300Ah Slimline Lithium Battery
• 220W Ultra Slim Portable Solarcase

$ 11,997.00 - Inc GST 11997.0 AUD $ 11,997.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

ENERDRIVE

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: BUNDLES, Enerdrive Bundles, Alvolta Bundles

SKU: K-V3T01-02-ALV-220SP

Enerdrive Voyager System (Top) 3000W Inc. 300Ah Slim B-TEC + Alvolta 220W Portable Solar Kit

Components:

Featuring the Enerdrive Voyager Power System, Enerdrive 300Ah B-TEC Slim Lithium Battery and Alvolta 220W Ultra Portable Solarcase, this kit is the ultimate off-grid portable power solution. Designed by industry-leading manufacturers and cultivated by our team of experts, this portable off-grid power kit offers a complete solution for any camper, caravan or 4WD application.

Enerdrive’s Voyager Power System is the foundation for this kit, offering an all-encompassing power solution. Designed to effortlessly fit into your setup, the Voyager features a sleek, octagonal design with access to all the important components in the front-facing panel, allowing you more space within your setup. The Voyager system offers multiple outputs, allowing the system to charge appliances that use up to 3000W of power.

This power system seamlessly pairs with Enerdrive’s 300Ah B-TEC Slim Lithium Battery. Designed for use in deep cycle applications, this battery is perfect for camper trailers, 4WDs (AUX battery) and caravans. Similarly to the Voyager system, this battery features a slim design, minimising the space it takes up in your setup. Additionally, the 300Ah B-TEC Slim Lithium Battery offers built-in Bluetooth capability and features an Internal Battery Management System (BMS) for easy monitoring.

The kit is rounded out with the 220W Portable Solarcase from Alvolta. Featuring top-tier monocrystalline solar cells in a lightweight, compact and sleek frame, this ultra high-powered solarcase is a must-have for off-grid power. Additionally, the solarcase and included cabling accessories each come in a protective carry case, making it easy, safe and convenient to travel with.

Our ultimate off-grid portable power kit offers you a complete power station, allowing you to confidently travel off-grid for longer.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

Datasheet_ALV-220SPC.pdf

Download

Datasheet_B-TEC 12V 300Ah Slimline Lithium Battery.pdf

Download

Brochure_The Voyager Power System.pdf

Download

Product Specifications

Voyager (Top)
DC Battery Charger	12V 40A+ DC2DC Battery Charger (Vehicle/Solar)
AC Battery Charger	12V 100A AC Battery Charger
Solar Charge Input	Included
Lithium Battery Ready	Included
Inverter	3000W/100A Inverter-Charger
Battery Monitor	Simarine LCD Touch Screen WiFi Battery Monitoring System
Pre-Wired Circuit Breakers for Main Power Equipment	Included
Switches	4 x Contura Water Resistant Rocker Switches (Customisable)
USB Output Sockets	Twin USB-A 2.4A Hi Amp Sockets
Cigarette Socket Output	1
Anderson Plug Socket Output	1
RCD Protected Power Point	2
Individual Load/Charge Module	Included for Simarine SI-SCQ50
Water/Fuel Tank Monitoring	2x Resistance Inputs Included for Simarine SI-SCQ50
Load Output 50A Circuit Breaker	Included
Ignition Input for Smart Alternator Equipped Vehicles	Included. Requires Connection
3000W Inverter 300A Input Circuit Breaker	Included
Dimensions	830W x 700H x 155D mm
Weight	28.5kg
Orientation	Left
Warranty	5-Years

300Ah B-TEC Slimline Lithium Battery
Nominal Voltage	12.8V
Nominal Capacity	300Ah
Charge Cycles (DOD - 80%)	>2500 Cycles
Charge Specifications
Battery Charge Temperature	0 - 45°C
Nominal Charge Voltage	14.2 - 14.6V
Standby Voltage (Float)	13.5 - 13.8V
Maximum Charge Current	150A at 25°C for 30mins
Recommended Charge Current for Maximum Life	60 - 120A
Discharge Specifications
Battery Discharge Temperature	-20 - +60°C
Battery Output Voltage Range	11.0 - 14.6V
Maximum Discharge Current	250A at 25°C ± 5°C for 30mins
Pulse Discharge Current	450A for 1sec
Discharge Cut-off Voltage	<11.2V
Circuit Protection	The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge Protection
Over-Charge Protection per Cell	3.75V ± 0.03V
Over-Charge Release per Cell	3.60V ± 0.05V
Over-Charge Release Method	Discharge Below Release Voltage
Over-Discharge Protection
Over-Discharge Protection per Cell	2.80V ± 0.05V
Over-Discharge Release per Cell	3.20V ± 0.05V
Over-Discharge Release Method	Apply Charge/Voltage >12.8V
Over Current Protection
Discharge Over Current	280A for 25sec - 400A for 3.5sec
Protection Reset Time	5sec Auto Release
Over Current Release Method	Disconnect Load
Over Temperature Protection
Battery Discharge Over Temperature Protection	To 65°C ± 5°C
Battery Discharge Over Temperature Release	At 50°C ± 5°C
Battery Charge Over Temperature Protection	To 55°C ± 5°C
Battery Charge Over Temperature Release	At 45°C ± 5°C
Short Circuit Protection	Auto Release After 5sec
Mechanical Specifications
Dimensions	630L x 498H x 176.5D mm
Weight	48kg
Case Construction	Powder-Coated Zinc Plate
Storage Information
Temperature Range	<30 days: -20°C - +60°C >30 days: -10°C - +45°C
Humidity Range	5 - 75% Relative Humidity
Warranty	5-Years

220W Solarcase
Electrical Data
Maximum Power	220W
Optimum Operating Voltage	20.9V
Optimum Operating Current	10.53A
Open Circuit Voltage	24.5V
Short Circuit Current	11.05A
Module Efficiency	22.8%
Maximum System Voltage	200V DC
Power Tolerance	±3%
Thermal Data
Operating Temperature Range	-20°C to +70°C
Temperature Coefficient (Pmax)	-0.38%/°C
Temperature Coefficient (Voc)	-0.36%/°C
Temperature Coefficient (Isc)	-0.05%/°C
Mechanical Data
Solar Cells	Monocrystalline 166mm Cells
No. of Cells	72 (3 x 12 x 2)
Dimensions	1095 x 1072 x 25mm
Weight	6.33kg
Frame	Anodized Aluminium
Junction Box	IP68 Rated
Connectors	MC4 Style
Output Cables	4mm², 900mm
