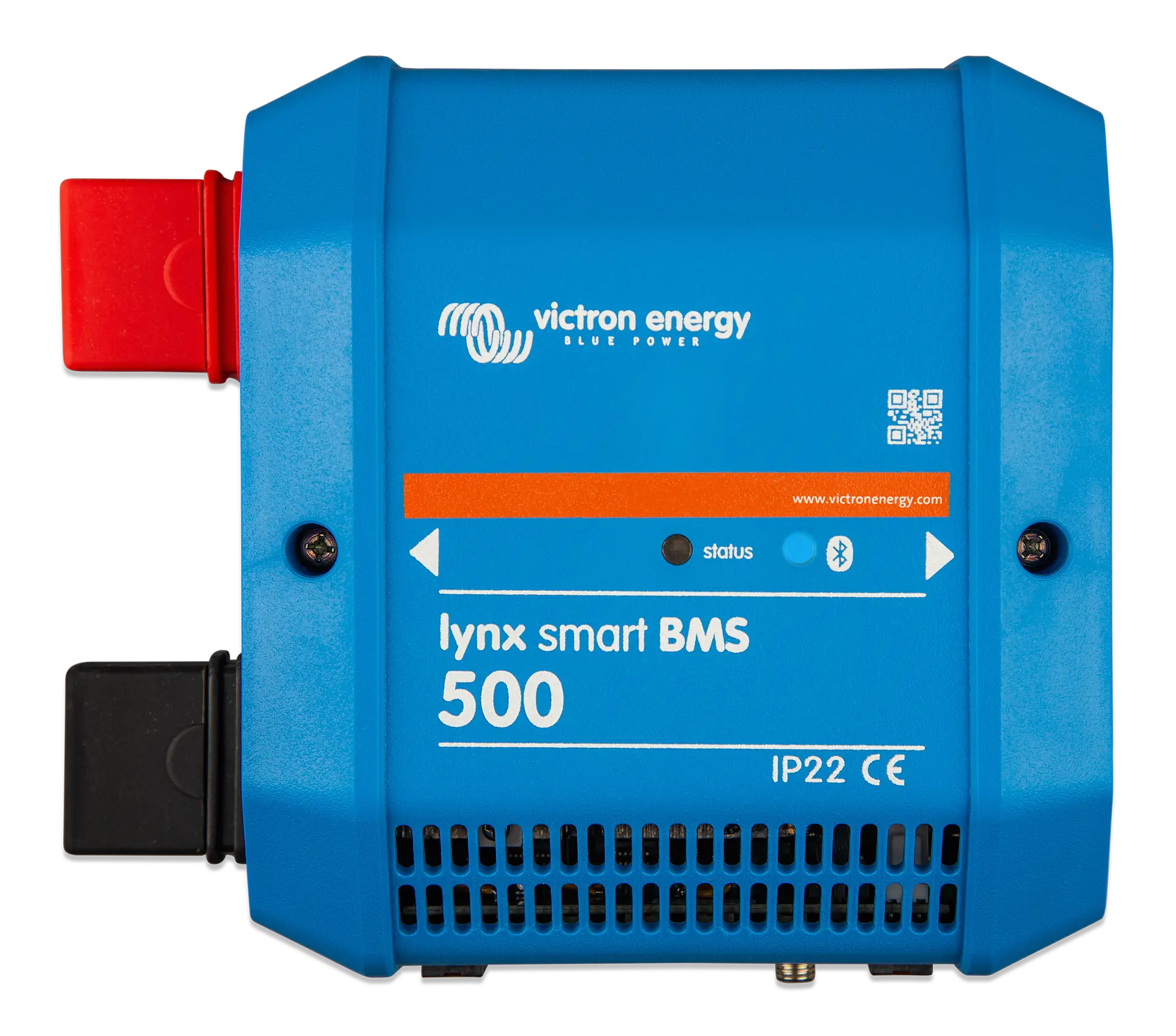

Victron Lynx Smart BMS 500 (M10)
An advanced battery management system for Victron Lithium Smart batteries, featuring a 500A safety contactor and integrated battery monitoring to provide professional-grade protection and seamless Bluetooth integration for 12V, 24V, and 48V power systems
VICTRON
30-day money-back guarantee
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
Ships in 2-3 Business Days (online only products may differ)
Cable & Accessories, MONITORING
LYN034160210
Victron Lynx Smart BMS 500 (M10)
Features
- Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch
- Battery monitor, indicating state of charge percentage and more data
- Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell
- Bluetooth for use with the VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance
- Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX
Where to use it
The Victron Lynx Smart BMS 500 (M10) is the ultimate control and safety hub for high-capacity Victron Lithium Smart battery systems in 12V, 24V, or 48V configurations. Designed to integrate seamlessly with the Lynx Distribution system, it features a robust 500A safety contactor and an integrated battery monitor that provides precise state-of-charge data and cell-level protection. With built-in Bluetooth and VE.Can connectivity, this BMS allows for easy remote monitoring via the VictronConnect app or a GX device, ensuring maximum system reliability for large-scale off-grid, RV, and marine installations. Its compact, professional design simplifies complex wiring while offering critical safeguards against over-voltage, under-voltage, and extreme temperatures across up to 20 batteries
Dimensions
| Width | 180 mm |
| Height | 190 mm |
| Depth | 80 mm |
| Weight | 1.90 kg |
**Note: These dimensions refer to the enclosure. The busbars are tinned copper, measuring 8 x 30 mm with M10 connection points.
Safety features
- Integrated 500A safety contactor for emergency disconnect
- High-precision battery monitoring and cell-level protection
- VE.Can and Bluetooth for real-time fault monitoring and alerts
- Programmable AUX output and alarm relay for external safeguards
- Built-in pre-charge circuit to prevent inrush current damage
- Tinned copper busbars for high-conductivity, cool operation
- Temperature and voltage monitoring for up to 20 batteries
- IP22 rated enclosure with secure, bolt-down M10 connections
Warranty
- 5-year warranty
- Access to Springers Solar’s warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Accessory Products

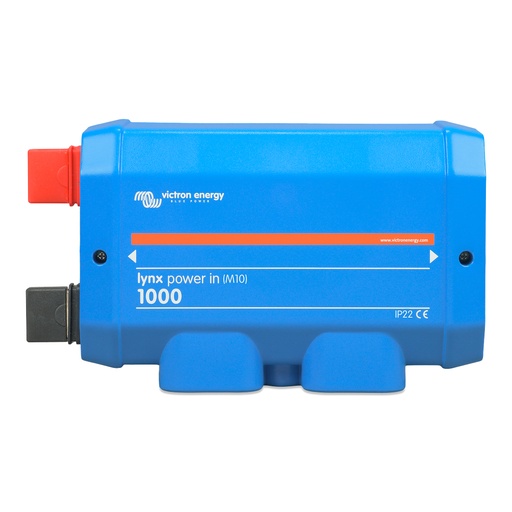

![[LYN020102010] Victron Lynx Power In (M10)](/web/image/product.product/19220/image_512/%5BLYN020102010%5D%20Victron%20Lynx%20Power%20In%20%28M10%29?unique=cc6da9e)
![[LYN040102100] Victron Lynx Shunt VE.Can](/web/image/product.product/3304/image_512/%5BLYN040102100%5D%20Victron%20Lynx%20Shunt%20VE.Can?unique=27cb672)

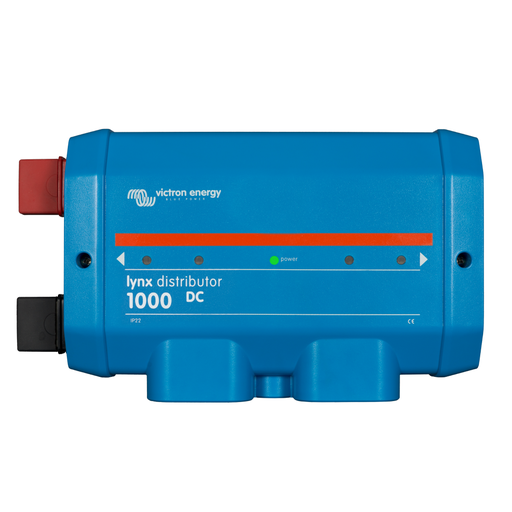

![[LYN060102010] Victron Lynx Distributor (M10)](/web/image/product.product/18699/image_512/%5BLYN060102010%5D%20Victron%20Lynx%20Distributor%20%28M10%29?unique=cc6da9e)

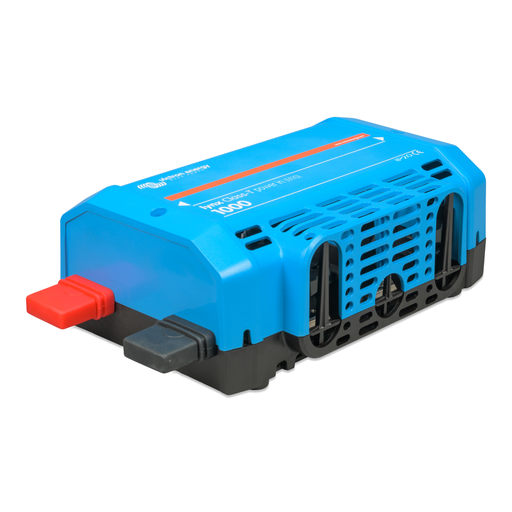

![[LYN060404010] Victron Lynx Class-T Power In (M10)](/web/image/product.product/18697/image_512/%5BLYN060404010%5D%20Victron%20Lynx%20Class-T%20Power%20In%20%28M10%29?unique=b7f97bd)
Alternative Products

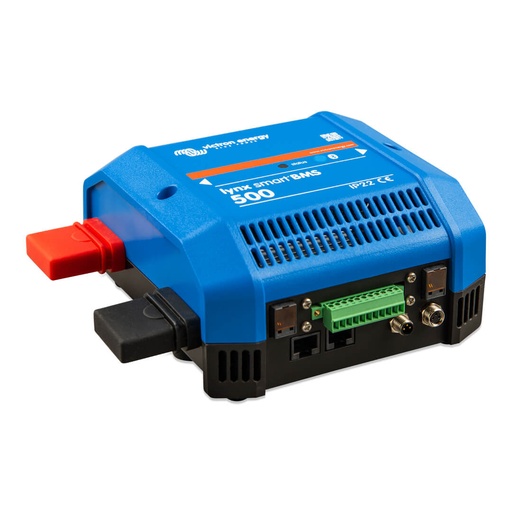

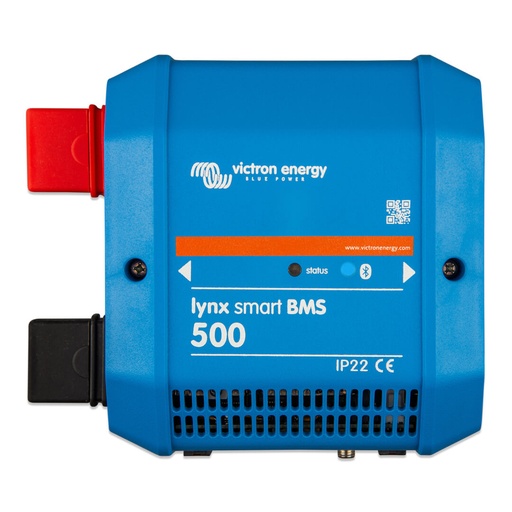

![[LYN034160310] Lynx Smart BMS 500 NG (M10)](/web/image/product.template/18078/image_512/%5BLYN034160310%5D%20Lynx%20Smart%20BMS%20500%20NG%20%28M10%29?unique=cc6da9e)
![[LYN034170210] Victron Lynx Smart BMS 1000 (M10)](/web/image/product.template/17642/image_512/%5BLYN034170210%5D%20Victron%20Lynx%20Smart%20BMS%201000%20%28M10%29?unique=e1269ca)

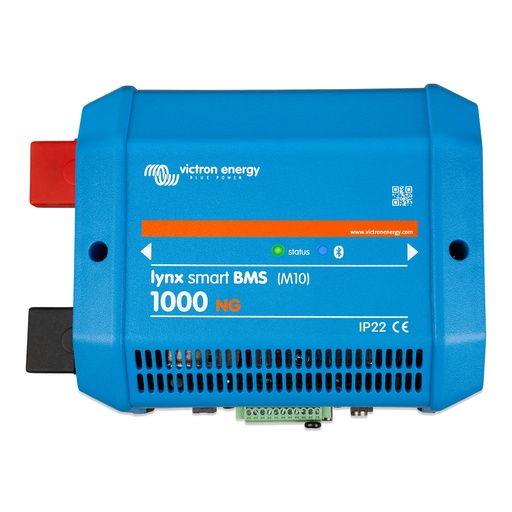

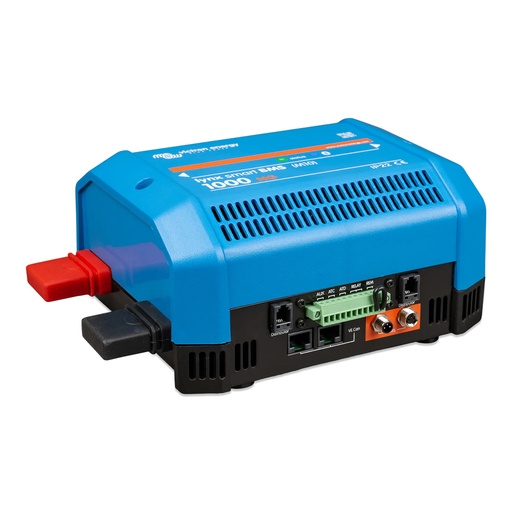

![[LYN034170310] Victron Lynx Smart BMS 1000 NG (M10)](/web/image/product.template/18162/image_512/%5BLYN034170310%5D%20Victron%20Lynx%20Smart%20BMS%201000%20NG%20%28M10%29?unique=cc6da9e)
