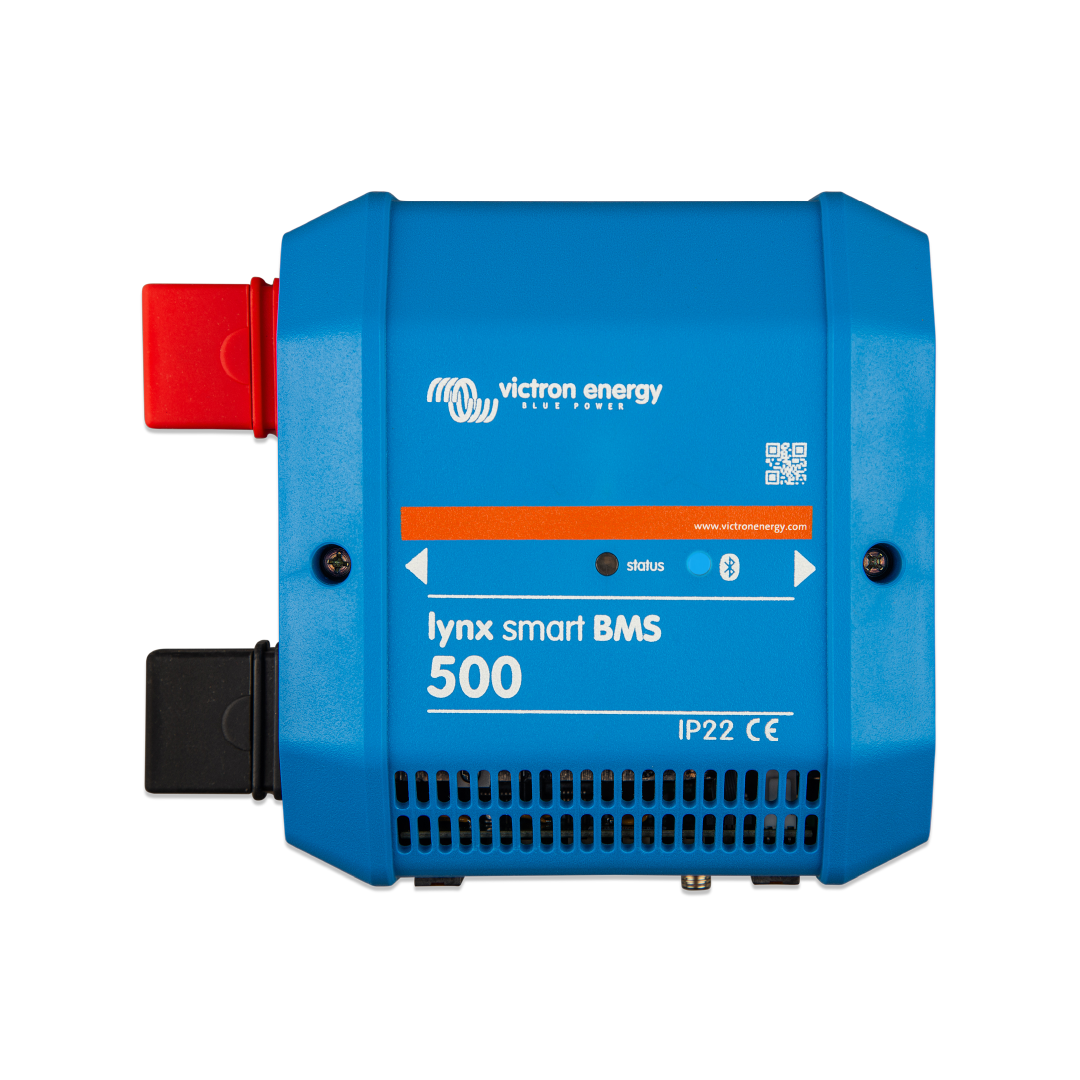

Victron Lynx Smart BMS 1000 (M10)
Lynx Smart BMS 500
Lynx Smart BMS 500
Lynx Smart BMS 500
Lynx Smart BMS 500
Lynx Smart BMS 500
Victron Lynx Smart BMS 1000 (M10)
Lynx Smart BMS 500
Lynx Smart BMS 500
Lynx Smart BMS 500
Lynx Smart BMS 500
Lynx Smart BMS 500

Victron Lynx Smart BMS 1000 (M10)

https://www.springers.com.au/web/image/product.template/17642/image_1920?unique=e1269ca
(0 reviews)

Features:
- Battery Management System
- Connects to Victron Smart Lithium Batteries
- Built-in Bluetooth
- 1000A Contactor
- 5-Year Warranty

$ 1,489.92 - Inc GST 1489.92 in stock AUD $ 1,489.92 Tax Included

Not Available For Sale

($ 0.00 / Unit)
  • Brand

This combination does not exist.

You have already submitted a query for this product today.
In stock
In stock
In stock
Contact Us
Brand: Victron
VICTRON
Terms and Conditions
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
BATTERIES, Cable & Accessories, MONITORING
LYN034170210

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Lynx Smart BMS

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A (with M8 busbar connections) and 1000A (with M10 busbar connections).

The main features are:

  • Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
  • Battery monitor, indicating state of charge percentage and more data.
  • Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.

Applications

Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand Victron
manual_Lynx_Smart_BMS-pdf-en.pdf
Download
Datasheet-Lynx-Smart-BMS-EN.pdf
Download

Product Specification

Battery voltage range9 – 60 VDC
Maximum input voltage75 VDC
Supported system voltages12, 24 or 48 V
Reverse polarity protectionNo
Main safety contactor continuous current rating1000 A continuous
Main safety contactor peak current rating1200 A for 5 minutes
Power consumption OFF mode0.3 mA for all system voltages
Power consumption in Standby modeApproximately 0.6 W (50 mA at 12 V)
Power consumption in ON modeApproximately 4.2 W (350 mA at 12 V) depending on the state of the relays
Minimum load resistance for pre-charging10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating1.1 A continuous, protected by resettable fuse
Allow-to-charge port Maximum current rating0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port Maximum current rating0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT) Maximum current rating2 A at 60 VDC
BusbarM10 (Torque: 33 Nm) (17 Nm for units with a serial number before HQ2340XXXX)
VE.CanRJ45
I/ORemovable multi-connector with screw terminals
Battery BTV cablesMale and female circular 3-pole connector with M8 screw ring Up to 20 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules)RJ10 (cable ships with each Lynx Distributor)
Enclosure materialABS
Enclosure dimensions (h x w x d)230 x 180 x 100 mm
Unit weight2.7 kg
Busbar materialTinned copper
Busbar dimensions (h x w)8 x 30 mm
Operating temperature range-40 °C to +60 °C
Storage temperature range-40 °C to +60 °C
HumidityMax. 95 % (non-condensing)
Protection classIP22
SafetyEN-IEC 63000:2018
EMCEN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMSNEN-EN-ISO 9001:2015


Accessory Products

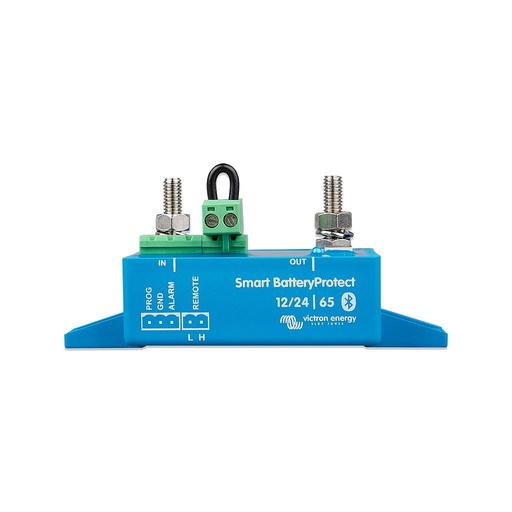

[BPR065022000] Victron Smart BatteryProtect 12/24V 65A
VICTRON
Victron Smart BatteryProtect 12/24V 65A
$ 77.50 $ 77.50 77.5 AUD
Tax Included
SKU: BPR065022000

Alternative Products

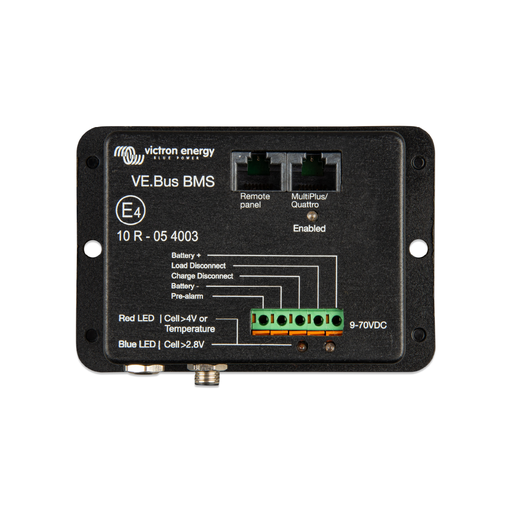

[BMS300200000] Victron VE.Bus BMS
VICTRON
Victron VE.Bus BMS
$ 167.80 $ 167.80 167.8 AUD
Tax Included
SKU: BMS300200000
[LYN034160200] Victron Lynx Smart BMS 500
VICTRON
Victron Lynx Smart BMS 500
$ 1,194.09 $ 1,194.09 1194.09 AUD
Tax Included
SKU: LYN034160200

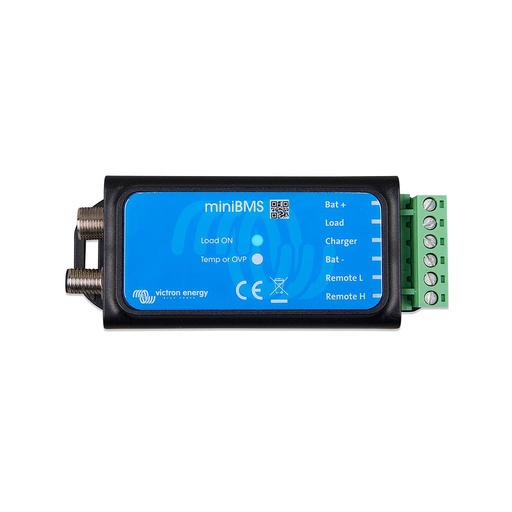

[BMS400100000] Victron Small BMS
VICTRON
Victron Small BMS
$ 74.98 $ 74.98 74.98 AUD
Tax Included
SKU: BMS400100000

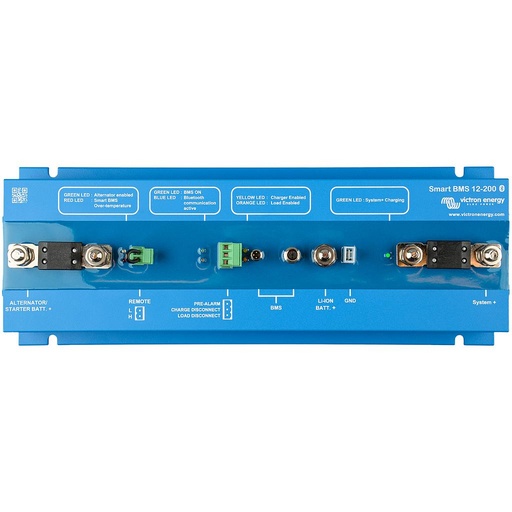

[BMS210055000] Victron Smart BMS 12/200
VICTRON
Victron Smart BMS 12/200
$ 357.50 $ 357.50 357.5 AUD
Tax Included
SKU: BMS210055000

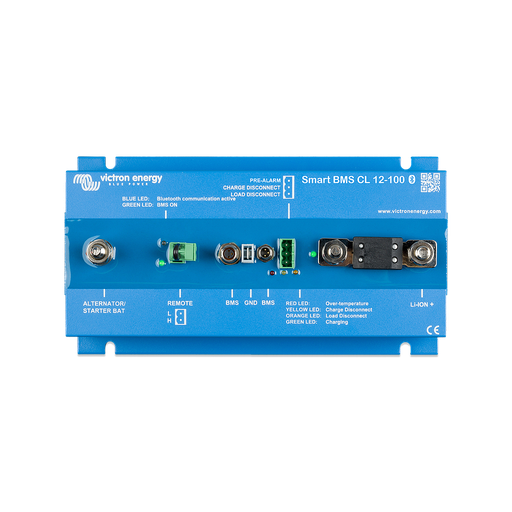

[BMS110022000] Victron Smart BMS CL 12/100
